1 2010 Audiovox Electronics Corporation. All rights reserved. PROFESSIONAL SERIES CATX4 Owner’s Guide IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information. Vehicle Security and Keyless Entry System 22010 Audiovox Electronics Corporation. All rights reserved. Table of Contents Using Your Remote Control............................................................... 3 Arming the Security System ............................................................ 3 Passive Arming Bypass................................................................... 3 Bypassing the Shock Sensor.......................................................... 3 Hidden Alarm Function...................................................................... 3 Disarming the Security System........................................................ 3 Valet Mode........................................................................................ 4 Manually Overriding the Security System....................................... 4 Eliminating Arm/Disarm Notification Chirps...................................... 4 Activating Trunk Release (optional)................................................ 4 Using the Car Finder Feature........................................................... 4 Using the Personal Protection Alarm............................................... 5 Car Jack Mode.................................................................................. 5 LED and Siren/Horn Indications......................................................... 6 Transmitter Button Functions........................................................... 7 Replacing Remote Control Batteries............................................... 7 Warranty Information........................................................................... 8 3 2010 Audiovox Electronics Corporation. All rights reserved. Arming the Security System To arm the system, exit the vehicle, close all doors, then press the button. The parking lights will flash 2 times, indicating the system is armed, has locked the doors (if equipped and connected) and activated the starter disable feature. The LED status indicator will blink steadily, once per second. NOTE: The system is defaulted with Silent Choice enabled, which requires a second press of the button to activate an audible arming response from the vehicle. Passive Arming Bypass If passive arming is enabled on your system, while the system is disarmed, press 2 times within 5 seconds, the system will respond with 1 chirp and the LED will turn on. The security system will remain in this temporally bypassed state for as long as you wish. To exit passive bypass, press the or button and the system will return to normal status. Bypassing The Shock Sensor To arm the system and ignore the shock sensor press button, then within 5 seconds press + , the system will respond with 1 long chirp. NOTE: The system will only change the shock sensor setting for one arm cycle and will be defaulted back to normal operation the next time the system is armed. Hidden Alarm Function Press the button first, within 3 seconds press the button to activate the hidden alarm function. The security system will arm with “Hidden Alarm Function” in which the siren / horn will be silenced if the system is triggered. Disarming the Security System To disarm the system press the button. The parking lights will flash 1 time, indicating the system is disarmed and has unlocked the doors (if equipped and connected). NOTE: The system is defaulted with Silent Choice enabled, which requires a second press of the button to activate an audible arming response from the vehicle. *Throughout this manual, ‘press’ refers to pressing for less than 1 second; ‘press and hold’ refers to pressing for more than 2 seconds. Using Your Remote Control 42010 Audiovox Electronics Corporation. All rights reserved. Valet Mode To engage valet mode: 1.Turn the ignition key to the ON position. 2.Press and hold the emergency override button. 3.The LED will light solid indicating that the system is in valet mode. When valet mode is activated the status LED will light solid, and all security and remote start functions will be disabled. To disengage valet mode: 1.Turn the ignition key to the ON position. 2.Press and release the emergency override button. 3.The LED will turn off indicating that the system has exited valet mode. Manually Overriding the Security System Your system can be disarmed without the use of the transmitter. This is necessary, since you will need the ability to operate your vehicle if the transmitter is lost or its battery fails. To by-pass the alarm system; 1.Open the vehicle door. The alarm will sound. 2.Turn the ignition key to the ON position. 3.Within 5 seconds, press and release the valet push button switch. The alarm system will stop sounding and enter the (by-passed) mode. You can now start and operate the vehicle normally. Eliminating Arm / Disarm Notification Chirps System ARM/DISARM chirps can be toggled ON or OFF without entering the programming feature banks. 1.Turn the ignition ON then OFF. 2.Press and release the valet/programming button 3 times. The system will respond with 1 chirp for ON or 2 chirps for OFF. Activating the Trunk Release Feature (Optional) If this feature is enabled on your system, pressing and holding the button for 3 seconds will open the vehicle’s trunk or hatch. Using the Progressive Car Finder Feature Press the button to locate your vehicle. The system will sound 5 times at low volume, increasing in volume each time the button is pressed. 5 2010 Audiovox Electronics Corporation. All rights reserved. Using the Personal Protection Alarm (Panic) Press and hold the button for 3 seconds to activate the personal protec…

Text truncated - open the document above for the full version.

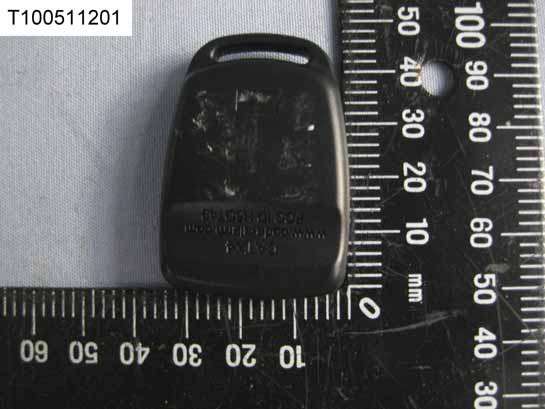

Compliance Certification Services Inc. Report No.: T100511201 Date of Issue: May 20, 2010 Page 1 Total Page: 2 Rev. 00 PHOTOGRAPHS OF EUT

FCC ID LABEL FORMAT AND LOCATION Advance Security Inc. FCC ID: H5OT49 FCC ID: H5OT49 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: T100511201 Date of Issue: May 20, 2010 Page 2 Rev. 00

Compliance Certification Services Inc. Report No.: T100511201-RP1 FCC ID: H5OT49 Date of Issue: May 20, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 26 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Car Alarm Transmitter Model: CATX4 Trade Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Sindian BU. No.163-1, Jhongsheng Rd., Sindian City, Taipei County 23151, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Compliance Certification Services Inc. Report No.: T100511201-RP1 FCC ID: H5OT49 Date of Issue: May 20, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 20DB BANDWIDTH ........................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE CORRECTION FACTOR.......................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 17 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 25 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 26 Compliance Certification Services Inc. Report No.: T100511201-RP1 FCC ID: H5OT49 Date of Issue: May 20, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: Car Alarm Transmitter Tr a d e N a m e : Advance Security Inc. Model: CATX4 Date of Test: May 18, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. Sindian BU. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Compliance Certification Services Inc. Report No.: T100511201-RP1 FCC ID: H5OT49 Date of Issue: May 20, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Car Alarm Transmitter Trade Name Advance Security Inc. Model Number CATX4 Modulation Technique ASK Power Supply 3VDC Battery Frequency Range 433.92 MHz Antenna Specification Helical Antenna / Gain: -2 dbi Associated Receiver H5OR54 Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: H5OT49 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: T100511201-RP1 FCC ID: H5OT49 Date of Issue: May 20, 2010 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2003) and FCC CFR 47 2.1046, 2.1047, 2.1…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100511201-RP1 FCC ID: H5OT49 Date of Issue: May 20, 2010 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up (Transmitter Mode) X-axis Compliance Certification Services Inc. Report No.: T100511201-RP1 FCC ID: H5OT49 Date of Issue: May 20, 2010 Page 7 Rev. 00 Y-axis Z-axis
