H5OT52Car Alarm Transmitter

C3-RS-601 H1 6 Pin Wht. H2 5 Pin H3 10 Pin White H4 Valet H5 ANT. H6 DL H7 LED RX-300A Valet Switch Violet : Starter Output Red : 12 Volt Input Red : 12 Volt Input Yellow. Ignition 1 Output Pink : Ignition 2 Output Brown ACC Output LED Indicator FUSE FUSE Red/White : Parking light Input FUSE White : Parking light Output Black : System Ground Brown : Programmable Output (-) Horn (-) or Factory Rearm (-) Red : System Power + 12 Volt Yellow : Ignition 3 Output ( 200 mA - ) Blue/Black : ACC 2 ( 200 mA - ) Pink : 200mA Programmable Output (-) White : Ground When Running By-pass Control Output Gray : CH 3 Trunk Release (-) White/Violet : Safety Shutdown Brake Input (+) Black/White : Neutral Safety Switch (-) Input White/Black : Safety, Hood Pin Input (-) White/Blue : Instant Start (-) Input White/Red : Tachometer Signal Input Blue : (-) Unlock (+) Lock Green : (-) Lock (+) Unlock Door Locks H8 20A 20A Red: Remote Start Power 1 Red: Remote Start Power 2 Violet: Starter (+) Output Pink: Ignition 2 (+) Output Yellow: Ignition 1 (+) Output Brown: Acc/Heater (+) Output Red: 12v + Battery Power Brown: Siren (+) Output Black: System Main Ground (-) White: Parking Light Relay Output Red/White: Parking Light Relay Power Input FEATURE “III” PROGRAMMING: 1. Turn the Ignition 'switch „ON/OFF‟ 3 TIMES and stay in OFF position. 2. Push the Valet switch 3 times (holding in on the 3 rd push) until one chirp with one long chirp is heard, then release the valet switch. You are now in the Alarm feature “A” programming mode. 3. Press and release the transmitter button corresponding to the feature you want to program. Press Transmitter Button One Chirp / LED one pulse Factory Default Setting Two Chirps / LED two pulse Three Chirps / LED three pulse Four Chirps / LED four pulse 1. 20 minutes run time 10 minutes run time 30 minutes run time 5 minutes run time 2. 0.8-second Door lock & Unlock. 3.5-second Door Lock & Unlock. 0.8 second lock, 0.35 second unlock 0.8 second dbl lock,0.8 second dbl unlock Five chirps= 0.8 second lock, dbl 0.8 second unlock Six chirps= dbl 0.8 second lock, 0.8 second unlock 3. + Door Lock before start Door Lock after start Door Lock before & after start * This is the preferred setting when using the optional XT-11 single button remote Without this feature Exit: Turn Ignition to 'OFF' position, or leave it for 15 seconds. 3 long chirps & 3 parking light flashes will confirm exit. FEATURE “IV” PROGRAMMING: 1. Turn the Ignition 'switch „ON/OFF‟ 3 TIMES and stay in OFF position. 2. Push the Valet switch 4 times (holding in on the 4 th push) until one chirp with one long chirp is heard, then release the valet switch. You are now in the Alarm feature “A” programming mode. 3. Press and release the transmitter button corresponding to the feature you want to program. Press Transmitter Button One Chirp / LED one pulse Factory Default Setting Two Chirps / LED two pulse Three Chirps / LED three pulse Four Chirps / LED four pulse 1. Tachometer checking type. Voltage checking type Timer checking type DBI TACH ** DATA ONLY !! 2. RPM learning Start Timer: 0.6-second 0.8-second (2 chirps), 1.0-second (3 chirps), 1.2-second (4 chirps), 1.4-second (5 chirps), 1.6-second (6 chirps), 1.8- second (7 chirps), 2.0-second (8 chirps), 3.0-second (9 chirps), 4.0-second (10 chirps), 3. + Low ceck level Hi check level Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. 3 long chirps & 3 parking light flashes will confirm exit. FEATURE “V” PROGRAMMING: 1. Turn the Ignition 'switch „ON/OFF‟ 3 TIMES and stay in OFF position. 2. Push the Valet switch 5 times (holding in on the 5 th push) until one chirp with one long chirp is heard, then release the valet switch. You are now in the Alarm feature “A” programming mode. 3. Press and release the transmitter button corresponding to the feature you want to program. Press Transmitter Button One Chirp / LED one pulse Factory Default Setting Two Chirps / LED two pulse Three Chirps / LED three pulse Four Chirps / LED four pulse 1. Second Accessory H3/9 Blue/Black Second Start H3/9 Blue/Black 2. + 50 RPM DBI ONLY No RPM learning 3. + - 50 RPM DBI ONLY No RPM Learning or < 50RPM Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. 3 long chirps & 3 parking light flashes will confirm exit. C3-RS-601 QUICK START INSTALLATION GUIDE Help Auto Page protect our environment ! If you are not proficient in the installation of this product or would like a full version of the installation manual, Please visit our web site @ www.autopageusa.com FOR PROFESSIONAL INSTALLATION ONLY! H1 6 PIN HEAVY GAUGE WIRE HARNESS H5 5 PIN WIRE HARNESS PROGRAMMING TRANSMITTER Note: This model will only retain the last 4 remote transmitters programmed. If the transmitter memory is exceeded, the security system will start deleting transmitters from memory in chronological order. 1. Turn the Ignition 'switch „OFF/ON‟ 3 TIMES and stay in ON position. “Within 15 seconds”. 2. Push the Valet switch 2 times and hold it on the 2 nd push until a long chirp is heard then release the valet switch. You are now in the Transmitter programming mode. 3. Press and hold any button of the transmitter until the siren responds with a confirming chirp, indicating the signal has been stored into memory. 4. If you have additional transmitters (up to 4) that need to be programmed, repeat step 3 for remaining transmitters. FEATURE PROGRAMM FEATURE “I” PROGRAMMING: 1. Turn the Ignition 'switch „ON/OFF‟ 3 TIMES and stay in OFF position. 2. Push the Valet switch 1 times (holding in on the 1 st push) until one chirp with one long chirp is heard, then release the valet switch. You are now in the Alarm feature “A” programming mode. 3. Press and release the transmitter button corresponding to the feature you want to program. Press Transmitter Button One Chirp / LED one pulse Factory Default Setting Two Chirps / LED two pulse Three Chirps/ LED three pulse 1. H3/2 White/Blue = 1 Pulse Remote Start H3/2 White/Blue = 3 Puls…

Text truncated - open the document above for the full version.

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date: April 8, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Sam Hu / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCSRF, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Sam Hu / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCSRF as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;

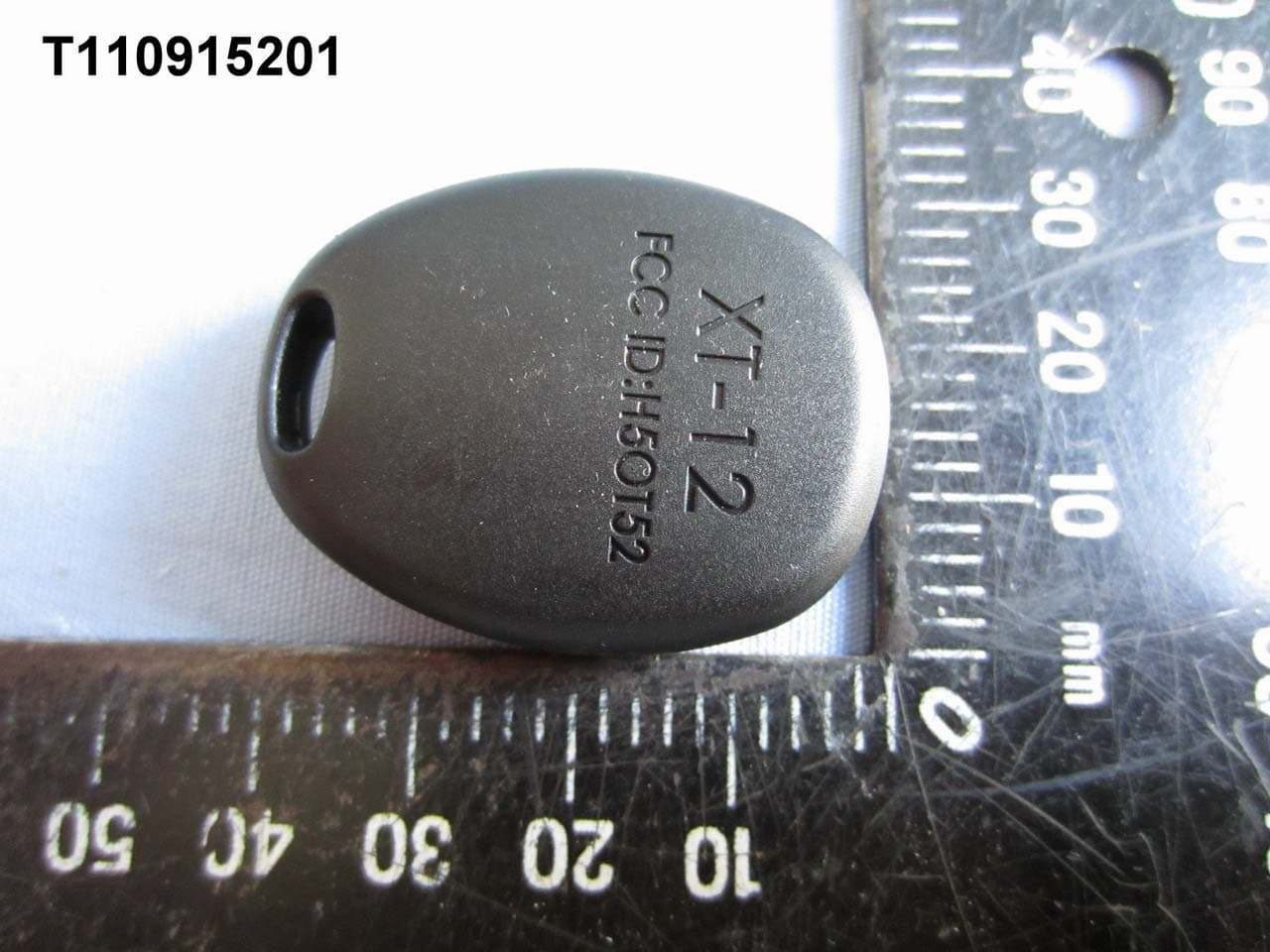

Compliance Certification Services Inc. Report No.: T110915201 Date of Issue: September 27, 2011 Page 1 Total Page: 3 Rev. 00 PHOTOGRAPHS OF EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Advance Security Inc. Model: TX710A FCC ID: H5OT52 FCC ID: H5OT52 FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: T110915201 Date of Issue: September 27, 2011 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: T110915201 Date of Issue: September 27, 2011 Page 3 Rev. 00

Compliance Certification Services Inc. Report No.: T110915201-RP1 FCC ID: H5OT52 Date of Issue: September 27, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 25 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Car Alarm Transmitter Model: TX710A Brand Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Sindian Lab. No.163-1, Jhongsheng Rd, Sindian City, Taipei County 23151, Taiwan (R.O.C.) TEL: (02) 2217-0894 FAX: (02) 2217-1029 Compliance Certification Services Inc. Report No.: T110915201-RP1 FCC ID: H5OT52 Date of Issue: September 27, 2011 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 20DB BANDWIDTH ........................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE CORRECTION FACTOR.......................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 17 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 23 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 24 Compliance Certification Services Inc. Report No.: T110915201-RP1 FCC ID: H5OT52 Date of Issue: September 27, 2011 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: Car Alarm Transmitter Brand Name: Advance Security Inc. Model: TX710A Date of Test: September 20, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. Sindian BU. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Compliance Certification Services Inc. Report No.: T110915201-RP1 FCC ID: H5OT52 Date of Issue: September 27, 2011 Page 4 Rev. 00 2. EUT DESCRIPTION Product Car Alarm Transmitter Brand Name Advance Security Inc. Model Number TX710A Modulation Technique ASK Power Supply 6VDC Battery Frequency Range 433.92 MHz Antenna Specification Helical Antenna / Gain: -2.5dbi Associated Receiver H5OR50 Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: H5OT52 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: T110915201-RP1 FCC ID: H5OT52 Date of Issue: September 27, 2011 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T110915201-RP1 FCC ID: H5OT52 Date of Issue: September 27, 2011 Page 24 Rev. 00 APPENDIX I-PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION SET UP PHOTOS TX Mode X axis Y axis Compliance Certification Services Inc. Report No.: T110915201-RP1 FCC ID: H5OT52 Date of Issue: September 27, 2011 Page 25 Rev. 00 Z axis
