H5OTR04Car Alarm Transceiver

OCT/11/2002 RST871A OP 1 MODEL RST871A REMOTE ENGINE STARTER WITH ALARM SYSTEM OWNER’S MANUAL OCT/11/2002 RST871A OP 2 TABLE OF CONTENTS: A. REMOTE TRANSMITTER OPERATION .................................................................................... 4 B. BUTTON LOCK ..................................................................................................................... 4 C. LED DISPLAY ....................................................................................................................... 5 D. CHIRP INDICATOR ................................................................................................................ 5 E. PARKING LIGHT ................................................................................................................... 5 F. ALARM OPERATION CONDITION ............................................................................................ 5 G. ACTIVE ARMING – ARM & LOCK ............................................................................................ 5 Defective Sensor Reminder Silent Arming / Disarming Shock Sensor By-Pass H. PASSIVE ARMING ................................................................................................................ 6 Passive Arming with Passive Door Locking Passive Arming By-Pass I. ACTIVE DISARMING – UNLOCK & DISARM ................................................................................6 Tamper Disarming Pathway Illumination Two Steps Door Unlock Automatic Re-Arm J. DISARMING WITHOUT A TRANSMITTER .................................................................................. 6 Overrides the Alarm without Password Pin Code Overrides the Alarm With Password Pin Code K. VALET MODE ....................................................................................................................... 7 Enter Valet Mode Exit Valet Mode L. CAR LOCATOR ..................................................................................................................... 7 M. PANIC FUNCTION ................................................................................................................. 7 N. TRIGGER THE SYSTEM ......................................................................................................... 8 Clear The Trigger Icons and Melody Sound Stop The Melody Sound Only Noise Abatement Circuit O. ANTI CAR- JACKING ............................................................................................................. 8 Active Anti Car Jacking Passive Anti Car Jacking Trigger The Anti Car Jacking Mode Override The System To Turn Off Anti Car Jacking P. SYSTEM’S TRIGGER CHECK .................................................................................................. 9 Q. SYSTEM’S STATUS CHECK ................................................................................................... 9 R. DRIVER PAGING (OPTIONAL) ................................................................................................. 9 S. DOME LIGHT CONVENIENCE DELAY & SUPERVISION ...............................................................9 T. IGNITION CONTROL THE DOOR LOCK/UNLOCK. ......................................................................9 U. TRUNK RELEASE (CHANNEL 3) OUTPUT ...............................................................................10 V. CHANNEL 4 TIMER CONTROL OUTPUT ..................................................................................10 W. CHANNEL 5 TIMER CONTROL OUTPUT ................................................................................ 10 X. CHANNEL 6 TIMER CONTROL OUTPUT ................................................................................. 10 Y. POWER ON MEMONRY: ....................................................................................................... 10 REMOTE START OPERATION: A. TO REMOTE START THE VEHICLE ....................................................................................... 10 Safe Start (Child safety mode) B. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE START .................................. 10 C. TEMPORARY STOP FEATURE .............................................................................................. 11 D. TIMER / TEMPERATURE START ........................................................................................... 11 3 Hours Timer Start With Temperature-Control Off 3 Hours Timer Start With Temperature-Control Daily Timer Start Exit the Timer Start OCT/11/2002 RST871A OP 3 E. TEMPERATURE CHECK ..................................................................................................... 11 F. TO TURN OFF THE REMOTE START .......................................................................................12 G. SHUT-DOWN INPUT FOR REMOTE STARTER ........................................................................ 12 H. DISABLING THE REMOTE START SYSTEM ............................................................................. 12 LCD REMOTE TRANSMITTER: A. BATTERY REPLACEMENT ................................................................................................... 13 B. THE REMOTE LCD ICONS WITH FUNCTION .......................................................................... 13 C. PROGRAMMING OF THE LCD REMOTE TRANSMITTER .......................................................... 14 1. Screen Lamp ON 2. Power Save Mode 3. Clear The Flash Icon and Melody Sound 4. Stop The Melody Sound. 5. Button Lock 6. Vibration / Melody Mode 7. Enable / Disable Bi Sound While Pressing Button: 8. Low Battery Indication. 9. Set Up Fixed Count Down Timer 10. Out Of The Range Check D. TIMER SETTING ................................................................................................................. 15 1. Timer Setting. 2. Alert Alarm Timer Setting 3. Count Down Timer Setting 4. Time Set-Up For “Daily Timer Start” WARNINGS: As with any product that performs automatic functions, there are c…

Text truncated - open the document above for the full version.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 4-Oct-2002 Sheet of File: D:\DDB\TRX-86.ddb Drawn By:

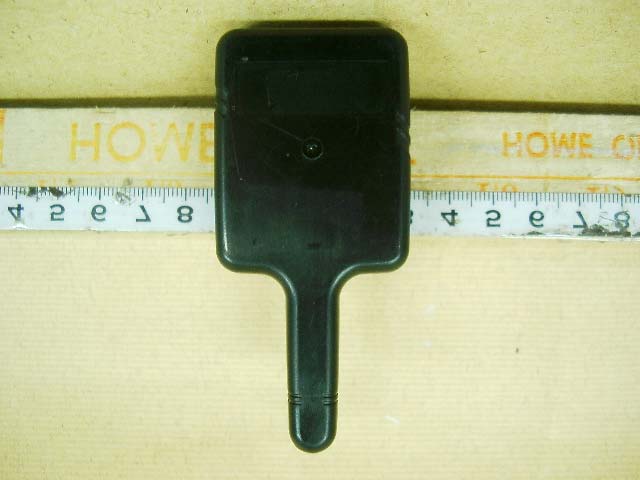

External of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Advance Security Inc. FCC ID: H5OTR04 FCC ID: H5OTR04 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Internal of EUT

TRX-86 Operational Description The 2 way pager is a low-powered transmitter device used in monitoring the automobile security status as well as in remotely engine start system and other optional features .Its features and functions are described in the separate attached sheet. The transmission is powered by DC 12V and works on 433.92 Mhz single fixed frequency. Details of circuit diagram and its block diagramare are shown on the attached sheets. The automobile’s sensor will trigger the digital control signals and modulate the carrier signal. The carrier signal is generated by a 13.56mhz crystal / FSK transmitter IC circuit composed and a npn transistor. The modulated output of RF amplifier stage is coupled to the coil. All the tuning and verification are done by manufacturer during the production process and no adjustment is allowed by any consumer. No external ground is needed in such device.

1 2 34 AB CD 4 3 2 1 D C BA Title Number Revision Size A4 Date: 4-Oct-2002 Sheet of File: D:\DDB\TRX-86.ddb Drawn By: 1 TRX-86(FCC) ADVANCE SCURITY INC. 123456789 1011121314 1516171819202122232425262728 VI GND VO 23 1 48 +5V +5V +5V FILTER DATA O/P GRUND I/P W1/2 W1/3 12V I/P W1/1 +- 56 7 +5V PDWN 1 LPD 2 VS 3 LF 4 GND 5 ASKDTA 6 FSKDTA 7 CLKOUT 8 CLKDIV 9 COSC 10 FSKOUT 11 FSKGND 12 PAGND 13 PAOUT 14 FSEL 15 CSEL 16 DATA I/P +5V W1/4 +5V 12V I/P

Report Number: 02E0505-D November 1, 2002 Page 1 of 16 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Car Alarm Transceiver FCC ID Number : H5OTR04 Trade Name : Advance Security Inc. Model Number : TRX86 Agency Series : N/A Report Number : 02E0505-D Date : November 1, 2002 Prepared for : Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, Taiwan, R. O. C. Prepared by : C&C LABORATORY CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 This report shall not be reproduced, except in full, without the written approval of C&C Laboratory Co., Ltd. Report Number: 02E0505-D November 1, 2002 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................... 3 2. PRODUCT DESCRIPTION................................................................................. 4 3. TEST FACILITY ................................................................................................... 4 4. MEASUREMENT STANDARDS ....................................................................... 4 5. TEST METHODLOGY ........................................................................................ 4 6. MEASUREMENT EQUIPMENT USED ........................................................... 5 7. POWERLINE RFI LIMIT.................................................................................... 5 8. RADIATED EMISSION LIMITS ....................................................................... 6 9. SYSTEM TEST CONFIGURATION ................................................................. 6 10. TEST PROCEDURE ............................................................................................. 8 11. EQUIPMENT MODIFICATIONS...................................................................... 9 12. TEST RESULT ..................................................................................................... 10 12.1. MAXIMUM MODULATION PERCENTAGE (M%)............................... 10 12.2. THE EMISSIONS BANDWIDTH ................................................................. 10 APPENDIX 1 TEST CONFIGURATION PHOTOS............................................. 11 APPENDIX 2 PHOTOGRAPHS OF EUT .............................................................. 16 Report Number: 02E0505-D November 1, 2002 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, Taiwan, R. O. C. CONTACT PERSON : Michael Chen / President TELEPHONE NO. : (886-2) 8648-1688 EUT DESCRIPTION : Car Alarm Transceiver MODEL NAME/NUMBER : TRX86 FCC ID : H5OTR04 DATE TESTED : October 24, 2002 & October 31, 2002 REPORT NUMBER : 02E0505 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Car Alarm Transceiver MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by C&C Laboratory Co., Ltd. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by C&C Laboratory Co., Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by C&C Laboratory Co., Ltd. will constitute fraud and shall nullify the document. James Chan / Manager C&C Laboratory Co., Ltd. Report Number: 02E0505-D November 1, 2002 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source DC 12V Transmitting Time Periodic < 5 seconds Associated Receiver Model: H5OTR03 (FCC ID) 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Report Number: 02E0505-D November 1, 2002 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date H.P. 8566B Spectrum Analyzer (100Hz-22GHz) 06/2003 H.P. 85662A Spectrum Analyzer (100Hz-22GHz) 06/2003 H.P. 85650A QUASI-PEAK DETECTOR 06/2003 EMCO 3115 Antenna (1-18GHz) 02/2003 EMCO 3142 Antenna (30-2000MHz) 06/2003 H.P. 8447D A Amplifier (30-2000MHz) 05/2003 H.P. 8449B Amplifier (1-26.5GHz) 01/2003 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 kHZ TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. Report Number: 02E0505-D November 1, 2002 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test…

Text truncated - open the document above for the full version.

Report Number: 02E0505-D November 1, 2002 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up (Transmitter Mode) Report Number: 02E0505-D November 1, 2002 Page 7 Rev. 00 Radiated Open Site Test Set Up (Receiver Mode)
