APR/30/2003 RST771A OP 1 MODEL RST772A REMOTE ENGINE STARTER WITH ALARM SYSTEM OWNER’S MANUAL APR/30/2003 RST771A OP 2 TABLE OF CONTENTS: A. REMOTE TRANSMITTER OPERATION ................................................................................. 4 B. BUTTON LOCK .................................................................................................................. 4 C. LED DISPLAY .................................................................................................................... 5 D. CHIRP INDICATOR ............................................................................................................. 5 E. PARKING LIGHT ................................................................................................................ 5 F. ALARM OPERATION CONDITION ......................................................................................... 5 G. ACTIVE ARMING – ARM & LOCK ......................................................................................... 5 Defective Sensor Reminder Silent Arming / Disarming Shock Sensor By-Pass H. PASSIVE ARMING ............................................................................................................. 6 Passive Arming with Passive Door Locking Passive Arming By-Pass I. ACTIVE DISARMING – UNLOCK & DISARM .............................................................................6 Tamper Disarming Pathway Illumination Two Steps Door Unlock Automatic Re-Arm J. DISARMING WITHOUT A TRANSMITTER ............................................................................... 6 Overrides the Alarm without Password Pin Code Overrides the Alarm With Password Pin Code K. VALET MODE .................................................................................................................... 7 Enter Valet Mode Exit Valet Mode L. CAR LOCATOR .................................................................................................................. 7 M. PANIC FUNCTION .............................................................................................................. 7 N. TRIGGER THE SYSTEM ........................................................................................................ 8 Clear The Trigger Icons and Melody Sound Stop The Melody Sound Only Noise Abatement Circuit O. ANTI CAR- JACKING .......................................................................................................... 8 Active Anti Car Jacking Passive Anti Car Jacking Trigger The Anti Car Jacking Mode Override The System To Turn Off Anti Car Jacking P. SYSTEM’S TRIGGER CHECK ............................................................................................... 9 Q. SYSTEM’S STATUS CHECK ................................................................................................ 9 R. DRIVER PAGING (OPTIONAL) .............................................................................................. 9 S. DOME LIGHT CONVENIENCE DELAY & SUPERVISION ............................................................9 T. IGNITION CONTROL THE DOOR LOCK/UNLOCK. ...................................................................9 U. TRUNK RELEASE (CHANNEL 3) OUTPUT ............................................................................10 V. CHANNEL 4 TIMER CONTROL OUTPUT .............................................................................. 10 W. CHANNEL 5 TIMER CONTROL OUTPUT ............................................................................. 10 X. CHANNEL 6 TIMER CONTROL OUTPUT .............................................................................. 10 Y. POWER ON MEMONRY: .................................................................................................... 10 REMOTE START OPERATION: A. TO REMOTE START THE VEHICLE .................................................................................... 10 Safe Start (Child safety mode) B. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE START ............................... 11 C. TEMPORARY STOP FEATURE ........................................................................................... 11 D. TIMER START ................................................................................................................. 11 3 Hours Timer Start Daily Timer Start Exit the Timer Start E. TO TURN OFF THE REMOTE START ...................................................................................12 F. SHUT-DOWN INPUT FOR REMOTE STARTER ..................................................................... 12 G. DISABLING THE REMOTE START SYSTEM .......................................................................... 12 LCD REMOTE TRANSMITTER: A. BATTERY REPLACEMENT ................................................................................................ 13 APR/30/2003 RST771A OP 3 B. THE REMOTE LCD ICONS WITH FUNCTION ....................................................................... 13 C. PROGRAMMING OF THE LCD REMOTE TRANSMITTER ....................................................... 14 1. Screen Lamp ON 2. Power Save Mode 3. Clear The Flash Icon and Melody Sound 4. Stop The Melody Sound. 5. Button Lock 6. Vibration / Melody Mode 7. Enable / Disable Bi Sound While Pressing Button: 8. Low Battery Indication. 9. Set Up Fixed Count Down Timer 10. Out Of The Range Check D. TIMER SETTING .............................................................................................................. 15 1. Timer Setting. 2. Alert Alarm Timer Setting 3. Count Down Timer Setting 4. Time Set-Up For “Daily Timer Start” WARNINGS: As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of. 1. Keep the transmitter out of children’s reach. 2. Do not leave anyone in the vehicle while running on remote control. 3. Alert servicing personnel that the vehicle can be started automatically. 4. Do not start the vehicle by rem…

Text truncated - open the document above for the full version.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 25-Jun-2003 Sheet of File: E:\Jong\ddb-work\TRX-751DV.ddb Drawn By:

FCC ID LABEL FORMAT AND LOCATION Applicant: Advance Security Inc. FCC ID: H5OTR10AM FCC ID: H5OTR10AM This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

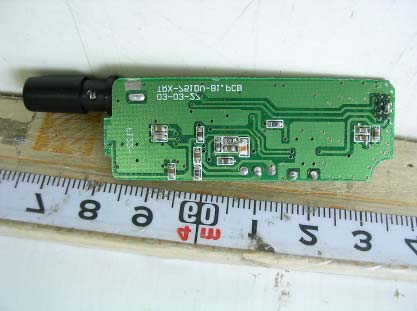

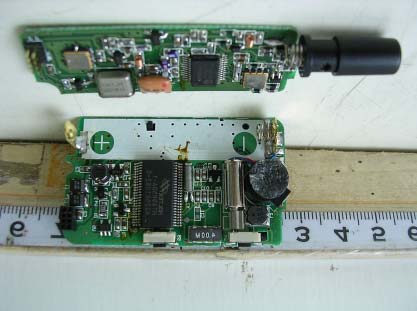

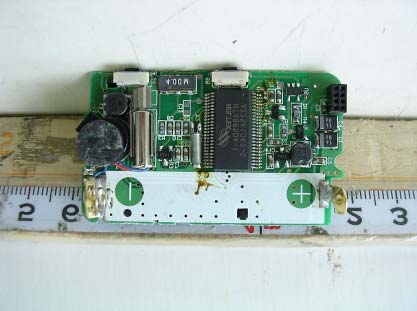

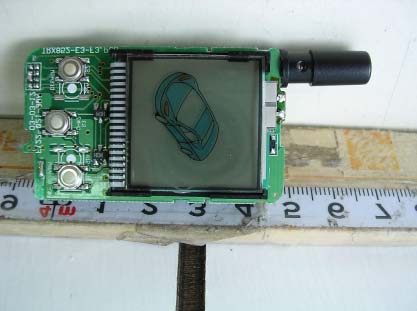

Report Number: C30626416-RP July 8, 2003 Page 14 Rev. 00 Internal of EUT Report Number: C30626416-RP July 8, 2003 Page 15 Rev. 00 Report Number: C30626416-RP July 8, 2003 Page 16 Rev. 00 Report Number: C30626416-RP July 8, 2003 Page 17 Rev. 00

TRX752DV Operational Description The 2 way pager is a very low-powered remote control/ monitoring device used in motoring the automobile security status as well as in remotely arming/disarming car security system and other optional features like vibration or audible peping warning sound during alert mode. Its features and functions are described in the attached pager. The transmission is powered by a 1.5 V AAA battery and works on 433.92 MHz single fixed frequency. Details of circuit diagram and block diagram are shown on the attached sheets. There are total 5 buttonsonly one has functionthe other 4 buttons which if pressed will produce the digital control signals and modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifter circuit composed of a 433.92 MHz crystal and a npn transmitter The modulated output of RF amplifier stage is coupled to the coil. All the trning and verification are done by manufactuer during the production process and no adjustment is allowed by any consumer. No external ground is needed in such device. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received: including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio of TV interference caused by unauthorized modification to this equipment. Such modification could void the user’ authority to operate the equipment.

Report Number: C30626416-RP July 8, 2003 Page 1 of 18 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Car Alarm Transceiver FCC ID Number : H5OTR10AM Trade Name : Advance Security Inc. Model Number : TRX752DV Agency Series : N/A Report Number : C30626416-RP Date : July 8, 2003 Prepared for Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Prepared by C&C LABORATORY CO., LTD. No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of C&C Laboratory Co., Ltd. Lab. Code: 200617-0 Report Number: C30626416-RP July 8, 2003 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................... 3 2. PRODUCT DESCRIPTION................................................................................. 4 3. TEST FACILITY ................................................................................................... 4 4. MEASUREMENT STANDARDS ....................................................................... 4 5. TEST METHODLOGY ........................................................................................ 4 6. MEASUREMENT EQUIPMENT USED ........................................................... 5 7. POWERLINE RFI LIMIT.................................................................................... 5 8. RADIATED EMISSION LIMITS ....................................................................... 6 9. SYSTEM TEST CONFIGURATION ................................................................. 6 10. TEST PROCEDURE ............................................................................................. 8 11. EQUIPMENT MODIFICATIONS...................................................................... 9 12. TEST RESULT ..................................................................................................... 10 12.1. MAXIMUM MODULATION PERCENTAGE (M%)............................... 10 12.2. THE EMISSIONS BANDWIDTH ................................................................. 10 APPENDIX 1 PHOTOGRAPHS OF EUT .............................................................. 11 APPENDIX 2 TEST DATA ....................................................................................... 18 Report Number: C30626416-RP July 8, 2003 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, Taiwan, R.O.C. CONTACT PERSON : Michael Chen / President TELEPHONE NO. : (886-2) 8648-1688 EUT DESCRIPTION : Car Alarm Transceiver MODEL NAME/NUMBER : TRX752DV FCC ID : H5OTR10AM DATE TESTED :June 21, 2003 ~ July 8, 2003 REPORT NUMBER : C30626416-RP TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Car Alarm Transceiver MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by C&C Laboratory Co., Ltd. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by C&C Laboratory Co., Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by C&C Laboratory Co., Ltd. will constitute fraud and shall nullify the document. Vince Chiang / Supervisor C&C Laboratory Co., Ltd. Report Number: C30626416-RP July 8, 2003 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 1.5V AAA Battery Transmitting Time Periodic < 5 seconds Associated Receiver Model: H5OTR06AM (FCC ID) 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165 & No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Report Number: C30626416-RP July 8, 2003 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date R&S ESVS30 MEASURE RECEIVER 09/13/03 ADVANTEST R3132 SPECTRUM ANALYZER 09/11/03 SCHAFFNER CBL 6112B ANTENNA 11/11/03 BELDEN 9913 CABLE 10/13/03 SCHAFFNER CPA9231A PRE-AMPLIFIER 10/30/03 ANTENNA (1-18GHz) 3115 EMCO 02/24/04 AMPLIFIER (1-26.5GHz) 8449B HP 02/20/04 CABLE (1-18GHz) SUCOFLEX 104 HUBER+SUHNER 02/20/04 EMC ANALYZER (9KHz-22GHz) 8593A HP 01/09/04 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 KHz TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. Report Number: C30626416-RP July 8, 2003 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 RECEIVER MODE SECTION 15.109 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate co…

Text truncated - open the document above for the full version.

Report Number: C30626416-RP July 8, 2003 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 RECEIVER MODE SECTION 15.109 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up Report Number: C30626416-RP July 8, 2003 Page 7 Rev. 00 Radiated Open Site Test Set-Up (Receiver Mode)
