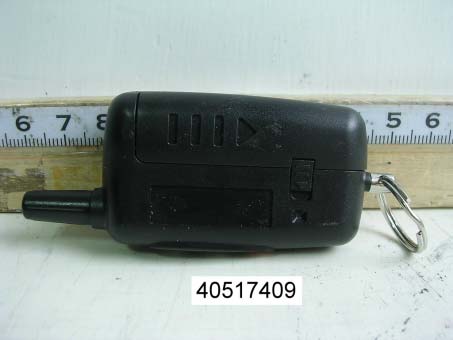

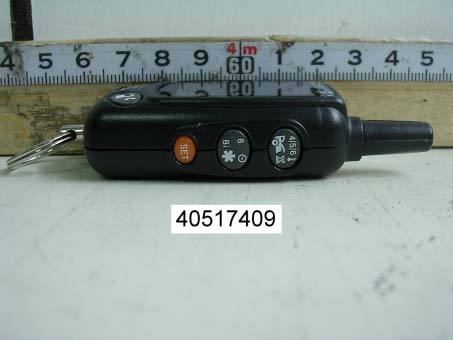

Report No: 40517409 External Photos Report No: 40517409 External Photos

FCC ID / IC LABEL FORMAT AND LOCATION Applicant: ADVANCE SECURITY INC. FCC ID: H5OTR11 IC: 1640B-TR01 FCC ID: H5OTR11 IC: 1640B-TR01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Complies with Canada RSS-210” LABEL AREA

Report No: 40517409 Internal Photos Report No: 40517409 Internal Photos Report No: 40517409 Internal Photos Report No: 40517409 Internal Photos

TRX755DV Operational Description The 2 way pager is a very low-powered remote control/ monitoring device used in motoring the automobile security status as well as in remotely arming/disarming car security system and other optional features like vibration or audible peping warning sound during alert mode. Its features and functions are described in the attached pager. The transmission is powered by a 1.5 V AAA battery and works on 433.92 MHz single fixed frequency. Details of circuit diagram and block diagram are shown on the attached sheets. There are total 5 buttonsonly one has functionthe other 4 buttons which if pressed will produce the digital control signals and modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifter circuit composed of a 433.92 Mh crystal and a npn transmitter The modulated output of RF amplifier stage is coupled to the coil. All the trning and verification are done by manufactuer during the production process and no adjustment is allowed by any consumer. No external ground is needed in such device.

Compliance Certification Services Inc. Date of Issue: June 24, 2004 Report No: 40517409-RP FCC ID: H5OTR11 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Car Alarm Transceiver FCC ID Number : H5OTR11 Trade Name : Advance Security Inc. Model Number : TRX755DV Agency Series : N/A Report Number : 40517409-RP Date : June 24, 2004 Prepared for Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, Taiwan, R. O. C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Page 1 of 20 Rev. 00 Compliance Certification Services Inc. Date of Issue: June 24, 2004 Report No: 40517409-RP FCC ID: H5OTR11 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE...............................................................3 2. PRODUCT DESCRIPTION.................................................................................4 3. TEST FACILITY...................................................................................................4 4. MEASUREMENT STANDARDS.......................................................................4 5. TEST METHODLOGY........................................................................................4 6. MEASUREMENT EQUIPMENT USED...........................................................5 7. POWERLINE RFI LIMIT....................................................................................5 8. RADIATED EMISSION LIMITS.......................................................................6 9. SYSTEM TEST CONFIGURATION.................................................................6 10. TEST PROCEDURE.............................................................................................7 11. EQUIPMENT MODIFICATIONS......................................................................8 12. TEST RESULT.......................................................................................................9 12.1. MAXIMUM MODULATION PERCENTAGE (M%).................................9 12.2. THE EMISSIONS BANDWIDTH...................................................................9 APPENDIX 1 TEST DATA.......................................................................................10 Page 2 Rev. 00 Compliance Certification Services Inc. Date of Issue: June 24, 2004 Report No: 40517409-RP FCC ID: H5OTR11 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, Taiwan, R. O. C. CONTACT PERSON : Michael Chen / President TELEPHONE NO. : (886-2) 8648-1688 EUT DESCRIPTION : Car Alarm Transceiver MODEL NAME/NUMBER : TRX755DV FCC ID : H5OTR11 DATE TESTED : May 28, June 02 & 21, 2004 REPORT NUMBER : 40517409-RP TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Car Alarm Transceiver MEASUREMENT PROCEDURE ANSI 63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Page 3 David Wang Rick Yeo Manager Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Rev. 00 Compliance Certification Services Inc. Date of Issue: June 24, 2004 Report No: 40517409-RP FCC ID: H5OTR11 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source Powered by AAA batteries (Rating: 1 × 1.5Vdc) Transmitting Time Periodic < 5 seconds Associated Transceiver Model: TRX76 / FCC ID: H5OTR06AM 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, Taiwan, R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2001. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Page 4 Rev. 00 Compliance Certification Services Inc. Date of Issue: June 24, 2004 Report No: 40517409-RP FCC ID: H5OTR11 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # 4 Name of Equipment Manufacturer Model Serial Number Calibration Due Spectrum Analyzer ADVANTEST R3132 91700456 N.C.R EMI Test Receiver R&S ESVS10 846285/016 04/25/2005 Bilog Antenna Sunol Sciences JB1 A111203 01/09/2005 Turn Table Chance Most N/A N/A N.C.R Antenna Tower Chance Most N/A N/A N.C.R Controller Chance Most N/A N/A N.C.R RF Switch ANRITSU MP59B M51067 N.C.R Site NSA CCS N/A N/A 08/08/2004 Spectrum Analyzer Agilent E4446A MY43360131 01/10/2005 Spectrum Analyzer HP 8566B 2937A06102 06/25/2005 Horn Antenna EMCO 3115 5761 02/02/2005 Pre-Amplifier HP 8449B 3008A01266 02/15/2005 Remark: Each piece of equipment is scheduled for calibration once a year. 7. POWERL…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Date of Issue: June 24, 2004 Report No: 40517409-RP FCC ID: H5OTR11 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 RECEIVER MODE SECTION 15.109 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up Page 6 Rev. 00
