H5OTR12Car Alarm Transceiver

PROGRAMMABLE OPTIONS You can program multiple options in one session if you start with the lowest option and continue on to higher options [if needed] without repeating steps #1-3 below. For example, you can follow the programming steps to change Option #2 to “OFF” by pressing the lock button on the remote, then you can continue pressing the program button additional times to get to a high number option and change the setting without having to repeat Steps 1-5. You can only go from low to higher option numbers in one session. To Engage Option Programming: 1. Open hood (ground the Blue wire if no hood pin switch is installed) 2. Turn Key to the ON position 3. Press program / valet button 5 times, after a few seconds the unit will flash the lights 5 times. 4. Push the valet/program button [again] the number of times that corresponds to the option number desired (1 thru 20). You must get a light flash after each button press. See chart on next page for option list. 5. When you reach the desired programming level, Press button #1, #2, #3 or #4 to change the option. 6. Turn Ignition OFF, Close hood and check for changed features. Change each option individually repeating #1-5. PROGRAMMABLE OPTION RESET This system provides a reset method to restore all options to FACTORY DEFAULT VALUES as listed in the “Button #2” column of the programmable option chart on pages 18-19. This can be helpful if you have lost track of the option settings on your system, or when you are moving the system from car to car and want a “clean slate”. 1. Open hood (ground the Blue Hood Switch Wire if no hood pin is installed) 2. Turn Key to the ON position 3. Press program / valet button 5 times, after a few seconds the unit will flash the lights 5 times. 4. Push the valet/program button 25 times. Press carefully, do not lose count! You must get a light flash each time you press the button. If the unit didn’t flash the lights, then the system did not register your press. PROGRAMMABLE OPTION TABLE Option # CS-2205 Alarm Function TX Button #1 TX Button #2 TX Button #3 TX Button #4 1 Horn Pulse Door & Hood Trigger Only *All Functions No Warn-A- Way No Arm/Disarm Pulse 2 Auto lock with Ignition OFF *ON = Lock/Unlock Lock Only Unlock Only 3 Passive/Active Arming ON = Passive Arm*OFF = Active Arm 4 Active Re-Arm ON *OFF 5 Passive Locks ON *OFF 6 Parking Lights on w/Disarm OFF *ON 7 Arm with Ignition ON OFF *ON (Sensors off with Ignition On) ON (Sensors on with Ignition ON) 8 Siren Chirps with Arm/Disarm OFF *ON 9 Override PIN Code ON *OFF 10 Disarm on Trunk pop OFF *ON 11 Open Door Warning 5 seconds *60 seconds 12 Lock/Unlock Pulse 3.5 Sec. *0.80 Sec. 0.50 Sec. Comfort Feature 13 Double Unlock Pulse ON *OFF 14 Carjack Enable/Disable ON *OFF 15 Type of Carjack Protection PASSIVE ACTIVE* FULL-TIME 16 Enable Range Check ON *OFF 17 "TEST MODE" Zone 2 & 3 *OFF Zone 1 & 4 18 Panic Mode OFF *ON With Ignition Off 19 Aux Channel #1Latched *Momentary Reset with Ignition ON Timed 1 to120 Sec. 20 Aux Channel #2Latched *Momentary Reset with Ignition ON Timed 1 to120 Sec. 21 Aux Channel #3Latched *Momentary Reset with Ignition ON Timed 1 to120 Sec. 22 Aux Channel #4Latched *Momentary Reset with Ignition ON Timed 1 to120 Sec. 23 Option Reset to Default (*) Values Reset options TRANSCEIVER / REMOTE CONTROL PROGRAMMING 1. Turn key to the ON position. 2. Press Programming button 4 times, then after a few seconds the unit will flash the parking lights 4 times. Press buttons #1 (Lock) & #2 (Unlock) together at the same time of each transceiver to be learned. You should get 2 light flashes indication the unit is waiting for a 2 nd code, then press button #1 & #2 of a second transmitter or transceiver, the unit will flash 3 times indicating its waiting for the 3 rd code and lights will flash 4 times for 4 th code. If all 4 codes are learned, the unit will automatically exit code learning mode. IGN OFF WAIT FOR 4 FLASHES PRESS 4X's FLASH 2, 3, or 4 X's (BLUE WIRE GROUNDED) 2-WAY SYSTEMS & IGN OFF PRESS TOGETHER LOCK & UNLOCK "SideKick" REMOTES COMPLETE This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 17-Mar-2005 Sheet of File: C:\ddb-work\TRX-745.ddb Drawn By:

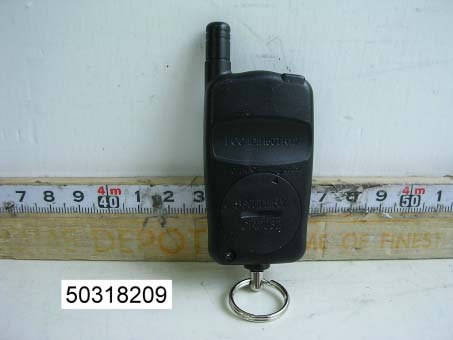

Compliance Certification Services Inc. Report No.: 50318209 Date of Issue: April 06, 2005 Page PHOTOGRAPHS OF EUT

FCC ID LABEL FORMAT AND LOCATION Advance Security Inc. FCC ID: H5OTR12 FCC ID: H5OTR12 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 50318209 Date of Issue: April 06, 2005 Page Compliance Certification Services Inc. Report No.: 50318209 Date of Issue: April 06, 2005 Page Compliance Certification Services Inc. Report No.: 50318209 Date of Issue: April 06, 2005 Page Compliance Certification Services Inc. Report No.: 50318209 Date of Issue: April 06, 2005 Page Compliance Certification Services Inc. Report No.: 50318209 Date of Issue: April 06, 2005 Page

TRX745CS Operational Description The 2 way pager is a very low-powered remote control/ monitoring device used in motoring the automobile security status as well as in remotely arming/disarming car security system and audible peping warning sound during alert mode. Its features and functions are described in the attached pager. The transmission is powered by a 3v cr2032 battery and works on 433.92 Mhz single fixed frequency. Details of circuit diagram and block diagram are shown on the attached sheets. There are total 4 buttonswhich if pressed will produce the digital control signals and modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifter circuit composed of a 433.92 Mh crystal and a npn transmitter The modulated output of RF amplifier stage is coupled to the coil. All the trning and verification are done by manufactuer during the production process and no adjustment is allowed by any consumer. No external ground is needed in such device.

Compliance Certification Services Inc. Report No.: 50318209-RP1 FCC ID: H5OTR12 Date of Issue: April 06, 2005 Page 1 of 34 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Car Alarm Transceiver FCC ID Number : H5OTR12 Trade Name : Advance Security Inc. Model Number : TRX745CS Agency Series : N/A Report Number : 50318209-RP1 Date : April 06, 2005 Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 50318209-RP1 FCC ID: H5OTR12 Date of Issue: April 06, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................... 3 2. PRODUCT DESCRIPTION................................................................................. 4 3. TEST FACILITY ................................................................................................... 4 4. MEASUREMENT STANDARDS ....................................................................... 4 5. TEST METHODLOGY ........................................................................................ 4 6. MEASUREMENT EQUIPMENT USED ........................................................... 5 7. POWERLINE RFI LIMIT.................................................................................... 5 8. RADIATED EMISSION LIMITS ....................................................................... 6 9. SYSTEM TEST CONFIGURATION ................................................................. 6 10. TEST PROCEDURE ............................................................................................. 8 11. EQUIPMENT MODIFICATIONS...................................................................... 9 12. TEST RESULT ..................................................................................................... 10 12.1. MAXIMUM MODULATION PERCENTAGE (M%)............................... 10 12.2. THE EMISSIONS BANDWIDTH ................................................................. 10 APPENDIX I TEST DATA ........................................................................................ 11 Compliance Certification Services Inc. Report No.: 50318209-RP1 FCC ID: H5OTR12 Date of Issue: April 06, 2005 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. CONTACT PERSON : Michael Chen / President TELEPHONE NO. : 886-2-8648-1688 EUT DESCRIPTION : Car Alarm Transceiver MODEL NAME/NUMBER : TRX745CS FCC ID : H5OTR12 DATE TESTED : March 28, 2005 ~ March 31, 2005 REPORT NUMBER : 50318209-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Car Alarm Transceiver MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 50318209-RP1 FCC ID: H5OTR12 Date of Issue: April 06, 2005 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 3V Battery Transmitting Time Periodic < 5 seconds Associated Receiver FCC ID: H5OTR09AM 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165 & 199, Chunghsen Road, Hsintien City, Taipei Hsien, Taiwan The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 50318209-RP1 FCC ID: H5OTR12 Date of Issue: April 06, 2005 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # H Name of Equipment Manufacturer Model Serial Number Calibration Due SITE NSA CCS H Site N/A 09/11/2005 MEASURE RECEIVER SCHAFFNER SCR3501 341 09/02/2005 SPECTRUM ANALYZER ADVANTEST R3132 120900002 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2801 09/24/2005 AMPLIFIER SCHAFFNER CPA9231A 3613 10/08/2005 CABLE SUHNER RG 214 N-TYPE#H2 12/03/2005 THERMO- HYGRO METER TFA N/A NO.1 12/22/2005 EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 07/26/2005 ANTENNA (1-18GHz) EMCO 3115 5761 01/17/2006 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/16/2006 CABLE (1-18GHz) JYEBAO LL142 SMA#RS1&2 02/16/2006 Remark: Each piece of equipment is schedule…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50318209-RP1 FCC ID: H5OTR12 Date of Issue: April 06, 2005 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 RECEIVER MODE SECTION 15.109 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up Compliance Certification Services Inc. Report No.: 50318209-RP1 FCC ID: H5OTR12 Date of Issue: April 06, 2005 Page 7 Rev. 00 Radiated Open Site Test Set-Up (Receiver Mode)
