MAY/18/2005 DELUXE 200 REMOTE ENGINE STARTER WITH KEYLESS ENTRY SYSTEM INSTALLATION MANUAL INTRODUCTION INSTALLER WARNINGS This Remote Starter with Alarm System is designed to be installed on fuel injected vehicles ONLY. ! For automatic transmission vehicle, this system must be installed and wired through a safety switch it will not start in any forward or reverse gear. ! Some automatic transmission vehicle [mainly older GM vehicles with a purple starter wire] have a mechanical-type park safety switch instead of electrical safety switch. The mechanical type does not interrupt the starter circuit when the transmission is any gear and does not offer the 100% level of safety required for remote starting purposes. Therefore, our system should never be installed on any vehicle that uses a mechanical type park safety switch. ! For automatic transmission vehicle, once you install this system, you must verify that the vehicle will not start any forward or reverse gear. Regardless of the type of vehicle. ! Read operation manual for operating and programming routine. ! Do not install any component near the brake, gas pedal or steering linkage. ! Some vehicles have a factory installed transponder immobilizer system that can severely complicate the installation. There is possibility that this system can not be installed on some immobilizer equipped vehicles. ! Most vehicles have an SRS air bag system. Use extreme care and do not probe any wires of the SRS system. ! Disconnect the car battery before connecting work on the vehicle. ! Check behind panels before drilling any holes. Ensure that no wiring harness or other components are located behind the panels that would otherwise be damaged. ! Use conventional crimp lock, bullet on any wiring. Poor wiring, i.e. taped joints will possibly introduce unreliability into the alarm system and may result in false alarms or incorrect operation. ! Install wiring neatly under carpets or behind trim to prevent possible damage to wires. ! For the wire operates the current more than 10A. We suggest soldering all connection point. Do not use crimp lock type connectors or wire nuts. INSTALLATION DIAGRAM #H4. 9 PIN WIRE CONNECTION: DELUXE 200-LCD 1 MAY/18/2005 Brown/Red Wire: ( + ) Positive Safety Shut Down Input for Brake switch. Thin Black Wire: ( - ) Neutral Safety Switch Input & ( - ) Remote Start Toggle Switch Input Violet/White Wire: Tach. Signal Input Gray Wire: ( - ) Negative Safety Shut Down Input for Hood pin switch IMPORTANT NOTE: Directly connect the Thin Black wire to the ìGROUNDî when this wire is not used. Black/White Wire: (-) 200 mA Dome Light Control Output Red/White Wire: (-) 200 mA Channel 3 (Trunk) Output Blue/Black Wire: (-) 200 mA Ignition 3 Control Ott LT Green/Black Wire: (-) 200 mA Programmable output Dual Pulse Door Unlock Output (Factory Default setting) Or Factory Disarm Signal Output Or Start Status (Shock Sensor Bypass Control) Output Brown/Black Wire: (-) 200 mA Programmable output Factory Security Rearm Signal Output (Factory Default setting) Or Ground Output During Start (Crank). DELUXE 200-LCD 2 MAY/18/2005 H4 9Pin Wire Connection H 1 6 Pin White H 2 5 Pin White H 3 4 Pin Black H 4 9 Pin White Program Switch H 6 2 Pin Blue 1. Red / White: Turn Indicator Relay Power input 2. White: Parking Light Relay Output 3. Black: Ground to Vehicle Frame 4. Brown: (-) 200mA Horn Output 5. Red: +12V Input Two Way Transceiver Antenna On Board Program LED Indicator 10A Fuse 2. Red: +12V Input 3. Red: +12V Input 4. Yellow: Ignition 1 output 1. Violet: Starter Output 20A Fuse 20A Fuse 5. Pink: Ignition 2 Output H 5 6 Pin White H5 6 Pin White Connector for Door Lock & Door unlock Connection 6. Brown: ACC/Heater Output DELUXE 200-LCD 3 MAY/18/2005 WIRING Keep wiring away from moving engine parts, exhaust pipes and high-tension cable. Tape wires that pass through holes on the firewall to prevent fraying. Watches out sharp edges that may damage wires and causes short circuit. CAUTION: Do not connect the wire harness to the control module until all wiring to vehicle is complete. 6 PIN HEAVY GAUGE WIRING CONNECTIONS: Remember that the system does to start a vehicle is duplicate the functions of the ignition key switch! Below, we will explain the three basic functions of the ignition switch. Since this installation will require analysis of the ignition switch functions, we recommend making the three connections below at the ignition switch harness directly. Violet wire ñ Starter Output ñ Careful consideration for the connection of this wire must be made to prevent the vehicle from starting while in gear. Understanding the difference between a mechanical and an electrical Neutral Start Switch will allow you to properly identify the circuit and select the correct installation method. In addition you will realize why the connection of the safety wire is required for all mechanical switch configurations. Failure to make this connection properly can result in personal injury and property damage. In all installations it is the responsibility of the installing technician to test the remote start unit and assure that the vehicle can not start via RF control in any gear selection other than park or neutral. In both mechanical and electrical neutral start switch configurations; the connection of the VIOLET wire will be made to the low current start solenoid wire of the ignition switch harness. This wire has +12 volts when the ignition switch is turned to the ìSTARTî (CRANK) position only. This wire have 0 volts in all other ignition switch positions. NOTE: This wire must be connected to the vehicle side of the starter cut relay (when used). For the electrical neutral switch configuration, this connection must be made between the starter inhibit relay (when used) and the neutral safety switch as shown in the following diagram. Failure to connect this wire to the ignition switch side of the neutral safety switch can result in personal injury and property damage. SEE NEUT…

Text truncated - open the document above for the full version.

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] t Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 June 22, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: H5OTR13 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commissionís Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Operational Description Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. ADVANCE SECURITY INC. ted lin sales manager

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] t Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Power of Attorney Date: June 15, 2005 We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all matters relating to all processes related to FCC & IC applications and communications issue. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please donít hesitate to contact us. Thank you. ADVANCE SECURITY INC. TED LIN SALES MANAGER

Helen Zhao Subject: FW: Re : RE: ADVANCE SECURITY INC., FCC ID: H5OTR13, Assessment NO.: AN05T4873, Notice#2 (revised) 6/22/2005 From: naomi.zhang [mailto:[email protected]]On Behalf Of application Sent: Wednesday, June 22, 2005 2:05 AM To: Helen Zhao Subject: Re : RE: ADVANCE SECURITY INC., FCC ID: H5OTR13, Assessment NO.: AN05T4873, Notice#2 (revised) Dear Helen, Question #1: There is no agent authorization letter in the filing. Please always submit an Agent authorization letter if you represent your client to deal with FCC certification. ---> Attached please find POA.pdf! Question #2 : Please explain why radiated spurious reading (54.20dBuV/m) is over the highest fundamental field strength reading(53.03dBub/m), which is not allowed. ---> Sorry about that! we re-tested it and revised the test report! Attached please find 50531221-RP1.pdf! Best Regards, Naomi Zhang

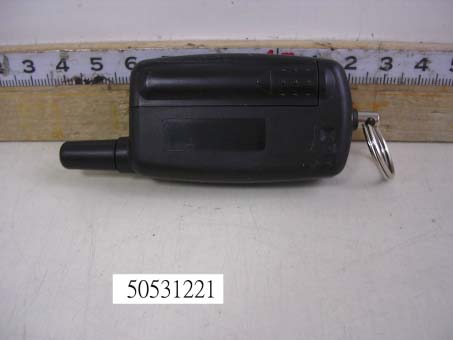

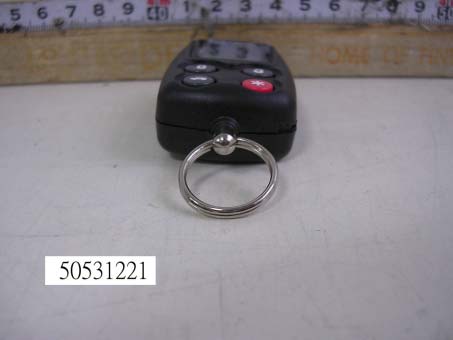

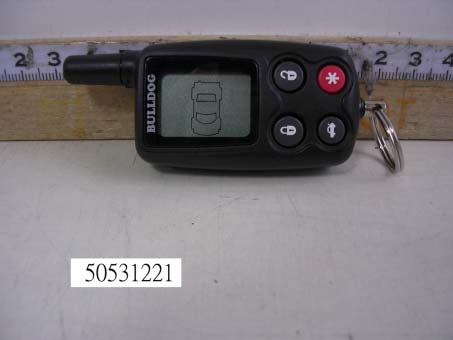

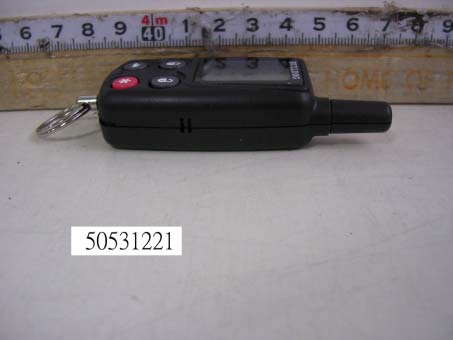

Compliance Certification Services Inc. Report No.: 50531221 Date of Issue: June 17, 2005 PHOTOGRAPHS OF EUT Page 1 Total Page: 6 Rev. 00 Compliance Certification Services Inc. Report No.: 50531221 Date of Issue: June 17, 2005 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 50531221 Date of Issue: June 17, 2005 Page 3 Rev. 00

FCC ID / IC LABEL FORMAT AND LOCATION Applicant: Advance Security Inc. FCC ID: H5OTR13 IC: 1640B-TR04 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ìComplies with Canada RSS-210î FCC ID: H5OTR13 IC: 1640B-TR04 LABEL AREA

Compliance Certification Services Inc. Report No.: 50531221 Date of Issue: June 17, 2005 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 50531221 Date of Issue: June 17, 2005 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: 50531221 Date of Issue: June 17, 2005 Page 6 Rev. 00

Compliance Certification Services Inc. Report No.: 50531221-RP1 FCC ID: H5OTR13 Date of Issue: June 17, 2005 Page 1 of 30 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Car Alarm Transceiver FCC ID Number : H5OTR13 Trade Name : Advance Security Inc. Model Number : CX722 Agency Series : N/A Report Number : 50531221-RP1 Date : June 16, 2005 Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 50531221-RP1 FCC ID: H5OTR13 Date of Issue: June 17, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .............................................................. 3 2. PRODUCT DESCRIPTION ............................................................................... 4 3. TEST FACILITY ................................................................................................. 4 4. MEASUREMENT STANDARDS ...................................................................... 4 5. TEST METHODLOGY....................................................................................... 4 6. MEASUREMENT EQUIPMENT USED.......................................................... 5 7. POWERLINE RFI LIMIT.................................................................................. 5 8. RADIATED EMISSION LIMITS...................................................................... 6 9. SYSTEM TEST CONFIGURATION................................................................ 6 10. TEST PROCEDURE ........................................................................................... 8 11. EQUIPMENT MODIFICATIONS .................................................................... 9 12. TEST RESULT ................................................................................................... 10 12.1. MAXIMUM MODULATION PERCENTAGE (M%).............................. 10 12.2. THE EMISSIONS BANDWIDTH................................................................ 10 APPENDIX I TEST DATA ...................................................................................... 11 Compliance Certification Services Inc. Report No.: 50531221-RP1 FCC ID: H5OTR13 Date of Issue: June 17, 2005 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. CONTACT PERSON : Michael Chen / President TELEPHONE NO. : 886-2-8648-1688 EUT DESCRIPTION : Car Alarm Transceiver MODEL NAME/NUMBER : CX722 FCC ID : H5OTR13 DATE TESTED : June 03, 2005 & June 04, 2005 REPORT NUMBER : 50531221-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Car Alarm Transceiver MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 50531221-RP1 FCC ID: H5OTR13 Date of Issue: June 17, 2005 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 1.5V Battery Transmitting Time Periodic < 5 seconds Associated Receiver FCC ID: H5OTR06AM 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165, Chunghsen Road, Hsintien City, Taipei Hsien, Taiwan, R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 50531221-RP1 FCC ID: H5OTR13 Date of Issue: June 17, 2005 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # J Name of Equipment Manufacturer Model Serial Number Calibration Due SITE NSA CCS J Site N/A 09/18/2005 MEASURE RECEIVER SCHAFFNER SCR3501 330 06/27/2005 SPECTRUM ANALYZER ADVANTEST R3132 120900003 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2800 09/25/2005 PRE- AMPLIFIER SCHAFFNER CPA9231A 3629 10/08/2005 CABLE BELDEN 9913 N-TYPE #J2 02/18/2006 ATTENUATOR MCL UNAT-6 AT06-8 12/03/2005 THERMO- HYGRO METER TFA N/A NO.3 11/09/2005 EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 07/26/2005 ANTENNA (1-18GHz) EMCO 3115 5761 01/17/2006 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/16/2006 CABLE (1-18GHz) JYEBAO LL142 SMA#RS1&2 02/16/2006 CABLE (1-18GHz) JYEBAO LL142 SMA#C…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50531221-RP1 FCC ID: H5OTR13 Date of Issue: June 17, 2005 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 RECEIVER MODE SECTION 15.109 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up Compliance Certification Services Inc. Report No.: 50531221-RP1 FCC ID: H5OTR13 Date of Issue: June 17, 2005 Page 7 Rev. 00 Radiated Open Site Test Set-Up (Receiver Mode)
