H5OTR23Remote Control

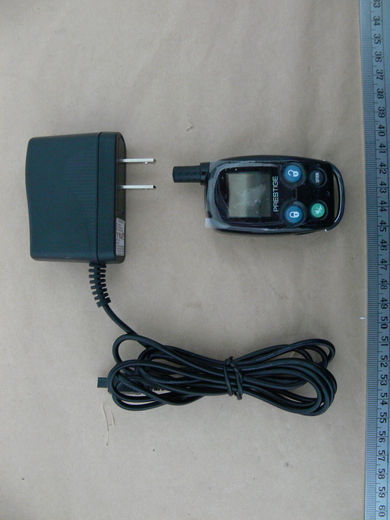

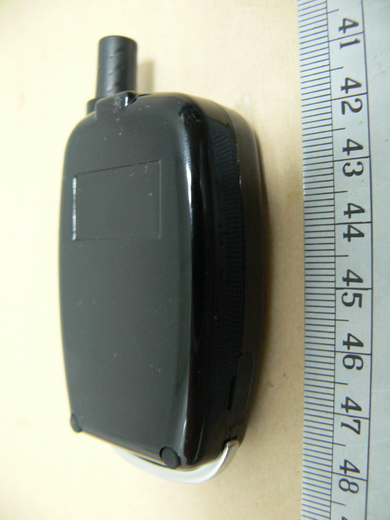

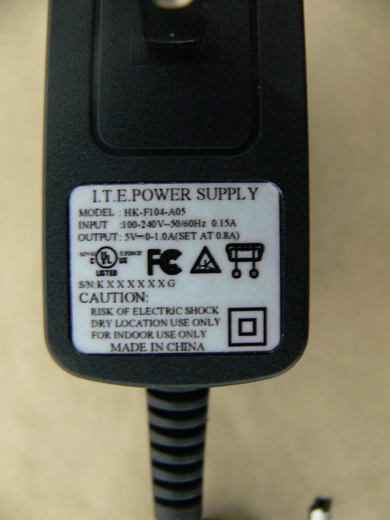

MODEL XRO-9100 REMOTE ENGINE STARTER WITH ALARM SYSTEM OWNER’S MANUAL 1 REMOTE TRANSCEIVER (TX) A. OLED DISPLAY Name of Transmitter Timer Door Lock Door Unlock In – Range Indicator Alarm Status Temperature Bypass Shock Sensor Battery Level Engine Running Melody Mode Count Down Timer Parking Timer Vibration Mode Alert Alarm Timer Start B. CHARGE THE BATTERY Power by built-in 3.7V lithium polymer battery, if the OLED screen display low battery or is flash, charge your remote transceiver. While the battery of the Remote Transceiver is under the battery charging, you can push the ” ” button to check charging condition. While the battery of the Remote Transceiver is under charging. Push the button; the screen will display Battery charging. C. MAIN PAGE: 1. Press the button, the screen will display main page. 2. While the icon flashing on the OLED screen, press the button, the OLED screen will display the detail of the flash icon, the display sequence of flash icon as follows: TRIGGERED / ENGINE RUNNING / COUNT DOWN TIMER / TIMER START / ALART TIMER condition. 2 While the TRIGGERED icon flash. Push the button to display triggered area. While the icon flash Push the button While the icon flash Push the button, the count down timer will display. Press the button 2to set off the count down time missing graphic or Or While the icon flash Push the button, the OLED screen will display individually i.e. daily start timer, timer start or temperature start, depend on which you selected. While the icon flash Push the button, the alert alarm time will display. Press the button 2 to set off the alert alarm timer D. SELECT THE TRANSCEIVER’S BUTTON CONFIGURATION: 1. Spin up the Switch to select the transceiver button configuration you need and the OLED screen will display the transceiver button configuration you select. 2. Within 5 seconds press the button 1, 2, 3 or 4 to remote control “button configuration” you selected. Note: If 5 seconds of inactivity expired, or push the button, the transceiver button configuration mode will exit. 3 Spin up the switch to the page 1 Spin up the switch to the page 2 Spin up the switch to the page 3 Spin up the switch to the page 4 Spin up the switch to the page 5 Spin up the switch resume to main page. E. SELECT THE TRANSCEIVER FEATURES: 1. Spin down the Switch to select the transceiver feature you need and the OLED screen will display the features you select. 2. Press the button 1, 2, 3 or 4 once within 3 seconds after finished selection and the OLED screen will change the display alternatively. Note: If 5 seconds of inactivity expire, or push the button, the transceiver features program mode will exit. Spin down the switch to the page 1 Spin down the switch to the page 2 Spin down the switch to the page 3 Spin down the switch to the page 4 Spin down the switch to the page 5 Spin down the switch to the page 6 Spin down the switch resume to main page. E- P1- 1. “BUTTON BI” SETTING: Example: Set the “Button Bi Disable”. It has a short “bi” sound while pressing the b utton of the remote transceiver Spin down the switch to the page 1 Press the button 1 and it will display previously setting Press the button 2 to change the setting Press the button and the setting is done. 4 E- P1- 2. “BUTTON LOCK” SETTING: Example: Set the “Button Lock Enable”. Spin down the switch to the page 1 Press the button 2 and it will display previously setting Press the button 1 to change the setting Press the button and the setting is done. D- P1- 3. “MELODY / VIBRATION MODE” SETTING: Example: set the Vibration mode. Spin down the switch to the page 1 Press the button 3 and it will display previously setting Press the button 2 to change the setting Press the button and the setting is done also the icon will display on the OLED screen E- P1- 4. “DEMO MODE”: Spin down the switch to the page 1 Press the button 4 to start Demo movie Demo movie playing Press the any Button to exit. E- P2- 1. “POWER SAVE” SETTING: Example set the “Power Save Enable”. While the power save mode, the LCD remote transceiver uses “0” current to save the battery power. Spin down the switch to the page 2 Press the button 1 and it will display previously setting. Press the button 1 to change the setting. Press the button and the setting is done. E- P2- 2. “PARKING METER” SETTING: Example set the “Parking Meter 30 min.. Note: When “parking meter” trigger presses any button to stop the beeper. Spin down the switch to the page 2 Press the button 2 Press the button 1 three times to set the parking timer to 30 minutes. Press the button to start the parking meter and the icon will 5 flash on the main page. D - P2- 3. “PARKING AREA” SETTING: Example set the “Parking Area.” to “B120 Spin down the switch to the page 2 Press the button 3, it will display previously parking area Press the button 2 to clear the parking area, and the “ -” flashes for setting. Spin up the switch to setting the “B” Press the button 1 and the “-” flashes for setting. Spin down the switch to set the “1” Press the button 1 and the “-” flashes for setting. Spin down the switch to set the “2”. Press the button 1 and the “ -” flashes for setting. Spin down the switch to set the “0”. Press the button 3 and the setting is done. D- P2- 4. “LIGHTING FOR OLED” TIMER SETTING: Example: set the LCD display from 2 seconds to 3 seconds. Spin down the switch to the page 2 Press the button 4 and it will display previously setting Press the button 2 to change the setting Press the button and the setting is done. D- P3- 1. “TIMER” SETTING: E xample set the timer to 08:20P 6 Press the button 2 to set the ”hours” digit to “08” Press the button 1 and the ”minute” digit flashes for adjusting. Spin down the switch to the page 3 Press the button 1 and the ”hour” digit flashes for adjusting. Press the button 2 to set the “minute” digit to “20” Press the button 1 and the ”A” digit flashes for adjusting. Press the button 2 to set the “P” Press the button 3 and the setting is done. D- P3-…
