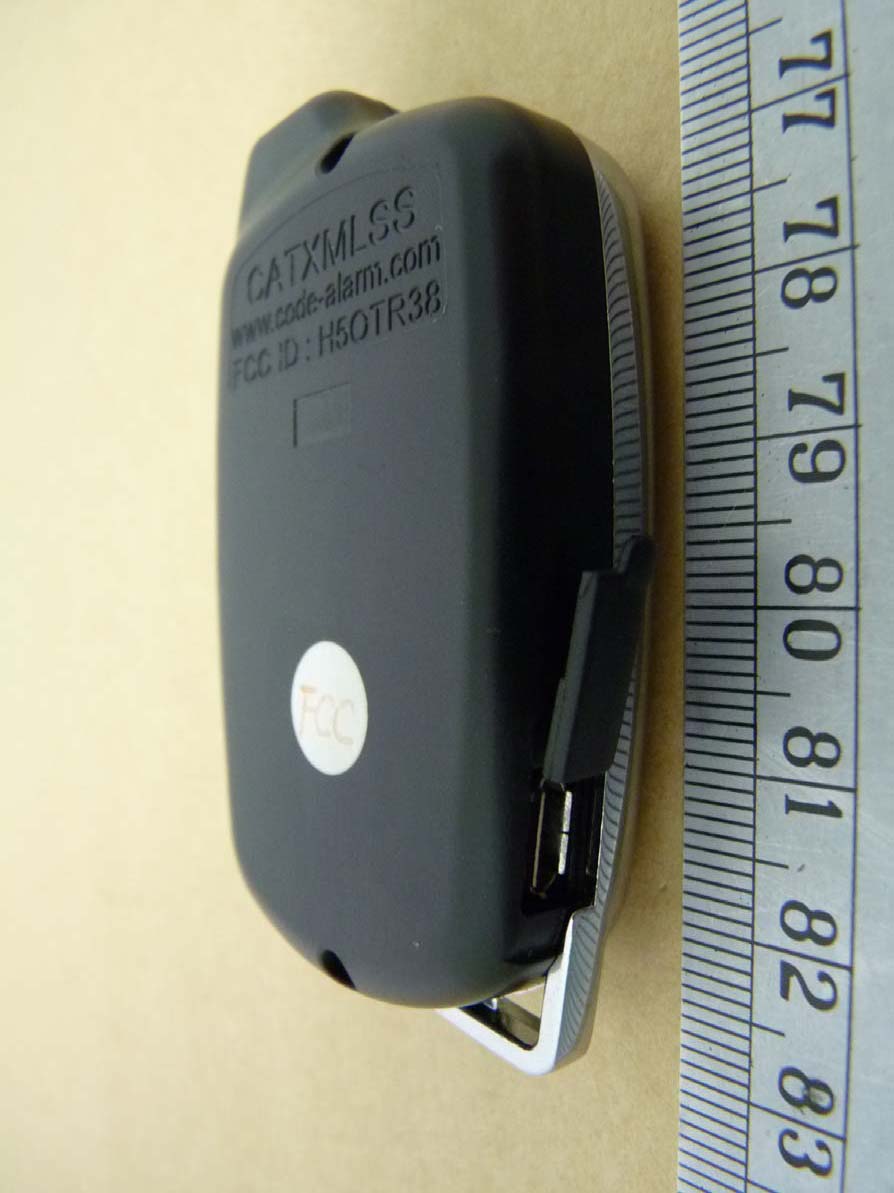

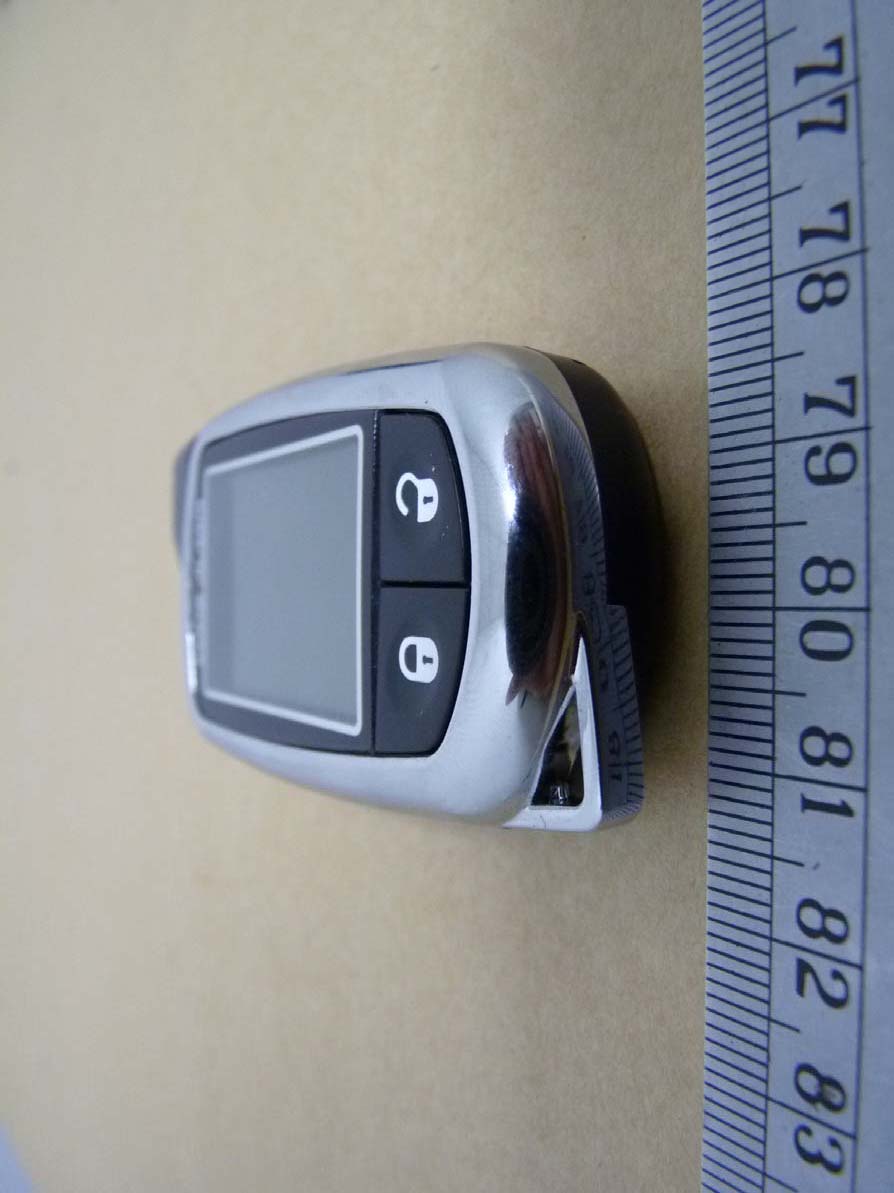

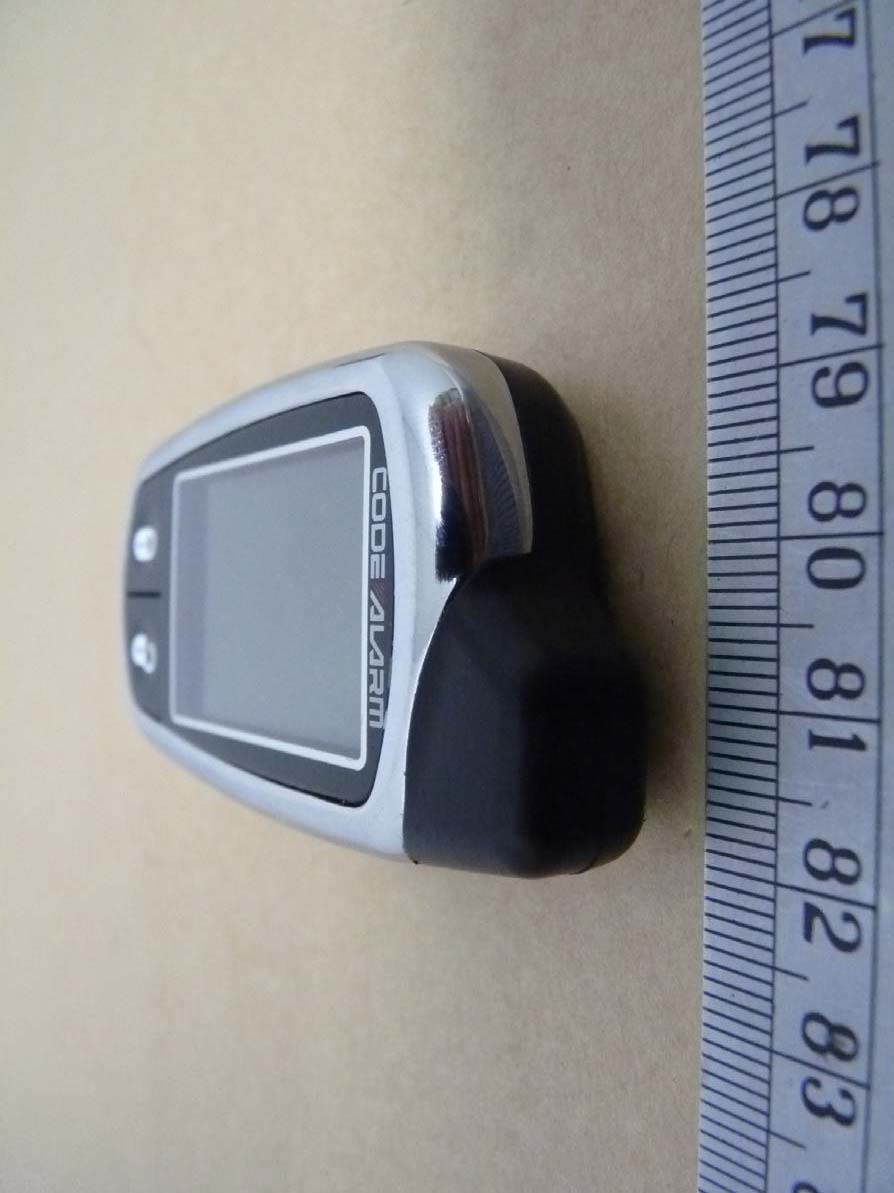

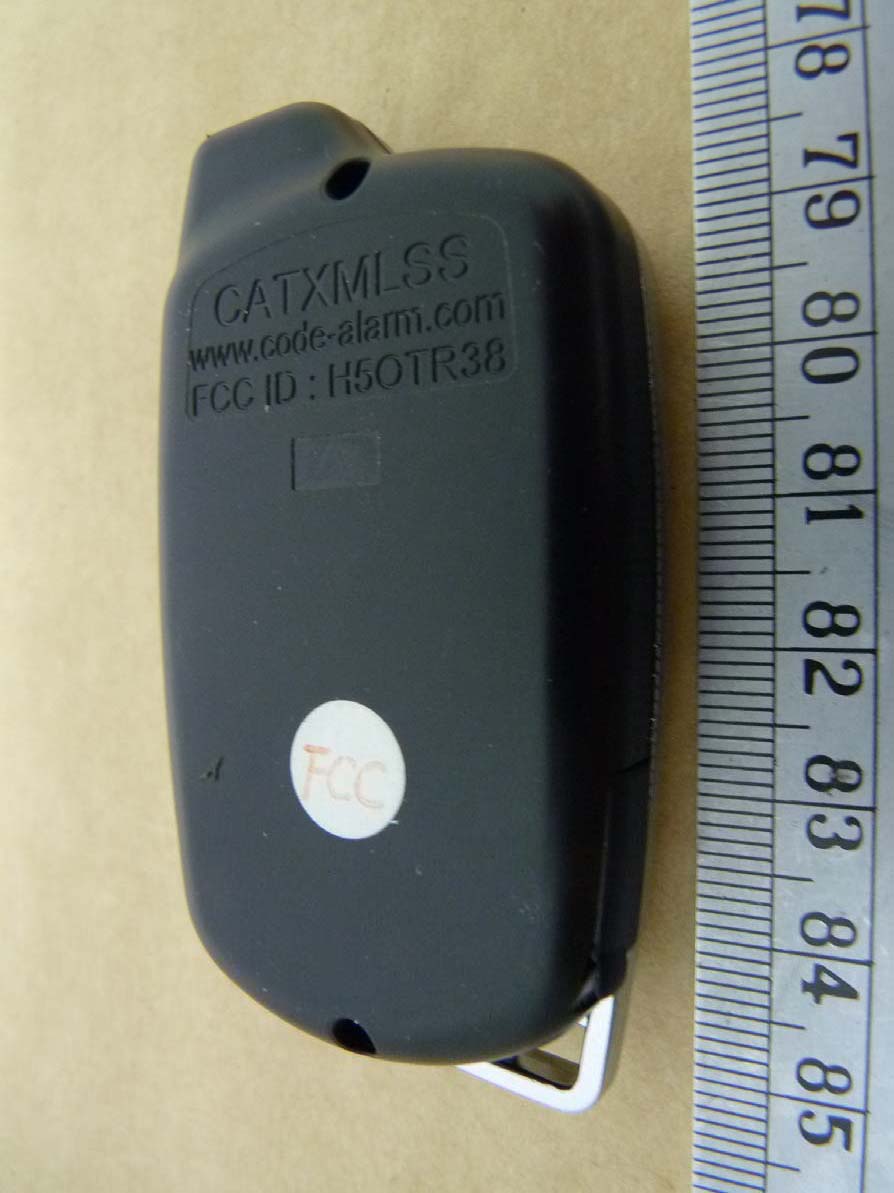

H5OTR38Remote Control

1 PROFESSIONAL 2-WAY LCD REMOTE CAR STARTER & ALARM SYSTEM With Built in Temperature, Voltage Sensor And Two-way Serial Port Data Link OPERATION MANUAL Congratulations on your purchase of the RS-730 LCD remote start vehicle security system. We sincerely hope the purchase of the RS-730 remote start security system gives peace of mind to you. The RS-730 LCD is a state-of-the-art two-way communication system. Please take the time to read over this manual to thoroughly familiarize your self with the many features and options of the RS-730 LCD. Auto Page, Inc. has over 25 years of experience in the vehicle security industry in the United States and is a wholly owned subsidiary of Iwata Electric Co., of Tokyo, Japan. Iwata has been an industry leader for over 50 years, establishing a reputation for ingenuity in its engineering capability and innovative communication products. Auto Page and Iwata maintain a long tradition of providing the best value to their customers. WARNINGS: As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of. 1. Keep the transmitter out of children’s reach. 2. Do not leave anyone in the vehicle while running on remote control. 3. Alert servicing personnel that the vehicle can be started automatically. 4. Do not start the vehicle by remote while it’s in an enclosed area or garage. 5. Always apply the parking brake and lock the vehicle as you exit the vehicle. 6. The vehicle windows must be rolled up. 7. Should the unit malfunction, disconnect the fuse until the problem is corrected. 8. The use and operations of this system is the sole responsibility of the operator. 9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets. 10.It is not safe to remote start the vehicle if the vehicle is parked on a steep incline. THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY May/31/2009 C3 RS915 REV. A 2 LCD REMOTE CONTROL TRANSCEIVER: XT-74 LCD A. BATTERY REPLACEMENT: This system needs no specific maintenance beyond remote control battery replacement. The 2-way remote is powered by a 1.5V AAA battery. The 1-way remote is powered by a pair of 3V, CR2016 batteries. Battery Level Indicator (2-way remote) The Battery Level indicator has three level indicators that serve as a visual indication of battery charge. When the battery reaches a low charge level that requires replacement, the remote control will generate a single notification chirp, and the Battery Level indicator will flash continuously. Gently pull the end of the battery door away from the top of the remote control then slide the door up to expose the battery and remove the expired battery. Place the new battery into the remote. When power is returned the remote control will display all icons in the LCD and generate all beeper tones once. Press any button on the remote to terminate the beeper tone review. B. STANDARD LCD ICON CONFIGURATIONS: The lock icon will be displayed when the door locked. The unlock icon will be displayed when the door unlock Sensor Bypass Sensor 1 bypass under Arm mode Hidden Alarm Mode The security system arm with hidden alarm function (silent alarm) Valet Mode Remote start and alarm functions shall be temporarily on hold. Hood Trigger Hood is illegally opened (Zone 1) Trunk Trigger Trunk is illegally opened (Zone 2) Door Open Warning Doors are illegally opened (Zone 3) Sensor Trigger Trigger on Sensor 1 (Zone 4) Ignition Trigger Ignition switch is illegally turned on (Zone 5) System trigger May/31/2009 C3 RS915 REV. A 3 Remote Transmission You are transmitting the signal to control unit In – Range Indicator You are within the range of the remote control. Anti Car-Jack Mode Activate the anti car-jacking mode Icon flash under check mode Engine Cranking Your vehicle engine Cranking by remote control Engine Running Your vehicle's engine is running Timer Control Start Engine start automatically every 2 or 3 hours. Daily Start Engine start automatically at the same time next day Temperature Start Engine start automatically when reach programmed temperature. Turbo Timer Turbo timer was set up Manual Gear Engine Start Memorizing for the car with manual gear was set up Activate Channel 3 (Trunk Release). Activate Channel 3 Activate Channel 4 12:00 Time Monitor 12:00 Alarm Clock You have set morning call alarm Parking Meter Reminder when time is up for parking Low Battery You have to replace the battery of remote control. Melody Mode Remote Control alert user through melody sound Vibration Mode Remote Control vibrates when the system is triggered OPERATION: C: REMOTE TRANSMITTER OPERATION: Transmitter Button System Function Remark Lock Doors & Arm System Panic function Press and Hold for 3 seconds. Press Trunk button to stop panic function Car Locator Press when in armed mode - -- - Arm and Delete The 2 Stage Shock Sensor Press twice within 3 seconds. Pass will appear on the remote - Arm System and Hidden Alarm Function Press within 3 seconds and Hold button for 2 seconds + Silent Arming / Disarming Ignition in "off" position. + Active Anti Car-Jacking Mode Ignition in "on" position press and hold for 2 seconds Unlock Doors & Disarm System - -- - Two Steps Door Unlock & Disarm System(optional) Press twice within 3 seconds. Trunk Release (Channel 3) Press and Hold for 2 seconds - -- - Passive Arming By-pass While the system Disarmed. Activate or Turn Off The Remote Start Press button once. Press Twice if set to start safety mode + Channel # 4 Timer Output (4) Optional II IIII II Switching code For 2nd Car Operation. For regular XT-33 remote transmitter Only May/31/2009 C3 RS915 REV. A 4 D CHIRP INDICATORS: PARKING LIGHT: Chirp Function Parking light Function 1 chirp Arm 1 flash Arm 2 chirps Disarm 2 flashes Disarm 3 chirps Defective Reminder 3 flashes Disarm / Triggered 4 chirps Disarm / Triggered 12 flashes Car Locator 6 chirps Car Locator Constant On Under Remote Start ALARM OPERATING …
