H5OTR42Car Alarm Transceiver

CAR LOCATOR Under armed mode, press the button to active car locator function. The siren will chirp 6 times. The parking light will flash 12 times, for you to easily locate your car. PANIC FUNCTION: The transmitter can be used as a remo te panic switch to manually trigger the alarm in case of emergency. Press and hold the button for 3 second. The alarm will immediately sound. To stop the alarm, press the trunk button on the remote control. If the button is not pressed, the alarm will automatically stop after 30 seconds. TRIGGER THE SYSTEM When armed, your vehicle is protected as follows: Light impact will trigger the warn-away signal. Heavy impacts / Doors open /(if installed) Hood open / (if installed) Trunk open / Turning on the ignition key w ill trigger the programmed sequence. The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The siren, horn, parking li ghts, and dome light will turn on alerting of an intrusion for 30 seconds. Then it will stop and automatic reset and re-arm. If the any one of the sensors or detectors is still active, the alarm system will sound a maximum of 3 times of 30 seconds cycles. NOISE ABATEMENT CIRCUIT: Your system has a “Noise Abatement Circuit”. It prevents annoying repetitiv e trigger sequences due to faulty door pin switches or environmental condi tions such as thunder, jackhammers airport noise, etc. Here’s how “Noise Abatement Circuit” works: The alarm triggers five times. Each time, the same sensor or switch has triggered the alarm; the “Noise Abatement Circuit” will interpret this pattern of triggers as a false alarm. After the third trigger, the “Noise Abat ement Circuit” ignores, or bypasses, that sensor or switch until a differ ent sensor or switch is trigger. SYSTEM’S TRIGGER CHECK (For two-way transceiver operation only) Press and hold F button of LCD remote until 3 beeps sound , release and re-press F button again, the LCD remote will show “ALARM “ icon flashing on text area (see advanced users mode), then press button to activate system trigger check. SYSTEM’S STATUS CHECK (For two-way transceiver operation only) Press F button of LCD remote until 3 beeps sound , the LCD remote will show “STATUS “ icon flashing in the text area (see advanced users mode), then press button to activate system status check. It responds with one melody sound and all vehicles’ status records will immediately displayed on the LCD screen. Note: If it has no response then you are out of range. TRUNK RELEASE: Press and hold button on the transmitter for two seconds to remotely control the trunk release. CHANNEL 4,5,6 OUTPUTS. Press the transmitter and buttons at the same time to active Channel 4 function. or Press and hold F button of LCD remote until 2 beeps sound , release and re-press F button the LCD remote will show “CH 4” icon flash , then press button to activate channel 4 function. Channel 4, 5 & 6 are user-programmable timer outputs. You may program the built-in timer to send a ground si gnal for any time duration from 1 second to 120 seconds. For instance, this timer output may be used to turn on the headlight, power window or sunroof. (Factory defaults setting at momentary output.) Press the transmitter and buttons at the same time to active Channel 5 function . or Press and hold F button of LCD remote until 2 beeps sound , release and re-press F button the LCD remote will show “CH 5” icon flash , then press button to activate channel 5 function. Press the transmitter and buttons at the same time to active Channel 6 function . or Press and hold F button of LCD remote until 2 beeps sound , release and re-press F button the LCD remote will show “CH 6” icon flash , then press button to activate channel 6 function. Clear the Flashing Icon and Melody Sound: The Transmitter will reset the flashing icons the next time the Igni tion is cycled to the ON position . Stopping The Trigger Melody Sound: When the alarm is triggered, the LCD screen will alert the user through a melo dy sound and a flashing trigger icon. Press any button on the LCD remote transmitter to stop melody sound only. Remote Start Operation: WARNINGS: As with any product that performs automat ic functions, there are certain safety precautions that you must practice and be aware of. 1. Keep the transmitter out of children’s reach. 2. Do not leave anyone in the vehicle while running on remote control. 3. Alert servicing personnel that the vehicle can be started automatically. 4. Do not start the vehicle by remote while it’s in an enclosed area or garage. 5. Always apply the parking brake and lock the vehicle as you exit the vehicle. 6. The vehicle windows must be rolled up. 7. Should the unit malfunction, disconnect the fuse until the problem is corrected. 8. The use and operations of this system is the sole responsibility of the operator. 9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets. 10.It is not safe to remote start the vehicle if the vehicle is parked on a steep incline. TO REMOTE START THE VEHICLE: When you want to start your vehicle, 1. Press button once on the transmitter. 2. The parking light will activate to indicate the remote start received the signal. 3. The engine will start in approximately 5 seconds. 4. Once the engine is running, afte r couple seconds the parking lights will turn on and the climate controls will activate and adjust the vehicle’s interior temperature to your preset setting. (While the vehicle is running, the “minutes” digit on the LCD screen will flash and the will indicate countdown timer based on the 5, 10, 20 or 30 minute run time set up by your installation center.) 5. The vehicle will run for a prog rammable 5 to 30 minute cycle before shutting down. (When the unit shuts off the countdown timer will turn off and the transmitter will play a melody.) NOTE: The Remote Start Unit will not start the vehicle if any one of the following conditions exists: 1. The hood is opened. 2. Th…

Text truncated - open the document above for the full version.

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date: April 8, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Sam Hu / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCSRF, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Sam Hu / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCSRF as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;

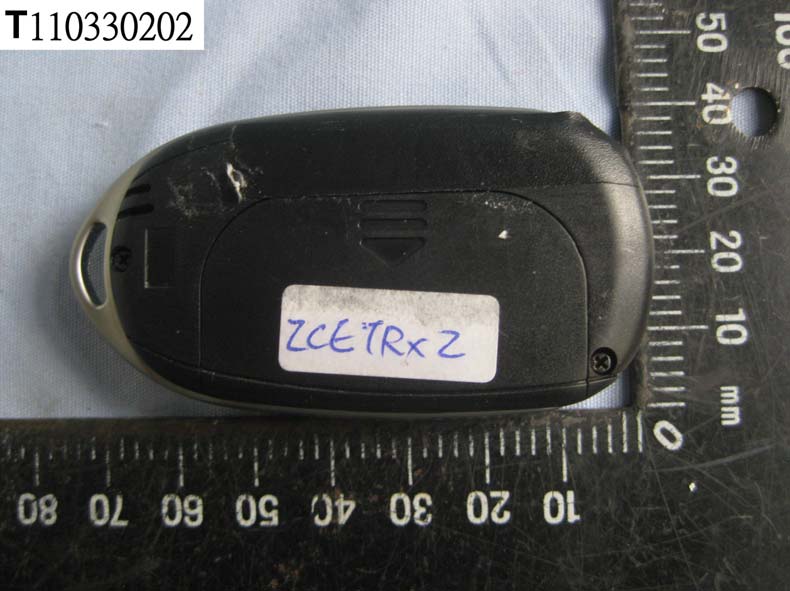

Compliance Certification Services Inc. Report No.: T110330202 Date of Issue: May 06, 2011 A1-1 Total Page: 2 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110330202 Date of Issue: May 06, 2011 A1-2 Rev. 00

FCC ID LABEL FORMAT AND LOCATION Applicant: Advance Security Inc. Model: TRC760A FCC ID: H5OTR42 FCC ID: H5OTR42 FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: T110330202 Date of Issue: May 06, 2011 A1-1 Total Page: 1 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Report No.: T110330202-RP1 FCC ID: H5OTR42 Date of Issue: May 23, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 31 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Car Alarm Transceiver Model: TRC760A Brand Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Sindian Lab. No.163-1, Jhongsheng Rd, Sindian City, Taipei County 23151, Taiwan (R.O.C.) TEL: (02) 2217-0894 FAX: (02) 2217-1029 Compliance Certification Services Inc. Report No.: T110330202-RP1 FCC ID: H5OTR42 Date of Issue: May 23, 2011 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 20DB BANDWIDTH ........................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE CORRECTION FACTOR.......................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 17 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 27 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 28 Compliance Certification Services Inc. Report No.: T110330202-RP1 FCC ID: H5OTR42 Date of Issue: May 23, 2011 Page 3 Rev. 00 TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: Car Alarm Transceiver Brand Name: Advance Security Inc. Model: TRC760A Date of Test: April 07, 2011 ~ May 21, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. Sindian Lab. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Compliance Certification Services Inc. Report No.: T110330202-RP1 FCC ID: H5OTR42 Date of Issue: May 23, 2011 Page 4 Rev. 00 EUT DESCRIPTION Product Car Alarm Transceiver Brand Name Advance Security Inc. Model Number TRC760A Modulation Technique ASK Power Supply 3VDC Battery Frequency Range 433.92 MHz Antenna Specification Helical Antenna / Gain: -2.5dbi Associated Receiver H5OTR31 Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: H5OTR42 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: T110330202-RP1 FCC ID: H5OTR42 Date of Issue: May 23, 2011 Page 5 Rev. 00 TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2009) and FCC C…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T110330202-RP1 FCC ID: H5OTR42 Date of Issue: May 06, 2011 Page 29 Rev. 00 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION SET UP PHOTOS TX Mode X axis Compliance Certification Services Inc. Report No.: T110330202-RP1 FCC ID: H5OTR42 Date of Issue: May 06, 2011 Page 30 Rev. 00 Y axis Compliance Certification Services Inc. Report No.: T110330202-RP1 FCC ID: H5OTR42 Date of Issue: May 06, 2011 Page 31 Rev. 00 Z axis Compliance Certification Services Inc. Report No.: T110330202-RP1 FCC ID: H5OTR42 Date of Issue: May 06, 2011 Page 32 Rev. 00 RX Mode
