H5OTR43Car Alarm Transceiver

  ACTIVE ARMING – LOCK & ARM: 1. Press button on the transmitter. 2. The siren will chirp once and parking light will flash once indicating that the system is now armed. The vehicle’s doors will lock upon arming if interfaced with the security system. DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid ajar. SILENT ARMING / DISARMING: Press the transmitter and buttons at the same time. This will arm or disarm your security system, No chirp sound will be heard, arm / disarm confirmation will be through the vehicles parking lights only. SENSOR BY-PASS: Press the button two times within 5 seconds will arm the security system and by-pass the shock sensor. HIDDEN ALARM FUNCTION: Silent Alarm Press the button first; within 3 seconds press the button to activate the hidden alarm function. The security system will arm and with “Hidden Alarm Mode” The siren / horn will be silenced even if the sensor is triggered in the armed mode. Alarm indication will only appear on the LCD Transmitter. PASSIVE ARMING (Programmable) Active arming / disarming is controlled by your security system via the remote transmitter. This security system is equipped with an optional Passive Arming feature which allows the security system to arm 30 seconds after the last door is closed. Operation is as follows. 1. Turn the ignition to the “OFF” position and exit the vehicle. 2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any door / hood / trunk, the security system LED will stop flashing. It will begin flashing again once all vehicle entrances are closed. 3. After the 30-second time has elapsed, the security system will automatically “ARM”. The siren will chirp [1] time and the parking lights will flash [1] time. PASSIVE ARMING WITH PASSIVE DOOR LOCKING The vehicle doors will automatically lock after the passive arming cycle has been completed. PASSIVE ARMING BY-PASS: While the system is disarmed, Press the button twice, the system will respond with [1] chirp and LED will turn “ON”. The security system will re main in this temporary state for as long as you wish. To exit passive by-pass, press the transmitter or buttons and the system will return to normal status. ACTIVE DISARMING – UNLOCK & DISARM: 1. Press button on the transmitter. 2. The siren will chirp twice and the parking lights will flash twice indicating that the security system is now disarmed. The vehicle’s doors will unlock. TAMPER DISARMING : If the alarm is triggered, upon disarm the system’s siren will chirp 4 times, and the parking lights will flash 3 times telling you the alarm has been triggered during the last armed state. PATHWAY ILLUMINATION : When receiving an unlock /disarm signal, this feature will turn the parking lights “ON” for 30 seconds and for 10 seconds upon the lock signal. (Programmable) AUTOMATIC RE-ARM : If this feature is selected, the security system will automatically re-arm itself in 60 seconds after disarming with remote transmitter. Automatic rearm will cancel if any door is opened before the 60 seconds timer has elapsed. DISARMING WITHOUT A TRANSMITTER: The Override function may be used if the remote transmitter is lost or inoperative. 1. Enter the vehicle and turn the ignition switch to the 'ON’ position. 2. (Alarm will sound.) 3. Within 10 seconds push and release the valet switch. The alarm will stop sounding and enter the disarm mode. You can now start and operate the vehicle normally. VALET MODE: (System is in Disarm Mode) The valet switch allows you to temporarily bypass all alarm function, eliminating the need to hand your transmitter to parking attendants or garage mechanics. When the system is in valet mode, all alarm functions and remote start functions are bypassed, however, the remote panic feature and remote door locks will remain operational. To use the valet mode, the system must first be disarmed either by using your remote transmitter, or by operating the Manual Override sequence. a). Under disarm mode, turn the ignition to “ON” position. b). Press and hold valet switch for 2 seconds until the LED turns ON solid. The LED will remain on as long as the system is in 'valet mode'. Exit Valet Mode: a). Turn ignition 'ON'. b). Push and hold valet switch for 2 seconds, The LED will turn off indicate the system are exiting the valet mode.  CAR LOCATOR Under armed mode, press the button to active car locator function. The siren will chirp 6 times. The parking light will flash 12 times, for you to easily locate your car. PANIC FUNCTION: The transmitter can be used as a remote panic switch to manually trigger the alarm in case of emergency. Press and hold the button for 3 second. The alarm will immediately sound.To stop the alarm, press the trunk button on the remote control. If the button is not pressed, the alarm will automatically stop after 30 seconds.TRIGGER THE SYSTEM When armed, your vehicle is protected as follows: Light impact will trigger the warn-away signal. Heavy impacts / Doors open /(if installed) Hood open / (if installed) Trunk open / Turning on the ignition key will trigger the programmed sequence. The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The siren, horn, parking lights, and dome light will turn on alerting of an intrusion for 30 seconds. Then it will stop and automatic reset and re-arm. If the any one of the sensors or detectors is still active, the alarm system will sound a maximum of 3 times of 30 seconds cycles. NOISE ABATEMENT CIRCUIT: Your system has a “Noise Abatement Circuit”. It prevents annoying repetitive trigger sequences due to faulty door pin switches or environmental conditions such as thunder, jackhammers airport noise, etc. Here’s how “Noise Abatement Circuit” works: The alarm triggers five times. Each time, the same sensor or switch has triggered the alarm; the “Noise Abatement Circuit” will interpret this pattern…

Text truncated - open the document above for the full version.

̨ˈˢ˧˥ˇˆ May 3, 2011

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date: April 8, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Sam Hu / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCSRF, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Sam Hu / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCSRF as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;

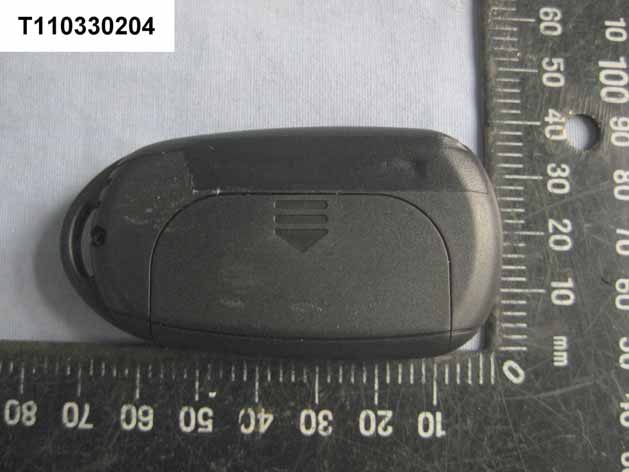

Compliance Certification Services Inc. Report No.: T110330204 Date of Issue: May 06, 2011 A1-1 Total Page: 2 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Advance Security Inc. Model: TRC746AA FCC ID: H5OTR43 FCC ID: H5OTR43 FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: T110330204 Date of Issue: May 06, 2011 A1-2 Rev. 00

Compliance Certification Services Inc. Report No.: T110330204-RP1 FCC ID: H5OTR43 Date of Issue: May 23, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 31 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Car Alarm Transceiver Model: TRC746AA Brand Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Sindian Lab. No.163-1, Jhongsheng Rd, Sindian City, Taipei County 23151, Taiwan (R.O.C.) TEL: (02) 2217-0894 FAX: (02) 2217-1029 Compliance Certification Services Inc. Report No.: T110330204-RP1 FCC ID: H5OTR43 Date of Issue: May 23, 2011 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 20DB BANDWIDTH ........................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE CORRECTION FACTOR.......................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 17 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 27 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 28 Compliance Certification Services Inc. Report No.: T110330204-RP1 FCC ID: H5OTR43 Date of Issue: May 23, 2011 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: Car Alarm Transceiver Brand Name: Advance Security Inc. Model: TRC746AA Date of Test: April 07, 2011 ~ May 21, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. Sindian Lab. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Compliance Certification Services Inc. Report No.: T110330204-RP1 FCC ID: H5OTR43 Date of Issue: May 23, 2011 Page 4 Rev. 00 2. EUT DESCRIPTION Product Car Alarm Transceiver Brand Name Advance Security Inc. Model Number TRC746AA Modulation Technique ASK Power Supply 3VDC Battery Frequency Range 433.92 MHz Antenna Specification Helical Antenna / Gain: -2.5dbi Associated Receiver H5OTR45 Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: H5OTR43 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: T110330204-RP1 FCC ID: H5OTR43 Date of Issue: May 23, 2011 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (200…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T110330204-RP1 FCC ID: H5OTR43 Date of Issue: May 06, 2011 Page 28 Rev. 00 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION SET UP PHOTOS TX MODE X axis Compliance Certification Services Inc. Report No.: T110330204-RP1 FCC ID: H5OTR43 Date of Issue: May 06, 2011 Page 29 Rev. 00 Y axis Compliance Certification Services Inc. Report No.: T110330204-RP1 FCC ID: H5OTR43 Date of Issue: May 06, 2011 Page 30 Rev. 00 Z axis Compliance Certification Services Inc. Report No.: T110330204-RP1 FCC ID: H5OTR43 Date of Issue: May 06, 2011 Page 31 Rev. 00 RX MODE
