H5OTR44Car Alarm Transceiver

1ca4552. 2011 Audiovox Electronics Corporation. All rights reserved. PROFESSIONAL SERIES ca 4552 Owner’s Guide IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information. Remote Start System 2ca4552. 2011 Audiovox Electronics Corporation. All rights reserved. Using Your Remote Vehicle Starter Remote Starting Your Vehicle The system WILL NOT start the vehicle if any one of the following situations exist: 1.The vehicle's hood is opened. 2.The gear shift selector is not in Park. 3.The brake pedal is depressed. 4.Valet Mode is active. 1. To start the vehicle, press and release the button 2 times within 2 seconds. The vehicle will start and remain running for the pre-programmed 5, 10, 15, 20, 45 or 60 minute run cycle. As a visual indication, the parking lights will flash or remain on depending on the setting by your installation center. 2. When you arrive at the vehicle, turn the ignition key to the ON position (Do not try to restart the vehicle), then step on the brake pedal to disengage the remote start. The vehicle will continue to run, but now on it's own power. Shutting Down the Remote Start To shut down the remote start feature from the transmitter press and release the button 2 times within 2 seconds. Unlocking the Vehicle (optional) To unlock the vehicle's doors press and hold the button for 3 seconds anytime the vehicle is remote started. Note: Additional parts and/or labor may be necessary, see your installing dealer for details. Programmed Transmitter Notification As a security precaution each time the vehicle’s ignition is turn on the status LED light with flash the number of transmitters programmed into the system. This helps to identify unauthorized transmitters from accessing your vehicle. If you believe an unauthorized transmitter has been programmed to your system, contact your installing dealer for assistance. 3ca4552. 2011 Audiovox Electronics Corporation. All rights reserved. To begin the 2 / 3 hour start up timer mode: 1.Turn the vehicle’s ignition ON then OFF. 2.Press and hold the valet button. 3.Press the button 4 times, the system will; a. When set for 3 Hour (default) - flash the parking lights 4 times. b. When set for 2 Hour - flash the parking lights 2 times. 4.Release the valet button. To exit the 2 / 3 hour start up timer mode: 1.Turn the vehicle’s Ignition ON. OR 1.Activate the remote vehicle start feature using the remote control. Operating the 2 / 3 Hour Start Up Timer Mode The system has the ability to start the vehicle every 2 or 3 hours for a 48 hour period. This feature is especially useful in cold climates where the only means to keep the engine and engine fluids warm is to periodically start the engine. The default setting is 3 hour, selection between 2 or 3 hour is made in option programming. WARNING! Be certain that the vehicle is outdoors before using this or any remote starting device. A running engine produces dangerous carbon monoxide fumes which can be harmful or fatal if prolonged exposure occurs. DO NOT remote start the vehicle if it is garaged. Using the “Quick-stop” Feature If you want to make a short stop and keep your vehicle running (to keep the interior warm or cool), the quick-stop feature allows you to do this while keeping your vehicle secure and your keys with you. To engage quick stop: 1.Stop the vehicle and place the transmission in PARK. 2.With your foot off the brake pedal, press and release the button 2 times within 2 seconds. The LED will flash 3 times to confirm quick stop is entered. 3.Remove the keys from the ignition and exit the vehicle. Lock the vehicle’s doors if desired. Note: Do not leave children or animals unattended in the vehicle when using the quick-stop feature. 4ca4552. 2011 Audiovox Electronics Corporation. All rights reserved. Transmitter Button Functions 1 Button TransmitterStart / AuxOperation Method Unlock X Press and Hold - During remote start only Remote StartX Press and Release (1 or 2 times depending on selectable option) Remote Start Shut Down X Press and Release (1 or 2 times depending on selectable option) Valet Mode Valet Mode is used to disable the system from remote starting. To enter or exit valet mode simply follow the 4 steps outlined below: 1.Turn the vehicle’s ignition ON. 2.Push and hold the programming/valet button. 3.The LED will turn on solid when valet mode is active 4.Release the programming/valet button. 2 Way Transmitter Notifications FUNCTIONBEEPS / LED FLASHES Activation1 Beep / Flash Confirm Remote Start4 Beeps / Flashes (repeats 3 times) Remote Start Running1 Flash per 3 seconds for duration run time Remote Start Shutdown1 Long Beep / Long Flash (repeats 3 times) Low Battery3 Beeps / Flashes when button is pressed 5ca4552. 2011 Audiovox Electronics Corporation. All rights reserved. Replacing Remote Control Batteries 1 Way Remote Control: The batteries (model CR2016) inside each remote control should last approximately 1 year under normal use. When the batteries become weak you will notice the remote control range (the distance from the vehicle the remote control will work) deteriorate and the small LED on the remote control will dim. To replace the remote control batteries: 1.Unsnap and disassemble the halves of the remote control. 2.Remove the old batteries, observing the +/- symbols on the batteries and replace with new CR2016 batteries. 3.Reassemble the halves of the remote control. 4.Test operation of the remote control. 2 Way Remote Control: The battery (model CR2032) inside each remote control should last approximately 10 months under normal use. When the battery become weak you will notice the remote control range (the distance from the vehicle the remote control will work) deteriorate and the small LED on the remote control will dim. To replace t…

Text truncated - open the document above for the full version.

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date: April 8, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Sam Hu / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCSRF, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Sam Hu / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCSRF as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;

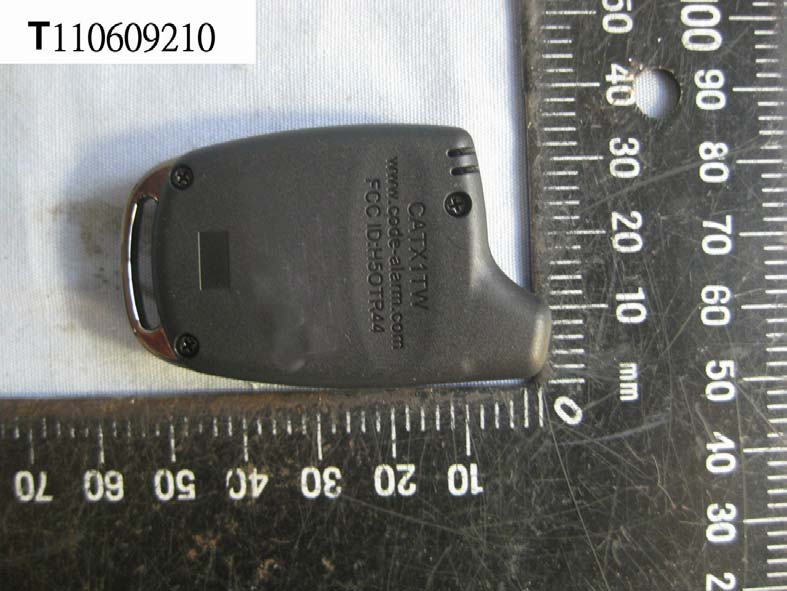

Compliance Certification Services Inc. Report No.: T110609210 Date of Issue: July 08, 2011 A1-1 Total Page: 2 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Advance Security Inc. Model: CATX-1TW FCC ID: H5OTR44 FCC ID: H5OTR44 FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: T110609210 Date of Issue: July 08, 2011 A1-2 Rev. 00

Compliance Certification Services Inc. Report No.: T110609210-RP1 FCC ID: H5OTR44 Date of Issue: July 08, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 28 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Car Alarm Transceiver Model: CATX-1TW Brand Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Sindian Lab. No.163-1, Jhongsheng Rd, Sindian City, Taipei County 23151, Taiwan (R.O.C.) TEL: (02) 2217-0894 FAX: (02) 2217-1029 Compliance Certification Services Inc. Report No.: T110609210-RP1 FCC ID: H5OTR44 Date of Issue: July 08, 2011 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 20DB BANDWIDTH ........................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE CORRECTION FACTOR.......................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 17 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 24 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 25 Compliance Certification Services Inc. Report No.: T110609210-RP1 FCC ID: H5OTR44 Date of Issue: July 08, 2011 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: Car Alarm Transceiver Brand Name: Advance Security Inc. Model: CATX-1TW Date of Test: June 13, 2011 ~ July 01, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. Sindian Lab. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Compliance Certification Services Inc. Report No.: T110609210-RP1 FCC ID: H5OTR44 Date of Issue: July 08, 2011 Page 4 Rev. 00 2. EUT DESCRIPTION Product Car Alarm Transceiver Brand Name Advance Security Inc. Model Number CATX-1TW Modulation Technique ASK Power Supply 3VDC Battery Frequency Range 433.92 MHz Antenna Specification Helical Antenna / Gain: -2.5dbi Associated Receiver H5OTR34 Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: H5OTR44filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: T110609210-RP1 FCC ID: H5OTR44 Date of Issue: July 08, 2011 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T110609210-RP1 FCC ID: H5OTR44 Date of Issue: July 08, 2011 Page 25 Rev. 00 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION SET UP PHOTOS TX MODE X axis Compliance Certification Services Inc. Report No.: T110609210-RP1 FCC ID: H5OTR44 Date of Issue: July 08, 2011 Page 26 Rev. 00 Y axis Compliance Certification Services Inc. Report No.: T110609210-RP1 FCC ID: H5OTR44 Date of Issue: July 08, 2011 Page 27 Rev. 00 Z axis Compliance Certification Services Inc. Report No.: T110609210-RP1 FCC ID: H5OTR44 Date of Issue: July 08, 2011 Page 28 Rev. 00 RX MODE
