2013/05/29 RS-777 OP REV 1D 1 MODEL NO. RS-777 REMOTE ENGINE STARTER WITH ALARM SYSTEM OWNER’S MANUAL 2013/05/29 RS-777 OP REV 1D 2 LCD REMOTE CONTROL TRANSCEIVER: A. BATTERY REPLACEMENT: This system needs no specific maintenance beyond remote control battery replacement. The 2-way remote is powered by a 1.5V AAA battery. The 1-way remote is powered by a 3V, CR2032 battery Battery Level Indicator (2-way remote) The Battery Level indicator has three level indicators that serve as a visual indication of battery charge. When the battery reaches a low charge level that requires replacement, the remote control will generate a single notification chirp, and the Battery Level indicator will flash continuously. Gently pull the end of the battery door away from the top of the remote control then slide the door up to expose the battery and remove the expired battery. Place the new battery into the remote. When power is returned the remote control will display all icons in the LCD and generate all beeper tones once. Press any button on the remote to terminate the beeper tone review. B. STANDARD LCD ICON CONFIGURATIONS: The lock icon will be displayed when the door locked. The unlock icon will be displayed when the door unlock Valet Mode Remote start and alarm functions shall be temporarily on hold. Hidden Alarm Mode The security system arm with hidden alarm function Hood Trigger Hood is illegally opened (Zone 1) Trunk Trigger Trunk is illegally opened (Zone 2) Door Open Warning Doors are illegally opened (Zone 3) Sensor Trigger Trigger on Sensor 1 (Zone 4) Ignition Trigger Ignition switch is illegally turned on (Zone 5) System trigger Remote Transmission You are transmitting the signal to control unit In – Range Indicator Your are within the remote control range. Anti Car-Jack Mode Activate the anti car-jacking mode 2 nd Car Operation Engine Cranking Your vehicle engine Cranking by remote control Engine Running Your vehicle's engine is running 2013/05/29 RS-777 OP REV 1D 3 Timer Control Start Engine start automatically every 2 or 3 hours. Daily Start Engine start automatically at the same time next day PASS 1 Sensor Bypass Sensor 1bypass under Arm mode Turbo Timer Turbo timer was set up Manual Gear Engine Start Memorizing for the car with manual gear was set up Activate Channel 3 (Trunk Release). Activate Channel 3 Activate Channel 4 12:00 Time Monitor 12:00 Alarm Clock You have set morning call alarm 0:10 P Parking Meter Reminder when time is up for parking Low Battery You have to replace the battery of remote control. Melody Mode Remote Control alert user through melody sound Vibration Mode Remote Control vibrates when the system is triggered C. 2-way LCD REMOTE CONTROL TRANSCEIVER OPERATION: Table 1: Enter : Press & hold “ F “ button until one beep, release F-button and continue press F button within 5 sec. to move forward to feature option you want to program. EXIT: Press & hold " F " button for 2 sec. or do nothing wait for 5 sec. automatic exit 2-way LCD (1 beep) => Confirm Exit. F Button LCD Display Button Press and hold the F Button until 1 beeps sound SENSOR BYPASS and PASS 1 icon On Press button Enable to arm the alarm and bypass sensor 1. Press F Button 2nd time (HHU 1 beep) within 5 seconds HIDDEN ALARM and icon On Press button Enable to arm system and with Hidden Alarm Function. Press F Button 3rd time (HHU 1 beep) within 5 seconds ANTI- HIJACK and icon On Under ignition in "on" position Press button Enable to activate anti car jacking functions. Press F Button 4th time (HHU 1 beep) within 5 seconds CH 4 flashing Press button Enable CH#4 output Note : Press and release F Button 2-way LCD Backlight turns on for 5 seconds Table 2 : Enter : Press & hold “ F “ button until 2 beeps heard, release F-button. Continue press F button within 5 sec. to move forward to feature option you want to program. EXIT: Press & hold " F " button for 2 sec. or do nothing wait for 5 sec. automatic exit 2-way LCD (1 beep) => Confirm Exit. F Button LCD display Button 2013/05/29 RS-777 OP REV 1D 4 Press and hold the F Button until 2 beeps sounded MENU flashing Press button to enter 2-way HHU menu mode Press F Button 2 nd time (HHU 1 beep) within 5 seconds STATUS CHECK Press button Enable to check the vehicle’s status. Press F Button 3rd times (HHU 1 beep) within 5 seconds ALARM CHECK Press button Enable to check vehicle’s trigger status. Press F Button 4th times (HHU 1 beep) within 5 seconds VOLTS CHECK Press button Enable to check vehicle’s Voltage. Press F Button 5th time (HHU 1 beep) within 5 seconds TEMP CHECK Press button Enable to check temp. status Table 4 : Return 2-way HHU to default setting Enter : Press & hold “ F “ button until 4 beeps heard, release F-button. EXIT: Press & release " F " button or do nothing wait for 5 sec. automatic exit 2-way LCD (1 beep) => Confirm Exit. F Button LCD display Button Press and hold the F Button until 4 beeps sounded RESET flashing Press & hold button for 2 seconds to back to default setting and 1 chip for confirm D. PROGRAMMING 2-way LCD HHU (Select and Adjusting Table-2-Menu options): Enter: 1. Press and hold F button until 2 beeps heard then release the F button. 2. The Matrix show MENU flash, press button to enter HHU menu mode. (LCD display show Hours of current time set up, set up hour(s) first.) 3. Press button to increase value, or Enable the selected feature. 4. Press button to decrease value, or Disable the selected feature . 5. Press button to confirm its selection, move to the next option. EXIT: Press & hold " F " button or do nothing wait for 15 sec. automatic exit 2-way LCD (1 beep) => Confirm Exit. Order Menu Option LCD display Functions 1 Current time set up Default is 12:00 Adjust clock hours from 0 to 12 12 : 00 12 is flashing Press button = (+) or Press button = (-) Press button confirm its selection, move to next option. Adjust clock minutes from 0 to 59 12: 00 00 is flashing Press button = (+) or Press button = (-) Press button confirm its select…

Text truncated - open the document above for the full version.

Advance Security Inc. 3F, 48 Ta-An Street, Hsi-Chih Taipei Hsien, Taiwan R.O.C. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2013-07-03 To whom it may concern: We, the undersigned, hereby authorize Worldwide Testing Services (Taiwan) Co., Ltd to act on our behalf in all matters relating to applications for equipment authorization FCC ID: H5OTR53 including the signing of all documents related to these matters. Any and all acts carried out by Worldwide Testing Services (Taiwan) Co., Ltd on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Name: Ted Lin Title: VICE PRESIDENT MARKETING & SALES Company: Advance Security Inc.

Advance Security Inc. 3F, 48 Ta-An Street, Hsi-Chih Taipei Hsien, Taiwan R.O.C. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2013-07-03 Request for Confidentiality Company name: Advance Security Inc. FCC ID: H5OTR53 FCC Part 15 Certification To whom it may concern: In accordance with 0.459 of CFR 47, Advance Security Inc. hereby requests confidentiality of all Block Diagrams, Schematics, Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Advance Security Inc. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Advance Security Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name: Ted Lin Title: VICE PRESIDENT MARKETING & SALES Company: Advance Security Inc.

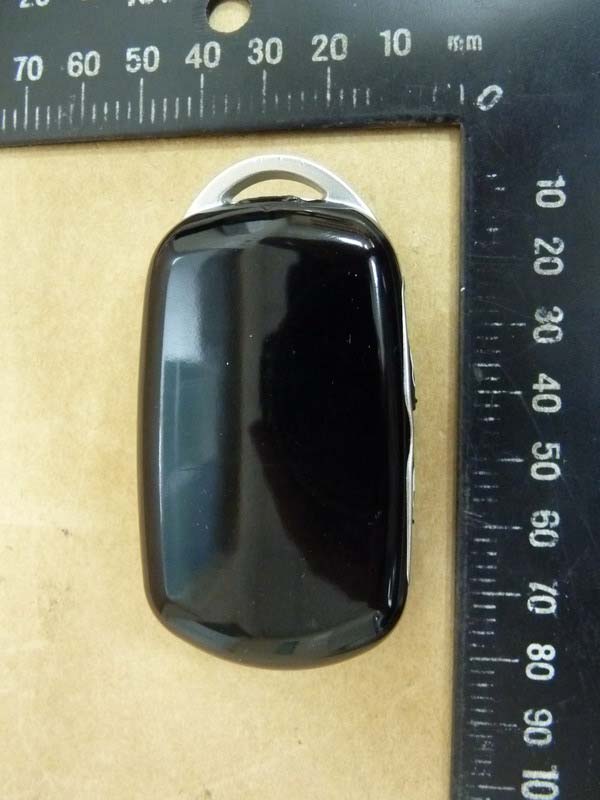

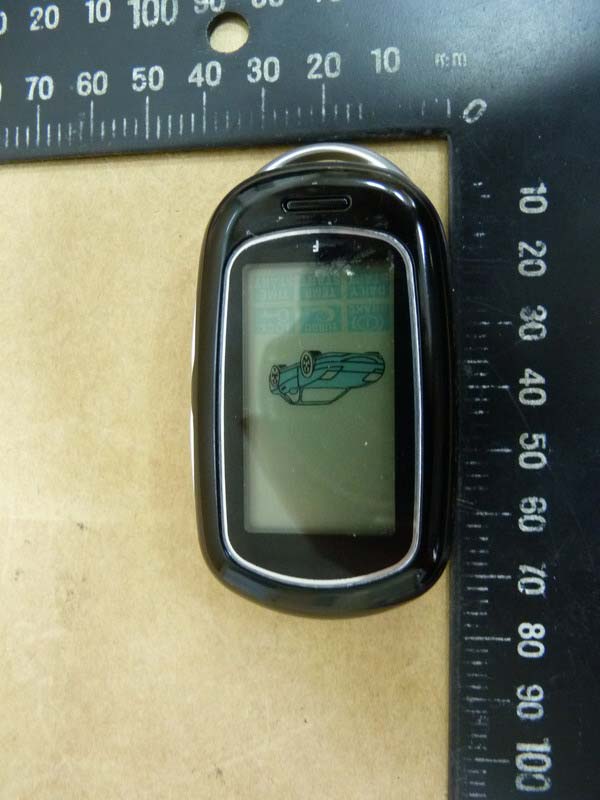

Registration number: W6M21306-13260-FCC FCC ID: H5OTR53 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 13 External Photos Registration number: W6M21306-13260-FCC FCC ID: H5OTR53 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 13 Registration number: W6M21306-13260-FCC FCC ID: H5OTR53 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 13
