H8A1210Door Chime Transmitter

REMARK User can not modify this product. User can not modify this product.

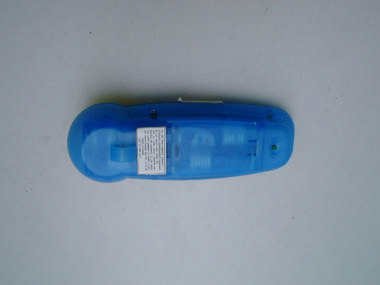

FCC ID: H8A1210 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID:H8A1210 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: H8A1210 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: H8A1210 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: H8A1210 Circuit Description The 370MHz IC oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Mic., U1 and U2. The output of the matching network consisting of L1 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 6Volt (“AA” x 4) primary storage cell.

Date: 2000-12-14 TEST REPORT Page 1 of 8 No.: HM103702 APPLICANT: (CODE : TRP001) TRINE PRODUCT COMPANY. 1430 Ferris Place, Bronx, New York 10461-3699, USA DATE OF SAMPLE(S) RECEIVED: 2000-11-24 SUBMITTED SAMPLE(S): 4 samples per model DATE OF TESTING: 2000-12-02 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:DOOR CHIME TRANSMITTER Manufacturer:SMART HERO ENTERPRISES LTD. Model Number:1210 Brand Name:N/A Rating:6Vd.c. (“AA” size battery x 4) Origin:CHINA Additional Model Number:1211, 1214, 1215 INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK: Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.231a for the Transmitter Section of Federal Communications Commission Rules. Clause 15.231 (1),(2) & (3). TEST EQUIPMENT AUDIT: Please see Appendix A Law Man KitSteven TsangPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director Date: 2000-12-14 TEST REPORT Page 2 of 8 No.: HM103702 T E S T S U M M A R Y (1)Measurement of Emission of RF energy on the carrier frequency...........Satisfactory (2)Measurement of the out-of band emission including harmonics..............Satisfactory (3)Measurement of Emission Within Band Edges........................................Satisfactory (4)Measurement of Radiated Emissions........................................................Satisfactory (5)Measurement of Line-Conducted Voltage onto AC Power Line..............Not applicable (6)FCC rule clause 15.231 (1),(2) and (3) subpart C-Intentional-radiator....Satisfactory T E S T D A T A Please refer to the attached result sheets. Date: 2000-12-14 TEST REPORT Page 3 of 8 No.: HM103702 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.231a (367.993MHz) TEST CONDITION:Normal TEST DATE:2000-12-02 Emission of RF energy on the carrier frequency -- 367.993 MHz (PEAK VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(μV)H-VdBdB(μV/m)μV/mμV/m 368.063.7H+20.384.015848.982497.2 ================================================================== Emission of RF energy on the carrier frequency -- 367.993 MHz (AVERAGE VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m * 367.99345.2H+20.365.51883.68249.7 ================================================================== * Adjusted by duty cycle = -18.5dB ... to be continued Date: 2000-12-14 TEST REPORT Page 4 of 8 No.: HM103702 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.231a (367.993MHz) TEST CONDITION:Normal TEST DATE:2000-12-02 Field strength of spurious emissions (PEAK VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m #736.041.0H+28.769.73054.98249.7 *1104.025.5H+33.458.9881.05000.0 *1472.022.9H+36.859.7966.15000.0 1840.0<1.0+32.1<33.1<45.28249.7 *2208.0<1.0+26.2<27.2<22.95000.0 2576.0<1.0+28.0<29.0<28.28249.7 2943.9<1.0+28.5<29.5<29.98249.7 3311.9<1.0+30.6<31.6<38.08249.7 *3679.9<1.0+32.0<33.0<44.75000.0 *4047.9<1.0+33.0<34.0<50.15000.0 ================================================================== Remark : * - Denotes restricted band of operation. Measurement were made using a peak detector. Any emission less than 1000 MHz and falling within the restricted bands of FCC Rules Part 15 Section 15.205 were not adjusted for averaging and the limit of FCC Rules Part 15 Section 15.209 were applied ===============SUMMARY================ data is within limits ===================================== Broad-band Antennas were used and both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- Horizontal V -- Vertical ===================================== Date: 2000-12-14 TEST REPORT Page 5 of 8 No.: HM103702 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.2319a (367.993MHz) TEST CONDITION:Normal TEST DATE:2000-12-02 Field strength of spurious emissions (AVERAGE VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m #736.018.5H+28.747.2229.1825.0 *1104.0<1.0+30.6<31.6<38.0500.0 *1472.0<1.0+32.8<33.8<49.0500.0 1840.0<1.0+28.3<29.3<29.2825.0 *2208.0<1.0+32.1<33.1<45.2500.0 2576.0<1.0+26.2<27.2<22.9825.0 2943.9<1.0+28.0<29.0<28.2825.0 3311.9<1.0+28.5<29.5<29.9825.0 *3679.9<1.0+30.6<31.6<38.0500.0 *4047.9<1.0+31.6<32.6<42.7500.0 ========================================================================= Remark : * - Denotes restricted band of operation. Measurement were made using a peak detector. Any emission less than 1000 MHz and falling within the restricted bands of FCC Rules Part 15 Section 15.205 were not adjusted for averaging and the limit of FCC Rules Part 15 Section 15.209 were applied ===============SUMMARY================ data is within limits ===================================== Broad-band Antennas were used and both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- Horizontal V -- Vertical ===================================== Date: 2000-12-14 TEST REPORT Page 6 of 8 No.: HM103702 *** INTENTIONAL RADIATOR *** 20dB bandwidth measurement for fundamental (2) Measurement of Emissions Within Band Edges. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.231a (367.993MHz) TEST CONDITION:Normal…

Text truncated - open the document above for the full version.

FCC ID: H8A1210

FCC ID: H8A1210 TEST SET UP PHOTOGRAPH OF THE PRODUCT
