H8A510SHWireless Door Chime Receiver

FCC Warning Statement: This equipment has been tested and found to comply with CFR 47 15.231, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not instructions, may cause harmful interference no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, that the user is encourages trying to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes to this device not expressly approved by the manufacture could void the user’s authority to operate this device.

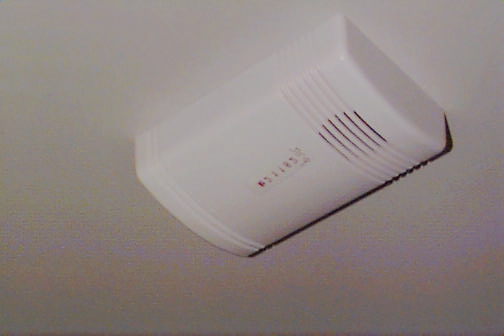

EUT External Photos Receiver SAMPLE PHOTOGRAPHS – FRONT VIEW Receiver SAMPLE PHOTOGRAPHS – REAR VIEW Proposed FCC Label Location

EUT Internal Photos Receiver SAMPLE PHOTOGRAPHS – INSIDE VIEW Receiver SAMPLE PHOTOGRAPHS – INSIDE VIEW Receiver SAMPLE PHOTOGRAPHS – PCB COMPONENT SIDE VIEW Receiver SAMPLE PHOTOGRAPHS – PCB SOILDER SIDE VIEW

EMC Compliance Management Group 670 National Avenue Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 Competent Body Approval #: 14082 NVLAP Lab code: 200068-0 EMC TEST CERTIFICATION REPORT On Models: 33-1 & 510 Prepared for Trine Products Corporation According to FCC Part 15 Class B FCC ID #:H8A-510SH Prepared by:Arcelia Maldonado QC Manager:Michael J. Azar i Table of Contents GOVERNMENT DISCLAIMER NOTICE__________________________1 REPRODUCTION CLAUSE_____________________________________1 ADMINISTRATIVE DATA_____________________________________2 EUT DESCRIPTION___________________________________________2 MODEL DIFFERENCES________________________________________3 TEST SUMMARY_____________________________________________4 TEST LOCATION_____________________________________________5 ACCREDITATION BODIES____________________________________5 EQUIPMENT MODIFICATION_________________________________6 TEST SYSTEM DETAILS______________________________________7 CONFIGURATION OF TESTED SYSTEM________________________8 ATTACHMENT 1 - RADIATED EMISSION TEST RESULTS (204-R- 01)_______________________________________________________9-10 FCC ID #: H8A-510SH Prepared for Trine Products Corporation Prepared by EMC Compliance Management GroupPage 1 of 10 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group, 670 National Ave., Mountain View, CA 94043. FCC ID #: H8A-510SH Prepared for Trine Products Corporation Prepared by EMC Compliance Management GroupPage 2 of 10 ADMINISTRATIVE DATA Test Sample: Wireless Door Chime Part Number: N/A Manufacturer: Smart Hero Enterprise Ltd. Applicant: Trine Products Corporation 1430 Ferris Place Bronx, NY 10461-3699 USA Telephone: (718) 829-4796 Fax: (718) 792-9127 EUT Description Trine Products Corporation models 33-1 & 510 (referred to as the EUT in this report) is a Wireless Door Chime Receiver. FCC ID #: H8A-510SH Prepared for Trine Products Corporation Prepared by EMC Compliance Management GroupPage 3 of 10 Model Differences 1. Receiver model 33-1 has same circuit as model 510. The difference of these two receivers is the battery, 510 uses 3 x UM-2 batteries while 33-1 uses 3 x UM-1 batteries. FCC ID #: H8A-510SH Prepared for Trine Products Corporation Prepared by EMC Compliance Management GroupPage 4 of 10 Test Summary The Electromagnetic Compatibility requirements on Models 33-1 for this test are stated below. All results listed in this report relate exclusively to this above-mentioned model as the Equipment Under Test. This report confers no approval or endorsement upon any other component, host or subsystem used in the test set-up. Radiated Emission Tests SpecificationsTest ResultsTest PointRemark CFR 47 Part 15 Section 15.109 Receiver (30MHz to 1,000MHz on Quasi-peak) Passed by 0.8 dB of QP EnclosureAttachment 1 FCC ID #: H8A-510SH Prepared for Trine Products Corporation Prepared by EMC Compliance Management GroupPage 5 of 10 Test Location EMC Compliance Management Group is located at 670 National Ave., Mountain View, CA 94043, USA. Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM and Telecommunications Products. Laboratory Assessment #: 14082, Approved by Assessment Services, A U. K. Competent Body, as meeting the requirements of EN45001and ISO Guide 25. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Registered in accordance with Japanese VCCI Regulations. FCC ID #: H8A-510SH Prepared for Trine Products Corporation Prepared by EMC Compliance Management GroupPage 6 of 10 Equipment Modification Any modifications installed previous to testing by Trine Products Corporation will be incorporated in each production model sold or leased in United States. There were no modifications installed by EMC Compliance Management Group. FCC ID #: H8A-510SH Prepared for Trine Products Corporation Prepared by EMC Compliance Management GroupPage 7 of 10 Test System Details EUT Model Number: Description: Manufacturer: 33-1 Wireless Door Chime Smart Hero Enterprises Ltd. Support Equipment None FCC ID #: H8A-510SH Prepared for Trine Products Corporation Prepared by EMC Compliance Management GroupPage 8 of 10 Configuration of Tested System EUT FCC ID #: H8A-510SH Prepared for Trine Products Corporation Prepared by EMC Compliance Management GroupPage 9 of 10 ATTACHMENT 1 - RADIATED EMISSION TEST RESULTS (204-R-01) CLIENT: Trine Products Corporation TEST REFERENCE: FCC Part 15.109 EUT MODEL: 33-1 PRODUCT: Wireless Door Chime (Receiver) SERIAL NO.: N/A EUT DESIGNATION: Home Use TEMPERATURE: 15°C HUMIDITY: 48% ATM PRESSURE: 1017 Mbar GROUNDING: N/A TESTED BY: Robert Li DATE OF TEST: 2000 Feb 12 SETUP METHOD: ANSI C63.4:1992, CISPR 16-1:1993 TEST PROCEDURE: The EUT was set up according to the guidelines of ANSI C63.4:1992 for radiated emissions. An EMI receiver peak scan was made at the frequency measurement range (…

Text truncated - open the document above for the full version.

EUT Test Set-up Photos Radiated Emission Test Set-up – Receiver Radiated Emission Test Set-up – Receiver
