HAP28T2727 MHz Radio Transmitter

- Press to move forward. Release to stop. - Press to move forward. Release to stop. JIMMY NEUTROU ULTRA ORB OWNER'S MANUAL and -Press at the same time to turn right spinning. and -Press at the same time to turn left spinning. INTRODUCTION Your Echo Jimmy Genius Ultra Orb is an all-terrain toy vehicle. It has two big wheels extending over the top of it, allowing it to travel in any direction you choose and perform many exciting stunts. Built to 1/14 scale, it reaches speeds up to 400 feet per minute. The Ultra Orb comes in two frequencies (27 MHz & 49 MHz). You can race with a friend, provided your Ultra Orbs operate on different frequencies. INSTALLING BATTERIES Having a parent or adult to help your install batteries in your Ultra Orb is strongly recommended. Warning: Dispose of old batteries promptly and properly. Do not burn or bury them. Cautions: • Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of different capacities. • If you do not plan to use the Ultra Orb for several days, remove the batteries. Batteries can leak chemicals that can destroy electronic parts. • Never leave dead or weak batteries in the Ultra Orb and transmitter. A) TRANSMITTER The transmitter requires one 9V battery (not included) for power. 1. Slide ON/OFF on the transmitter to OFF. 2. Slide the battery compartment cover in the direction of the arrow to remove it . 3. Place the 9V battery in the compartment according to the polarity symbols (+ and -) marked inside. 4. Replace the cover and snap it shut. When the range of your transmitter decreases, replace its battery. B) THE ULTRA ORB Your Ultra Orb uses a 9.6V Ni-Cd rechargeable battery pack (not included) for power. Before using the battery pack, you must charge it. 1. Slide ON/OFF switch on the bottom of the Ultra Orb to OFF. 2. Use a coin to turn the battery compartment cover's latches in the direction of the arrows until they stop, then remove the cover. 3. Attach the battery pack's white plastic connector to the Ultra Orb's matching connector. Do not force them together. They only fit one way. Carefully tuck the wire into the compartment recess and place the battery pack into the compartment. 4. Replace the cover, making sure not to pinch the wires. Then secure the latches with a coin. 5. When the Ultra Orb stops operating properly, recharge the battery pack. BATTERY CHARGING Note: Follow the instruction on your 9.6V rechargeable Ni-Cd battery pack and charger system. • The 9.6V rechargeable Ni-Cd battery pack must be charged prior to use. • When charging Ni-Cd battery pack, plug charger into household outlet. Connect the charger with the Ni-Cd battery pack. • Four hours is all that is required for a fully charged battery pack. Charging the battery pack for more than 4 hours will not give you the longer running time. • After use, the battery pack will be hot. Wait at least 10 minutes until the battery pack cools down before charging. Recharging a hot battery pack will greatly reduce the recharging life of your battery pack. DRIVING THE ULTRA ORB 1. Insert the two supplied outriggers into the holes on each side of the Ultra Orb with the outriggers curved upwards. 2. Slide ON/OFF on the bottom of the Ultra Orb to ON. 3. Slide ON/OFF on the transmitter to ON. 4. Use the transmitter's control buttons to control the movement and direction of the Ultra Orb. 5. When you finish driving, slide ON/OFF on both the Ultra Orb and the transmitter to OFF. EXPERT SKILLS When the Ultra Orb leans to either side and you are riding on the outriggers, press either or to drive upright again. While moving forward, quickly release Left and Right and press Left and Right . The Ultra Orb rolls over! While driving upside down: • Hold down to move backwards in a rocking motion. • Hold down to move forward in a rocking motion. NOTE: While driving upside down, the buttons become opposite of their original function. For example, causes the Ultra Orb to move backward, and spin left causes it to spin right. Warnings: • Never play with the Ultra Orb in the street. • Be careful to avoid collisions with people and objects. • Don't touch the wheels when you turn on the Ultra Orb. This can cause injury. HELPFUL HINTS • Running your Ultra Orb continuously for long periods generates high heat levels. Heat causes wear and tear on the motor. To help keep heat levels down, when your Ultra Orb's battery pack dies, let the Ultra Orb cool at least 10 minutes before installing a new or newly charged battery pack. • If someone uses a CB nearby, it might interfere with control of the Ultra Orb. If this happens, move the Ultra Orb away from the CB. • You cannot operate your Ultra Orb near devices with transmitters that use the same frequency as your Ultra Orb (27 MHz or 49 MHz). Check your Ultra Orb' s box to see which frequency your Ultra Orb uses. • If the Ultra Orb moves slowly and you just installed a fully charged battery pack, check the wheel mechanisms for lint, thread, hair, or dust. CARE • Do not drive the Ultra Orb through puddles or mud, on a wet floor, or in sand, rain, or snow. These can damage it . • Do not expose the Ultra Orb or transmitter to temperature extremes, and do not store them in direct sunlight or near a heat source. • Do not leave the Ultra Orb or transmitter outside overnight. Night dampness can damage their electronic circuits. • To protect the Ultra Orb's mechanisms from lint and hair, do not drive the car on carpet. • Wipe the Ultra Orb and transmitter with a damp cloth occasionally to keep them looking new. Do not use harsh chemicals to clean them. THE FCC WANTS YOU TO KNOW NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User's authority to operate the equipment. Modifying or tampering with the Ultra Orb or tr…

Text truncated - open the document above for the full version.

FCC ID Location FCC ID Sample

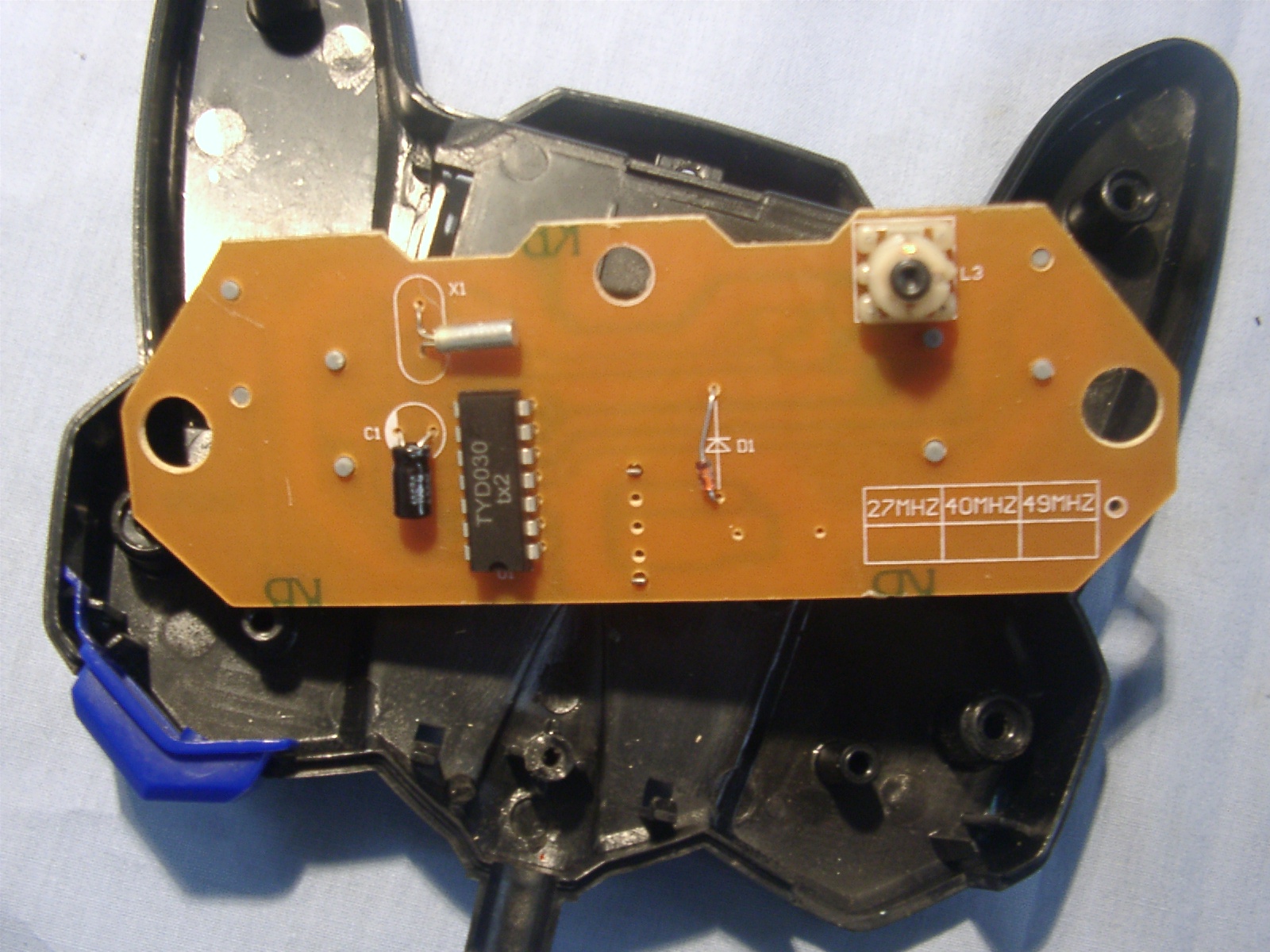

Model No: 91229-27.145MHz CIRCUIT DESCRIPTION In transmitter, press the Forward, Forward-Left, Forward-Right, Or press the backward, Backward- left, Backward-Right, output U1 pin 8 supply encoding signal. Q1 & X1 is a crystal oscillator of 27.145MHz frequency. Q2 is a modulator. Output of Q2 drives the transformer L3. The antenna is coupled to the modulator by the transformer. In receiver WL1 is tuning 27.145MHz frequency. And Q1 is a RF amplifier and detector stage. U1 is a signal amplifier and decoder, it controls the output of U1 pin6, 7 and pin11, 12. Q4, Q5, Q11 and Q12 are regulator. Q6, Q7, Q8, Q9 are Left-motor driver, and Q12, Q13, Q14, Q15 are Right-motor driver. ANTENNA AND GROUND CIRCUITRY This unit makes use of an external flexible 22 centimeters long antenna. The antenna is inductively coupled. The unit relies on the ground tract of the printed circuit board. No external ground is provided. Energy is supplied a 9-volt battery. 写字楼及陈列室 OFFICE & SHOWROOM 香港九龙尖沙咀东部么地道67号半岛中心1108室 ROOM 1108 PENINSULA CENTRE 67 MODY ROAD TSIM SHA TSUI EAST KOWLOON HONG KONG. TEL: 852 2723 8038 FAX 852 2665 4068 E-MAIL ADDRESS: [email protected]

Report No.: 03.04.0395EF-1 Page: 1 of 10 FCC ID: HAP28T27 Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : 03.04.0395E Applicant : Echo Toys Ltd FCC ID : HAP28T27 Fundamental Frequency : 27.145 MHz Equipment under Test (EUT): Name : Jimmy Neutron Ultra Orb Model : 91229 Standards : FCC PART 15, SUBPART C : 2002 Date of Receipt : 14 April 2003 Date of Test : 18 April 2003 Date of Issue : 21 April 2003 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID No.: HAP28T27 Report No.: 03.04.0395EF-1 Page: 2 of 10 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 C LIENT INFORMATION............................................................................................................................................ 3 3.2 D ETAILS OF E.U.T. ................................................................................................................................................. 3 3.3 D ESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 T EST LOCATION...................................................................................................................................................... 3 3.5 O THER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.6 T EST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 T EST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 T EST PROCEDURE & MEASUREMENT DATA........................................................................................................... 5 4.3.1 Radiated Emissions ...................................................................................................................................... 5 4.3.2 Occupied Bandwidth .................................................................................................................................... 7 4.3.3 Photographs - Radiated Emission Test Setup in Chamber .......................................................................... 8 5 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS ...........................................................................9-10 FCC ID No.: HAP28T27 Report No.: 03.04.0395EF-1 Page: 3 of 10 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant: Echo Toys Ltd Address of Applicant: Room 1108, Peninsula Centre 67 Mody Road, Tism Sha Tusi East, Kowloon, Hong Kong. 3.2 Details of E.U.T. Product Name: Jimmy Neutron Ultra Orb (Transmitter Part) Model: 91229 Power Supply: 9V DC (1 x ‘6F22’ Battery) Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit: a 27MHz radio transmitter. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID No.: HAP28T27 Report No.: 03.04.0395EF-1 Page: 4 of 10 SGS-CSTC Standards Technical Services Ltd. 3.6 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • NVLAP – Lab Code: 200611-0 SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is recognized under the National Voluntary Laboratory Ac…

Text truncated - open the document above for the full version.
