HAP604224TRemote Control Car

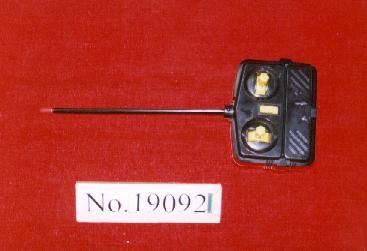

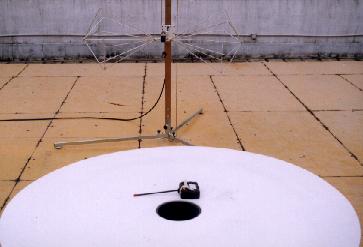

INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. F C C - TEST REPORT REPORT NO.: 19092/9/400F Units 602-605, 6/F., 31 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong Tel: [852] 2305-2570 Fax: [852] 2756-4480 INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19092/9/400F Date: 1999-05-29 Page 2 of 11 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: Remote Control Car -- 49 MHz Transmitter Model: 60-4224 (49MHz) Applicant: ECHO TOYS LTD Manufacturer : ECHO ELECTRONIC TOYS FACTORY INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19092/9/400F Date: 1999-05-29 Page 3 of 11 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Interference Radiation (Datasheet) 9. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 10. Measurement of Emissions within Band Edges (Datasheet) 11. Notes for Measurement of Emissions within Band Edges INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19092/9/400F Date: 1999-05-29 Page 4 of 11 LABORATORY - REPORT APPLICANT: ADDRESS: ECHO TOYS LTD 8 A&B, Block 1, Tai Ping Industrial Centre 57 Ting Kok Road Taipo, NT HONG KONG DATE OF SAMPLE RECEIVED:1999-04-09 DATE OF TESTING:1999-05-29 DESCRIPTION OF SAMPLE: Product:Remote Control Car -- 49 MHz Transmitter Manufacturer:ECHO ELECTRONIC TOYS FACTORY Model number:60-4224 (49MHz) Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS:See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. ___________Signed in the original copy__________________ Authorized Signature Remark: Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19092/9/400F Date: 1999-05-29 Page 5 of 11 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. Measurement of Emissions within Band Edges Test result:O.K. Test data:See attached data sheet INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19092/9/400F Date: 1999-05-29 Page 6 of 11 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19092/9/400F Date: 1999-05-29 Page 7 of 11 Radiated Emission Test Procedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19092/9/400F Date: 1999-05-29 Page 8 of 11 Radiation Measurement Data Ref: '19092'Transmitter Item#FreqHoriz.Vert.FactorH. ResultV. ResultLimit MHzdB(μV)dB(μV)dBμV/mμV/mμV/m Peak49.864753.57.05011059100000 Av49.8645517.039879410000 harm. 299.726278.55360150 harm. 3149.616.5<1613.030<28150 harm. 4199.4<16<1615.1<36<36150 harm. 5249.3<16<1616.7<43<43200 harm. 6299.2<16<1618.0<50<50200 harm. 7349.0<16<1617.4<47<47200 harm. 8398.9<16<1618.3<52<52200 harm. 9448.7<16<1619.0<56<56200 harm. 10498.6<16<1619.7<61<61200 harm. 11548.5<16<1620.2<65<65200 harm. 12598.3<16<1620.9<70<70200 harm. 13648.2<16<1621.6<76<76200 harm. 14698.0<16<1622.4<83<83200 harm. 15747.9<16<1623.0<89<89200 harm. 16797.8<16<1623.7<97<97200 harm. 17847.6<16<1624.3<104<104200 harm. 18897.5<16<1625.0<112<112200 harm. 19947.3<16<1625.7<122<122200 harm. 20997.2<16<1626.5<133<133500 Conclusion: All data were within limits 0 10 20 30 40 50 60 70 80 90 100 101001000 MHz dBμV/m Horiz. dataVert. dataLimit INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19092/9/400F Date: 1999-05-29 Page 9 of 11 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. In the frequency range above 1000 MHz Spectrum Analyzer FMSM26 and Analyzer Display Unit FSA- D are used, bandwidth set at 100 kHz. 4. Measuring antenna: Broad-band antenna for the frequency range 30 - 300 MHz and frequency range 300 - 1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable in…

Text truncated - open the document above for the full version.
