HAP90277RRemote Control Car

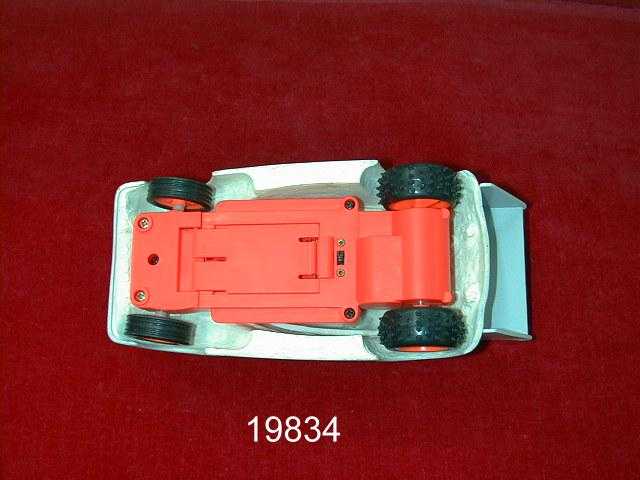

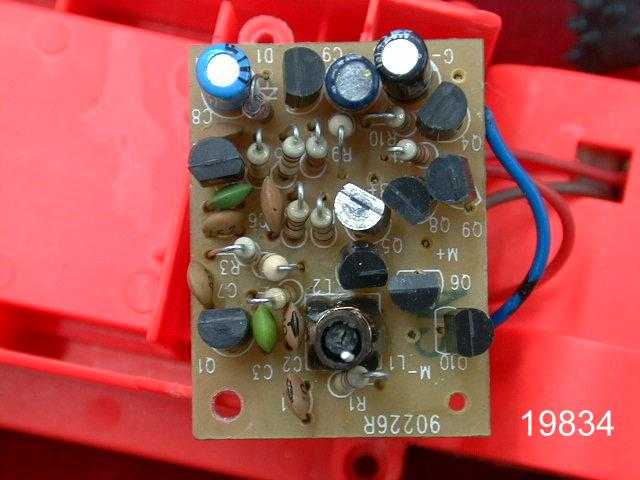

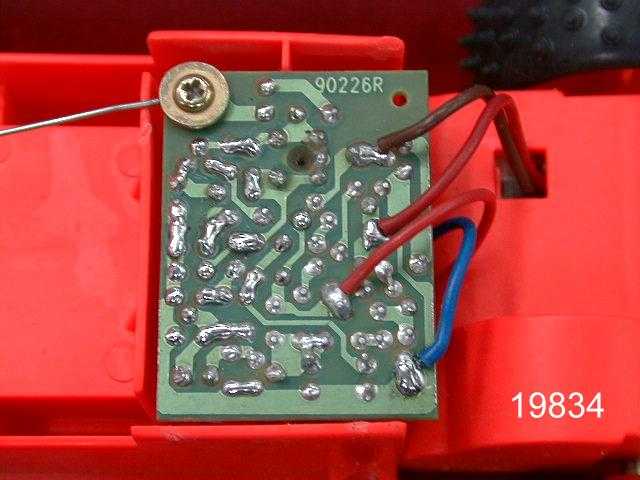

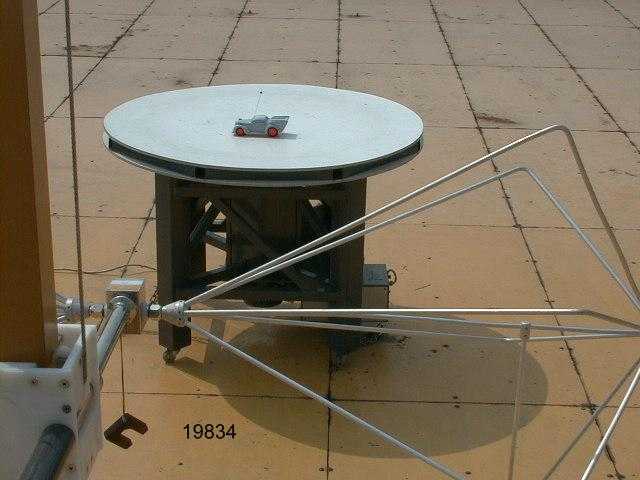

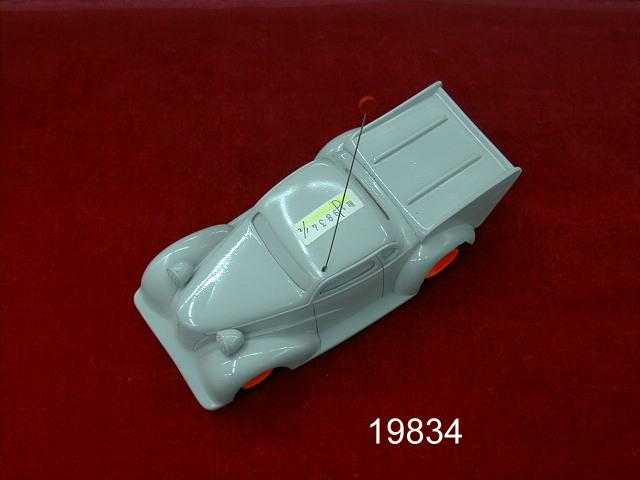

INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. F C C - TEST REPORT REPORT NO.: 19834/9/400F Units 602-605, 6/F., 31 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong Tel: [852] 2305-2570 Fax: [852] 2756-4480 INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19834/9/400F Date: 1999-07-29 Page 2 of 9 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: Remote Control Car -- 49 MHz Receiver Model: 90277 (49MHz) Importer: ECHO TOYS LTD Manufacturer : ECHO ELECTRONIC TOYS FACTORY INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19834/9/400F Date: 1999-07-29 Page 3 of 9 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Interference Radiation (Datasheet) 9. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19834/9/400F Date: 1999-07-29 Page 4 of 9 LABORATORY - REPORT APPLICANT: ADDRESS: ECHO TOYS LTD 8 A&B, Block 1, Tai Ping Industrial Centre 57 Ting Kok Road Taipo, NT HONG KONG DATE OF SAMPLE RECEIVED:1999-06-15 DATE OF TESTING:1999-07-29 DESCRIPTION OF SAMPLE: Product:Remote Control Car -- 49 MHz Receiver Manufacturer:ECHO ELECTRONIC TOYS FACTORY Model number:90277 (49MHz) Additional model number:-- Rating:DC 3V ('AA' Size Battery x 2) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B – ‘Unintentional Radiators’ RESULTS:See the attached test sheets CONCLUSIONSFrom the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. ___________Signed in the original copy__________________ Authorized Signature Remark: Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19834/9/400F Date: 1999-07-29 Page 5 of 9 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19834/9/400F Date: 1999-07-29 Page 6 of 9 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast SystemSchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW105 55 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19834/9/400F Date: 1999-07-29 Page 7 of 9 Radiated Emission Testprocedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19834/9/400F Date: 1999-07-29 Page 8 of 9 Radiation Measurement Data Ref: '19834'Power On FreqHoriz.Vert.FactorH. ResultV. ResultLimit MHzdB(μV)dB(μV)dBμV/mμV/mμV/m 30.0<16<1614.0<32<32100 48.516217.51527100 50.31625.57.01442100 51.0617.5276.81649100 53.8622246.42633100 114.0161810.22026150 299.1620<1618.079<50200 449.016<1619.056<56200 500.0<16<1619.7<61<61200 1000.0<16<1626.5<133<133500 Conclusion: All data were within limits 0 10 20 30 40 50 60 70 101001000 MHz dBμV/m Horiz. dataVert. dataLimit INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 19834/9/400F Date: 1999-07-29 Page 9 of 9 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. 4. Measuring antenna: Broad-band antenna for the frequency range 30 - 300 MHz and frequency range 300 - 1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The antennas are capable of measuring both horizontal and vertical polarizations. 5. Frequency range scanned: The frequency range 30 - 1000 MHz has been scanned. Readings of the highest emissions relating to the limit were reported as above. 6. Arrangement of EUT: During the test, the sample was operated at rated supply voltage and arranged for maximum emissions. 7. Measuring Procedure: In accordance with the relevant sections of the American National Standards Institute (ANSI) C63.4- 1992 ‘Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9KHz to 40GHz’.
