HAP90293T27X-Board

electronic GmbH FCC – Testreport No. FCC-22634 Date: 19.06.2000 Page 1 (6) TEST EQUIPMENT LIST QuantityEquipmentSerial-numberManufacturer 2Receiver ESVS 30#82852/006Rohde & Schwarz Receiver ESVS 30#833825/010Rohde & Schwarz 3Receiver ESHS 30#839667/002Rohde & Schwarz Receiver ESHS 30#839667/008Rohde & Schwarz Receiver ESHS 30#39667/008Rohde & Schwarz 2Broadband antenna 30MHz-1000 MHz CBL 6111 #1064 #1331 Chase 1Loop Antenna 9kHz-30MHz 6502 #2018Emko 1Turntable DT 312#312/336Deisel 3Shielded room DC... 10 GHz 3,5 m x 3,5 mSiemens 2LISN ESH2-Z5#831079/018Rohde & Schwarz LISN ESH2-Z5#879675/028Rohde & Schwarz 1LISN NSLK 8127#8127230Schwarzbeck 2Antenna mast system AM 9104Schwarzbeck 3Plotter HP7550A#2936A43117Hewlett Packard Plotter HP7550A#2631A46736Hewlett Packard Plotter HP7550B#3026A03892Hewlett Packard 1Spectrum Analyzer 8562A#3043A05643Hewlett Packard 3Controller 300Hewlett Packard Controller 300Hewlett Packard Controller 300Hewlett Packard 3Floppy-Disk-Drive 9122C#2804A04362Hewlett Packard Floppy-Disk-Drive 9122D#2614A63990Hewlett Packard Floppy-Disk-Drive 9122D#2339A13495Hewlett Packard 3Monitor 35741B#8838J26540Hewlett Packard Monitor 35731B#8627K33194Hewlett Packard Monitor 35731B#8619K25961Hewlett Packard 3Keyboard 46021AD#2844S60217Hewlett Packard Keyboard 46021AD#2645S20154Hewlett Packard Keyboard 46021AD#2706S40044Hewlett Packard electronic GmbH FCC - Testreport No. FCC-22634 Date: 19.06.2000 Page 2 (6) Equipment under test (on turntable) Testreceiver ESHS30 R+S FDD 9122C HP Computer 300 HP Monitor 35731B HP IEEE-Bus TESTFACILITY required test distance (3m, 10m, ..) Loop Antenna 6502 Emko Radiated Emission Testprocedure Magnetic field emissions Plotter 7550A HP Keyboard 46021AD HP electronic GmbH FCC - Testreport No. FCC-22634 Date: 19.06.2000 Page 3 (6) Notes for Radiation Measurement (Magnetic field emissions) acc. to ANSI C63.4 - 1992 1. Measurement facility: Measurement facility located at Frontenhausen (Germany) on field with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 2. Measuring instrumentations: Rohde & Schwarz ESHS 30 Test Receiver ( 9 KHz - 30 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 10 KHz. 3. Frequency range scanned: The frequency range 9KHz - 30 MHz has been scanned. Readings of the highest emissions relating to the limit were reported as above. 4. Measuring antenna: Loop Antenna for the frequency range 9kHz - 30MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The center of the loop 1m above the ground plane, positioned with its plane vertical at the specified distance and rotated about its vertical axis and placed horizontally for maximum response at each azimuth about the EUT. 5. Arrangement of EUT: During the test, the sample was operated at rated supply voltage and arranged for maximum emissions. 6. Measuring Procedure: In accordance with the relevant sections of American National Standards Institute (ANSI) C63.4-1992 "Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 KHz to 40 GHz". electronic GmbH FCC - Testreport No. FCC-22634 Date: 19.06.2000 Page 4 (6)

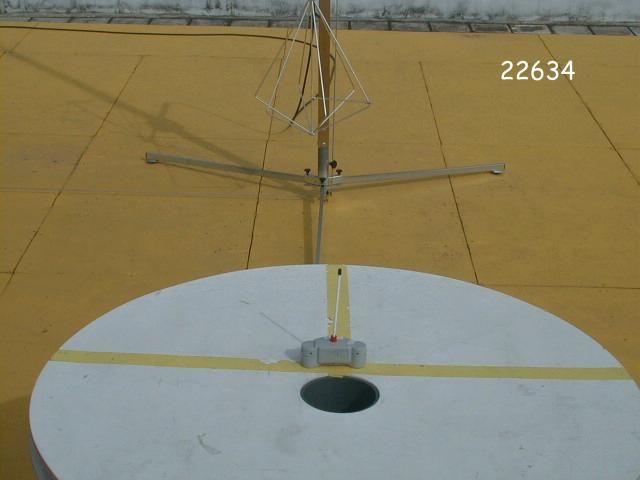

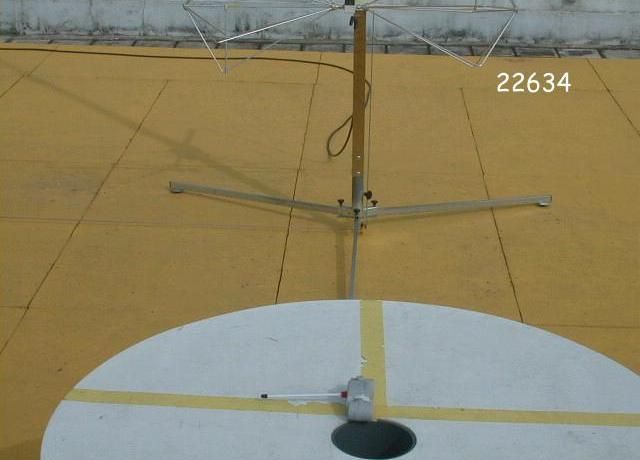

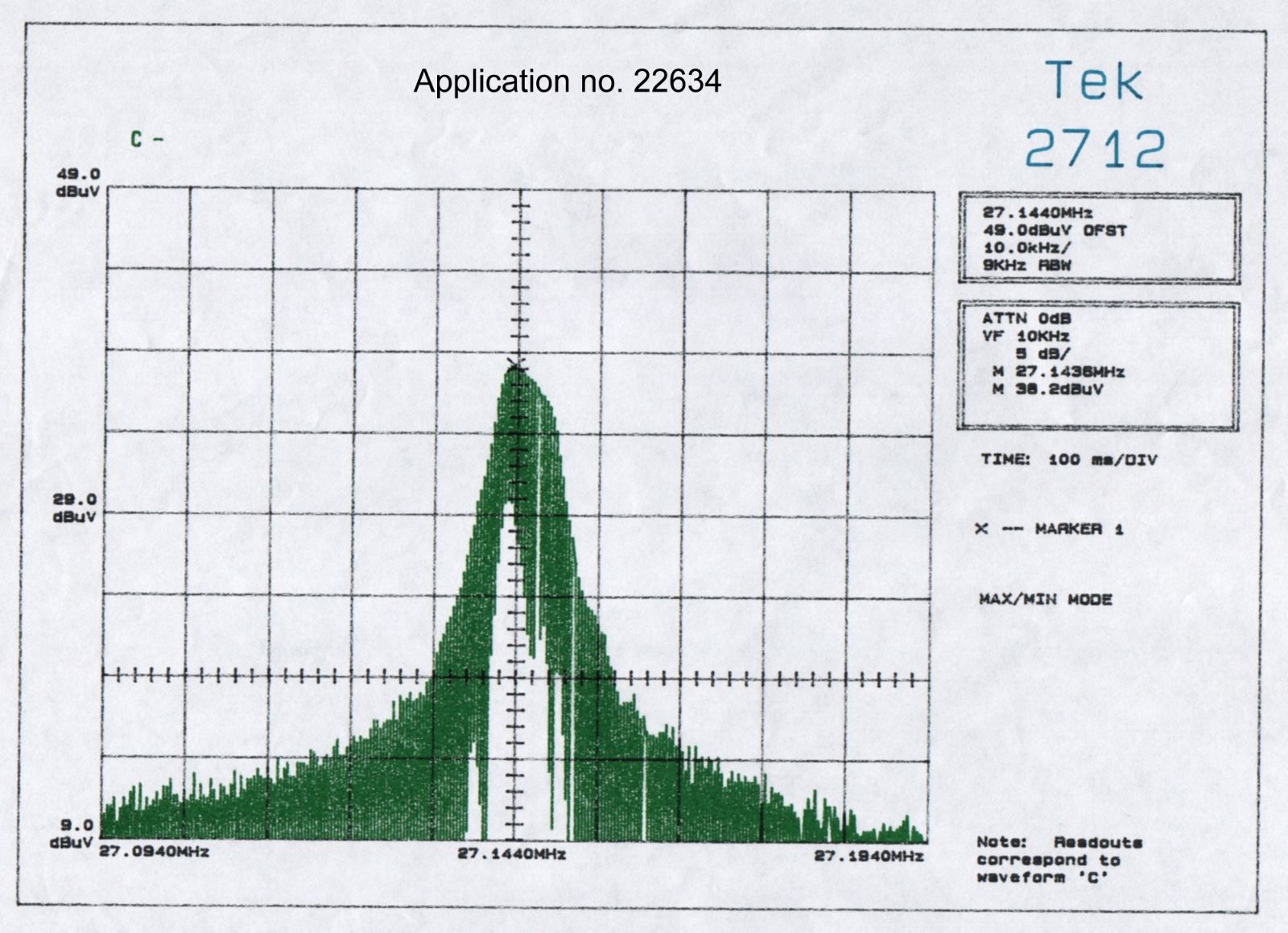

92Interference Radiation Measurement of Radiated Emissions (27MHz-1000MHz) Acc:FCC Part 15 Subpart C IECC Ref:22634/0/400FTest Equipment Model:90293 (27MHZ)Receiver: ESVP Rohde & Schwarz Applicant:ECHO TOYS LTDAntenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:X-Board Connected sets: - Operating mode:Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) Harm.254.2418226.3 1626 100 Harm.381.3618<165.2 14 < 12 100 Harm.4108.48<16<169.5< 19 < 19 150 Harm.5135.6<16<1612.2< 26 < 26 150 Harm.6162.72<16<1613.6< 30 < 30 150 Harm.7189.84<16<1614.8< 35 < 35 150 Harm.8216.96<16<1615.7< 38 < 38 200 Harm.9244.08<16<1616.5< 42 < 42 200 Harm.10271.2<16<1617.3< 46 < 46 200 Harm.11298.32<16<1618.0< 50 < 50 200 Harm.12325.44<16<1616.8< 44 < 44 200 Harm.13352.56<16<1617.4< 47 < 47 200 Harm.14379.68<16<1617.9< 50 < 50 200 Harm.15406.8<16<1618.4< 52 < 52 200 Harm.16433.92<16<1618.8< 55 < 55 200 Harm.17461.04<16<1619.2< 57 < 57 200 Harm.18488.16<16<1619.5< 60 < 60 200 Harm.19515.28<16<1619.9< 62 < 62 200 Harm.20542.4<16<1620.1< 64 < 64 200 Harm.21569.52<16<1620.5< 67 < 67 200 Harm.22596.64<16<1620.9< 70 < 70 200 Harm.23623.76<16<1621.2< 73 < 73 200 Harm.24650.88<16<1621.6< 76 < 76 200 Harm.25678<16<1622.1< 80 < 80 200 Harm.26705.12<16<1622.5< 84 < 84 200 Harm.27732.24<16<1622.8< 87 < 87 200 Harm.28759.36<16<1623.2< 91 < 91 200 Harm.29786.48<16<1623.5< 95 < 95 200 Harm.30813.6<16<1623.9< 99 < 99 200 Harm.31840.72<16<1624.2< 103 < 103 200 Harm.32867.84<16<1624.6< 107 < 107 200 Harm.33894.96<16<1624.9< 111 < 111 200 Harm.34922.08<16<1625.3< 117 < 117 200 Harm.35949.2<16<1625.8< 122 < 122 200 Harm.36976.32<16<1626.2< 128 < 128 500 Radiation emission (30 meters) at fundamental frequency (refer to test report no. FCC-22634 issued by PKM Electronic GmbH) : Frequency (MHz) Test Result, QP (dBμV/m)Limit (dBμV/m) 27.122380 Test result: ̋ ̋ O.K. Date: 21 Jun 2000 Operator: _______________
