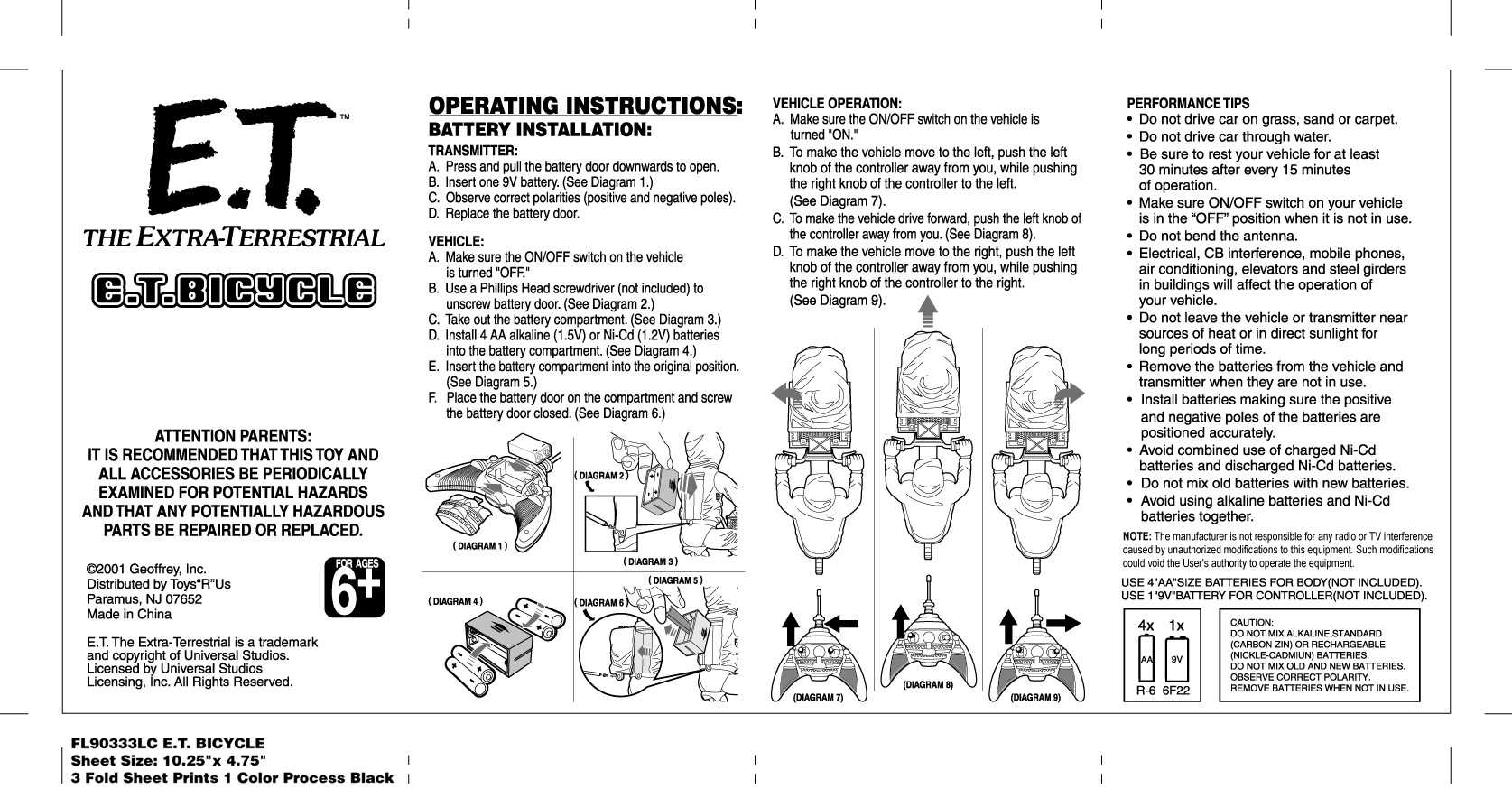

HAP90333T9ET Biker

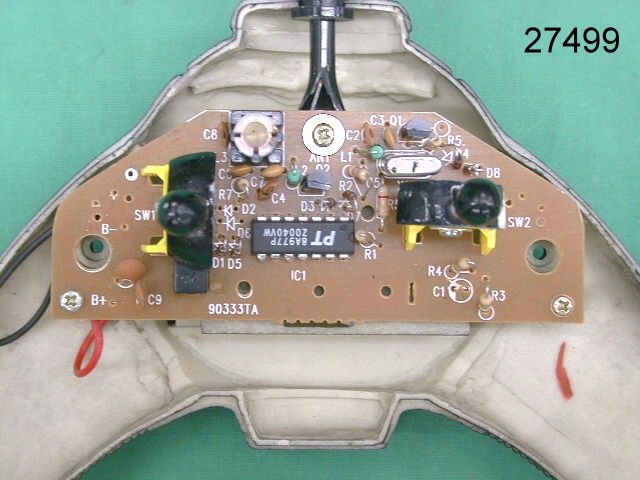

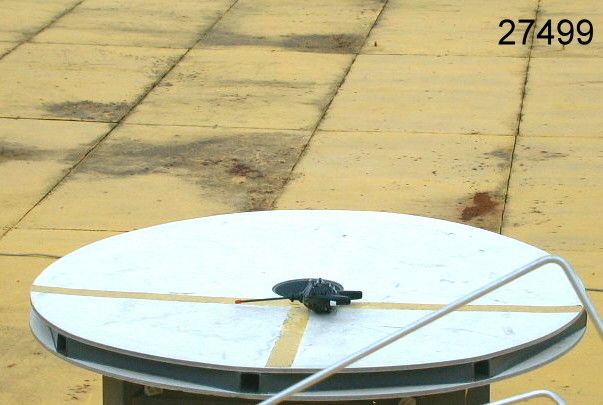

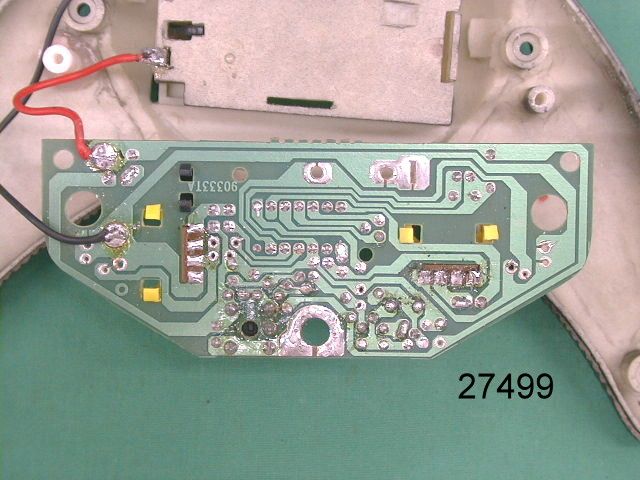

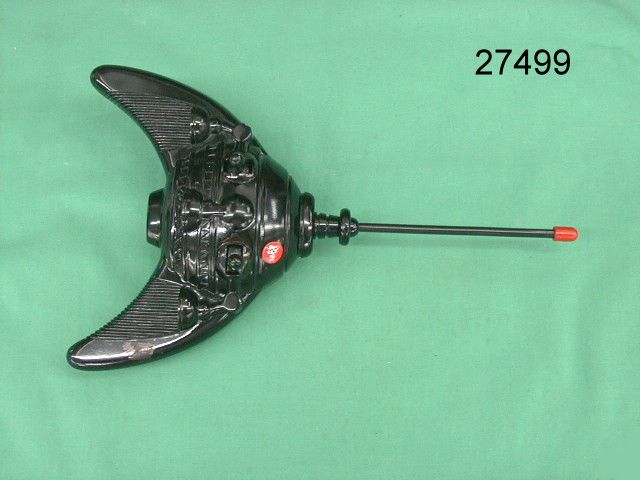

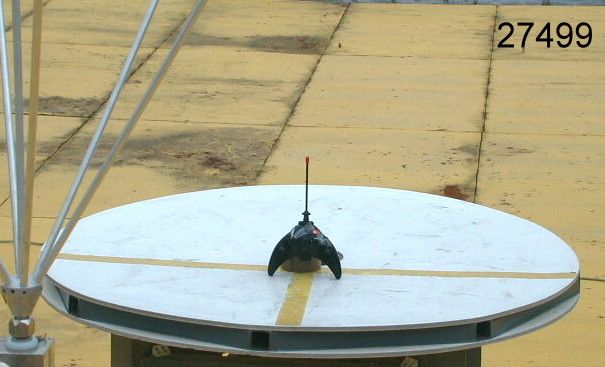

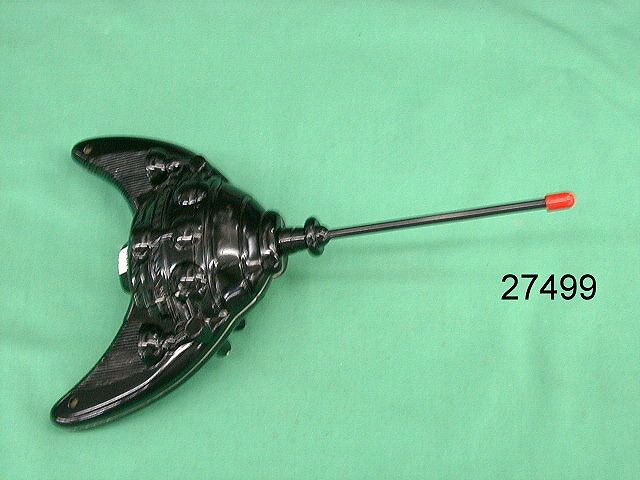

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 27499A/1/400F FCC – Test Report No. 27499A/1/400F Date: 2001-09-05 Page 2 of 12 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: ET Biker Product Class : Low Power Communication Device Transmitter Model: 90333 Applicant: ECHO TOYS LTD Manufacturer : ECHO TOYS LTD FCC – Test Report No. 27499A/1/400F Date: 2001-09-05 Page 3 of 12 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz – 30MHz) 9. Interference Radiation (Datasheet) 10. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 11. Measurement of Emissions within Band Edges (Datasheet) 12. Notes for Measurement of Emissions within Band Edges FCC – Test Report No. 27499A/1/400F Date: 2001-09-05 Page 4 of 12 LABORATORY - REPORT APPLICANT: ADDRESS: ECHO TOYS LTD 8 A&B, Tai Ping Industrial Centre, Block 1 57 Ting Kok Road, Taipo, HONG KONG DATE OF SAMPLE RECEIVED: 2001/08/09 DATE OF TESTING: 2001/08/25 DESCRIPTION OF SAMPLE: Product:ET Biker Product class:Low Power Communication Device Transmitter Manufacturer:ECHO TOYS LTD Model number:90333 Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 27499A/1/400F Date: 2001-09-05 Page 5 of 12 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. Measurement of Emissions within Band Edges Test result:O.K. Test data:See attached data sheet PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 27499A/1/400F Date: 2001-09-05 Page 6 of 12 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Loop AntennaRohde & Schwarz HFH2-Z2871336/489KHz-30MHz Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm FCC – Test Report No. 27499A/1/400F Date: 2001-09-05 Page 7 of 12 Radiated Emission Test Procedure (> 30MHz) Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 27499A/1/400F Date: 2001-09-05 Page 8 of 12 Radiated Emission Test Procedure (9kHz - 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 91 Interference Radiation Date: 2001-08-25 Page9 of 12 Measurement of Radiated Emissions FCC Part 15 Subpart C Application no.:27499A/1/400F Test Equipment Model:90333 Receiver: ESVP Rohde & Schwarz Applicant:ECHO TOYS LTD Antenna: - Schwarzbeck BBA 9106 - Schwarzbeck UHALP 9107 Sample no.:1 - Rohde & Schwarz HFH2-Z2 Set under test:ET Biker Connected sets: - Operating mode:Transmitter - Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result dB(μV/m) Vert. Test Result dB(μV/m) Limit dB(μV/m) Peak49.86465211.7 57.763.7 100 Av.49.86363611.7 47.747.780 Harm. 299.72<16<1610.3< 26.3 < 26.343.5 Harm. 3149.58<16<1615.0< 31.0 < 31.043.5 Harm. 4199.44<16<1616.5< 32.5 < 32.543.5 Harm. 5249.3<16<1617.7< 33.7 < 33.746.0 Harm. 6299.16<16<1620.0< 36.0 < 36.046.0 Harm. 7349.02<16<1617.4< 33.4 < 33.446.0 Harm. 8398.88<16<1618.3< 34.3 < 34.346.0 Harm. 9448.74<16<1619.0< 35.0 < 35.046.0 Harm. 10498.6<16<1619.7< 35.7 < 35.746.0 Harm. 11548.46<16<1620.2< 36.2 < 36.246.0 Harm. 12598.32<16<1620.9< 36.9 < 36.946.0 Harm. 13648.18<16<1621.6< 37.6 < 37.646.0 Harm. 14698.04<16<1622.4< 38.4 < 38.446.0 Harm. 15747.9<16<1623.0< 39.0 < 39.046.0 Harm. 16797.76<16<1623.7< 39.7 < 39.746.0 Harm. 17847.62<16<1624.3< 40.3 < 40.346.0 Harm. 18897.48<16<1625.0< 41.0 < 41.046.0 Harm. 19947.34<16<1625.7< 41.7 < 41.746.0 Remark:All frequencies in the required range have been scanned and only those significant and representative readings are reported above. All emissions not reported above are all well below the limit. FCC – Test Report No. 27499A/1/400F Date: 2001-09-05 Page 10 of 12 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. In the frequ…

Text truncated - open the document above for the full version.

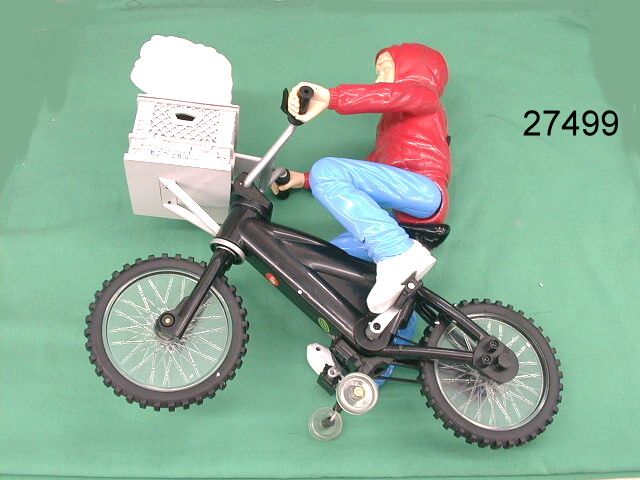

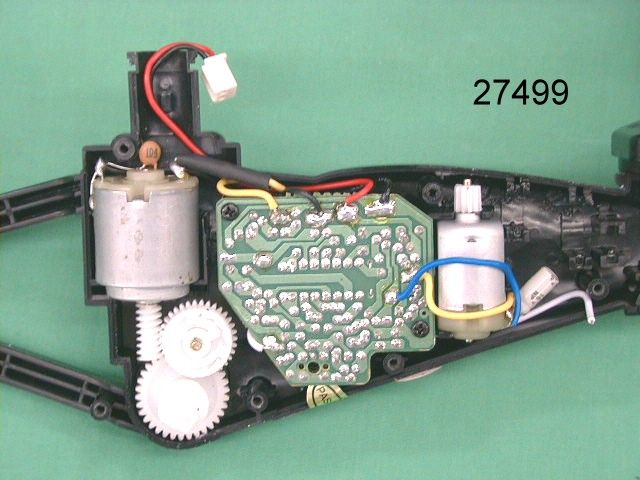

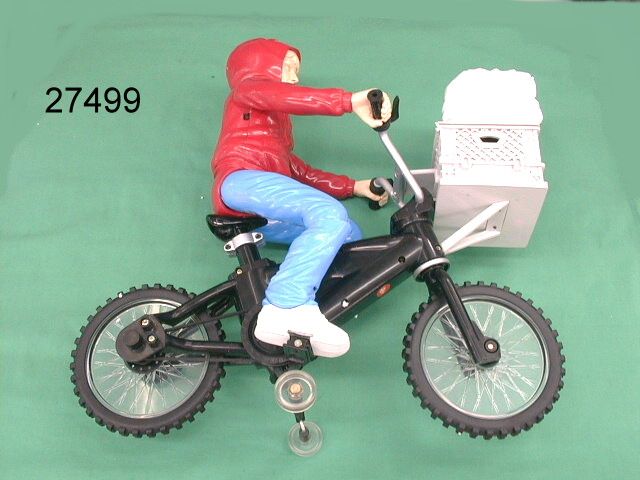

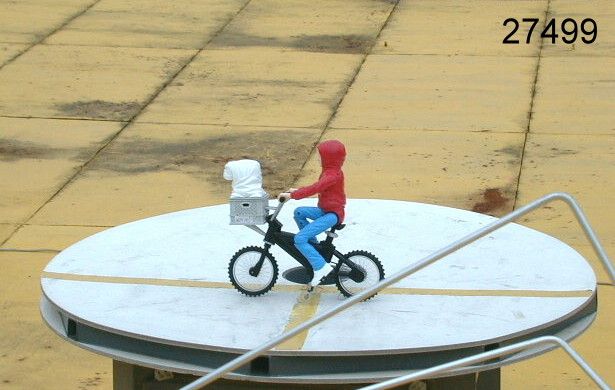

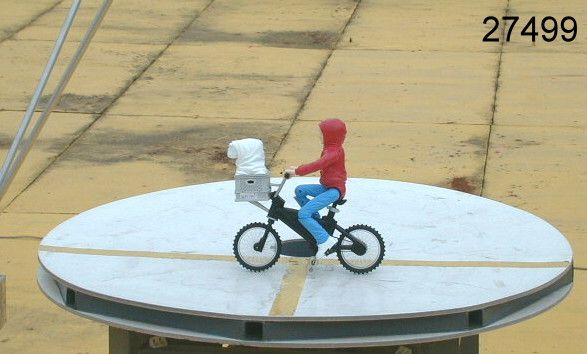

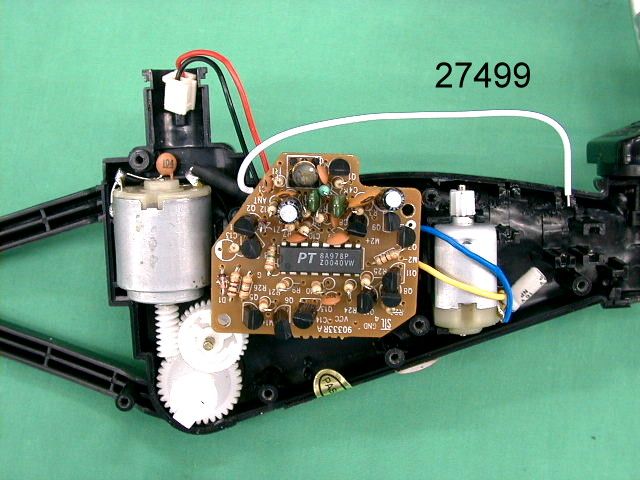

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 27499B/1/400F FCC – Test Report No. 27499B/1/400F Date: 2001-09-05 Page 2 of 11 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: ET Biker Product Class : Low Power Communication Device Receiver Model: 90333 Importer: ECHO TOYS LTD Manufacturer : ECHO TOYS LTD FCC – Test Report No. 27499B/1/400F Date: 2001-09-05 Page 3 of 11 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz - 30MHz) 9. Interference Radiation (Datasheet) 10. Cohere Plot at Fundamental Frequency 11. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) FCC – Test Report No. 27499B/1/400F Date: 2001-09-05 Page 4 of 11 LABORATORY - REPORT APPLICANT: ADDRESS: ECHO TOYS LTD 8 A&B, Tai Ping Industrial Centre, Block 1 57 Ting Kok Road, Taipo, HONG KONG DATE OF SAMPLE RECEIVED: 2001/08/09 DATE OF TESTING: 2001/08/25 DESCRIPTION OF SAMPLE: Product:ET Biker Product class: Low Power Communication Device Receiver Manufacturer:ECHO TOYS LTD Model number:90333 Rating:DC 6V ('AA' Size Battery x 4) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B – ‘Unintentional Radiators’ RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 27499B/1/400F Date: 2001-09-05 Page 5 of 11 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 27499B/1/400F Date: 2001-09-05 Page 6 of 11 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast SystemSchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Loop AntennaRohde & Schwarz HFH2-Z2871336/489KHz-30MHz Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW105 55 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm FCC – Test Report No. 27499B/1/400F Date: 2001-09-05 Page 7 of 11 Radiated Emission Testprocedure (> 30MHz) Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 27499B/1/400F Date: 2001-09-05 Page 8 of 11 Radiated Emission Test Procedure (9kHz - 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 82 Unintentional Radiators Date:2001-08-25 Page9 of 11 Measurement of Radiated Emissions Acc:FCC Part 15 Subpart B Application no.:27499B/1/400F Test Equipment Model:90333 Receiver: ESVP Rohde & Schwarz Applicant:ECHO TOYS LTD Antenna: - Schwarzbeck BBA 9106 - Schwarzbeck UHALP 9107 Sample no.:1 - Rohde & Schwarz HFH2-Z2 Set under test: ET Biker Connected sets: - Operating mode:Receiver - Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result dB(μV/m) Vert. Test Result dB(μV/m) Limit dB(μV/m) 30<16<1618.4< 34.4 < 34.440.0 50<16<1611.7<27.7 <27.740.0 100<16<1610.3<26.3 <26.343.5 300<16<1620.0<36.0 <36.046.0 500<16<1619.7<35.7 <35.746.0 700<16<1622.4<38.4 <38.446.0 1000<16<1626.5<42.5 <42.554.0 Remark:All frequencies in the required range have been scanned and only those significant and representative readings are reported above. All emissions not reported above are all well below the limit. FCC – Test Report No. 27499B/1/400F Date: 2001-09-05 Page 10 of 11 Cohere Plot at fundamental frequency Sample location: Less than 0.5m from the measuring antenna Applied signal: - 60dBm (non-modulated, 49.86 MHz) Remark: Self-cohere FCC – Test Report No. 27499B/1/400F Date: 2001-09-05 Page 11 of 11 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. 4. Measuring antenna: Broad-band antenna for the frequency range 30 - 300 MHz and frequency range 300 - 1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The antennas are capable of measuring both horizontal and vertical polarizations. Loop antenna for the frequency range 9KHz – 30MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the measurement data. The center of the loop 1 m above the ground plane, positioned with its …

Text truncated - open the document above for the full version.
