HAP91167R49Road Shocker

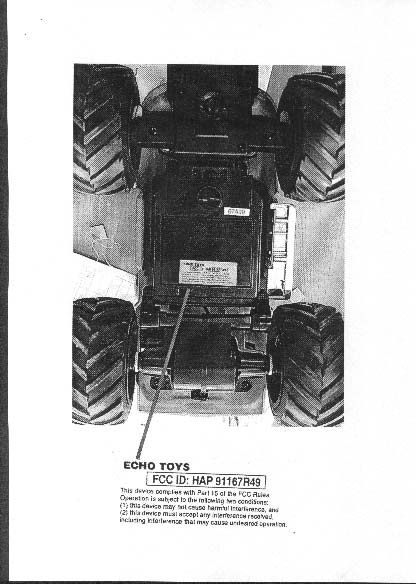

ECHO TOYS FCC ID: HAP91167R49 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 25277B/1/400F FCC – Test Report No. 25277B/1/400F Date: 2001-03-27 Page 2 of 10 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: Road Shocker -- 49 MHz Receiver Model: 91167R49 Importer: ECHO TOYS LTD Manufacturer : ECHO TOYS LTD FCC – Test Report No. 25277B/1/400F Date: 2001-03-27 Page 3 of 10 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Interference Radiation (Datasheet) 9. Cohere Plot at Fundamental Frequency 10. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) FCC – Test Report No. 25277B/1/400F Date: 2001-03-27 Page 4 of 10 LABORATORY - REPORT APPLICANT: ADDRESS: ECHO TOYS LTD 8 A&B, Block 1, Tai Ping Industrial Centre 57 Ting Kok Road Taipo, NT HONG KONG DATE OF SAMPLE RECEIVED:2001-01-19 DATE OF TESTING:2001-03-27 DESCRIPTION OF SAMPLE: Product:Road Shocker -- 49 MHz Receiver Manufacturer:ECHO TOYS LTD Model number:91167R49 Rating:DC 9V ('AA' Size Battery x 6) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B – ‘Unintentional Radiators’ RESULTS:See the attached test sheets CONCLUSIONSFrom the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark: Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 25277B/1/400F Date: 2001-03-27 Page 5 of 10 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 25277B/1/400F Date: 2001-03-27 Page 6 of 10 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast SystemSchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW105 55 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm FCC – Test Report No. 25277B/1/400F Date: 2001-03-27 Page 7 of 10 Radiated Emission Testprocedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 82 Unintentional Radiators Measurement of Radiated Emissions (30MHz-1000MHz) Acc:FCC Part 15 Subpart B IECC Ref:25277B/1/400FTest Equipment Model:91167R49Receiver: ESVP Rohde & Schwarz Applicant:ECHO TOYS LTDAntenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Road Shocker Connected sets: - Operating mode:Power "On" 1. Standby mode Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) 30<16<1618.4< 52.5 < 52.5100.0 200<16<1616.5< 42.2 < 42.2150.0 400<16<1618.3< 51.9 < 51.9200.0 1000<16<1626.5< 133.4 < 133.4500.0 2. Motor running mode (motor noise measurement) Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) 30<16<1618.4< 52.5 < 52.5100.0 200<16<1616.5< 42.2 < 42.2150.0 400<16<1618.3< 51.9 < 51.9200.0 1000<16<1626.5< 133.4 < 133.4500.0 Note: A futher test was performed with the signal generator set at -60dBm at the funamental frequency to cohere the missions as specified in section 12.1.1.1 of ANSI C63.4-1992. All emissions obseved complies with the FCC limits (refer to the cohere plot on page 9). Test result: ̋ ̋ O.K. Date: _______________ Operator: _______________ FCC – Test Report No. 25277B/1/400F Date: 2001-03-27 Page 9 of 10 Cohere Plot at fundamental frequency Sample location: Less than 0.5m from the measuring antenna Applied signal: - 60dBm (non-modulated, 49.86 MHz) Remark: Self-cohere FCC – Test Report No. 25277B/1/400F Date: 2001-03-27 Page 10 of 10 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. 4. Measuring antenna: Broad-band antenna for the frequency range 30 - 300 MHz and frequency range 300 - 1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The antennas are capable of measuring both horizontal and vertical polarizations. 5. Frequency range scanned: The frequency range 30 - 1000 MHz has been scanned. Readings of the highest emissions relating to the limit were reported as above. 6. Arrangement of EUT: During the test, the sample was operated at rated supply voltage a…
