F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 23993A/0/400F FCC – Test Report No. 23993A/0/400F Date: 2000-09-28 Page 2 of 11 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: Ski Tiger II -- 49 MHz Transmitter Model: 91217(49MHz) Applicant: ECHO TOYS LTD Manufacturer : ECHO TOYS LTD FCC – Test Report No. 23993A/0/400F Date: 2000-09-28 Page 3 of 11 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Interference Radiation (Datasheet) 9. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 10. Measurement of Emissions within Band Edges (Datasheet) 11. Notes for Measurement of Emissions within Band Edges FCC – Test Report No. 23993A/0/400F Date: 2000-09-28 Page 4 of 11 LABORATORY - REPORT APPLICANT: ADDRESS: ECHO TOYS LTD 8 A&B, Block 1, Tai Ping Industrial Centre 57 Ting Kok Road Taipo, NT HONG KONG DATE OF SAMPLE RECEIVED: 2000-08-28 DATE OF TESTING: 2000-09-28 DESCRIPTION OF SAMPLE: Product:Ski Tiger II -- 49 MHz Transmitter Manufacturer:ECHO TOYS LTD Model number:91217(49MHz) Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 23993A/0/400F Date: 2000-09-28 Page 5 of 11 Summary of Test Results Interference Radiation: Test result: O.K. Test data: See attached data sheet Interference Voltage: Test result: N.A. Test data: N.A. Measurement of Emissions within Band Edges Test result: O.K. Test data: See attached data sheet FCC – Test Report No. 23993A/0/400F Date: 2000-09-28 Page 6 of 11 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50 Ω , 50 μ H 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50 Ω , 50 μ H 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ 120 cm FCC – Test Report No. 23993A/0/400F Date: 2000-09-28 Page 7 of 11 Radiated Emission Test Procedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 91Interference Radiation Measurement of Radiated Emissions (30MHz-1000MHz) Acc:FCC Part 15 Subpart C IECC Ref:23993A/0/400FTest Equipment Model:91217(49MHz)Receiver: ESVP Rohde & Schwarz Applicant:ECHO TOYS LTDAntenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Ski Tiger II Connected sets: - Operating mode:Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) Peak49.86334511.7 173687 100,000 Av.49.8631.543.511.714557810000 Harm.299.72<162010.3<2133150 Harm.3149.58<16<1615.0<36<36150 Harm.4199.44<16<1616.5<42<42150 Harm.5249.3<16<1617.7<49<49200 Harm.6299.16<16<1620.0<63<63200 Harm.7349.02<16<1617.4<47<47200 Harm.8398.88<16<1618.3<52<52200 Harm.9448.74<16<1619.0<56<56200 Harm.10498.6<16<1619.7<61<61200 Harm.11548.46<16<1620.2<64<64200 Harm.12598.32<16<1620.9<70<70200 Harm.13648.18<16<1621.6<76<76200 Harm.14698.04<16<1622.4<83<83200 Harm.15747.9<16<1623.0<90<90200 Harm.16797.76<16<1623.7<96<96200 Harm.17847.62<16<1624.3<104<104200 Harm.18897.48<16<1625.0<112<112200 Harm.19947.34<16<1625.7<122<122200 0 20 40 60 80 100 120 101001000 MHz dBμV/m Data (Horz.)Data (Vert.)Limit Test result: ̋ ̋ O.K. Date: _______________ Operator: _______________ FCC – Test Report No. 23993A/0/400F Date: 2000-09-28 Page 9 of 11 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. In the frequency range above 1000 MHz Spectrum Analyzer FMSM26 and Analyzer Display Unit FSA- D are used, bandwidth set at 100 kHz. 4. Measuring antenna: Broad-band antenna for the frequency range 30 - 300 MHz and frequency range 300 - 1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The antennas are capable of measuring both horizontal and vertical polarizations. In the frequnecy range above 1 GHz horn-antenna RGA 50/60 is used. 5. Frequency range scanned: The frequency range 30 - 5000 MHz has been scanned. Readings of the highest emissions…

Text truncated - open the document above for the full version.

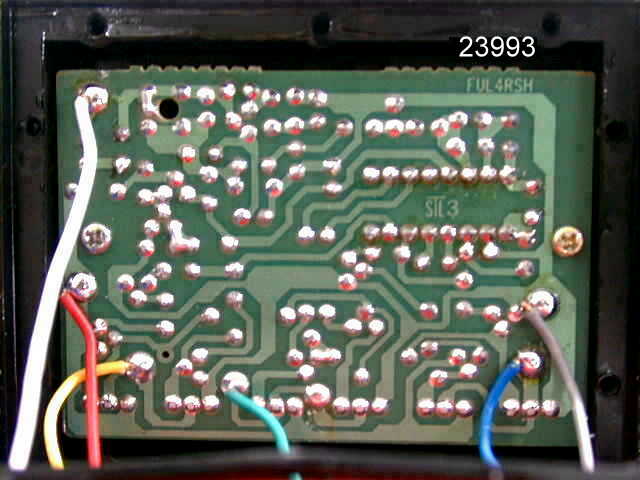

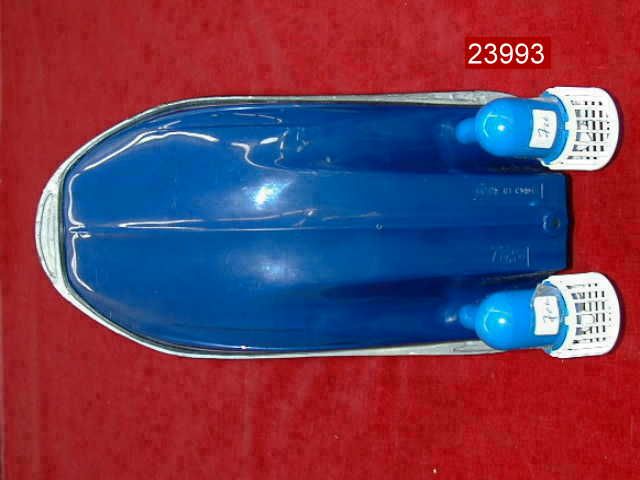

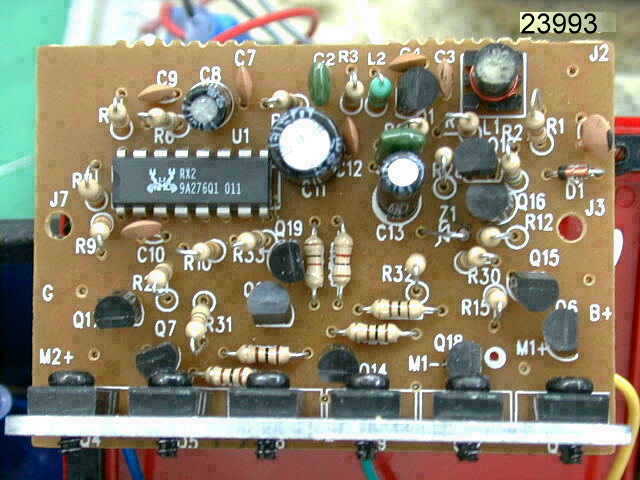

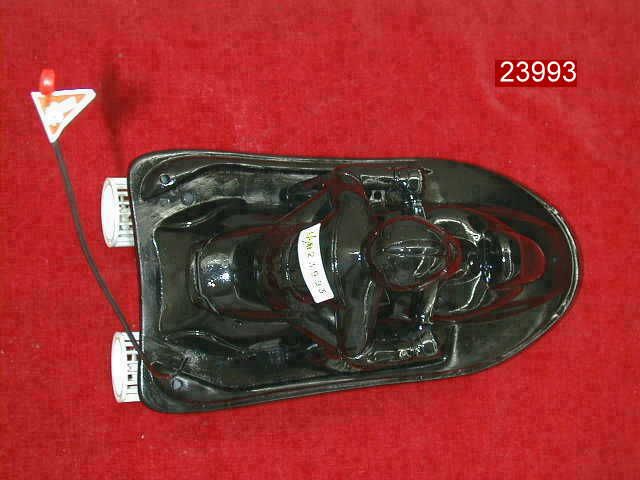

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 23993B/0/400F FCC – Test Report No. 23993B/0/400F Date: 2000-09-28 Page 2 of 10 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: Ski Tiger II -- 49 MHz Receiver Model: 91217(49MHz) Importer: ECHO TOYS LTD Manufacturer : ECHO TOYS LTD FCC – Test Report No. 23993B/0/400F Date: 2000-09-28 Page 3 of 10 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Interference Radiation (Datasheet) 9. Interference Radiation (Datasheet) 10. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) FCC – Test Report No. 23993B/0/400F Date: 2000-09-28 Page 4 of 10 LABORATORY - REPORT APPLICANT: ADDRESS: ECHO TOYS LTD 8 A&B, Block 1, Tai Ping Industrial Centre 57 Ting Kok Road Taipo, NT HONG KONG DATE OF SAMPLE RECEIVED: 2000-08-28 DATE OF TESTING: 2000-09-28 DESCRIPTION OF SAMPLE: Product:Ski Tiger II -- 49 MHz Receiver Manufacturer:ECHO TOYS LTD Model number:91217(49MHz) Rating:DC 9V ('AA' Size Battery x 6) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B – ‘Unintentional Radiators’ RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 23993B/0/400F Date: 2000-09-28 Page 5 of 10 Summary of Test Results Interference Radiation: Test result: O.K. Test data: See attached data sheet Interference Voltage: Test result: N.A. Test data: N.A. FCC – Test Report No. 23993B/0/400F Date: 2000-09-28 Page 6 of 10 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50 Ω , 50 μ H 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast SystemSchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50 Ω , 50 μ H 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW105 55 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ 120 cm FCC – Test Report No. 23993B/0/400F Date: 2000-09-28 Page 7 of 10 Radiated Emission Testprocedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 82Unintentional Radiators Measurement of Radiated Emissions (30MHz-1000MHz) Acc:FCC Part 15 Subpart B IECC Ref:23993B/0/400FTest Equipment Model:91217(49MHz)Receiver: ESVP Rohde & Schwarz Applicant:ECHO TOYS LTDAntenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Ski Tiger II Connected sets: - Operating mode:Power "On" (Standby mode) Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) 30<16<1618.4< 52.5 < 52.5100.0 49.24<161911.9< 24.835.1100.0 50.68<162011.5< 23.637.4100.0 52.36<161810.9< 22.027.7100.0 100<16<1610.3< 20.7 < 20.7150.0 200<16<1616.5< 42.2 < 42.2150.0 500<16<1619.7< 61.0 < 61.0200.0 700<16<1622.4< 83.2 < 83.2200.0 1000<16<1626.5< 133.4 < 133.4500.0 0 10 20 30 40 50 60 70 101001000 MHz dBμV/m Data (Horz.)Data (Vert.)Limit Test result: ̋ ̋ O.K. Date: _______________ Operator: _______________ 82Unintentional Radiators Measurement of Radiated Emissions (30MHz-1000MHz) Acc:FCC Part 15 Subpart B IECC Ref:23993B/0/400FTest Equipment Model:91217(49MHz)Receiver: ESVP Rohde & Schwarz Applicant:ECHO TOYS LTDAntenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Ski Tiger II Connected sets: - Operating mode:Power "On" (Tested with motor running backward) Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) 30<16<1618.4< 52.5 < 52.5100.0 100<16<1610.3<20.7<20.7150.0 200<16<1616.5<42.2<42.2150.0 215.3201616.969.944.1150.0 34317<1617.251.5<45.9200.0 410201618.483.652.8200.0 51417<1619.869.5<62.0200.0 700<16<1622.4<83.2<83.2200.0 1000<16<1626.5<133.4<133.4500.0 Note : A retest was performed with the signal generator set at -60dBm at the fundamental frequency to cohere the emissions as specified in section 12.1.1.1 of ANSI C63.4-1992. All emissions observed complies with the FCC limits. 0 10 20 30 40 50 60 70 101001000 MHz dBμV/m Data (Horz.)Data (Vert.)Limit Test result: ̋ ̋ O.K. Date: _______________ Operator: _______________ FCC – Test Report No. 23993B/0/400F Date: 2000-09-28 Page 10 of 10 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. 4. Measuring an…

Text truncated - open the document above for the full version.

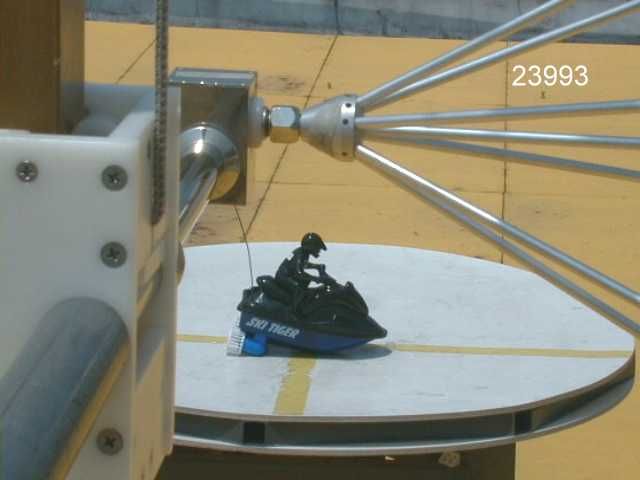

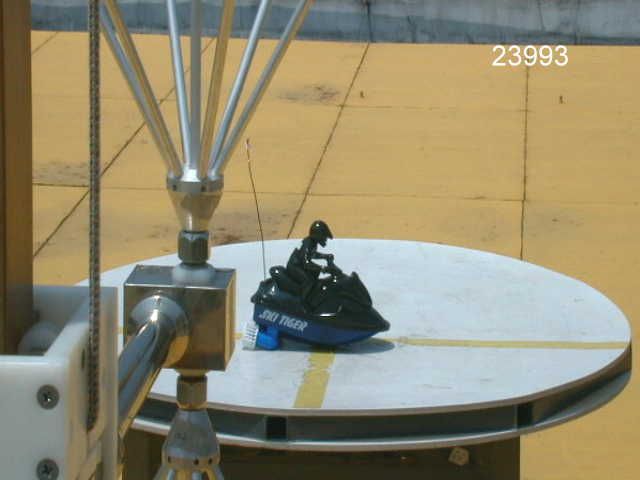

FCC – Test Report No. 23993B/0/400F Product:Ski Tiger II – 49 MHz Receiver Model no.:91217(49MHz) Cohere Plot at fundamental frequency (the UUT was placed at 1 m from the measurement antenna)
