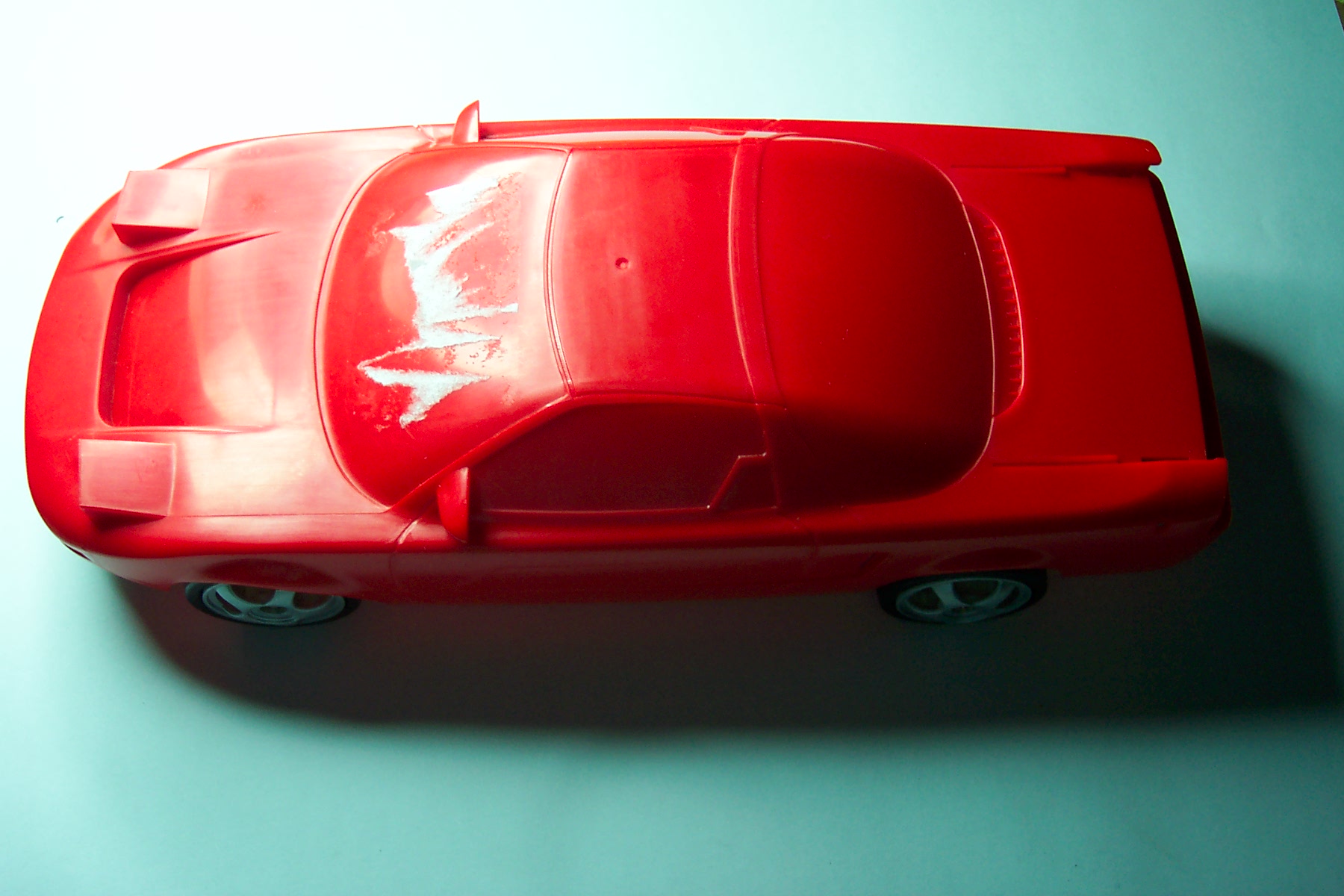

HAP91255R4949MHz RADIO RECIEVER

© 2003 ECHO TOYS LTD. ALL RIGHTS RESERVED. ROOM 1108, PENINSULA CENTRE, 67 MODY ROAD, TSIM SHA TSUI EAST, KOWLOON, HONG KONG. WEB SITE: http://www.echotoys.com.hk OPERATING INSTRUCTIONS Please read carefully before starting to operate. It is recommended to operate the vehicle under adult supervision. Not recommended for children under 4 years of age. Note: Can not play 2 vehicles together in the same frequency. FEATURES Full Function- runs forward, backward, turns left and right, stops and turbo speed. BATTERY REQUIREMENT - One "9V" battery for transmitter. - 5 "AA" batteries for vehicle. Batteries are not included. BATTERY INSTALLTION (A) TRANSMITTER 1) Slide ON/OFF to OFF. 2) Press and pull the battery compartment cover in the direction of the arrow to remove it. 3) Put the "9V" battery in the compartment according to the polarity symbols (+ and -) marked inside. 4) Replace the battery compartment cover. (B) VEHICLE 1) Slide ON/OFF on the bottom of the vehicle to OFF. 2) Use a coin to turn the battery door stopper until it stops and open the battery door. 3) Install the batteries in the compartment as indicated by the polarity symbols (+ and -) marked inside. 4) Replace the battery door and use a coin to turn the stopper back. HOW TO OPERATE: 1) Slide ON/OFF on the bottom of the vehicle to ON. 2) Slide ON/OFF on the transmitter to ON. 3) Use the transmitter's levers to control the movement and direction of the vehicle. Note: If the vehicle moves slowly or does not move at all, replace the batteries with fresh ones. Left Control Lever - Push forward to move forward. - Pull backward to move backward. - Release to stop. - Push forward and press upper key to move turbo speed. Right Control Lever - Push left to turn left. - Push right to turn right. - Release to go straight. CAUTION - Do not mix battery types. - Do not mix old and new batteries. - Replace all together. - Observe correct polarity. - Remove batteries when not in use. - Non-rechargeable batteries are not to be recharged. - Rechargeable batteries are to be removed from the toy before being charged. - Rechargeable batteries are only to be charged under adult supervision. - Only batteries of the same or equivalent type as recommended are to be used. - Exhausted batteries are to be removed from the toy. - The supply terminals are not to be short circuited. Note: Dispose of old batteries promptly and properly; do not burn or bury them. TRIM CONTROL SWITCH Trim switch is located on the underside of vehicle between the front tires. It is used to align the wheels of your vehicle for consistent turning and drive. Turn switch clockwise and anti-clockwise until desired alignment is reached. THE FCC WANTS YOU TO KNOW: NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User's authority to operate the equipment. ITEM: 91255 PRINTED IN CHINA ON/OFF SWITCH Before tuning Transmitter Under bumperFront bumperSpare wheelsfenders VehicleSpoiler ASpoiler B After tuning 1) use a Philips screwdriver to loosen the four wheels. 2) Remove the spoiler A and the wheels. TUNING 1) Use a Philips screwdriver to secure the four spare wheels to the car. 2) Snap on the front bumper, under bumper, two side fenders and spoiler B. STREET CUSTOMS INCLUDES ATTACH THE TUNE-UP PARTS SCALE 1:16 STREET CUSTOMS STREET CUSTOMS TM ON/OFF SWITCH STOP Press the key to turbo funtion

Model No: 91255-49.860MHz CIRCUIT DESCRIPTION In transmitter, press the Forward, Forward-Left, Forward-Right, Forward-turbo,Or press the backward, Backward-left, Backward -Right, output U1 pin 8 supply encoding signal. Q1 & X1 is a crystal oscillator of 49.860MHz frequency. Q2 is a modulator. Output of Q2 drives the transformer L3. The antenna is coupled to the modulator by the transformer. In receiver WL1 is tuning 49.860MHz frequency. And Q1 is a RF amplifier and detector stage. U1 is a signal amplifier and decoder, it controls the output of U1 pin6, 7 and pin10,11, 12. Q8, Q9, Q15and Q16,Q18 are regulator. Q4, Q5, Q6, Q7 are left / Right -motor driver, and Q11,Q12, Q13, Q14, Q15 are Forward/ Backward -motor driver. ANTENNA AND GROUND CIRCUITRY This unit makes use of an external flexible 15 centimeters long antenna. The antenna is inductively coupled. The unit relies on the ground tract of the printed circuit board. No external ground is provided. Energy is supplied a 9-volt battery. OFFICE & SHOWROOM 671108 ROOM 1108 PENINSULA CENTRE 67 MODY ROADTSIM SHA TSUI EASTKOWLOONHONG KONG. TEL:8522723 8038 FAX8522665 4068 E-MAIL ADDRESS: [email protected]

Report No.: 03.06.1006EF-3 Page: 1 of 10 FCC ID: HAP91255T49 Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : 03.06.1006E Applicant : Echo Toys Ltd FCC ID : HAP91255T49 Fundamental Frequency : 49.860MHz Equipment under Test (EUT): Name : Street Customs Model : 91255 Standards : FCC PART 15, SUBPART C : 2002 Date of Receipt : 24 June 2003 Date of Test : 26 June 2003 Date of Issue : 30 June 2003 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID No.: HAP91255T49 Report No.: 03.06.1006EF-3 Page: 2 of 10 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 C LIENT INFORMATION............................................................................................................................................ 3 3.2 D ETAILS OF E.U.T. ................................................................................................................................................. 3 3.3 D ESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 T EST LOCATION...................................................................................................................................................... 3 3.5 O THER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.6 T EST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 T EST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 T EST PROCEDURE & MEASUREMENT DATA........................................................................................................... 5 4.3.1 Radiated Emissions ...................................................................................................................................... 5 4.3.2 Occupied Bandwidth .................................................................................................................................... 7 4.3.3 Photographs - Radiated Emission Test Setup in Chamber .......................................................................... 8 5 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS ...........................................................................9-10 FCC ID No.: HAP91255T49 Report No.: 03.06.1006EF-3 Page: 3 of 10 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant: Echo Toys Ltd Address of Applicant: Room 1108, Peninsula Centre 67 Mody Road, Tism Sha Tusi East,Kowloon, Hong Kong. 3.2 Details of E.U.T. Product Name: Street Custom (Transmitter Part) Model: 91255 Power Supply: 9V DC (1 x ‘6F22’ Battery) Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit: a 49MHz radio transmitter. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID No.: HAP91255T49 Report No.: 03.06.1006EF-3 Page: 4 of 10 SGS-CSTC Standards Technical Services Ltd. 3.6 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • NVLAP – Lab Code: 200611-0 SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is recognized under the National Voluntary Laboratory Accreditati…
