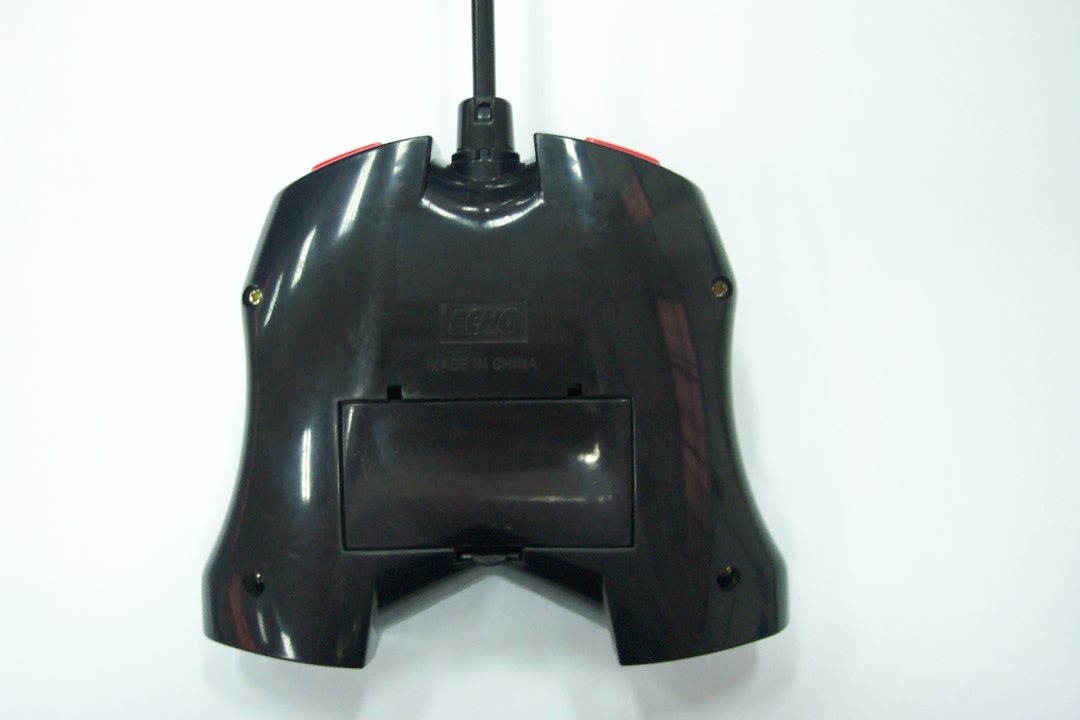

Model No: 91300-27.145MHz CIRCUIT DESCRIPTION In transmitter, press the Forward, Backward, Left or Right, Reset, output IC1 pin 10 supply encoding signal. Q2& X1 is a crystal oscillator of 27.145MHz frequency. Q1 is a modulator. Output of Q1 drives the transformer L1. The antenna is coupled to the modulator by the transformer. In receiver T1 is tuning 27.145MHz frequency. And Q1 is a RF amplifier and detector stage. IC1 is a signal amplifier and decoder, it controls the output of IC1 pin6, 7, 8, 9, 12 & pin13. U1 is a MCU for transforming and sounding. Q2, Q28 are regulators. Q29, Q30, Q31 are switches to control the MCU. Q3, Q4, Q5, Q6, Q7, Q8 is a Forward and Backward motor driver, Q9, Q10, Q11, Q12, Q13, Q14, Q27 is a steering motor driver. Q15, Q16, Q17, Q18, Q19, Q20 is a transforming motor driver, and Q21, Q22, Q23, Q24, Q25, Q26 is an another transforming motor driver. Q32 is a sound driver. Q33 is a LED driver. ANTENNA AND GROUND CIRCUITRY This unit makes use of an external flexible 17 centimeters long antenna. The antenna is inductively coupled. The unit relies on the ground tract of the printed circuit board. No external ground is provided. Energy is supplied a 9-volt battery. OFFICE & SHOWROOM 67 1108 ROOM 1108 PENINSULA CENTRE 67 MODY ROAD TSIM SHA TSUI EAST KOWLOON HONG KONG. TEL: 852 2723 8038 FAX 852 2665 4068 E-MAIL ADDRESS: [email protected] PDF "FinePrint pdfFactory Pro" http://www.pdffactory.com

Schematics

PDF 文件以 "FinePrint pdfFactory Pro" 试用版创建 http://www.pdffactory.com

Test Report

Report No.: 04.04.0778EF Page: 1 of 10 FCC ID: HAP91300T27 Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co., Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : 04.04.0778E Applicant: Echo Toys Ltd FCC ID: HAP91300T27 Fundamental Frequency : 27.145MHz Equipment Under Test (EUT): Name: Jaguar Model No.: 91300 Standards: FCC PART 15, SUBPART C : 2002 Date of Receipt: 26 & 30 April 2004 Date of Test: 26 to 30 April 2004 Date of Issue: 30 April 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID No.: HAP91300T27 Report No.: 04.04.0778EF Page: 2 of 10 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 CLIENT INFORMATION....................................................................................................................................... 3 3.2 DETAILS OF E.U.T. ............................................................................................................................................ 3 3.3 DESCRIPTION OF SUPPORT UNITS....................................................................................................................... 3 3.4 TEST LOCATION................................................................................................................................................. 3 3.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER...................................................................................... 3 3.6 TEST FACILITY................................................................................................................................................... 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 TEST INSTRUMENTS........................................................................................................................................... 5 4.2 E.U.T. OPERATION............................................................................................................................................ 5 4.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................... 5 4.3.1 Radiated Emissions ...................................................................................................................................... 5 4.3.2 Occupied Bandwidth .................................................................................................................................... 7 4.3.3 Photographs - Radiated Emission Test Setup in Chamber ..........................................................................8 5 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS ...........................................................................9-10 FCC ID No.: HAP91300T27 Report No.: 04.04.0778EF Page: 3 of 10 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant Name: Echo Toys Ltd Applicant Address: Room 1108, Peninsula Centre 67 Mody Road, Tism Sha Tusi East,Kowloon, Hong Kong. 3.2 Details of E.U.T. Name: Jaguar SKU No.: 91300 Power Supply: 9V DC (1 x ‘6F 22’ Size Battery) Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit: a 27MHz radio transmitter. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID No.: HAP91300T27 Report No.: 04.04.0778EF Page: 4 of 10 SGS-CSTC Standards Technical Services Ltd. 3.6 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • NVLAP – Lab Code: 200611-0 SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is recognized under the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 2000611-0. Effective through February 2, 20…
