HAP91301Remote Control Toy Transmitter

PDF created with pdfFactory trial version www.pdffactory.com

ECHO TOYS LTD FCC IDHAP91301 This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

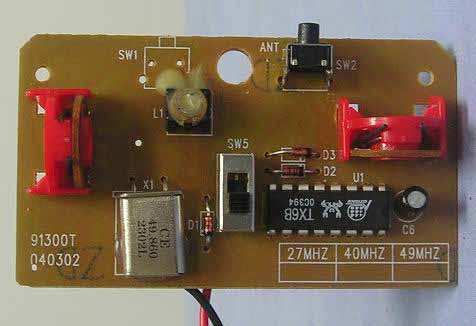

Operational Description The RFGamelPad/RFJoystick Transmitter is a low powered ,hand held unit for remote control and sending instruction to the computer .See the function descriptions in attached .Both transmitters are powered by two 1.5 Volt batteries .It is designed to operate on a single fixed frequency at 49MHz.See the attached block diagram and schematic. When button on RFGamePad/RFJoystick pressed ,the micro-controller in RFGamePad/RFJoystick will produce the digital control signals and will modulate the carrier comprised .The carrier signal is generated by the crystal oscillator/frequency circuit comprised of a 49MHz FSK.The frequency depend on the select channel switch to changed .The modulated output of the RF amplifier stage is coupled to the strip antenna on PCB The transmitter is manually operated by the buttons(handgrip,POV)pushed and automatically Deactivate instant after the button being released .This feature is incorporated by the RFGame Pad and RFJoystick internally. All tuning and verification are performed by the manufacture and there are no adjustments can Be made by the user. No external ground is required or used with transmitters. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STANEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation .This equipment generates, uses and can radiate radio frequency energy and ,if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation, if this equipment does cause harmful interference to radio of television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measurers: --Reorient of relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer of an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

91301-T49.sch-1 - Wed Mar 24 10:03:35 2004 PDF created with pdfFactory trial version www.pdffactory.com

COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. REPORT NO: SZE0405040 FCC ID: HAP91301 DATE: 06/25/2004 Page 1 of 24 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF FORD FOCUS MODEL No.: 91301 BRAND NAME: N/A FCC ID: HAP91301 REPORT NO:SZE0405040 ISSUE DATE: JUNE 25, 2004 Prepared for ECHO TOYS LTD ROOM 1108 PENINSULA CENTRE 67 MODY ROAD, TSIM SHA TSUI EAST KOWLOON,HONGKONG Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. REPORT NO: SZE0405040 FCC ID: HAP91301 DATE: 06/25/2004 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: ECHO TOYS LTD ROOM 1108 PENINSULA CENTRE 67 MODY ROAD, TSIM SHA TSUI EAST KOWLOON,HONGKONG Product Description: FORD FOCUS Brand Name: N/A Model Number: 91301 Serial Number: N/A File Number: SZE0405040 Date of Test: May 27,2004 ~ June 24, 2004 We hereby certify that: The above equipment was tested by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2001) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.235. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Clinton / Q.A. Manager Jimmy COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. REPORT NO: SZE0405040 FCC ID: HAP91301 DATE: 06/25/2004 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 P RODUCT D ESCRIPTION ........................................................................................................................ 4 1.2 RELATED SUBMITTAL(S) / GRANT (S)................................................................................................... 4 1.3 T EST M ETHODOLOGY ............................................................................................................................ 4 1.4 T EST F ACILITY ...................................................................................................................................... 4 2. SYSTEM TEST CONFIGURATION .................................................................................. 5 2.1 EUT C ONFIGURATION ........................................................................................................................... 5 2.2 EUT E XERCISE ...................................................................................................................................... 5 2.3 T EST P ROCEDURE .................................................................................................................................. 5 2.4 L IMITATION ........................................................................................................................................... 5 2.5 C ONFIGURATION OF T ESTED S YSTEM ................................................................................................... 7 3. SUMMARY OF TEST RESULTS ....................................................................................... 9 4. DESCRIPTION OF TEST MODES .................................................................................... 9 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT)........ 10 5.1 M EASUREMENT P ROCEDURE : ............................................................................................................. 10 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 10 5.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 10 5.4 M EASUREMENT R ESULT : .................................................................................................................... 10 5.5 C ONDUCTED M EASUREMENT P HOTOS :............................................................................................... 10 6. RADIATED EMISSION TEST .......................................................................................... 11 6.1 MEASUREMENT PROCEDURE............................................................................................................... 11 6.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 12 6.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 13 6.4 FIELD STRENGTH CALCULATION........................................................................................................ 13 6.5 M EASUREMENT R ESULT ...................................................................................................................... 14 6.6 M EASUREMENT R ESULT ...................................................................................................................... 15 6.7 M EASUREMENT RESULT ...........................................................................................156 6.8 M EASUREMENT R ESULT ..........................................................................................157 7. OCCUPIED BANDWIDTH..............................................................8 7.1 M EASUREMENT P ROCEDURE ............................................................................................................... 16 7.2 T EST SET-UP (B LOCK D IAG…
