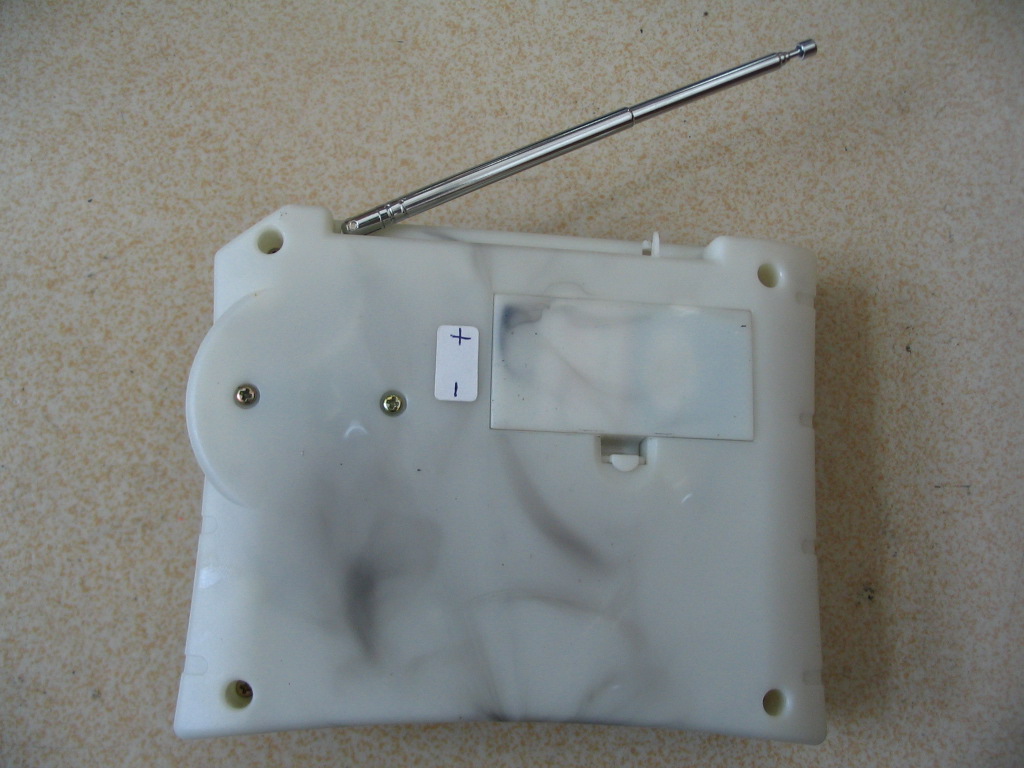

HAP91311T27Remote Control Toy Transmitter

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:16-Jun-2004Sheet of File:E:\Sound Bouncer.DdbDrawn By: TX6 TRANSMITTER IC CONTROL DC 9V SUPPLY POWER FORWARD FORWARD&LEFT FORWARD&RIGHT BACKWARD BACKWARD&LEFT BACKWARD&RIGHT A MODE B MODE X1, Q1, Q2 OSCILLATING MIX AMP L1 TUNNING ANTTENNA T X SOUND BOUNCER BLOCK DIAGRAM 91311TREV 0 Joe Fu PDF created with pdfFactory trial version www.pdffactory.com

FCC ID Location FCC ID Label Sample FCC ID: HAP91311T27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Model No: 91311-27.145MHz CIRCUIT DESCRIPTION In transmitter, push the Forward, Forward&left, Forward&Right, Backward&left, Backward&Right, Backward, A mode, B mode button output IC1 pin 10 supply encoding signal. Q2& X1 is a crystal oscillator of 27.145MHz frequency. Q1 is a modulator. Output of Q1 drives the transformer L1. The antenna is coupled to the modulator by the transformer. In receiver L1 is tuning 27.145MHz frequency. And Q1 is a RF amplifier and detector stage. IC1 is a signal amplifier and decoder, it controls the output of IC1 pin12, 13, 7, 9, 6 and pin7. Q4, Q5, Q6, Q7, Q8, Q9 are Forward And Backward motor driver, and Q10, Q11, Q12, Q13, Q14, Q15 are Left And Right motor driver. Q18, Q19, Q20, Q21, Q22, Q23 are Reset and Distortion motor driver. in addition, the SCM controls flash LED, voice, jump and sound box of the unit: Q35 is voice drive,Q25,Q26,Q27,Q28,Q29,Q30,Q31 are flash LED drive, Q23, Q24 are jump drive, Q21 Q22 are sound box drive. ANTENNA AND GROUND CIRCUITRY This unit makes use of an external 25 centimeters pull staff antenna. The antenna is inductively coupled. The unit relies on the ground tract of the printed circuit board. No external ground is provided. Energy is supplied a 9-volt battery. PDF created with pdfFactory trial version www.pdffactory.com

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:16-Jun-2004Sheet of File:E:\Sound Bouncer.DdbDrawn By: RTB 1 TESTB 2 GND 3 BWB 4 FWB 5 TURB 6 SC 7 NC 8 F2B 9 SO 10 VDD 11 PC 12 OSCO 13 OSCI 14 F1B 15 LTB 16 IC1 TX6 R6 150K ANT1 C2 10P L1 15 7/8T C3 100P C4 47P Q1 2SC2715 L2 2.2uH C7 47P C8 47P C9 50P Q2 2SC2715 R3 330 X1 27.145MHz L3 2.2uH C10 104 C1 104 R5390K R2 330 C6 47uF C11 104 SW2 BW SW1 FW SW8 F2 SW7 F1 D1 IN4148 R447K 1 2 3 SW3 FW&R 1 2 3 SW4 BW&R 1 2 3 SW5 FW&L 1 2 3 SW6 BW&L Sound Bouncer D2 IN4148 D3 IN4148 VCC C12 NC C13 15P REV 091311T (27.145MHz) Joe Fu PDF created with pdfFactory trial version www.pdffactory.com

Report No.: GLEMO040600336RFF Page: 1 of 10 FCC ID: HAP91311T27 Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEMO040600336RF Applicant: ECHO TOYS LTD FCC ID: HAP91311T27 Fundamental Frequency : 27.145MHz Equipment Under Test (EUT): Name: Sound Bouncer / Sound Jumper Model No.: 91311 Standards: FCC PART 15, SUBPART C : 2003 Section 15.227 Date of Receipt: 21 June 2004 Date of Test: 29 June 2004 & 05 July 2004 Date of Issue: 15 July 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID No.: HAP91311T27 Report No.:GLEMO040600336RFF Page: 2 of 10 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 CLIENT INFORMATION....................................................................................................................................... 3 3.2 DETAILS OF E.U.T. ............................................................................................................................................ 3 3.3 DESCRIPTION OF SUPPORT UNITS....................................................................................................................... 3 3.4 TEST LOCATION................................................................................................................................................. 3 3.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER...................................................................................... 3 3.6 TEST FACILITY................................................................................................................................................... 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 TEST INSTRUMENTS........................................................................................................................................... 5 4.2 E.U.T. OPERATION............................................................................................................................................ 5 4.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................... 5 4.3.1 Radiated Emissions ...................................................................................................................................... 5 4.3.2 Occupied Bandwidth .................................................................................................................................... 7 4.3.3 Photographs - Radiated Emission Test Setup in Chamber ..........................................................................8 5 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS ...........................................................................9-10 FCC ID No.: HAP91311T27 Report No.:GLEMO040600336RFF Page: 3 of 10 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant Name: ECHO TOYS LTD Applicant Address: ROOM 1108, PENINSULA CENTRE, 67 MODY ROAD, TSIM SHA TSUI EAST, KOWLOON HONG KONG. Manufacturer Address: Tip Po Industrial District Dong Guan City GuangDong China 3.2 Details of E.U.T. Name: Sound Bouncer / Sound Jumper Model No.: 91311 Power Supply: 9V DC (1 x ‘6F 22’ Size Battery) Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID No.: HAP91311T27 Report No.:GLEMO040600336RFF Page: 4 of 10 SGS-CSTC Standards Technical Services Ltd. 3.6 Test Facility …
