HAP91311T49Remote Control Toy Transmitter

HKL.sch-1 - Wed Jun 02 20:54:46 2004 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

FCC ID Location FCC ID Label Sample FCC ID: HAP91311T49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

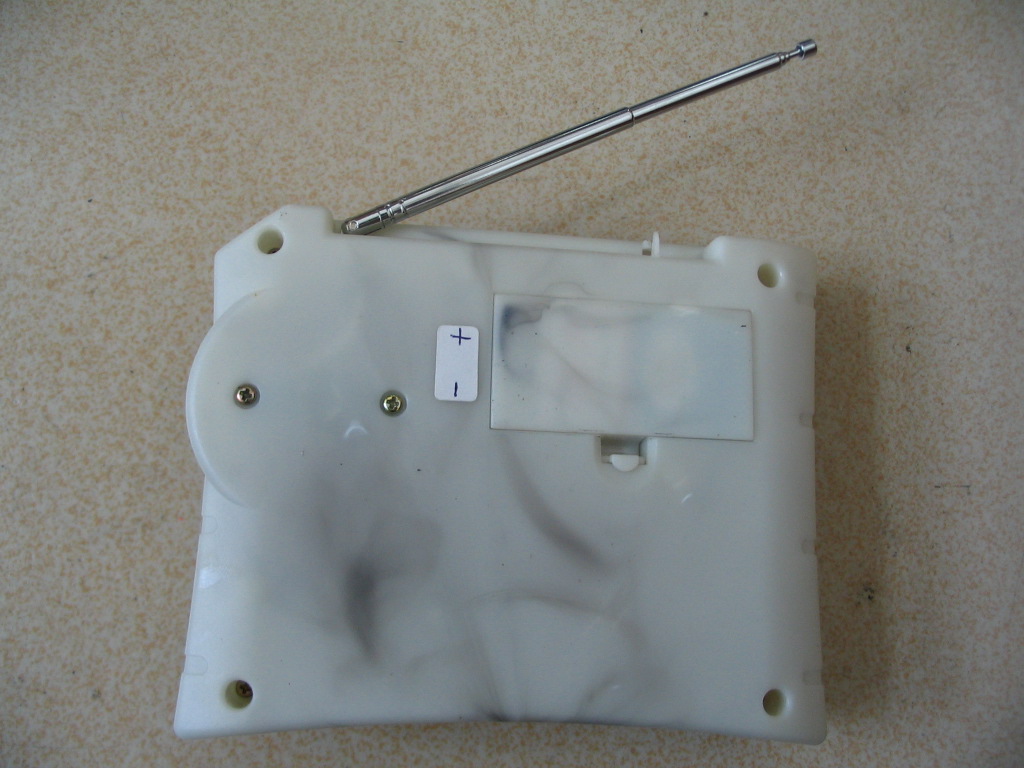

Model No: 91331-49.860MHz CIRCUIT DESCRIPTION In transmitter, press the Forward, Forward-Left, Forward-Right, Or press the backward, Backward-left, Backward -Right, Or press the Left,Or press the Right,output U1 pin 8 supply encoding signal. Q1 & X1 is a crystal oscillator of 49.860MHz frequency. Q2 is a modulator. Output of Q2 drives the transformer T1. The antenna is coupled to the modulator by the transformer. In receiver L1 is tuning 49.860MHz frequency. And Q1 is a RF amplifier and detector stage. U1 is a signal amplifier and decoder, it controls the output of U1 pin6, 7 and pin10,11, 12. Q2, Q3, Q6and Q7 are regulator. Q4, Q5, Q2, Q3 are left -motor driver, and Q6,Q7, Q8, Q9 are Right -motor driver. ANTENNA AND GROUND CIRCUITRY This unit makes use of an external flexible 42 centimeters long mast antenna. The antenna is inductively coupled. The unit relies on the ground tract of the printed circuit board. No external ground is provided. Energy is supplied by “AAA” x 4- batteries(6 volts). 写字楼及陈列室 OFFICE & SHOWROOM： 香港九龙尖沙咀东部么地道67号半岛中心1108室 ROOM 1108 PENINSULA CENTRE，67 MODY ROAD，TSIM SHA TSUI EAST，KOWLOON，HONG KONG. TEL:（852）2723 8038 FAX：（852）2665 4068 E-MAIL ADDRESS: [email protected]

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Report No.: GLEMO040600337RFT Page: 1 of 10 FCC ID: HAP91311T49 Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEMO040600337RF Applicant : ECHO TOYS LTD FCC ID : HAP91311T49 Fundamental Frequency : 49.860MHz Equipment under Test (EUT): Name : Sound Bouncer / Sound Jumper Model : 91311 Standards : FCC PART 15, SUBPART C : 2003 Section 15.235 Date of Receipt : 21 June 2004 Date of Test : 24 June 2004 & 05 July 2004 Date of Issue : 16 July 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID No.: HAP91311T49 Report No.:GLEMO040600337RF Page: 2 of 10 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 CLIENT INFORMATION....................................................................................................................................... 3 3.2 DETAILS OF E.U.T. ............................................................................................................................................ 3 3.3 DESCRIPTION OF SUPPORT UNITS....................................................................................................................... 3 3.4 TEST LOCATION................................................................................................................................................. 3 3.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER...................................................................................... 3 3.6 TEST FACILITY................................................................................................................................................... 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 TEST INSTRUMENTS........................................................................................................................................... 5 4.2 OUT OF BAND EMISSIONS E.U.T. OPERATION.................................................................................................... 5 4.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................... 5 4.3.1 Radiated Emissions ...................................................................................................................................... 5 4.3.2 Occupied Bandwidth .................................................................................................................................... 7 4.3.3 Photographs - Radiated Emission Test Setup in Chamber ..........................................................................8 5 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS ...........................................................................9-10 FCC ID No.: HAP91311T49 Report No.:GLEMO040600337RF Page: 3 of 10 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant: ECHO TOYS LTD Address of Applicant: ROOM 1108, PENINSULA CENTRE, 67 MODY ROAD, TSIM SHA TSUI EAST, KOWLOON HONG KONG. 3.2 Details of E.U.T. Product Name: Sound Bouncer / Sound Jumper Model: 91311 Power Supply: 9V DC (1 x ‘6F22’ Size Battery) for TX 6V DC (1 x ‘TC105’ Rechargeable Battery) for RX Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit: a 49MHz radio transmitter. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID No.: HAP91311T49 Report No.:GLEMO040600337RF Page: 4 of 10 SGS-CSTC Standards Technical Services Ltd. 3.6 Test Facility The test facil…
