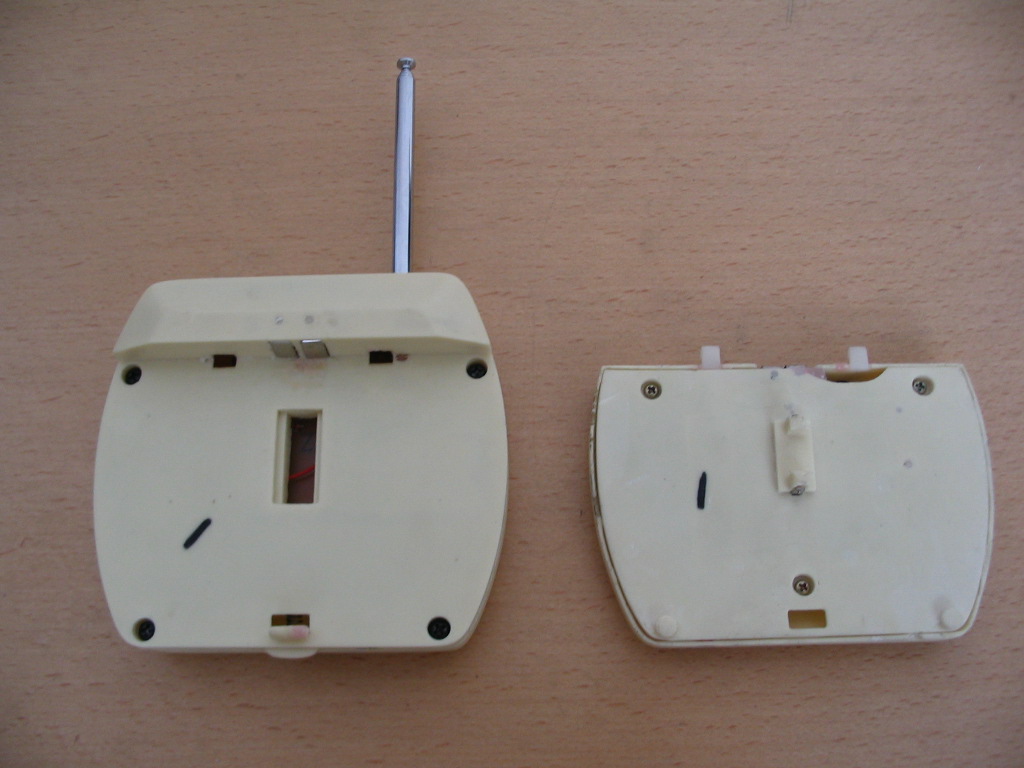

HAP91331T27Remote Control Toy Transmitter

GKL.sch-1 - Wed Jun 02 20:56:13 2004 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

FCC ID Location FCC ID: HAP91331T27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Model No: 91331-27.145MHz CIRCUIT DESCRIPTION In transmitter, press the Forward, Forward-Left, Forward-Right, Or press the backward, Backward-left, Backward -Right, Or press the Left,Or press the Right,output U1 pin 8 supply encoding signal. Q1 & X1 is a crystal oscillator of 27.145MHz frequency. Q2 is a modulator. Output of Q2 drives the transformer T1. The antenna is coupled to the modulator by the transformer. In receiver L1 is tuning 27.145MHz frequency. And Q1 is a RF amplifier and detector stage. U1 is a signal amplifier and decoder, it controls the output of U1 pin6, 7 and pin10,11, 12. Q2, Q3, Q6and Q7 are regulator. Q4, Q5, Q2, Q3 are left -motor driver, and Q6,Q7, Q8, Q9 are Right -motor driver. ANTENNA AND GROUND CIRCUITRY This unit makes use of an external flexible 42 centimeters long mast antenna. The antenna is inductively coupled. The unit relies on the ground tract of the printed circuit board. No external ground is provided. Energy is supplied by “AAA” x 4- batteries(6 volts). 写字楼及陈列室 OFFICE & SHOWROOM： 香港九龙尖沙咀东部么地道67号半岛中心1108室 ROOM 1108 PENINSULA CENTRE，67 MODY ROAD，TSIM SHA TSUI EAST，KOWLOON，HONG KONG. TEL:（852）2723 8038 FAX：（852）2665 4068 E-MAIL ADDRESS: [email protected]
