CHAMBERLAIN, SEARS, LIFTMASTER,MASTER MECHANIC, DO IT - SECTIONS 1, 2 AND 3Determine if your system has code switches or a smart-learn button . If your system has code switches they can be found in an original hand held remote oron the motor unit receiver. The receiver can be mounted on the side or backpanel of the motor unit or could be mounted on the ceiling or wall (locate thesmall gray wire antenna). If you have code switches proceed to Section 1. Note: Systems that have a yellow, white, or gray smart-learn button will havecode switches in the original hand held r emote. You must have the original hand held remote to complete this section. If your hand held remotes do not contain code switches, your system will have agreen or orange smart-learn button . Proceed to Section 2 and 3 . 1 CODE SWITCH SYSTEMSIf the switch is in the plus (+) position place a 1, neutral (0) position place a 2, negative (-) position place a 3 in the corresponding box in the TABLE below. Exception: If your original hand held remote has 3 buttons and you are using the small button on left, place a 1; center button, place a 2; large button place a 3 inbox 1 in the table above. Boxes 2 through 9, place number that corresponds withswitch position.Choose a 4-digit Personal Identification Number (PIN) . Any combination of numbers from 0 to 9 may be used.Write PIN here: To test, enter PIN followed by any 5th additional number. Note: Do not use the * star or # pound keys as a 5th number.If programming is unsuccessful, Check to be sure the code from TABLE above match’s switch positions from your system. Clear and start over. CLICKER MODEL CLK1 Wireless Keypad - For use with Garage Door Openers THE CLICKER IS NOT COMPATIBLE WITH SOME ROTATING CODE SYSTEMSSUCH AS GENIE INTELLICODE OR STANLEY SECURE CODE GARAGE DOOROPENER SYSTEMS DEVELOPED BY SEVERAL MANUFACTURERS SINCE 1996. NOTICE: To comply with FCC and or Industry Canada rules, adjustment or modifications of this receiverand/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARENO OTHER USER SERVICEABLE PARTS.Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation. W ARN ING CAUTION WARNING WARNING ATTENTION AVERTISSEMENT AVERTISSEMENT AVERTISSEMENT To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:• ALWAYS keep keypads out of reach of children. NEVER permit children to operate, or play with remote control transmitters/keypads. • Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel. • ALWAYS keep gate or garage door in sight until completely closed. Never permit anyone to cross path of moving gate or door. Identify Your Garage Door Opener Brand Determine your brand from an original hand held remote or locate the motor unitreceiver. The receiver can be mounted on the back or side panel of the motor unitor could be mounted on the ceiling or wall.You must choose a 4-digit Personal Identification Number (PIN) whenprogramming the CLK1. After programming is complete, your PIN plus anyadditional number must be entered to activate your system.If an incorrect PIN is entered, the keypad flashes. When flashes stop, just re-enterthe correct PIN followed by any 5th additional number. (Do not use the * or # Key) Clear and start over: Press * and # together until keypad stops flashing (5 sec.). This erases previous programming and returns unit to unprogrammed factory setting.Keypad will flash: During certain programming sequences - when pressing the * or # key or an incorrect PIN is entered. To program a second garage door opener brand after successfully programmingthe first: Determine brand, then follow the brand steps, choosing a different PIN and in step 1 enter 4,5,6,7 instead of 1,2,3,4. If unsuccessful, wait until keypadstops flashing, then begin at step 1. Do not clear and start over as first doorprogramming will be erased.Keypad will light steadily for 5 seconds: After pressing any key or after entering a correct PIN. Once programmed, the keypad remains active for 15 seconds.During this time you may stop, reverse or reactivate the door by pressing anynumber on the keypad.MOUNTING THE CLK1Select a smooth vertical surface. Mount the keypad out of the path of the movinggarage door, but within sight of it. At least 4 inches of clearance is needed abovethe keypad in order to slide the cover up.Slide outside cover up and remove. Remove battery cover. Take battery out ofcompartment (it is not necessary to disconnect it). Mount the keypad using thetwo mounting holes and screws supplied, then reinsert battery, replace batterycover, and slide outside cover down.CHANGING YOUR PINIt is not necessary to reprogram the CLK1 to change the existing PIN.To change your PIN :  Enter existing 4-digit PIN and the * key.  Enter new 4-digit PIN and the * key.  To test, enter new 4-digit PIN followed by any 5th additional number. Note: Do not use the * or # keys as a 5th number. SECTION BRAND 1 Chamberlain, Sears, LiftMaster, Master Mechanic, Do It - ( 9 Code Switch Systems, Yellow, White or Gray Learn Button) 2 Chamberlain, Sears, LiftMaster, Master Mechanic, Do It - ( Green Learn Button) 3 Chamberlain, Sears, LiftMaster, Master Mechanic, Do It - ( Orange Learn Button) 4 Linear, Moor e-O-Matic 5 Genie - ( 9 Code Switch Systems) 6 Genie - ( 12 Code Switch Systems) 7 Multi-Code 8 Stanley Circle your Brand and proceed to the appropriate section. Helpful Hints 123456789 Step 1 Enter 1 2 3 4 and the * key. Step 2 Enter your PIN and the * key. Step 3 Enter your PIN and the # key. Step 4 Enter 1 and the # key. Step 5 Enter code in sequence from the TABLE above and the # key. Programming is complete. CODE SWITCH SEQUENCE ✚ 0 – PROGRAMMING…

Text truncated - open the document above for the full version.

FCC ID: HBW1619 Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, Chamberlain Group, Inc., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Barbara Kelkhoff Manager of Regulatory Affairs Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

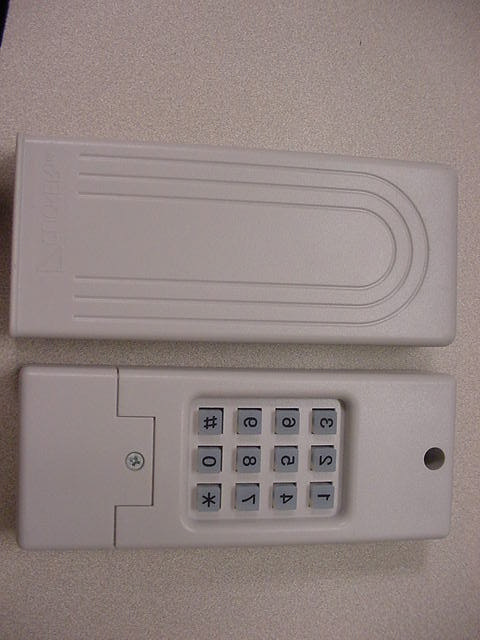

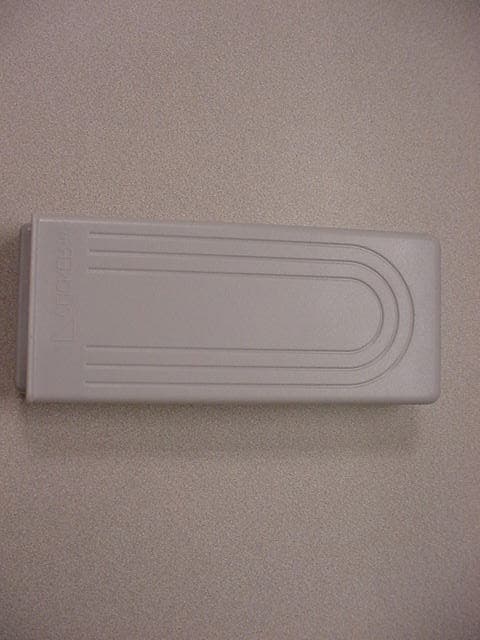

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.530.6140 Email: [email protected] May 23, 2006 Federal Communications Commission EQUIPMENT APPROVAL SERVICES PO Box 358315 Pittsburgh, PA 15251-5315 Re: Request for Certification Enclosed is an application and exhibits for Certification of a Remote Control Transmitter Model CLK1D. Circuit board assembly 1A5582CLK1D is used in Model CLK1D. I have included a typical instruction sheet indicating the FCC statement and important information. The FCC ID of this model, upon certification, will be HBW1619. We would appreciate your prompt attention to the submittal. Sincerely, THE CHAMBERLAIN GROUP, INC. Barbara Kelkhoff Manager, Regulatory Affairs LIST OF EXHIBITS REMOTE CONTROL TRANSMITTER Model CLK1D 1. Expository Statement 2. Theory of Operation 3. Schematic 4. Photographs 5. FCC Label Drawing 6. Operating Instructions 7. Test Report EXPOSITORY STATEMENT KEYLESS ENTRY, REMOTE CONTROL TRANSMITTER Model CLT1D 1. The instructions include statements required to assure compliance with the Commission's Rules; Part 15. 2. Labeling is in accordance with the Commission's labeling requirements, Parts 2 and 15, Section 15.19. 3. This transmitter is intended for use with the certified receivers of garage door and gate operator systems manufactured by Chamberlain , Genie , and Linear . 4. The transmitter is equipped with an automatically releasing push-button switch. Transmission is terminated upon release of the push-button. 5. Transmitter Model CLK1D is factory set to 300, 315 and 390 ± 0.1% MHz. It is not intended to be readjusted in the field, and specific instructions prohibiting tampering are provided to the user. 6. Test data for Model CLK1D is part of this submission. No emissions were detected in the forbidden bands below 1.0 GHz. Certified by: Barbara P. Kelkhoff Manager, Regulatory Affairs

Page 1 of 18 Engineering Test Report No. 36460-02 Rev. A Measurement of RF Interference from a Transmitter, Model 1A5582 CLK1D Transmitter For : Chamberlain Manufacturing 845 Larch Avenue Elmhurst, IL 60126 P.O. No. : 852390 Date Received : March 23, 2006 Date Tested : March 23 and 24 and April 4, 2006 Test Personnel : Richard E. King Specification : FCC "Code of Federal Regulations” Title 47 Part 15, Subpart C Test Report By : Richard E. King EMC Engineer Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois – 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 36460-02 Rev. A THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 18 Engineering Test Report No. 36460-02 Rev. A THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 3 of 18 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION................................................................................................................................................ 4 1.1 Description of Test Item.................................................................................................................................... 4 1.2 Purpose............................................................................................................................................................. 4 1.3 Deviations, Additions and Exclusions............................................................................................................. 4 1.4 Applicable Documents ...................................................................................................................................... 4 1.5 Subcontractor Identification .............................................................................................................................. 4 1.6 Laboratory Conditions..................................................................................................................................... 4 2.0 TEST ITEM SET-UP AND OPERATION.......................................................................................................... 4 2.1 Power Input...................................................................................................................................................... 4 2.2 Grounding......................................................................................................................................................... 5 2.3 Peripheral Equipment........................................................................................................................................ 5 2.4 Interconnect Cables........................................................................................................................................... 5 2.5 Operational Mode ............................................................................................................................................. 5 2.6 Test Item Modifications................................................................................................................................... 5 3.0 TEST EQUIPMENT............................................................................................................................................. 5 3.1 Test Equipment List .......................................................................................................................................... 5 3.2 Calibration Traceability ................................................................................................................................... 5 3.3 Measurement Uncertainty................................................................................................................................ 5 4.0 REQUIREMENTS, PROCEDURES AND RESULTS .......................................................................................5 4.1 Powerline Conducted Emissions ..................................................................................................................... 5 4.1.1 Requirements ............................................................................................................................................................ 5 4.2 Duty Cycle Factor Measurements .................................................................................................................. 5 4.2.1 Procedures................................................................................................................................................................ 5 4.2.2 Results...................................................................................................................................................................... 6 4.3 Radiated Measurements................................................................................................................................... 6 4.3.1 Requirements ............................................................................................................................................................ 6 4.3.2 Procedures................................................................................................................................................................. 6 4.3.3 Results....................................................................................................................................................................... 7 4.4 Occupied Bandwidth Measurements ............................................................................................................... 8 4.4.1 Requirement ................................................................................................................................…

Text truncated - open the document above for the full version.

Figure 2 Test Set-up for Radiated Emissions Horizontal Polarity Test Set-up for Radiated Emissions Vertical Polarity
