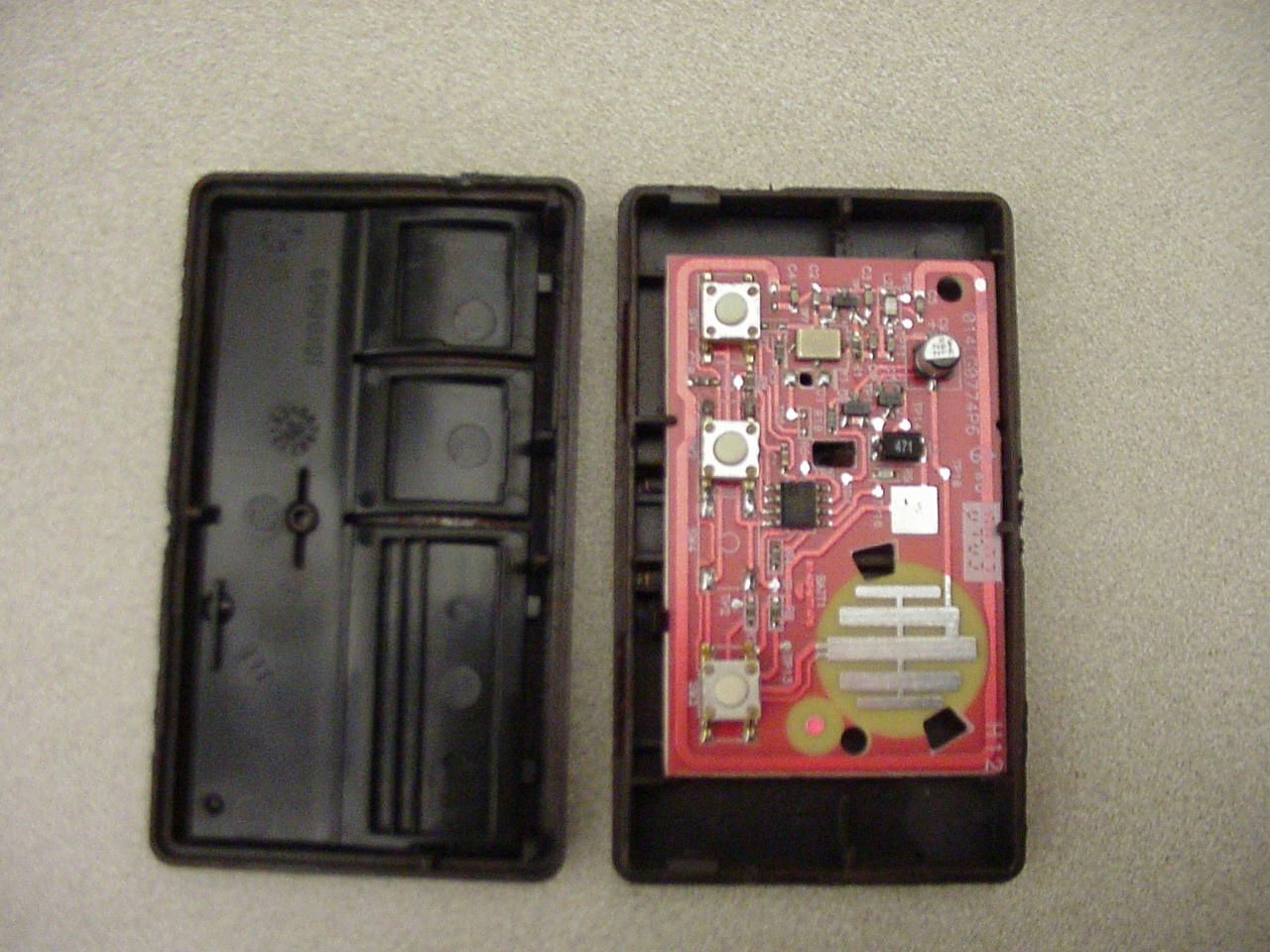

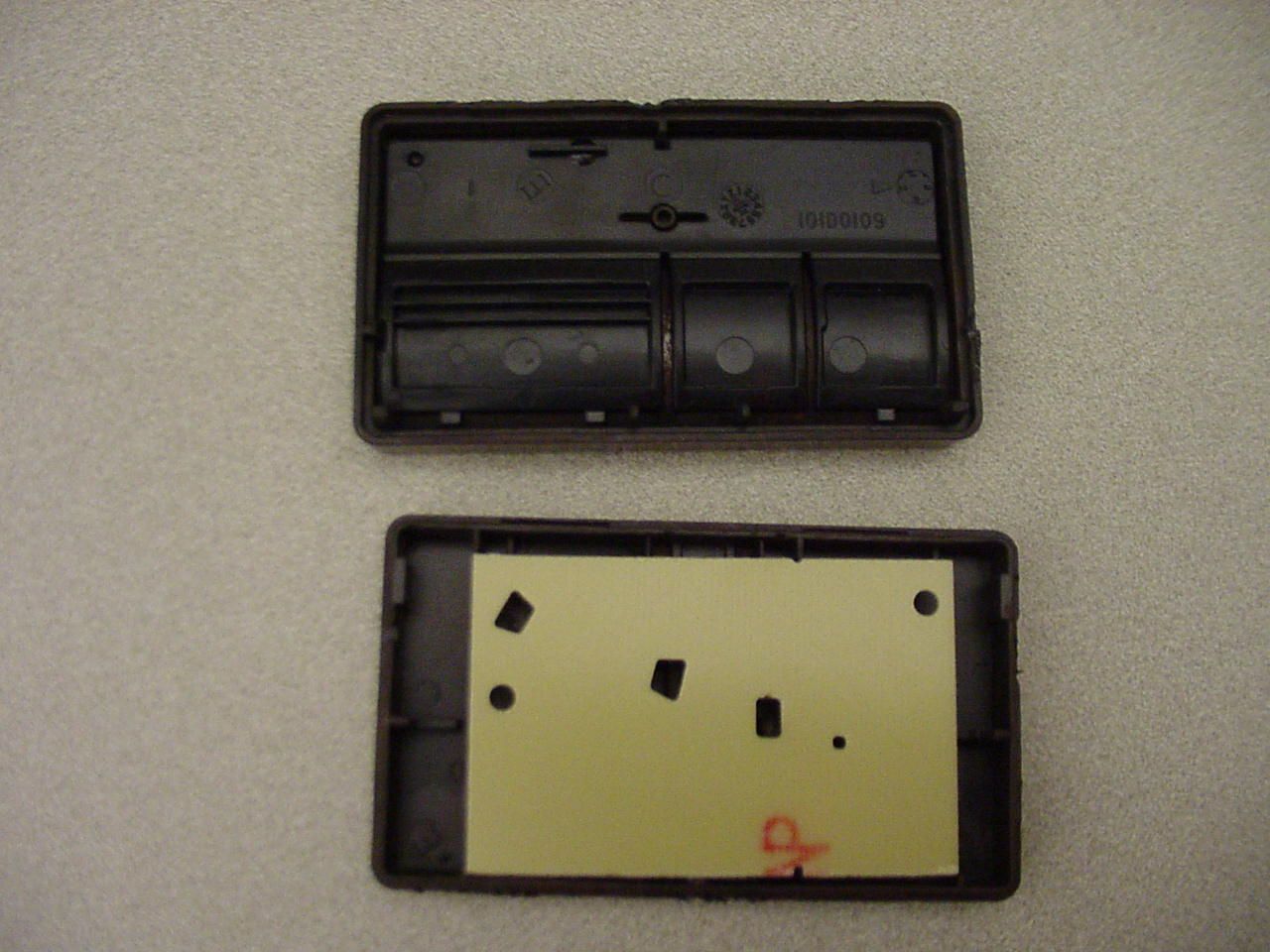

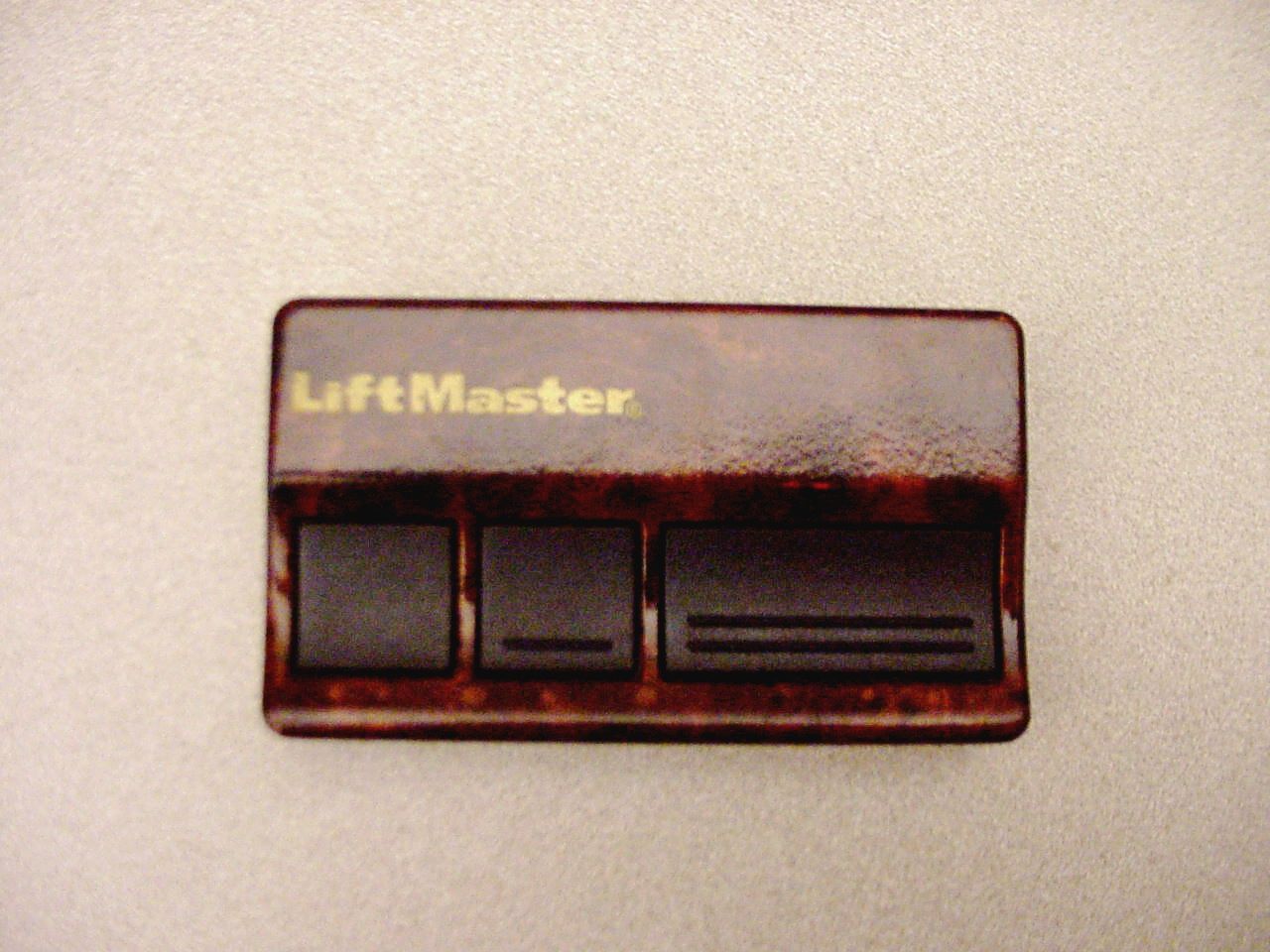

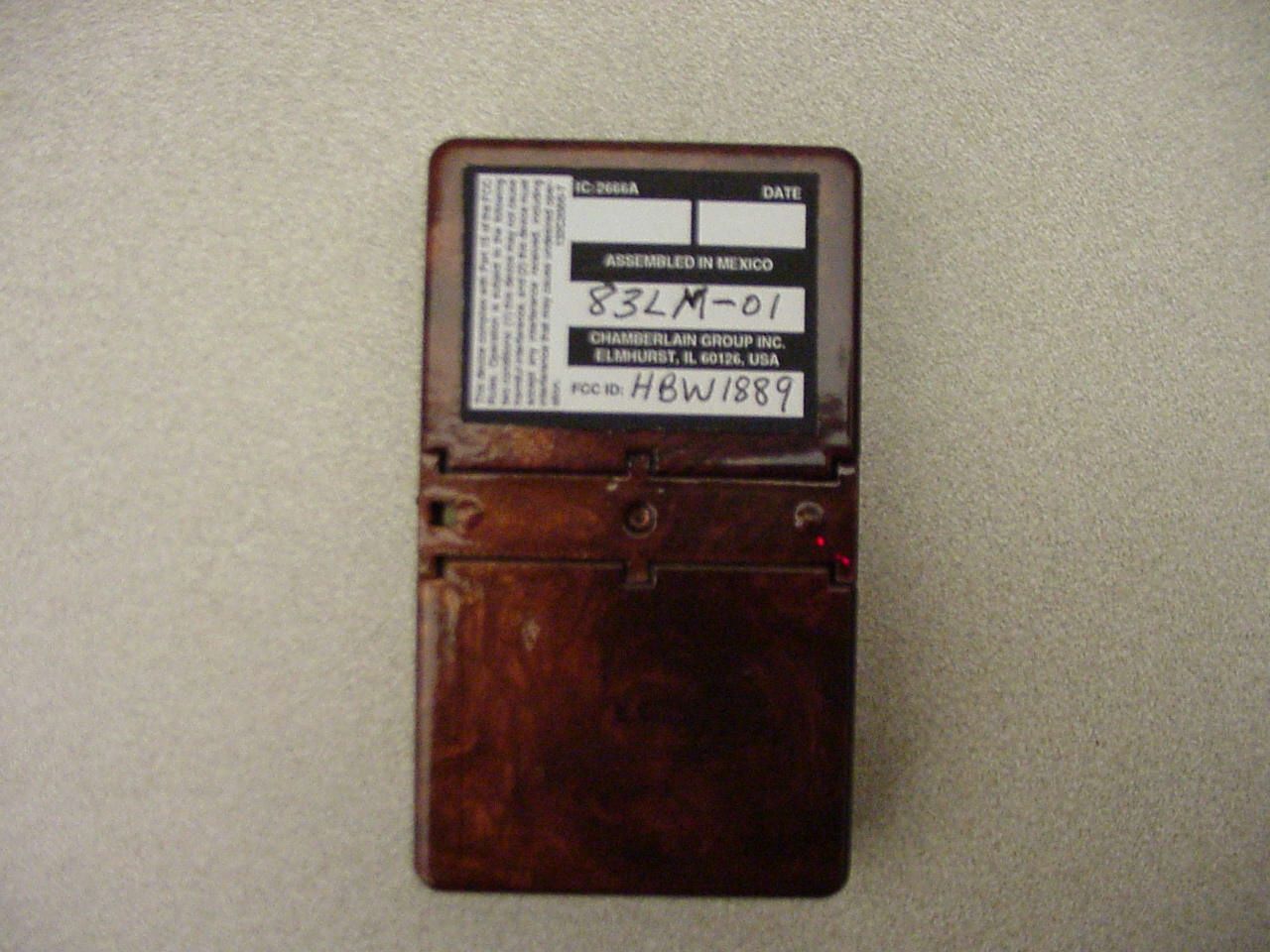

HBW1889Remote Control Transmitter

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 Fax: (310) 344-2050 Reference FCC ID: HBW1889 Organization: The Chamberlain Group Inc. Request under 47 CFR 0.459 that materials submitted to the commission be withheld from public inspection. The Chamberlain Group Inc. hereby requests that the materials attached here to be withheld from public inspection in accordance with 47 CFR 47 0.459. Specifically, The Chamberlain Group Inc. requests that the following materials be withheld from public inspection under 47 CFR 0.459 because the schematics and designs are considered confidential trade secrets and technical data which customarily would be guarded from competitors: Schematic, Block Diagram and Theory of Operation. Therefore, in accordance with CFR 47 0.459, The Chamberlain Group Inc. requests that the above listed materials, copies of which are here, to be withheld from public inspection. We also ask that the above information be withheld from the OEM incorporating this module into his design. Authorized Signature: Date: 05/26/2004 Barbara P. Kelkhoff Manager of Regulatory Affairs The Chamberlain Group Inc.

May 24, 2004 Chamberlain Group Inc Attn: Mr. Hank Sieradzki 845 Larch Avenue Elmhurst, IL 60126 UL Reference: File MC3181, Project 04NK07835 Subject: EMC Test and Measurement Report for Model 1A5904 BC 390MHz Billion Code Transmitter Dear Mr. Sieradzki: We have provided with this letter your revised EMC Test Report for the above referenced model. The product was determined to comply with the requirements noted in the report. Please review the attached report and direct any questions or comments to me. We appreciate your interest in UL’s EMC Services, and encourage you to contact us in the future should you need EMC test services. This closes Project 04NK07835. Best regards, Reviewed by: Bart Mucha (Ext 41216) Jack Steiner Project Engineer Section Manager International EMC Services International EMC Services UL International EMC Services 333 Pfingsten Road Northbrook, Illinois 60062-2096 (800) 873-8536 Fax No. (847) 272-8864 http://www.ul.com/emc/ FCC ID: HBW1889 File: MC3181 Project: 04NK0783 Page 1 of 8 UL International EMC Services www.ul.com/emc (800) USE UL EMC EMC – TEST REPORT Issue Date: March 24, 2004 √ EMISSIONS IMMUNITY Test Report File No. : MC3181 Project No. : 04NK07835 Model / Type : 1A5904 BC Kind of Product : 390MHz Billion Code Transmitter Applicant : Chamberlain Group Inc License Holder : Chamberlain Group Inc Address : 845 Larch Avenue : Elmhurst, IL 60126 : Manufacturer : Same as Applicant : : : Test Result : COMPLIANT This report without appendices consists of 8 pages. Appendix A contains test photos, and Appendix B contains original test data. The data contained in this report reflects only the items tested in the configurations and mode of operations described. An attempt has been made to arrange the EUT, with the equipment provided, into a test configuration which maximizes the observed emissions of the EUT while simulating, as close as practical, a typical end-use installation. Underwriters Laboratories Inc. authorizes the above company to reproduce this report provided it is reproduced in its entirety. Underwriters Laboratories Inc. 333 Pfingsten Rd. Northbrook, IL 60062 Fax: (847) 272-8864 FCC ID: HBW1889 File: MC3181 Project: 04NK0783 Page 2 of 8 UL International EMC Services www.ul.com/emc (800) USE UL EMC REPORT DIRECTORY SECTION TITLE GENERAL 1.0 General Product Description 1.1 Model Differences 1.2 Environmental Conditions in Test Lab 1.3 Calibration Details of Equipment Used for Measurement 1.4 EUT (Equipment Under Test) Configuration 1.5 EUT Operating Mode 1.6 Device Modifications EMISSIONS 2.0 Emissions Test Regulations Radiated Electric Field Emissions IMMUNITY 3.0 Immunity Test Regulations CONCLUSION 4.0 General Remarks 4.1 Summary APPENDICIES A Test Setups (Photos, Diagrams and Drawings) B Test Data C Annex C (RSS-210 Form) FCC ID: HBW1889 File: MC3181 Project: 04NK0783 Page 3 of 8 UL International EMC Services www.ul.com/emc (800) USE UL EMC 1.0 GENERAL PRODUCT DESCRIPTION The Equipment Under Test (EUT) was a billion code 390MHz Transmitter 1.0.1 Equipment Mobility: Portable 1.0.2 Test Voltage and Frequency: Voltage (V) Frequency (Hz) 3 DC 1.1 MODEL DIFFERENCES Any other model(s) represented by the models tested in this investigation will be documented by the manufacturer. 1.2 ENVIRONMENTAL CONDITIONS IN TEST LAB Temperature: 20-25 °C Relative Humidity: 30-60% RH Atmospheric Pressure: 860-1060 mbar 1.3 CALIBRATION OF EQUIPMENT USED FOR MEASUREMENT All test equipment and test accessories are calibrated on a regular basis. The maximum time between calibrations is one year or what is recommended by the manufacturer, whichever is less. All test equipment calibrations are traceable to the National Institute of Standards and Technology (NIST), therefore, all test data recorded in this report is traceable to NIST. FCC ID: HBW1889 File: MC3181 Project: 04NK0783 Page 4 of 8 UL International EMC Services www.ul.com/emc (800) USE UL EMC 1.4 EUT CONFIGURATION(s) See Appendix A for individual set-up configuration(s). In addition to the EUT, the following peripheral devices and/or cables were connected during the measurement: Device Manufacturer Model Serial # FCC ID EUT Chamberlain 1A5904BC Sample G HBW1899 Cable Manufacturer Length Type Shield Type Shield Termination None 1.5 EUT OPERATING MODE(s) The equipment under test was operated during the measurements under the following conditions: Transmitting continuously. 1.6 DEVICE MODIFICATIONS The following modifications were necessary for compliance: None. FCC ID: HBW1889 File: MC3181 Project: 04NK0783 Page 5 of 8 UL International EMC Services www.ul.com/emc (800) USE UL EMC 1.7 2.0 EMISSIONS TEST REGULATIONS The EUT was considered to be a Class B device. Emissions testing was performed according to the following regulations: 47 CFR Part 15 Subpart C: 2003 + ANSI C63.4 - 2000 Evaluated to: 15.231 FCC ID: HBW1889 File: MC3181 Project: 04NK0783 Page 6 of 8 UL International EMC Services www.ul.com/emc (800) USE UL EMC RADIATED ELECTRIC FIELD EMISSIONS Test Location 10 Meter Semi-Anechoic Chamber UL Procedure 3014ANBK-LPG-002 Test Instruments Spectrum Analyzer / Quasi-peak Adapter / Preamplifier / Preselector Hewlett Packard Model 8566B Spectrum Analyzer Model 85650A Quasi-peak Adapter Model 85685A RF Preselector No. EMC4015 Last Cal. 1-8-04, Next Cal 1-8-05 Rhode & Schwartz Model FSEK20 Spectrum Anayzer Last Cal. 1-8-04, Next Cal 1-8-05 Antennas Chase EMC Ltd., Biconical Antenna Model VBA6106A S/N 1246 Last Cal. 6-23-04, Next Cal 6-23-05 Chase EMC Ltd., Log Periodic Antenna Model UPA6108 S/N 1120 Last Cal. 6-23-04, Next Cal 6-23-05 EMCO, Horn Model 3115 S/N 8812-3032 Last Cal. 6-10-04, Next Cal 6-10-05 Frequency Range of Measurement 30MHz-4000MHz Measurement Distance 3 meters and 10 meters Test Results The requirements are: MET Remarks See App. B for complete test results. FCC ID: HBW1889 File: MC3181 Project: 04NK0783 Page 7 of 8 UL International EMC Services www.ul.com/emc (800) USE UL EMC 3.0 IMMUNITY TEST REGULA…

Text truncated - open the document above for the full version.

DUTY_CYCLE_BILL.doc This is the billion code modulation duty cycle calculation. Refer to FCC 47 CFR Ch. 1 (10-1-02 Edition ) Page 691. ON OFF TOTAL TIME 1 msec first sync pulse 1 mS N/A 1 mS 10 digits 30 mS 10 mS 40 mS 37 msec blanktime N/A 37 mS 37 mS 3 msec second sync pulse 3 mS N/A 3 mS 4.666 digits 14 mS 5 mS 19 mS ----------------------------------------------------------------------------------------------------- Total 48 mS 100 mS 20 log 48/100 = -6.37 NOTES: Each digit allowed 4 mS. Each digit starts with an OFF mS. 1 mS/bit Could be all OFF 0 mS ON 4 mS OFF Could be 1 ON 1 mS ON 3 mS OFF Could be 2 ON 2 mS ON 2 mS OFF Could be 3 ON 3 mS ON 1 mS OFF (WORST CASE) This calculation has all bits ON for each digit (WORST CASE). This would rarely happen in a transmitter because all ON for the digits would be an unrealistic transmitter code.

x-axis y-axis z – axis 3m above 1GHz setup
