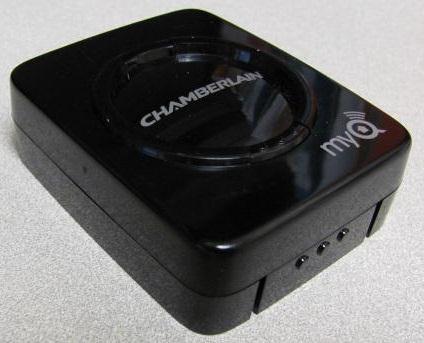

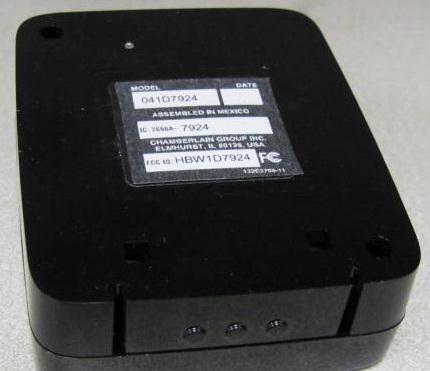

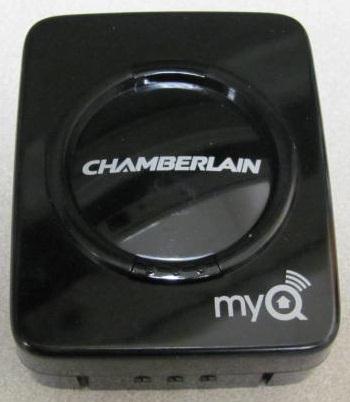

HBW1D7924Door State Sensor

ONE YEAR LIMITED WARRANTY Chamberlain, Inc. warrants to the fi rst retail purchaser of this product that is free from defect in materials and/or workmanship for a period of 1 year from the date of purchase. NEED HELP? Go to the Help section at www.mychamberlain.com, or call Chamberlain Technical Support at 1-800-528-9131. INSTALL THE DOOR SENSOR 1. Use an alcohol wipe and clean area. 2. Position the door sensor vertically and attach to the top panel of the garage door with fastening strips (provided). OR Press in the bottom of the door sensor and remove the front cover. Position the door sensor vertically and attach to the top panel of the garage door with screws (provided). Replace the front cover. PROGRAM THE DOOR SENSOR 1. Use the MyQ ® App to add a new door sensor. OR 1. Press and release BUTTON 1 for door 1 or BUTTON 2 for door 2 on the Wi-Fi hub. The yellow LED on the Wi-Fi hub will turn off when successfully programmed. 2. Press the Test button on door sensor until the yellow LED on the door sensor turns on. 3. Press the Test BUTTON again on the door sensor and the Wi-Fi hub will beep once for door 1 and twice for door 2. MODEL 041A7924 DOOR SENSOR BUTTON (Settings) BUTTON 1 BUTTON 2 LED Front Cover Screws Test BUTTON Top Panel of Garage Door Top Panel of Garage Door Fastening Strips Door Sensor Top OR ©2013 The Chamberlain Group, Inc. 114A4649 All Rights Reserved NOTICE: To comply with FCC and/or Industry Canada (IC) rules, adjustment or modifi cations of this transceiver are prohibited. THERE ARE NO USER SERVICEABLE PARTS. This device complies with Part 15 of the FCC rules and IC RSS-210. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To prevent possible SERIOUS INJURY or DEATH from a closing garage door: • Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel. • ALWAYS keep garage door in sight until completely closed NEVER permit anyone to cross the path of closing garage door.

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.516.6863 Email: [email protected] July 18, 2013 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 c.c. UL LLC. 333 Pfingsten Road Northbrook, IL 60062 To whom it may concern: I, the undersigned, hereby authorize Bart Mucha, of UL LLC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Bart Mucha of UL on our behalf, shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for Examining documentation and access to all areas, records (including internal audit reports) And personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division Into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter That contains any reference thereto and returns any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with Specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely, Barbara Kelkhoff Regulatory Project Manager II Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.516.6863 Email: [email protected] July 18, 2013 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: HBW1D7924 for circuit assembly 1D8020 Request for Confidentiality In accordance with 47 C.F.R. Section 0.457 and 0.459, we, Chamberlain Group, Inc., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. I would appreciate your prompt attention to the submittal. If there are any questions, please call me at 630-993-6306 or send a fax to 630-516- 6863. Sincerely, Barbara Kelkhoff Regulatory Project Manager II Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

HBW1D7924

HBW1D7924 HBW1D7924

Applicant : Chamberlain Group Inc. Type of Equipment : DTS Model No. : 041D7924 FCC ID : HBW1D7924 Fixed installation Bluetooth Low Energy Garage Door Sensor The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. For small devices and for devices used close to the body the enclosure-to-person separation distance is used rather than the antenna-to-person separation distance. For this device:  f = 2.44GHz  distance = 0 mm (so we will use 5 mm in the calculation)  the maximum output power declared by the manufacturer is 2 mW The calculated value = [ 2.0/ 5 ]. √ 2.44= 0.62 This is below 3.0 and its excluded from any type of RF exposure evaluation

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 BLUETOOTH LOW ENERGY CERTIFICATION TEST REPORT FOR Chamberlain Group Inc. BT LE Garage Door Sensor MODEL NUMBER: 041D7924 REPORT NUMBER: 13N15223 ISSUE DATE: July 19, 2013 Rev1 Issue Data: August 02, 2013 Prepared for Chamberlain Group Inc. 845 Larch Av Elmhurst, IL 60126 Prepared by UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 847-272-8800 REPORT NO: 13N15223 Order NO. 10015307 DATE: July 19, 2013 Rev1 Page 2 of 48 UL LLC FORM NO: CCSUP4701I 333 PFINGSTEN RD, NORTHBROOK, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 20130719 Initial Issue B. Mucha 1 20130802 Editorial and some data changes B.Mucha REPORT NO: 13N15223 Order NO. 10015307 DATE: July 19, 2013 Rev1 Page 3 of 48 UL LLC FORM NO: CCSUP4701I 333 PFINGSTEN RD, NORTHBROOK, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................4 2. TEST METHODOLOGY ......................................................................................................5 3. FACILITIES AND ACCREDITATION ..................................................................................5 4. CALIBRATION AND UNCERTAINTY .................................................................................5 4.1. MEASURING INSTRUMENT CALIBRATION ...............................................................5 4.2. SAMPLE CALCULATION .............................................................................................5 5. EQUIPMENT UNDER TEST ................................................................................................6 5.1. DESCRIPTION OF EUT ...............................................................................................6 5.2. MAXIMUM OUTPUT POWER .......................................................................................6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ...............................................................6 5.4. SOFTWARE AND FIRMWARE .....................................................................................6 WORST-CASE CONFIGURATION AND MODE......................................................................6 5.5. DESCRIPTION OF TEST SETUP .................................................................................7 6. TEST AND MEASUREMENT EQUIPMENT ........................................................................7 7. ANTENNA PORT TEST RESULTS .....................................................................................8 7.1. 6 dB BANDWIDTH ........................................................................................................8 7.2. 99% BANDWIDTH ......................................................................................................12 7.3. OUTPUT POWER .......................................................................................................16 7.4. POWER SPECTRAL DENSITY ..................................................................................20 7.5. CONDUCTED SPURIOUS EMISSIONS .....................................................................24 8. RADIATED TEST RESULTS .............................................................................................30 8.1. LIMITS AND PROCEDURE ........................................................................................30 8.2. TX ABOVE 1 GHz FOR BLUETOOTH LOW ENERGY MODE IN THE 2.4 GHz BAND ............31 8.3. WORST-CASE BELOW 1 GHz ...................................................................................41 8.4. DIGITAL DEVICE BELOW 1 GHz and ABOVE 1GHz .................................................42 9. AC POWER LINE CONDUCTED EMISSIONS ..................................................................43 10. SETUP PHOTOS ...........................................................................................................44 REPORT NO: 13N15223 Order NO. 10015307 DATE: July 19, 2013 Rev1 Page 4 of 48 UL LLC FORM NO: CCSUP4701I 333 PFINGSTEN RD, NORTHBROOK, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Chamberlain Group Inc. 845 Larch Av Elmhurst, IL 60126 EUT DESCRIPTION: BT LE Garage Door Sensor MODEL: 041D7924 SERIAL NUMBER: prototype DATE TESTED: May 16, 2013 thru June 18, 2013 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass INDUSTRY CANADA RSS-210 Issue 8 Annex 8 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any age…
