HBW2309Remote Control Transmitter

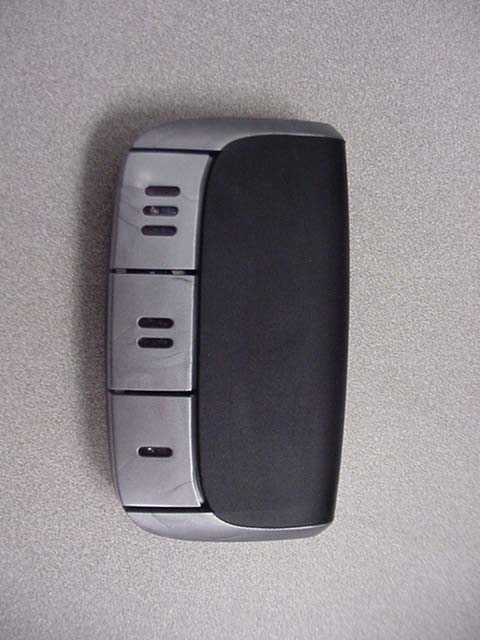

Component "3094.pdf" Model 373P 315MHz Security 3 button Remote Control Sample instructions Image: 3094.pdf FOR REFERENCE ONLY — — — — — — — — 123 12 OR Instructions are Described and Illustrated Below 1. Press and release the “learn” button on the motor unit. The learn indicator light will glow steadily for 30 seconds. 2. Within 30 seconds, press and hold the button on the hand-held remote. 3. Release the button when the motor unit light blinks. It has learned the code. If light bulbs are not installed, two clicks will be heard. To Erase All Codes From Motor Unit Memory To deactivate any unwanted remote, first erase all codes: Press and hold the “learn” button on motor unit until the learn indicator light goes out (approximatel y 6 seconds). All previous codes are now erased. Reprogram each remote or keyless entry you wish to use. T o C ontrol the Opener Lights NOT E:Not available with universal receiver. With 315 MHz Security ® remote controls, a remote push button can be programmed to operate the opener lights without opening the door. 1.With the door closed, press and hold the remote button that you want to control the light. 2. Press and hold the Light button on the door control. 3. Press and hold the Lock button on the door control. 4. After the opener lights flash, release all buttons. Test by pressing the remote push button. The opener lights should turn on or off but the door should not move. NOTICE: To comply with FCC and or I ndust r y Canada (I C) rul es, adj ust ment or modi f i cat i ons of t hi s r ecei ver and/ or t ransmi t t er are prohi bi t ed, except f or changi ng t he code set t i ng or repl aci ng t he bat t ery. THERE ARE NO OTHER USER SERVI CEABLE PARTS. Test ed t o Compl y w i t h FCC St andards FOR HOME OR OFFI CE USE. Oper at i on i s subj ect t o t he following t w o condi t i ons: (1) t hi s devi ce may not cause har mf ul i nt erf erence, and ( 2) t hi s devi ce must accept any i nt er f erence recei ved, i ncl udi ng i nt erf erence t hat may cause undesi r ed operat i on. To pr event possi bl e SERIOUS INJURY or DEATH fr om a movi ng gate or gar age door : • ALWAYS keep r emote contr ol s out of r each of chi l dr en. NEVER permit children to operate, or play with remote control transmitters. • Acti vate gate or door ONLY when i t can be seen cl ear l y, i s pr oper l y adj us ted, and ther e ar e no obstr ucti ons to door tr avel . • ALWAYS keep gate or gar age door i n si ght unti l compl etel y cl osed. NEVER per mi t anyone to cr oss path of movi ng gate or door . WARNING © 2005, Chamberlain Group Inc. 114A3094All Rights ReservedPrinted in Mexico FOR SERVICE DIAL OUR TOLL FREE NUMBER: US: 1-800-528-2817 CA NADA: 1-800-654-4736 Open/Close/Stop Operation NOT E:Not available with universal receiver. Your 315 MHz Security ® remote control can be programmed to operate one door using all 3 buttons: the large button will only open the door, the middle button will close the door, and the third button will stop the door’s movement. You may set up this feature as follows: 1.With the door closed, press and hold the large remote push button. 2. Press and hold the Lock button on the door control. 3. Press and hold the door control push bar. When the opener lights flash, release all buttons. Test by pressing the large (Open) button on the remote. The door should open. Press it again while the door is open and nothing should happen. Press the middle (Close) button while the door is moving and it should close. Press the third (Stop) button and the door should stop immediately. The Remote Control Batteries The lithium batteries should produce power for up to 5 years. To replace, pry open case with visor clip or screwdriver, as shown. Insert batteries positive side up (+). Dispose of old batteries properly. Op e n Close Stop Replacemen t Parts 3V2032 Lithium battery: . . . . . . . . . . . . . . . . . . . . . . . . . .10A20 Visor clip: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29B137 Battery p o si ti ve si de u p (+) To pr event possi bl e SERIOUS INJURY or DEATH: • NEVER al l ow smal l chi l dr en near batter i es. • If batter y i s swal l owed, i mmedi atel y noti fy doctor . WARNING Only for use with 315 MHz Security ® garage door openers and universal receivers that have a purple “learn” button.

FCC ID: HBW2309 Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, Chamberlain Group, Inc., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Barbara Kelkhoff Manager of Regulatory Affairs Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

Engineering Test Report No. 36986-01 Measurement of RF Interference from a Model 001A6333 Transmitter For : Chamberlain Manufacturing Elmhurst, IL P.O. No. : 852523 Date Received : July 13, 2006 Dates Tested : July 13, 2006 Test Personnel : Daniel E. Crowder, NARTE® Certified EMC Test Engineer, ATL-0152-E Specification : FCC "Code of Federal Regulations” Title 47 Part 15, Subpart C Test Report By : Daniel E. Crowder Approved By : Craig W. Fanning NARTE Certified: ATL-0188-E and EMC-000296-NT Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 36986-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 18 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION ................................................................................................................................................ 4 1.1 Description of Test Item.................................................................................................................................... 4 1.2 Purpose............................................................................................................................................................. 4 1.3 Deviations, Additions and Exclusions ............................................................................................................... 4 1.4 Applicable Documents ...................................................................................................................................... 4 1.5 Subcontractor Identification .............................................................................................................................. 4 1.6 Laboratory Conditions..................................................................................................................................... 4 2.0 TEST ITEM SET-UP AND OPERATION............................................................................................................ 5 2.1 Power Input...................................................................................................................................................... 5 2.2 Grounding......................................................................................................................................................... 5 2.3 Peripheral Equipment........................................................................................................................................ 5 2.4 Interconnect Cables........................................................................................................................................... 5 2.5 Operational Mode ............................................................................................................................................. 5 2.6 Test Item Modifications................................................................................................................................... 5 3.0 TEST EQUIPMENT............................................................................................................................................. 5 3.1 Test Equipment List .......................................................................................................................................... 5 3.2 Calibration Traceability ................................................................................................................................... 5 3.3 Measurement Uncertainty................................................................................................................................ 5 4.0 REQUIREMENTS, PROCEDURES AND RESULTS.......................................................................................... 6 4.1 Powerline Conducted Emissions ..................................................................................................................... 6 4.1.1 Requirements............................................................................................................................................ 6 4.2 Duty Cycle Factor Measurements .................................................................................................................. 6 4.2.1 Procedures ............................................................................................................................................... 6 4.2.2 Results ..................................................................................................................................................... 6 4.3 Radiated Measurements................................................................................................................................... 8 4.3.1 Requirements............................................................................................................................................ 8 4.3.2 Procedures ................................................................................................................................................ 8 4.3.3 Results ...................................................................................................................................................... 9 4.4 Occupied Bandwidth Measurements ............................................................................................................... 9 4.4.1 Requirement ............................................................................................................................................. 9 4.4.2 Procedures ................................................................................................................................................ 9 4.4.3 Results ........................................................................................................................................…

Text truncated - open the document above for the full version.

Figure 2 Test Set-up for Radiated Emissions – Horizontal Polarization
