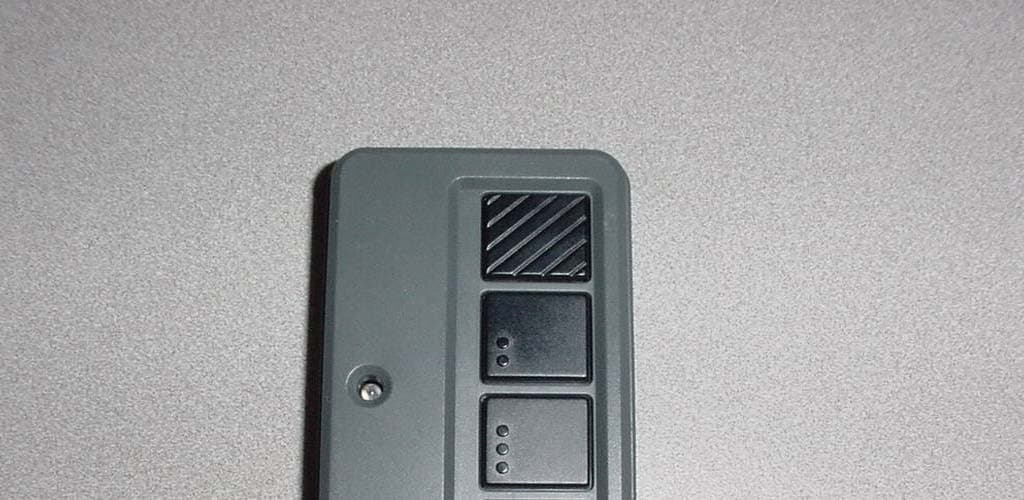

HBW7192Remote Control Transmitter

3-BUTTON REMOTE CONTROLS MODELS 953EV, 953EVC, 956EV AND 956EVC To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door: • ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with remote controls. • Activate gate or door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to door travel. • ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door. For use with Chamberlain 315 MHz or 390 MHz garage door openers manufactured after January 1, 1993. The garage door opener activates when the programmed button on the remote control is pressed. The remote control can activate up to three garage door openers. Make sure the garage door opener has a working light bulb because it is a programming indicator. ® LED LED Locate the Program button on the remote control. Locate the Learn button on the garage door opener. NOTE: Your garage door opener may look different. OROR Learn LED Learn LED Learn LED Green or Red/Orange Purple Yellow Program Button Program Button 2 3 Press and release the remote control button you want to use... 4 To exit programming mode, press any remote control button except the button that was just programmed. Install the visor clip. 6 The garage door opener will activate. To test, press the programmed button on the remote control... 1 Press and release the Learn button on the garage door opener. Within 30 seconds... To enter programming mode, use the visor clip to press the Program button until the LED on the front of the remote control turns on. The Learn LED will light. Check to see if the garage door opener light bulb blinks. If not, wait for the remote control LED to light solid then slowly press and release the remote control button again. Repeat until the light bulb blinks. DO NOT press the button after the light bulb blinks. 5 MODELS 953EV AND 953EVCMODELS 956EV AND 956EVC GARAGE ACCESS SYSTEM REMOTE GARAGE ACCESS SYSTEM KEYCHAIN REMOTE PREPARE PROGRAM THE REMOTE CONTROL (953EV & 953EVC) 953EV & 953EVC 956EV & 956EVC 4 To exit programming mode, press any remote control button except the button that was just programmed. The garage door opener will activate. To test, press the programmed button on the remote control... Using a safety pin or paper clip, press the Program button until the LED on the front of the remote control turns on. 1 2 Press and release the Learn button on the garage door opener. Within 30 seconds... The Learn LED will light. 3 Press and release the remote control button you want to use... Check to see if the garage door opener light bulb blinks. If not, wait for the remote control LED to light solid then slowly press and release the remote control button again. Repeat until the light bulb blinks. DO NOT press the button after the light bulb blinks. 5 NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS. Tested to Comply with FCC Standards for Home or office use. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. BATTERY The LED on your remote will stop flashing when the battery is low and needs to be replaced. To replace battery, open the case as shown. Insert battery positive side up (+). Replace the battery with only 3V2032 coin cell batteries. Dispose of old battery properly. To prevent possible SERIOUS INJURY or DEATH: • NEVER allow small children near batteries. • If battery is swallowed, immediately notify doctor. To reduce risk of fire, explosion or chemical burn: • Replace ONLY with 3V2032 coin batteries. • DO NOT recharge, disassemble, heat above 212° F (100° C) or incinerate. 1-800-528-9131 114A3924 © 2011, The Chamberlain Group, Inc. All Rights Reserved REPLACEMENT PARTS Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 10A20 Visor Clip (Models 953EV & 953EVC ONLY) . . . . 20B137 1 2 3 WARRANTY www.chamberlain-diy.com ONE YEAR LIMITED WARRANTY The Chamberlain Group, Inc. warrants to the first retail purchaser of this product that is free from defect in materials and/or workmanship for a period of 1 year from the date of purchase. Pry open the case with a screwdriver blade. 956EV & 956EVC Pry open the case first in the middle (1), then at each side (2 and 3) with the visor clip. 953EV & 953EVC PROGRAM THE REMOTE CONTROL (956EV & 956EVC)

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.530.6140 Email: [email protected] December 21, 2010 Federal Communications Commission EQUIPMENT APPROVAL SERVICES PO Box 358315 Pittsburgh, PA 15251-5315 Re: Request for Certification Enclosed is an application and exhibits for Certification of a Remote Control Transmitter Model 953EV. Circuit board assembly 1D7075 -1 is used in Model 953EV. The 1D7075 circuit board assembly in the test report is identical to circuit assembly 1D7075-1 except for the number of pushbuttons. I have included a typical instruction sheet indicating the FCC statement and important information. The FCC ID of this model, upon certification, will be HBW7192. We would appreciate your prompt attention to the submittal. Sincerely, THE CHAMBERLAIN GROUP, INC. Barbara Kelkhoff Regulatory Project Manager II LIST OF EXHIBITS REMOTE CONTROL TRANSMITTER Model 1D7075-1 (953EV) 1. Expository Statement 2. Theory of Operation 3. Schematic 4. Photographs 5. FCC Label Drawing 6. Operating Instructions 7. Test Report EXPOSITORY STATEMENT REMOTE CONTROL TRANSMITTER Model 953EV (1D7075-1) 1. The instructions include statements required to assure compliance with the Commission's Rules; Part 15. 2. Labeling is in accordance with the Commission's labeling requirements, Parts 2 and 15, Section 15.19. 3. This transmitter is intended for use with the certified receivers of garage door and gate operator systems manufactured by Chamberlain  . 4. The transmitter is equipped with an automatically releasing push-button switch. Transmission is terminated upon release of the push-button. 5. The Model 953EV transmitter is factory set to 315± 0.1% MHz. It is not intended to be readjusted in the field, and specific instructions prohibiting tampering are provided to the user. 6. Test data for Model 953EV is part of this submission. No emissions were detected in the forbidden bands below 1.0 GHz. Certified by: Barbara P. Kelkhoff Manager, Regulatory Affairs

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.530.6140 Email: [email protected] December 21, 2010 Federal Communications Commission EQUIPMENT APPROVAL SERVICES PO Box 358315 Pittsburgh, PA 15251-5315 Re: FCC ID: HBW7192 Request for Short Term Confidentiality In accordance with 47 C.F.R. Section 0.459, we, The Chamberlain Group, Inc., hereby request Short Term Confidentiality for external photos, test setup photos, internal photos and user’s manual. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. This product will not be released to production until the first quarter of 2011, so we make this request for Short Term Confidentiality to last for 45 days from date of grant. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Sincerely, THE CHAMBERLAIN GROUP, INC. Barbara Kelkhoff Manager, Regulatory Affairs

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.516.6863 Email: [email protected] December 21, 2010 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID:HBW7192 Request for Confidentiality In accordance with 47 C.F.R. Section 0.457 and 0.459, we, Chamberlain Group, Inc., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. I would appreciate your prompt attention to the submittal. If there are any questions, please call me at 630-993-6306 or send a fax to 630-516- 6863. Sincerely, Barbara Kelkhoff Regulatory Project Manager II Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

ASSEMBLED IN MEXICO MODEL FCC ID: IC: 2666A- DATE SEARS ROEBUCK & CO., USA SEARS CANADA INC., TORONTO 132C2708B Shown at 100% 1" x 1" (w x h) 132LA2708-00-B ECN:01780 16-November-2009

Engineering Test Report No. 1003627-01 Measurement of RF Emissions from a 1D7075 Garage Door Opener Transmitter For The Chamberlain Group, Inc. Elmhurst, IL 60126 P.O. Number 869374 Date Tested November 19 through December 8, 2010 Test Personnel Richard E. King, Mark Longinotti Test Specification FCC "Code of Federal Regulations” Title 47 Part15, Subpart C Industry Canada RSS-GEN Industry Canada RSS-210 Test Report By: Richard E. King EMC Engineer Approved By: Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 1003627-01 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 48 1. Introduction ................................................................................................................................................... 5 1.1. Scope of Tests ..................................................................................................................................... 5 1.2. Purpose ............................................................................................................................................... 5 1.3. Deviations, Additions and Exclusions .................................................................................................. 5 1.4. EMC Laboratory Identification ............................................................................................................. 5 1.5. Laboratory Conditions.......................................................................................................................... 5 2. Applicable Documents .................................................................................................................................. 5 3. EUT Setup and Operation ............................................................................................................................ 5 3.1. General Description ............................................................................................................................. 5 3.1.1. Power Input ................................................................................................................................. 6 3.1.2. Peripheral Equipment ................................................................................................................. 6 3.1.3. Signal Input/Output Leads .......................................................................................................... 6 3.1.4. Grounding ................................................................................................................................... 6 3.2. Operational Mode ................................................................................................................................ 6 3.3. EUT Modifications ................................................................................................................................ 6 4. Test Facility and Test Instrumentation ......................................................................................................... 6 4.1. Shielded Enclosure .............................................................................................................................. 6 4.2. Test Instrumentation ............................................................................................................................ 6 4.3. Calibration Traceability ........................................................................................................................ 6 4.4. Measurement Uncertainty ................................................................................................................... 6 5. Test Procedures ........................................................................................................................................... 7 5.1. Powerline Conducted Emissions ......................................................................................................... 7 5.1.1. Requirements .............................................................................................................................. 7 5.2. Periodic Operation Measurements ...................................................................................................... 7 5.2.1. Requirements .............................................................................................................................. 7 5.2.2. Procedures .................................................................................................................................. 7 5.2.3. Results ........................................................................................................................................ 7 5.3. Duty Cycle Factor Measurements ....................................................................................................... 7 5.3.1. Procedures .................................................................................................................................. 7 5.3.2. Results ........................................................................................................................................ 7 5.4. Radiated Measurements ..................................................................................................................... 8 5.4.1. Requirements .............................................................................................................................. 8 5.4.2. Procedures .................................................................................................................................. 9 5.4.3. Results ...........................................................................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1003627-01 Page 13 of 48 Figure 2 Test Setup for Radiated Emissions, 30MHz to 1GHz – Horizontal Polarization Test Setup for Radiated Emissions, 30MHz to 1GHz – Vertical Polarization Engineering Test Report No. 1003627-01 Page 14 of 48 Figure 3 Test Setup for Radiated Emissions, Above 1GHz – Horizontal Polarization Test Setup for Radiated Emissions, Above 1GHz – Vertical Polarization
