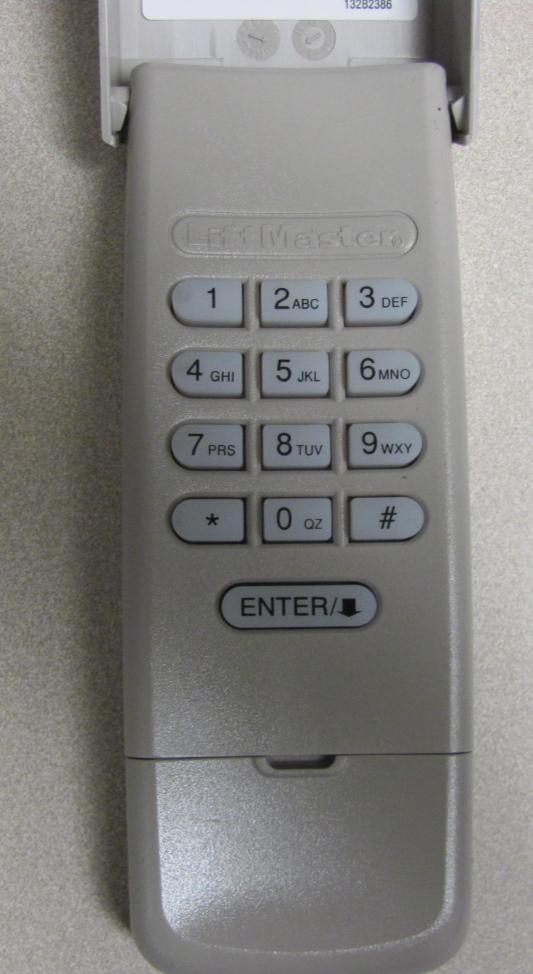

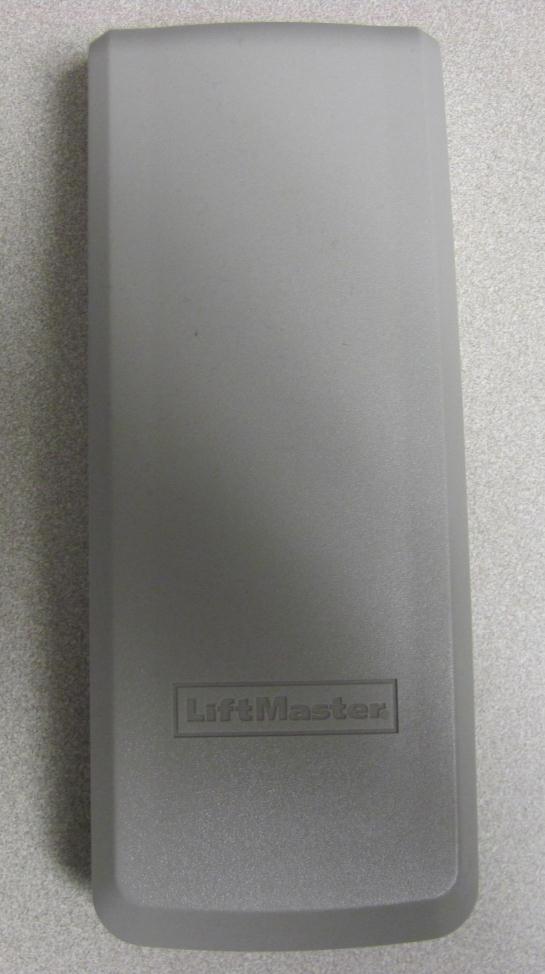

HBW7382Keyless Entry Transmitter

CHANGE AN EXISTING PIN 1 ? ? ? ? Press the programmed PINthat you want to change. ...the light bulb blinks twice. 2 Press and hold the # button until... 3 + ? ? ? ? new PIN Enter the new 4-digit PIN of your choice,then press the ENTER button. 4 To test, press the new PIN, then the ENTER button. The garage door opener will activate. The light bulb will blink once. 2 Enter a 4-digit personalidentification number (PIN)of your choice: 3 4 1 Locate the Learn button on the garagedoor opener. ? ? ? ? Press and hold the ENTER button until... ...the light bulb blinks. Press and release the Learn button.The LED will light.Within 30 seconds... PROGRAM INITIAL PIN - using the Learn button PROGRAM INITIAL PIN - using a multi-function door control* Press the LEARN button again, the LED will flash once. Press the LEARN button on the door control to enter Programming Mode. The command LED will flash once. The command LED will flash once again. Enter a 4-digit personalidentification number (PIN)of your choice: ? ? ? ? 4 ..the light bulb blinks. Press and hold the ENTER button until... For use with MyQ™ Garage Door Openers. The garage door opener activates when the 4-digit Personal Identification Number (PIN) and ENTER button are pressed on the Keyless Entry.Install the battery and program the Keyless Entry prior to installation. Make sure the garage door opener has a working light bulb because it is a programming indicator. To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:• Install Keyless Entry Control within sight of the garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and away from ALL moving parts of door. • ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote controls.• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door. ® WIRELESS KEYLESS ENTRY • MODEL 940ESTD *Optional accessoryTo test, press the PIN, then press the ENTER button. The garage door opener will activate. To program the Keyless Entry to more than one garage door opener, repeat the steps above using a new PIN for each additional garage door opener. ...the light bulb blinks 3 times. 1 Press any programmed PIN, then press and hold the * button until... + ? ? ? ? PIN 2 + ? ? ? ? Temporary PIN Enter the temporary 4-digit PIN of your choice, then press the ENTER button. The light bulb will blink 4 times. Then press the button. 3 NUMBER OF HOURS + NUMBER OF OPENINGS Press the number of hours the temporary PIN will work (up to 255). 3 OR Then press the # button. + Press the number of openings the temporary PIN will work (up to 255). 1 blink 1 blink To test, press the temporary PIN, then press the ENTER button. The garage door opener will activate. If the temporaryPIN was set for a number of openings, the test will use up one opening. To clear the temporary PIN, repeat steps 1-3 above, setting the number of hours or openings to 0 in step 3. * OPERATIONThe garage door opener activates when the PIN and ENTER button are pressed. The keypad will blink for 15 seconds, during that time the ENTER button can be used to stop, start or reverse the door.If the wrong number is accidentally pressed, press the correct PIN then the ENTER button. The Keyless Entry will transmit only the last four digits that were pressed before the ENTER button.ONE BUTTON CLOSE: The Keyless Entry has a feature that allows the door to be closed using the ENTER button instead of a PIN.NOTE: This feature is not available on external receivers. To deactivate the one button close feature: Press and hold the 1 and 9 buttons for 10 seconds. The keypad will blink four times when the one button close feature is deactivated. To activate the one button close feature: Press and hold the 1 and 9 buttons for 10 seconds.The keypad will blink twice when the one button close feature is activated. PROGRAM A TEMPORARY PIN A temporary 4-digit PIN can be programmed to allow access to visitors. Each programmed PIN can program one temporary PIN. The temporary PIN can be set for a number of hours or a number of door openings. The temporary PIN cannot be the same as any previously programmed PIN. 1122 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10A25Keypad Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41D621-1Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41D541REPLACEMENT PARTS 1 INSTALLATION Select a location to mount the Keyless Entry at a minimum height of 5 feet (1.5 m) out of the reach of children.Remove battery cover and battery. Mark the top mounting hole and drill 1/8 inch (3.2 mm) pilot hole. Install the top screw, allowing 1/8 inch (3.2 mm) to protrude above the surface. Position the Keyless Entry over the top screw.Mark the bottom hole and drill 1/8 inch (3.2 mm) pilot hole. Install the bottom screw. Do not overtighten to avoid cracking the plastic housing.Reinstall battery and replace cover. 23456 Replace the battery when the keypad becomes dim or does not light after a button is pressed.Dispose of old battery properly. To prevent possible SERIOUS INJURY or DEATH:• NEVER allow small children near batteries.• If battery is swallowed, immediately notify doctor. NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation…
