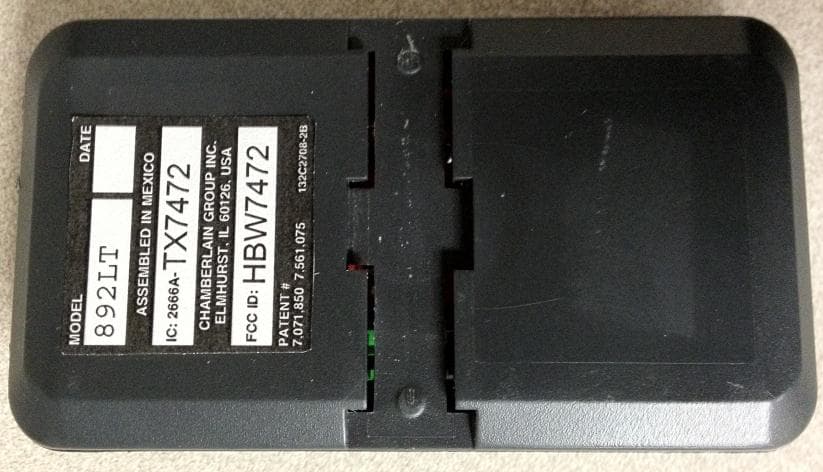

HBW7472Remote Control Trasmitter

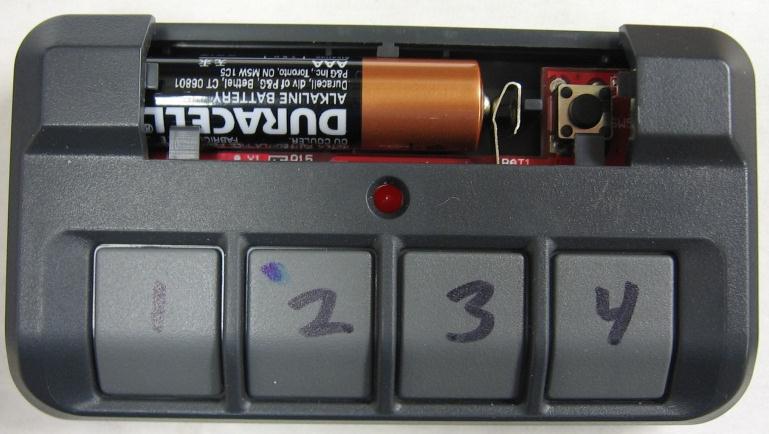

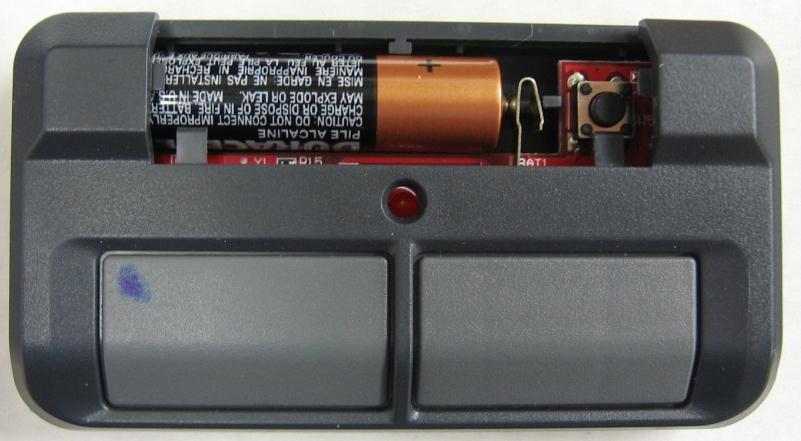

2-BUTTON AND 4-BUTTON REMOTE CONTROLS MODELS 892LT AND 894LT To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with remote controls. • Activate gate or door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to door travel. • ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door. PROGRAMMING Learn LED Learn Button OR Learn LED Learn LED Learn Button Learn Button OR LED Program Button A OPTION A The instructions are written for garage door openers, however the steps still apply for compatible products. Make sure the garage door opener has a working light bulb because it is a programming indicator. The illustrations are generic, so your garage door opener may look different.1 Locate the Learn button on the garage door opener (Figure 1). 2 Remove the battery cover from the new remote control and locate the Program button (Figure 2). 3 To enter programming mode, press the Program button until the LED on the remote control turns on. 4 Press and release the Learn button on the garage door opener. The Learn LED will light. Within 30 seconds... 5 Press and release the remote control button that you want to use...Check to see if the garage door opener light bulb blinks.If not, wait for the remote control LED to light solid then slowly press and release the remote control button again. Repeat until the light bulb blinks. DO NOT press the button after the light bulb blinks. 6 To exit programming mode, press and release the Program button on the remote control. The LED on the remote control will turn off. 7 To test, press and release the programmed button on the remote control. The garage door opener will activate. 1 Make sure the existing dip-switch remote control and the new remote control are in close proximity to each other. 2 Remove the battery cover from the new remote control and locate the Program button (Figure 2). 3 To enter programming mode on the new remote control, press the program button until the LED on the remote control turns on. 4 Press and hold the button that currently activates your product on the existing remote control that you want to copy to the new remote control. The LED on the new remote control will flash. 5 Press and release the button on the new remote control that you want to program. The LED on the new remote control will flash rapidly, then return to a flash slowly. DO NOT press the button after the LED flashes. 6 To exit programming mode, press and release the Program button on the remote control. The LED on the remote control will turn off. 7 To test, press and release the programmed button on the remote control. The gate operator or commercial door operator will activate. MODEL 892LT MODEL 894LT FIGURE 1 FIGURE 2 There are two different programming options depending on your application. If you are programming the remote control to an existing DIP switch remote control, refer to OPTION B. For all other programming, refer to OPTION A.The 892LT/894LT remote control is compatible with Security ✚ 2.0™ garage door openers, gate operators, commercial door operators and commercial receivers. The remote control can also be programmed to Security ✚ 2.0™ products with encrypted DIP switches. The remote control can also be used as a replacement for LiftMaster ® remote control models 972LM/974LM and 372LM/374LM. B OPTION B Additional buttons on the remote control can be programmed to operate up to 3 devices such as additional garage door openers, light controls, gate operators or access control systems.Press and hold the button down until the door or gate starts to move. The remote control will operate from up to 3 car lengths away on typical installations. Installations and conditions vary, contact an installing dealer for more information. HOW TO USE THE REMOTE CONTROL NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.Tested to Comply with FCC Standards for Home or office use. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. BATTERYThe LED(s) on your remote control will stop flashing when the battery is low and needs to be replaced. To replace battery, open the cover as shown. Insert battery. Replace the battery with AAA batteries. Dispose of old battery properly. To prevent possible SERIOUS INJURY or DEATH:• NEVER allow small children near batteries.• If battery is swallowed, immediately notify doctor.To reduce risk of fire, explosion or chemical burn:• DO NOT recharge, disassemble, heat above 212° F (100° C) or incinerate. REPLACEMENT PARTSBattery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41A7605Visor Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29B137WARRANTY ONE YEAR LIMITED WARRANTYThe Chamberlain Group, Inc. warrants to the first consumer purchaser of this product that is free from defect in materials and/or workmanship for a period of 1 year from the date of purchase. TÉLÉCOMMANDES À 2 BOUTONS ET À 4 BOUTONS MODÈLES 892LT ET 894LT Afin d’éliminer les risques de BLESSURES GRAVES ou DE MORT découlant de l’actionnement d’un portail ou d’une porte de garage :• TOUJOURS garder les télécommandes hors de la portée des enfants. Ne JAMAIS laisser un enfant manipuler ou jouer avec une télécommande.• Actionner le portail ou la porte UNIQUEMENT lorsqu’il/elle est clairement visible, correctement ajusté(e) et que le mécanisme est libre de TOUTE entrave.• TOUJOURS garder le portail ou la porte de garage en vue jusqu’à sa fermetu…
