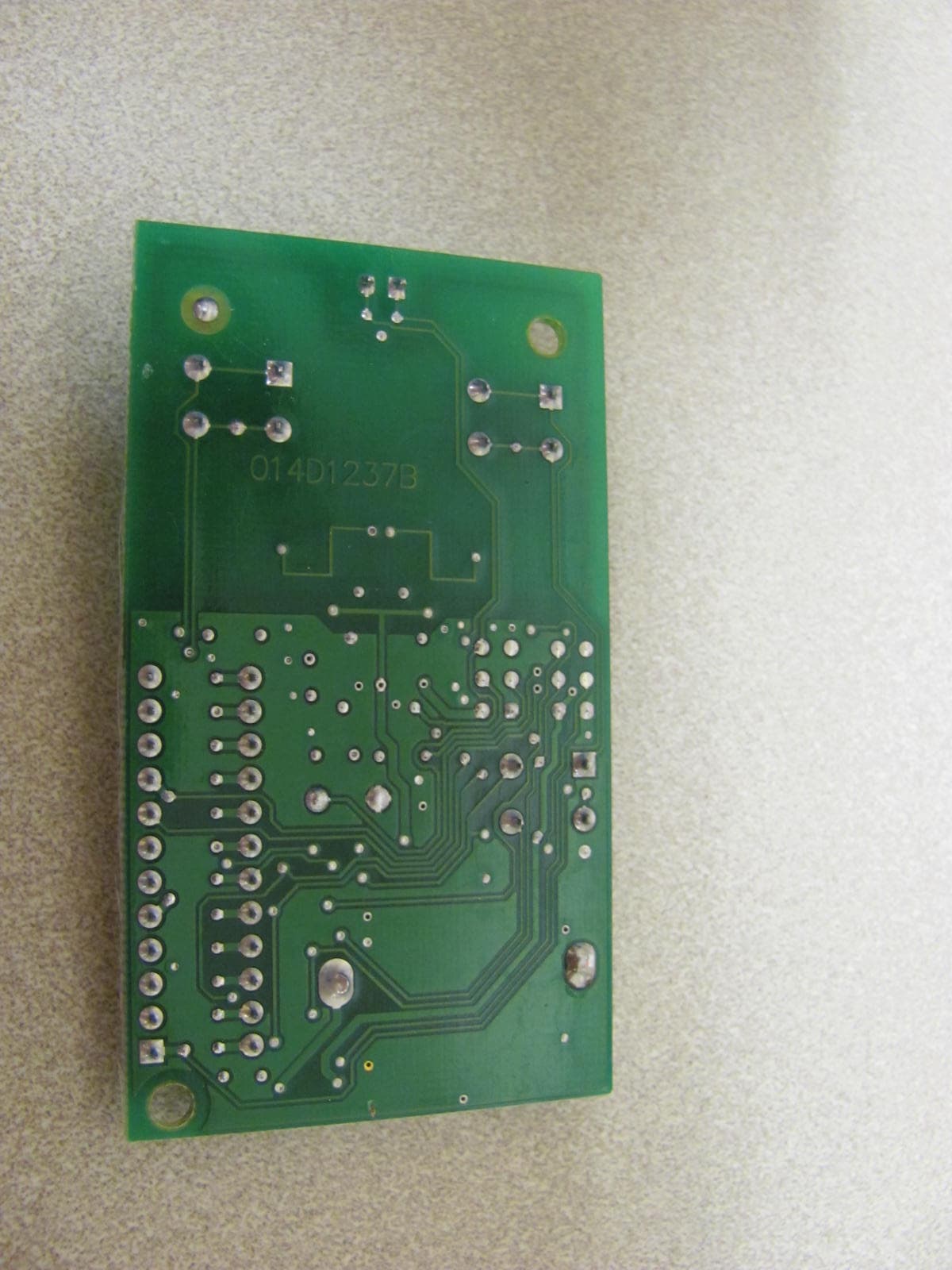

HBW7922FCC Part 15 Remote Control Transmitter

CLICKER MODEL KLIK1U Universal Garage Door Opener Remote Control To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door: • ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters. • Activate gate or door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to door travel. • ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door. © 2007, Clicker Corporation 114A3485All Rights Reserved Read instructions thoroughly BEFOREbeginning. Start with garage door closed. Identify garage door opener type - Smart/Learn button or DIP Switch. Smart/Learn button or DIP Switches are located on motor unit or external receiver. Refer to owner’s manual if necessary. Proceed with instructions according to your type of garage door opener. NOTE: Products other than Chamberlain: If programming fails reverse dip switches (OFF to ON and ON to OFF). Chamberlain products: For Chamberlain remotes DO NOT use the “0” position, use “+” or “-”. If you already have a 3-button remote, DIP switch #1 must be set to “-” if the large button is to open the door. It may be necessary to reprogram original remote controls. 2 12 11 10 9 8 5 3 76 4 1 2 Clicker Remote Existing Remote 3 4 Press program button until LED lights. 5 Match DIP switches. Turn extra switches OFF. OR DIP SWITCH SMART/LEARN BUTTON 23 1 KG KG 4 Motor Unit Select a button to program. Press button times ensuring LED stops flashing after each press. Code is accepted when door activates. REMOTE CONTROL BATTERY NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS. Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Dispose of batteries properly. Replace battery with 3V2032 coin cell battery only. To prevent possible SERIOUS INJURY or DEATH: • NEVER allow small children near batteries. • If battery is swallowed, immediately notify doctor. CHART A # of BrandDescriptionFrequency times to press button 11Chamberlain9 Position390 MHz 12Chamberlain9 Position Canada315 MHz 13Genie12 Position390 MHz 14Linear Multicode10 Position300 MHz 15Chamberlain8 Position390 MHz 16Stanley/Multicode10 Position310 MHz 17Genie9 Position390 MHz 18Linear Moore-O-Matic8 Position310 MHz 19Chamberlain7 Position390 MHz CHART B # of BrandType/Color of Frequency times to Smart/Learn press button 1LinearMega-Code318 MHz 2ChamberlainOrange390 MHz 3ChamberlainPurple315 MHz 4ChamberlainGreen390 MHz 5Genie Overhead DoorIntellicode315 MHz 6Genie Overhead DoorIntellicode390 MHz 7StanleySecure Code310 MHz 9Wayne DaltonRolling Code372.5 MHz www.clickerproducts.com • 1-800-442-1255 Chamberlain, LiftMaster and Moore-O-Matic are Trademarks of Chamberlain Group. Genie is a Trademark of Overhead Door Corporation. Linear is a Trademark of Linear Corporation. Stanley is a Trademark of The Stanley Works. Button 1 Button 2 Press program button. 6 7 Programming complete. Press selected button to test. To reduce risk of fire, explosion or chemical burn: • Replace ONLY with 3V2032 coin batteries. • Do NOT recharge, disassemble, heat above 100°C (212°F) or incinerate. The lithium battery should produce power for up to 5 years. 12 11 10 9 8 5 3 76 4 1 2 Press and release the smart/learn button. 5 Select a button to program. Press button times ensuring LED stops flashing after each press. Code is accepted when one of the following occurs: Button 1 Button 2 OR OR 1 See Chart A to determine # of times to press button and write in blank on step 5. DIP SWITCH SMART/LEARN BUTTON Press program button. 6 7 Programming complete. Press selected button to test. 3 Press program button until LED lights. 2 1 See Chart B to determine # of times to press button and write in blank on step 5.

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.516.6863 Email: [email protected] July 25, 2012 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 c.c. UL LLC. 333 Pfingsten Road Northbrook, IL 60062 To whom it may concern: I, the undersigned, hereby authorize Bart Mucha, of UL LLC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Bart Mucha of UL on our behalf, shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for Examining documentation and access to all areas, records (including internal audit reports) And personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division Into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter That contains any reference thereto and returns any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with Specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely, Barbara Kelkhoff Regulatory Project Manager II Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.516.6863 Email: [email protected] June 25, 2012 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID:HBW7922 Request for Confidentiality In accordance with 47 C.F.R. Section 0.457 and 0.459, we, Chamberlain Group, Inc., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. I would appreciate your prompt attention to the submittal. If there are any questions, please call me at 630-993-6306 or send a fax to 630-516- 6863. Sincerely, Barbara Kelkhoff Regulatory Project Manager II Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

UL LLC An organization dedicated 333 Pfingsten Rd. to public safety and committed to Northbrook, IL 60062 quality service for over 100 years Tel: (847) 272-8800 UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 www.ul.com/emc (847) 272-8800 Job Number: 1001531435 Project Number: 12CA39742 File Number: MC15343 Date: July 24, 2012 Model: KLIK1 Electromagnetic Compatibility Test Report For Chamberlain Group Inc. Copyright  2012 UL LLC UL LLC authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Job #: 1001531435 Project #: 12CA39742 File #: MC15343 Page 2 of 229 Model Number: KLIK1 Client Name: Chamberlain Group Inc. UL LLC UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Test Report Details Tests Performed By: UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 Tests Performed For: Chamberlain Group Inc. 845 Larch Av Elmhurst, IL 60126 Applicant Contact: Hank Sieradzki Phone: (630) 993-6564 E-mail: [email protected] Test Report Date: May 25, 2012 Product Type: Universal Periodic Transmitter Product standards FCC Part 15, Subpart C, 15.231 & RSS-210 Model Number: KLIK1 EUT Category: Wireless Device Testing Start Date: July 10, 2012 Date Testing Complete: July 19, 2012 Overall Results: Compliant UL LLC reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. UL LLC shall have no liability for any deductions, inferences or generalizations drawn by the client or others from UL LLC issued reports. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Job #: 1001531435 Project #: 12CA39742 File #: MC15343 Page 3 of 229 Model Number: KLIK1 Client Name: Chamberlain Group Inc. UL LLC UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Report Directory 1.0 G E N E R A L - Product Description ..................................................................................................................6 1.1 Equipment Description ...................................................................................................................................6 1.2 Device Configuration During Test ..................................................................................................................6 1.2.1 Equipment Used During Test: ....................................................................................................................6 1.2.2 Input/Output Ports: .....................................................................................................................................6 1.2.3 Power Interface: .........................................................................................................................................6 1.3 EUT Configurations ........................................................................................................................................7 1.4 EUT Operation Modes ....................................................................................................................................7 1.5 Rational for EUT Configuration ......................................................................................................................7 2.0 Summary ............................................................................................................................................................8 2.1 Dev iations from standard test methods ..........................................................................................................8 2.2 Device Modifications Necessary for Compliance ...........................................................................................8 2.3 Reference Standards .....................................................................................................................................9 2.4 Results Summary ...........................................................................................................................................9 3.0 Calibration of Equipment Used for Measurement ........................................................................................... 10 4.0 EMISSIONS TEST RESULTS ......................................................................................................................... 10 4.1 Configuration 14# Test Data ....................................................................................................................... 11 4.1.1 Test Conditions and Results – Occupied Bandwidth .............................................................................. 11 4.1.2 T est Conditions and Results – Cease Operation .................................................................................... 13 4.1.3 Test Conditions and Results – Pulse Train ............................................................................................. 15 4.1.4 Test Conditions and Results – RADIATED EMISSIONS Fundamental and Spurious ........................... 19 4.2 Configuration 8# Test Data ......................................................................................................................... 23 4.2.1 Test Conditions and Results – Occupied Bandwidth .............................................................................. 23 4…

Text truncated - open the document above for the full version.

Job #: 1001531435 Project #: 12CA39724 File #: MC15343 Page 226 of 229 Model Number: KLIK1 Client Name: Chamberlain Group Inc. UL LLC UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Appendix B Test Setup Photos X-Axis Configuration Y-Axis Configuration Z-Axis Configuration Job #: 1001531435 Project #: 12CA39724 File #: MC15343 Page 227 of 229 Model Number: KLIK1 Client Name: Chamberlain Group Inc. UL LLC UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Radiated Emissions Setup Near Field Measurements
