HBW7938FCC Part 15 Remote Control Transmitter

CLICKER ® MODEL KLIK2C Universal Garage Door Opener Wireless Keyless Entry Read instructions thoroughly BEFOREbeginning. Start with garage door closed. Determine garage door opener type - Smart/Learn button or DIP Switch. The Smart/Learn button or DIP Switches are located on motor unit or external receiver. Refer to owner’s manual if necessary. To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door: • ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote controls. • Activate gate or door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to door travel. • ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door. STOP Determine Garage Door Opener Types: © 2008, Clicker Corporation 114A3487CAll Rights Reserved www.clickerproducts.com • 1-800-442-1255 Chamberlain, LiftMaster and Moore-O-Matic are Trademarks of Chamberlain Group. Genie is a Trademark of Overhead Door Corporation. Overhead Door is a Trademark of Overhead Door Corporation. Linear is a Trademark of Linear Corporation. Master Mechanic is a Trademark of TruServ. Sears is a Trademark of Sears & Roebuck. Stanley is a Trademark of The Stanley Works. Wayne Dalton is a trademark of Wayne Dalton Corporation. Do It is a trademark of Do It Best Corporation. 1. Remove cover. 2. Remove battery cover to expose mounting holes. 3. Remove battery and mount keypad using screws provided. 4. Reassemble. MOUNT THE KEYPAD NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS. Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. BATTERY Replace the 9-Volt battery when keypad light becomes dim or does not light up. Slide cover up, remove battery cover, and replace battery. Re-programming may be necessary. To prevent possible SERIOUS INJURY or DEATH: • NEVER allow small children near batteries. • If battery is swallowed, immediately notify doctor. Install out of the reach of children at a minimum height of 5 feet (1.5 m). Secure keypad to a smooth surface. Mount the keypad out of the path of the moving garage door, but within sight of it (4" clearance is needed for the cover.) CHANGING YOUR 4-DIGIT PIN Enter existing PIN, press *, enter new PIN and press *. To test and use, enter your new PIN and press the 0 key. TYPE 1 Programming: Proceed with instructions according to your garage door opener type. NOTE: Your motor unit and/or remote control may look different. Chamberlain, Sears Craftsman, LiftMaster, Master Mechanic and Do It garage door openers or receivers with: 3 position DIP switches. TYPE 1TYPE 2TYPE 3 Opener Chamberlain, Sears Craftsman, LiftMaster, Master Mechanic, Do It, Genie Intellicode, Overhead Door, Stanley, Wayne Dalton or Linear garage door openers with: Smart/Learn button. TYPE 4 1. Select and write a 4-digit PIN: __ __ __ __ 2. Determine your opener ID using the list below. IDDIP Switch Type • 11 = 9 DIP switch garage door openers (U.S.) • 12 = 9 DIP switch garage door openers (Canada) • 15 = 8 DIP switch garage door openers • 19 = 7 DIP switch garage door openers (Write opener ID here: __ __) 3. The first DIP switch must be set to the “-” position on your remote and opener. Record your DIP switch sequence for remaining DIP switches. If the DIP switch is in the “+” position place a 1, “0” position place a 2, “-” position place a 3 in the corresponding box in the chart below: NOTE:Leave any unused switch locations blank. Genie, Linear and Moore-O-Matic garage door openers or receivers with: 2 position DIP switches. + 0 - 123456 789 DIP Switch Sequence 3 Write your DIP switch sequence below: _________________________ 4. Press * and # keys together until keypad stops flashing. 5. Enter PIN from step 1, press #. 6. Enter ID from step 2, press #. 7. Enter DIP switch sequence from step 3 and press # key. 8. To test and use, wait until lights turn off, enter your PIN and press the 0 key. If opener does not function, repeat programming. TYPE 2 1. Select and write a 4-digit PIN: __ __ __ __ 2. Determine your opener ID using the list below. IDDIP Switch Type • 13 = 12 DIP switch Genie garage door openers • 14 = 10 DIP switch Linear garage door openers • 16 = 10 DIP switch Stanley garage door openers • 17 = 9 DIP switch Genie garage door openers • 18 = 8 DIP switch Linear, Moore-O-Matic garage door openers (Write opener ID here: __ __) 3. Record your DIP switch sequence. If DIP switch is in the “on” or “up” position place a 1, “off” or “down” position place a 2 in the corresponding box in the chart below: NOTE:Leave any unused switch locations blank. Write your DIP switch sequence below: _________________________ 4. Press * and # keys together until keypad stops flashing. 5. Enter PIN from step 1, press # 6. Enter ID from step 2, press #. 7. Enter DIP switch sequence from step 3 and press # key. 8. To test and use, wait until lights turn off, enter your PIN and press the 0 key. If opener does not function, flip DIP switches, so if a switch is “on” or “up” flip it “off” or “down” in step 3. TYPE 3 1. Select and write a 4-digit PIN: __ __ __ __ 2. Your opener ID is 11. 3. Record your DIP switch sequence. Set your first DIP switch to “-”, your first DIP switch must be set to the “-” position on your remote and opener. If the DIP switch is in the “+” position place a 1, “0” position place a 2, “-” position place a 3 in the corresponding box in the chart below: NOTE:Leave any unused switch locations blank. Write your DIP switch sequence below: _____________…

Text truncated - open the document above for the full version.

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.516.6863 Email: [email protected] October 8, 2012 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 c.c. UL LLC. 333 Pfingsten Road Northbrook, IL 60062 To whom it may concern: I, the undersigned, hereby authorize Bart Mucha, of UL LLC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Bart Mucha of UL on our behalf, shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for Examining documentation and access to all areas, records (including internal audit reports) And personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division Into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter That contains any reference thereto and returns any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with Specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely, Barbara Kelkhoff Regulatory Project Manager II Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.516.6863 Email: [email protected] October 4, 2012 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID:HBW7938 Request for Confidentiality In accordance with 47 C.F.R. Section 0.457 and 0.459, we, Chamberlain Group, Inc., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. I would appreciate your prompt attention to the submittal. If there are any questions, please call me at 630-993-6306 or send a fax to 630-516- 6863. Sincerely, Barbara Kelkhoff Regulatory Project Manager II Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

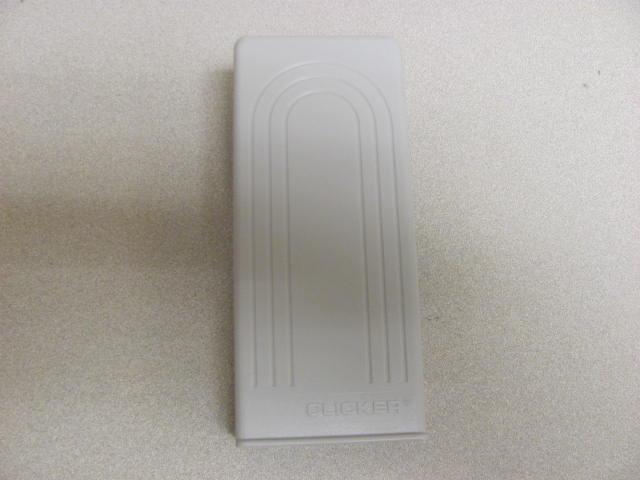

HBW7938 HBW7938 HBW7938

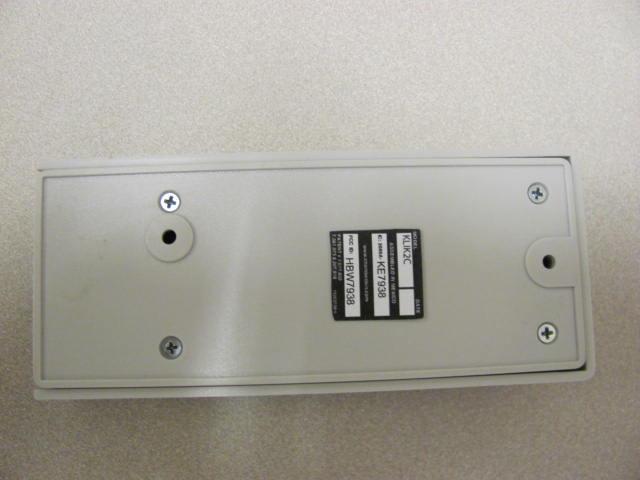

ASSEMBLED IN MEXICO MODEL FCC ID: IC: 2666A- DATE www.chamberlain.com 132C2708-5 PATENT # 7,071,850 7,561,075 8,207,818 Artwork: 132LA2708-50-A 1" x 1" x .063" (W x H x R) Shown at 100% ECN: 16043 23 August 2012

HBW7938

HBW7938 HBW7938

UL LLC An organization dedicated 333 Pfingsten Rd. to public safety and committed to Northbrook, IL 60062 quality service for over 100 years Tel: (847) 272-8800 UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 www.ul.com/emc (847) 272-8800 Job Number: 1001542838 Project Number: 12CA44791 File Number: MC15343 Date: October 10, 2012 Model: KLIK2C Electromagnetic Compatibility Test Report For Chamberlain Group Inc. Copyright  2012 UL LLC UL LLC authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 2 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Test Report Details Tests Performed By: UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 Tests Performed For: Chamberlain Group Inc. 845 Larch Av Elmhurst, IL 60126 Applicant Contact: Hank Sieradzki Phone: (630) 993-6564 E-mail: [email protected] Test Report Date: October 10, 2012 Product Type: Universal Periodic Transmitter Product standards FCC Part 15, Subpart C, 15.231 & RSS-210 Model Number: KLIK2C EUT Category: Wireless Device Testing Start Date: September 13, 2012 Date Testing Complete: October 10, 2012 Overall Results: Compliant UL LLC reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. UL LLC shall have no liability for any deductions, inferences or generalizations drawn by the client or others from UL LLC issued reports. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 3 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Report Directory 1.0 G E N E R A L - Product Description ..................................................................................................................6 1.1 Equipment Description ...................................................................................................................................6 1.2 Device Configuration During Test ..................................................................................................................6 1.2.1 Equipment Used During Test: ....................................................................................................................6 1.2.2 Input/Output Ports: .....................................................................................................................................6 1.2.3 Power Interface: .........................................................................................................................................6 1.3 EUT Configurations ........................................................................................................................................7 1.4 EUT Operation Modes ....................................................................................................................................7 1.5 Rational for EUT Configuration ......................................................................................................................7 2.0 Summary ............................................................................................................................................................8 2.1 Deviat ions from standard test methods ..........................................................................................................8 2.2 Device Modifications Necessary for Compliance ...........................................................................................8 2.3 Reference Standards .....................................................................................................................................9 2.4 Results Summary ...........................................................................................................................................9 3.0 Calibration of Equipment Used for Measurement ........................................................................................... 10 4.0 EMISSIONS TEST RESULTS ......................................................................................................................... 10 4.1 Configuration 14# Test Data ....................................................................................................................... 11 4.1.1 Test Conditions and Results – Occupied Bandwidth .............................................................................. 11 4.1.2 Test Con ditions and Results – Cease Operation .................................................................................... 13 4.1.3 Test Conditions and Results – Pulse Train ............................................................................................. 15 4.1.4 Test Conditions and Results – RADIATED EMISSIONS Fundamental and Spurious ........................... 20 4.2 Configuration 8# Test Data ......................................................................................................................... 24 4.2.1 Test Conditions and Results – Occupied Bandwidth ..............................................................................…

Text truncated - open the document above for the full version.

Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 100 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Pulse Duration: 0.51mS Short, 1.01mS Medium Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 101 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Pulse Duration: 1.5mS Long Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 102 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Number of message pulses: 7 Short, 4 Medium, 10 Long Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 103 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Period Sweep 96.8mS Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 104 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 4.5.8 Test Conditions and Results – RADIATED EMISSIONS Fundamental and Spurious Test Description Measurements were made in a 10-meter semi-anechoic chamber that complies to CISPR 16/ANSI C63.4:2003. Preliminary (peak) measurements were performed at an antenna to EUT separation distance of 3-meter as noted. The EUT was rotated 360° about its azimuth with the receive antenna located at various heights in both horizontal and vertical polarities. Final measurements (quasi-peak or average as noted) were then performed by rotating the EUT 360° and adjusting the receive antenna height from 1 to 4-meters. All frequencies were investigated in both horizontal and vertical antenna polarity, where applicable. Basic Standard 47 CFR Part 15 subpart C, and RSS-210 UL LPG 80-EM-S0029 Frequency range Measurement Point Fully configured sample scanned over the following frequency range 30MHz – 1GHz 3 meter distance 1GHz – 4GHz 3 meter distance Restricted Band Limits Frequency (MHz) Limit (dBμV/m) Quasi-Peak Peak 30 - 88 40.00 NA 88 - 216 43.52 NA 216 - 960 46.02 NA 960 - 1000 54 NA Above 1000 (FCC) NA 54 (at 3-meter) Fundamental Frequency Limits and Non-restricted band Harmonic Limits Frequency (MHz) Limit (dBμV/m) @ 3m distance All harmonics except those in restricted bands must be attenuated by 20dB or more Average - Fundamental Peak - Fundamental 315 75.62 95.62 Supplementary information: See section 4.5.7 for duty cycle information. Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 105 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Figure 35 Radiated Emissions Graph (Below 1GHz) Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 106 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Figure 36 Radiated Emissions Graph (Above 1GHz) Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 107 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Table 44 - Radiated Emissions Data Points Chamberlain KLIK2C Transmitter 315MHz, Config 3, Program Type 4 9VDC Battery Red=Horizontal Green=Vertical Test Frequency MHz Meter Reading dBuV Detector Antenna Factor dB Path Loss Gain dB Level dBuV/m Duty Cycle Factor dB Level with Duty Cycle dBuV/m Limit @ 3m dBuV/m Margin dB Azimuth [Degs] Height [cm] Polarity 315.013603 66.71 PK 14.2 2.1 83.01 -12.63 70.38 75.62 -5.24 354 102 Horz 315.013603 67.59 PK 14.2 2.1 83.89 -12.63 71.26 75.62 -4.36 264 155 Vert 630.026769 8.71 PK 20.6 3 32.31 -12.63 19.68 46 -26.32 89 135 Horz 630.026769 12.76 PK 20.6 3 36.36 -12.63 23.73 46 -22.27 79 104 Vert 945.040792 20.21 PK 23.6 3.8 47.61 -12.63 34.98 46 -11.02 6 273 Horz 945.040792 23.39 PK 23.6 3.8 50.79 -12.63 38.16 46 -7.84 98 111 Vert 1260.173 69.12 PK 25.1 -56.92 37.3 -12.63 24.67 54 -29.33 * 103 Horz 1574.383 68.5 PK 25.3 -55.3 38.5 -12.63 25.87 54 -28.13 * 125 Horz 1890.594 68.33 PK 27.4 -54.32 41.41 -12.63 28.78 54 -25.22 * 103 Horz 3151.434 63.63 PK 30.6 -51.71 42.52 -12.63 29.89 54 -24.11 * 103 Horz 1260.173 71.57 PK 25.1 -56.92 39.75 -12.63 27.12 54 -26.88 * 125 Vert 1574.383 69.2 PK 25.3 -55.3 39.2 -12.63 26.57 54 -27.43 * 100 Vert 1890.001 79.59 PK 27.4 -54.31 52.68 -12.63 40.05 54 -13.95 189 101 Vert 3151.434 66.08 PK 30.6 -51.71 44.97 -12.63 32.34 54 -21.66 * 100 Vert * Peak prescan data, not maximized Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 108 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 4.6 Configuration 5# Test Data 4.6.1 Test Conditions and Results – Occupied Bandwidth Test Description Measurements were made in the laboratory environment. A Dipole (or equivalent) antenna tuned to the transmit frequency was attached to the input of a spectrum analyzer. The device was operated and the spectrum analyzer resolution bandwidth set per the appropriate standard. Basic Standard 47 CFR Part 15.231(c) Occupied Bandwidth Limits 0.25% of Center Frequency (315MHz: 787.5kHz) Table 45 Occupied Bandwidth Configuration Settings Power Interface Mode # EUT Configurations Mode # EUT Operation Mode # 1 1 1 Supplementary information: None Table 46 Occupied Bandwidth Spectrum Analyzer Settings Resolution Bandwidt…

Text truncated - open the document above for the full version.

Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 261 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Appendix B Test Setup Photos Radiated Emissions Setup Job #: 1001542838 Project #: 12CA44791 File #: MC15343 Page 262 of 264 Model Number: KLIK2C Client Name: Chamberlain Group Inc. UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0Rev. No 1.0 EMC Report 2012-87-EM-F0042 Near Field Measurements
