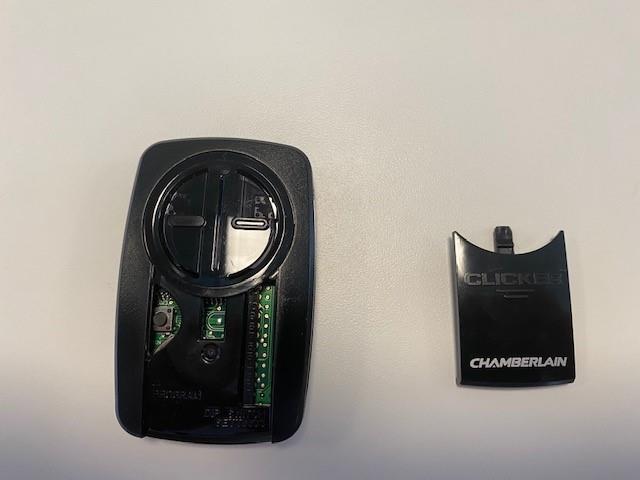

HBW9814KLIK-5U universal transmitter

U NIVERSAL REMOTE CONTROL The remote control can be programmed to activate up to two products, such as a garage door opener, gate operator, or commercial door operator. Each button on the remote control works independently of the other and must be programmed separately. The images throughout this manual are for reference only and your product may look different. To prevent possible SERIOUS INJURY or DEATH from a moving gate or door: • ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters. • Activate gate or door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to door travel. • ALWAYS keep gate or door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door. Read instructions thoroughly BEFORE beginning. If using the Universal Remote Control with residential door openers, the remote control must be used only with door openers manufactured after 1993 that utilize photoelectric sensors. The photoelectric sensors are always located on or near the bottom of the door track. STOP M odel KLIK5U-BK2 Model KLIK5U-SS Model KLIK5U-WP GETTING STARTED Determine if the product you are programming the remote control to has a Program/LEARN button or DIP SWITCHES. The Program/LEARN button or DIP SWITCHES are located either on the product or in an external receiver on or near the product. The following instructions are for a garage door opener with a Program/LEARN button. For DIP SWITCH programming instructions or additional help please visit www.chamberlain.com/klik3. OR Program/ LEARN Button WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov PROGRAMMING Remove the cover. Press and hold the program button until the LED turns on. Program Button Press and release the Program/LEARN button on your garage door opener. LED 1 2 Select a button to program. Press and release the button the specified number of times according to the chart on the following page. Make sure the LED stops flashing between each press of the button. The garage door opener will respond by clicking, blinking, or activating. 3 Cover PROGRAMMING (continued) Garage Door Opener Brand Type/Color of Program/ Learn button YearNumber of times to press button Linear ® Mega-Code’97-Current1 Chamberlain ® *Orange/Red’97-’032 Chamberlain ® *Purple’05-Current3 Chamberlain ® *Green’93-’964 Genie ® ** Overhead Door ® Intellicode’05-Current5 Genie ® Overhead Door ® Intellicode’95-Current6 Stanley ® Secure Code’987 Chamberlain ® *Yellow’11-Current8 Wayne Dalton ® Rolling Code’999 Press the program button on the remote control to save. Program Button 4 * NOTE: LiftMaster, Do-It, Master Mechanic, Raynor, True Value and Sears Craftsman, Xtreme Garage, Black, 2005-Current, 10 sommer, Black, 1998-Current 11 are compatible with Chamberlain technology. ** NOTE: Visit www.chamberlain.com/klik3 for Genie Intellicode II instructions. TEST Test the remote control by pressing the button. If the garage door opener does not activate, repeat the programming steps or visit www.chamberlain.com/klik3 for additional instructions. To prevent possible SERIOUS INJURY or DEATH: • NEVER allow small children near batteries. • If battery is swallowed, immediately notify doctor. To reduce risk of fire, explosion or chemical burn: • Replace ONLY with 3V CR2032 coin batteries. • DO NOT recharge, disassemble, heat above 212°F (100°C) or incinerate. Dispose of batteries properly. Replace ONLY with 3V CR2032 coin batteries. Battery BATTERY NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS. Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. This device complies with the Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference that may cause undesired operation of the device. Cet appareil est conforme aux normes RSS exemptes de licence d'Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences, et (2) cet appareil doit accepter toute interférence pouvant entraîner un fonctionnement indésirable de l'appareil Need Help? Go to www.chamberlain.com/klik3 or call 1-800-442-1255 All trade names used herein are trademarks of respective manufacturers listed. Leer las instrucciones ANTES de comenzar. Si se usa el control remoto universal con abre-puertas residenciales, se debe usar solo con abre-puertas fabricados después de 1993 que utilicen sensores fotoeléctricos. Los sensores fotoeléctricos se encuentran siempre en la parte inferior de la guía de la puerta o en sus proximidades. ALTO MODELO KLIK5U-BK2 MODELO KLIK5U-SS MODELO KLIK5U-WP C ONTROL REMOTO UNIVERSAL E l control remoto puede programarse para activar hasta dos productos, tales como abre-puertas de g araje, operador de portones u operador de puertas comerciales. Cada botón en el control remoto funciona independientemente del otro y debe p rogramarse por separado. Las imágenes en este manual se usan solamente como referencia. El p roducto comprado podría tener un aspecto diferente. Para evitar la posibilidad de una LESIÓN GRAVE O INCLUSO LA MUERTE causada por la puerta en movimiento: • SIEMPRE conserve los controles remotos alejados del alcance de los niños. NUNCA permita que los niños usen o jueguen con un control remoto. • Active la puerta ÚNICAMENTE cuando pueda verla claramente, cuando esté correctamente ajustada y no hubiera obstrucciones en su recorrido. • Tenga SIEMPRE la puerta del garaje a la vista hasta qu…

Text truncated - open the document above for the full version.

Date: April 10, 2020 Page 1 of 1 The Chamberlain Group, Inc. 300 Windsor Dr Oak Brook, IL 60523 Tel: 630.993.6306 Fax: 630.516.6863 Email: [email protected] To: Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Rd Columbia, MD 21046 FCC ID: HBW9814 for circuit assembly 001D9814-2 Request for Confidentiality In accordance with 47 C.F.R. Section 0.457 and 0.459, we, Chamberlain Group, hereby request confidentiality for the Schematics, BOM / Parts list and Theory of Operation/Block Diagram/Technical Description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. I would appreciate your prompt attention to the submittal. If there are any questions, please call me at 630-993-6306 or send a fax to 630-516-6863. Sincerely, Barbara Kelkhoff Regulatory Engineering Manager Chamberlain Group 300 Windsor Dr, Oak Brook, IL 60523

Engineering Test Report No. 1904178-01 Measurement of RF Emissions from a Model No. 001D7922-1 Universal Garage Door Remote Transmitter For Chamberlain Group, Inc. 300 Windsor Dr Oak Brook, IL 60523 P.O. Number 4900067654 Date Tested February 25 - 28, 2020 Test Personnel Tylar Jozefczyk Test Specification FCC "Code of Federal Regulations” Title 47 Part15, Subpart C Industry Canada RSS-GEN Industry Canada RSS-210 Test Report By: Tylar Jozefczyk EMC Engineer Requested By: Andrew Marks Chamberlain Group, Inc. Approved By: Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Engineering Test Report No. 1904178-01 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 138 1. Introduction ................................................................................................................................................... 5 1.1. Scope of Tests ..................................................................................................................................... 5 1.2. Purpose ............................................................................................................................................... 5 1.3. Deviations, Additions and Exclusions .................................................................................................. 5 1.4. EMC Laboratory Identification ............................................................................................................. 5 1.5. Laboratory Conditions.......................................................................................................................... 5 2. Applicable Documents .................................................................................................................................. 5 3. EUT Setup and Operation ............................................................................................................................ 5 3.1. General Description ............................................................................................................................. 5 3.1.1. Power Input ................................................................................................................................. 5 3.1.2. Grounding ................................................................................................................................... 6 3.2. Operational Mode ................................................................................................................................ 6 3.3. EUT Modifications ................................................................................................................................ 6 4. Test Facility and Test Instrumentation ......................................................................................................... 6 4.1. Shielded Enclosure .............................................................................................................................. 6 4.2. Test Instrumentation ............................................................................................................................ 6 4.3. Calibration Traceability ........................................................................................................................ 6 4.4. Measurement Uncertainty ................................................................................................................... 6 5. Test Procedures ........................................................................................................................................... 7 5.1. Powerline Conducted Emissions ......................................................................................................... 7 5.1.1. Requirements .............................................................................................................................. 7 5.2. Periodic Operation Measurements ...................................................................................................... 7 5.2.1. Requirements .............................................................................................................................. 7 5.2.2. Procedures .................................................................................................................................. 7 5.2.3. Results ........................................................................................................................................ 7 5.3. Duty Cycle Factor Measurements ....................................................................................................... 7 5.3.1. Procedures .................................................................................................................................. 7 5.3.2. Results ........................................................................................................................................ 8 5.4. Radiated Measurements ..................................................................................................................... 8 5.4.1. Requirements .............................................................................................................................. 8 5.4.2. Procedures .................................................................................................................................. 8 5.4.3. Results ........................................................................................................................................ 9 5.5. Occupied Bandwidth Measurements ................................................................................................... 9 5.5.1. Requirement................................................................................................................................ 9 5.5.2. Procedures ........…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1904178-01 Page 113 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 20dB Bandwidth MODE Tx – 303MHz (Guardian Fix Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 20dB BW = 149.9kHz Max allowed BW = (0.25% BW = 757.5kHz) 20DB BANDWIDTH Engineering Test Report No. 1904178-01 Page 114 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 99% Bandwidth MODE Tx – 303MHz (Guardian Fix Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 99% BW = 235.76kHz Max Allowed BW = (0.25% BW = 757.5kHz) 99% BANDWIDTH Engineering Test Report No. 1904178-01 Page 115 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 20dB Bandwidth MODE Tx – 310MHz (Secure Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 20dB BW = 153.8kHz Max allowed BW = (0.25% BW = 775kHz ) 20DB BANDWIDTH Engineering Test Report No. 1904178-01 Page 116 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 99% Bandwidth MODE Tx – 310MHz (Secure Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 99% BW = 257.74kHz Max Allowed BW = (0.25% BW = 775kHz) 99% BANDWIDTH Engineering Test Report No. 1904178-01 Page 117 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 20dB Bandwidth MODE Tx – 310MHz (Rolling Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 20dB BW = 153.8kHz Max allowed BW = (0.25% BW = 775kHz ) 20DB BANDWIDTH Engineering Test Report No. 1904178-01 Page 118 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 99% Bandwidth MODE Tx – 310MHz (Rolling Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 99% BW = 237.76kHz Max Allowed BW = (0.25% BW = 775kHz) 99% BANDWIDTH Engineering Test Report No. 1904178-01 Page 119 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 20dB Bandwidth MODE Tx – 310MHz (E Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 20dB BW = 151.8kHz Max allowed BW = (0.25% BW = 775kHz ) 20DB BANDWIDTH Engineering Test Report No. 1904178-01 Page 120 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 99% Bandwidth MODE Tx – 310MHz (E Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 99% BW = 235.76kHz Max Allowed BW = (0.25% BW = 775kHz) 99% BANDWIDTH Engineering Test Report No. 1904178-01 Page 121 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 20dB Bandwidth MODE Tx – 315MHz (D Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 20dB BW = 145.9kHz Max allowed BW = (0.25% BW = 787.5kHz ) 20DB BANDWIDTH Engineering Test Report No. 1904178-01 Page 122 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 99% Bandwidth MODE Tx – 315MHz (D Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 99% BW = 235.76kHz Max Allowed BW = (0.25% BW = 787.5kHz) 99% BANDWIDTH Engineering Test Report No. 1904178-01 Page 123 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 20dB Bandwidth MODE Tx – 315MHz (IntelliCode) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 20dB BW = 147.9kHz Max allowed BW = (0.25% BW = 787.5kHz ) 20DB BANDWIDTH Engineering Test Report No. 1904178-01 Page 124 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 99% Bandwidth MODE Tx – 315MHz (IntelliCode) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 99% BW = 235.76kHz Max Allowed BW = (0.25% BW = 787.5kHz) 99% BANDWIDTH Engineering Test Report No. 1904178-01 Page 125 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 20dB Bandwidth MODE Tx – 315MHz (E Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 20dB BW = 151.8kHz Max allowed BW = (0.25% BW = 787.5kHz ) 20DB BANDWIDTH Engineering Test Report No. 1904178-01 Page 126 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 99% Bandwidth MODE Tx – 315MHz (E Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 99% BW = 235.76kHz Max Allowed BW = (0.25% BW = 787.5kHz) 99% BANDWIDTH Engineering Test Report No. 1904178-01 Page 127 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 20dB Bandwidth MODE Tx – 318MHz (Mega Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 20dB BW = 151.8kHz Max allowed BW = (0.25% BW = 795kHz ) 20DB BANDWIDTH Engineering Test Report No. 1904178-01 Page 128 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Universal Garage Door Remote MODEL NO. 001D7922-1 TEST FCC §15.231, RSS-210 99% Bandwidth MODE Tx – 318MHz (Mega Code) DATE TESTED February 28, 2020 TEST PERFORMED BY Tylar Jozefczyk NOTES 99% BW = 235.76kHz Max Allowed BW = (0.25% BW = 795kHz) 99% BANDWIDTH Engineering Test Report No. 1904178-01 Page 129 of 138 DATA PAGE MANUFACTURER Chamberlain Group, Inc. EUT Uni…

Text truncated - open the document above for the full version.

Test Setup for Radiated Emissions, 30MHz to 1GHz – Horizontal Polarization Test Setup for Radiated Emissions, 30MHz to 1GHz – Vertical Polarization Test Setup for Radiated Emissions, 1 to 4GHz – Horizontal Polarization Test Setup for Radiated Emissions, 1 to 4GHz – Vertical Polarization
