HBWGCU2Repeat data and voice traffice in an Overlock and intercom network

845 Larch Ave. Elmhurst, IL 60126 Phone 630.993.6306 Fax 630.516.6863 Email: [email protected] January 4, 2010 Underwriters Laboratories Inc. 333 Pfingsten Rd Northbrook, IL 60062 FCC ID:HBWGCU2 Request for Confidentiality In accordance with 47 C.F.R. Section 0.457 and 0.459, we, Chamberlain Group, Inc., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. I would appreciate your prompt attention to the submittal. If there are any questions, please call me at 630-993-6306 or send a fax to 630-516- 6863. Sincerely, Barbara Kelkhoff Regulatory Project Manager II Chamberlain Group, Inc. 845 Larch Ave. Elmhurst, IL. 60126

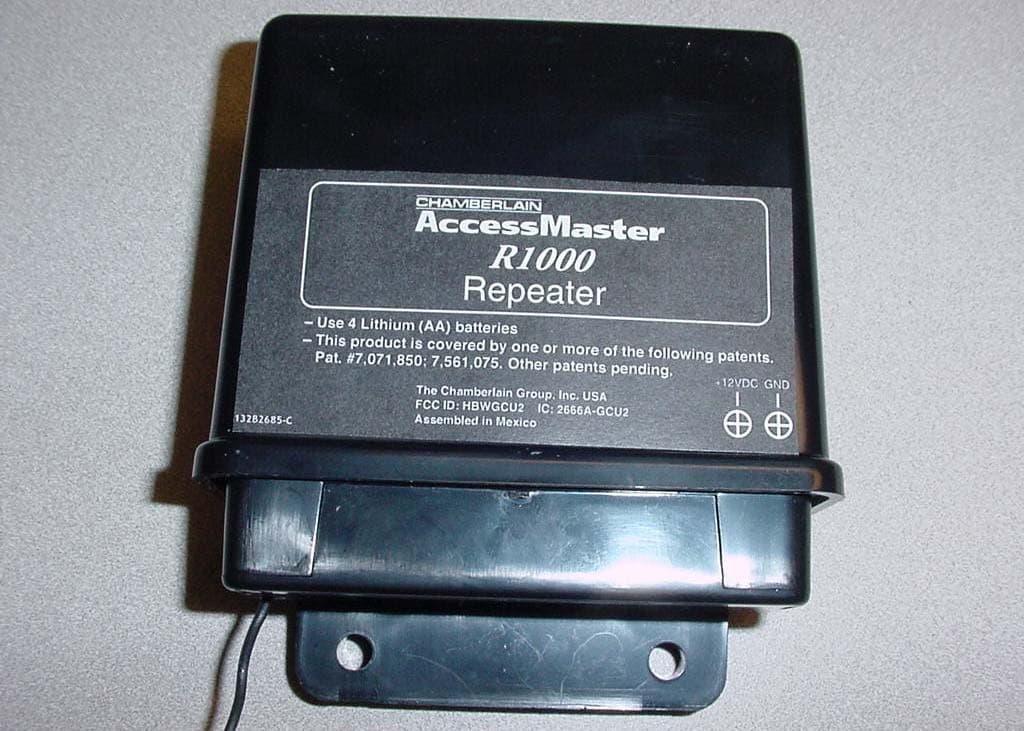

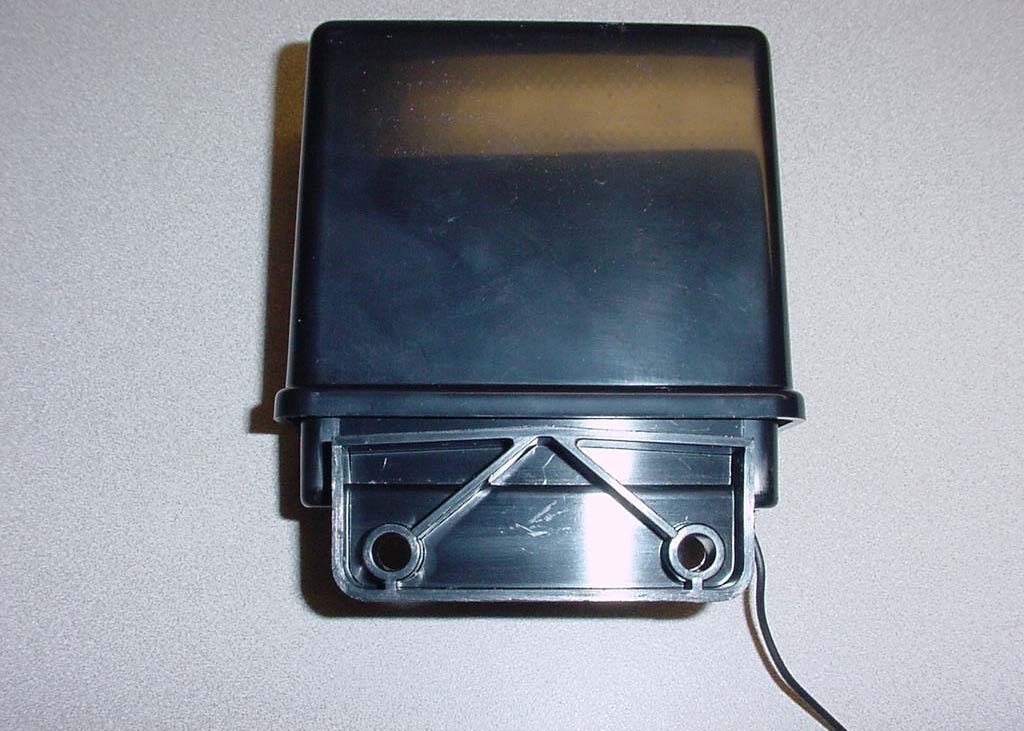

R1000 The Chamberlain Group, Inc. USA FCC ID: HBWGCU2 IC: 2666A-GCU2 Assembled in Mexico – Use 4 Lithium (AA) batteries – This product is covered by one or more of the following patents. Pat. #7,071,850; 7,561,075. Other patents pending. Repeater 132B2685-C Artwork: 132LA2685-00-C 3" x 1.375" x .13" (W x H x R) Shown at 100% ECN: 01913 Dec.-8-2009 +12VDC GND

FCC ID: HBWGCU2 UL Project Number: 09NK15074 RF Exposure / SAR statement Applicant: Chamberlain Group Inc. Model: R1000, Wireless Repeater Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “R1000” as calculated from FCC OET Bulleting 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a f/1500mW/cm 2 (0.601mW/cm 2 ) uncontrolled exposure limit. The Friis formula used was: 2 **4 * r GP S   Where P = 55.5mW (Maximum Peak Output Power) G = 3.27 (Numerical Antenna Gain, 5.14dBi) R = 20.0cm For NTD the S = 0.0361mW/cm 2

Underwriters Laboratories Inc. A not-for-profit organization dedicated 333 Pfingsten Rd. to public safety and committed to Northbrook, IL 60062 quality service for over 100 years Tel: (847) 272-8800 Underwriters Laboratories Inc. 333 Pfingsten Rd. Northbrook, IL 60062 www.ul.com/emc (847) 272-8800 Job Number: 1001173156 Project Number: 09NK15074 File Number: MC3181 Date: November 13, 2009 Model: R1000 Electromagnetic Compatibility Test Report For Chamberlain Group Inc. Copyright  2007 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Job #: 1001173156 Project #: 09NK15074 File #: MC3181 Page 2 of 63 Model Number: R1000 Client Name: Chamberlain Group Inc. Underwriters Laboratories Inc. 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0 EMC Report 2007 FCC ID: HBWNLS1 Test Report Details Tests Performed By: Underwriters Laboratories Inc. 333 Pfingsten Rd. Northbrook, IL 60062 Tests Performed For: Chamberlain Group Inc. 845 Larch Av Elmhurst, IL 60126 Applicant Contact: Hank Sieradzki Phone: (630) 993-6564 E-mail: [email protected] Test Report Date: November 13, 2009 Product Type: 900MHz Low Power Transceiver Product standards FCC Part 15, Subpart C, 15.247, RSS-Gen, RSS-210 Model Number: R1000 EUT Category: Frequency Hopping Spread Spectrum Transmitter Testing Start Date: October 19, 2009 Date Testing Complete: October 28, 2009 Overall Results: Compliant Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Job #: 1001173156 Project #: 09NK15074 File #: MC3181 Page 3 of 63 Model Number: R1000 Client Name: Chamberlain Group Inc. Underwriters Laboratories Inc. 333 Pfingsten Rd. Northbrook, IL 60062 USA Tel.: 847 272-8800 Rev. No 1.0 EMC Report 2007 FCC ID: HBWNLS1 Report Directory 1.0 G E N E R A L - Product Description ..................................................................................................................4 1.1 Equipment Description ...................................................................................................................................4 1.2 Device Configuration During Test ..................................................................................................................4 1.2.1 Equipment Used During Test: ....................................................................................................................4 1.2.2 Input/Output Ports: .....................................................................................................................................4 1.2.3 Power Interface: .........................................................................................................................................5 1.3 EUT Configurations ........................................................................................................................................5 1.4 EUT Operation Modes ....................................................................................................................................5 2.0 Summary ............................................................................................................................................................6 2.1 Deviations from standard test methods ..........................................................................................................6 2.2 Device Modifications Necessary for Compliance ...........................................................................................6 2.3 Reference Standards .....................................................................................................................................6 2.4 Results Summary ...........................................................................................................................................7 3.0 Calibration of Equipment Used for Measurement ..............................................................................................8 4.0 EMISSIONS TEST RESULTS ............................................................................................................................8 4.1 Test Conditions and Results – MAINS TERMINAL – CONDUCTED EMISSIONS .......................................9 4.2 Test Conditions and Results – RADIATED EMISSIONS ............................................................................ 12 4.3 Test Conditions and Results – SPURIOUS EMISSIONS (Antenna Conducted and Radiated) ................. 17 4.4 Test Conditions and Results – BAND EDGE COMPLIANCE ..................................................................... 36 4.5 Test Conditions and Results – Carrier Frequency Separation .................................................................... 42 4.6 Test Conditions and Results – NUMBER OF HOPPING FREQUENCIES ................................................. 45 4.7 Test Conditions and Results – Dwell Time and Duty Cycle Correction ...................................................... 48 4.8 Test Conditions and R…

Text truncated - open the document above for the full version.

Chamberlain Group Inc. Project #: 09NK15074 Model: R1000 FCC ID: HBWGCU2 Radiated Emissions Antenna Conducted Measurements Chamberlain Group Inc. Project #: 09NK15074 Model: R1000 FCC ID: HBWGCU2 Line Conducted Emissions
