HD5-1602-ABarcode Scanner

Voyager 1602g Wireless Area-Imaging Pocket Scanner Quick Start Guide 5/15 P re limi na ry Draf t 4/ 27/ 15 Aller à www.honeywellaidc.com pour le français. Vai a www.honeywellaidc.com per l'italiano. Gehe zu www.honeywellaidc.com für Deutsch. Ir a www.honeywellaidc.com para español. Idź na stronę : www.honeywellaidc.com po quick start w języku polskim. Перейти на русскоязычный сайт www.honeywellaidc.com. Pro češtinu jdi na www.honeywellaidc.com. Pre slovenčinu choď na www.honeywellaidc.com Para Português, acesse www.honeywellaidc.com.br. 日本語: www.honeywellaidc.comをご覧ください。 如要到中国www.honeywellaidc.com（简体）。 查看繁体版请登陆www.honeywellaidc.com 한글 www.honeywellaidc.com로 이동합니다. ʲʡʤʱʸʢʬʡʺʩʸˬʺʡʥʺʫʡʨʰʸʨʰʩʠʤʸʺʠʬʸʥʡʲwww.honeywellaidc.com. Çäè ́á Åàˆ moc.cdiallewyenoh.www ààú¬ ÇàõÑéí¬ Note: Refer to your User’s Guide for information about cleaning your device. Getting Started The scanner’s battery must be fully charged before the first use. It can be charged using a power supply or by connecting the USB cable to a computer. Charging via Power Supply: Note: The power supply must be ordered separately, if needed. Connecting the Scanner to a USB port: Turn off the computer’s power before connecting the scanner, then power up the computer once the scanner is fully connected. Battery Charge Indicator When the battery is charging, the small LED at the top left of the scanner flashes orange. When the battery is fully charged, this LED is solid green. Reading Techniques The scanner projects an aiming beam that should be centered over the bar code, but it can be posi- tioned in any direction for a good read . Hold the scanner over the bar code, press the button, and center the aiming beam on the bar code. The aiming beam is smaller when th e scanner is closer to the code and larger when it is farther from the code. Hold the scanner close to smaller bar codes, and farther away from large bar codes to get a proper read. If the bar code is highly reflective (e.g., laminated), you may need to tilt the scanner at an angle so the bar code can be scanned. Note: If the scanner beeps 3 times when scanning a bar code, the link has not been established. If the scanner beeps once, the link has been established. Standard Product Defaults  Scan the following bar code to reset the scanner to all standard product default settings. Standard Product Defaults Using the Scanner with Bluetooth Devices The scanner can be used either with a Honeywell Access Point (AP01-XXXBT) or with other Bluetooth devices. Those devices include personal computers, laptops, and tablets. 1. Scan the Bluetooth HID Keyboard Connect bar code below. Bluetooth HID Keyboard Connect 2. Set your personal computer, laptop, or tablet so it searches for other Bluetooth devices. (Refer to your device’s User’s Guide for pairing instructions.) 3. Once your personal computer, laptop , or tablet has located the scanner, select the scanner name. Some personal computers, laptops, or tablets will automatically pair with the scanner. If your device automatically pairs with the scanner, it displays a successful pairing message and you do not need to continue to the next step. 4. If your personal computer, laptop, or tablet does not au tomatically pair with the scanner, a PIN is displayed. This PIN must be scanned within 60 seconds. You must quickly scan Bluetooth PIN Code below, then scan the numeric bar code(s) for the PIN code from the Programming Chart, then scan the Save bar code. Bluetooth PIN Code Your personal computer, laptop, or tablet should now be paired with the scanner. Disconnect from Host and Connect to an Access Point If your scanner has been connected directly to an iPad, smart phone, or laptop, you must disconnect it in order to communicate with an Access Point. Scan the Bluetooth HID Keyboard Discon- nect bar code to unlink the scanner from the currently linked host. Scan the linking bar code on the Access Point to relink the scanner. Bluetooth HID Keyboard Disconnect Keyboard Country Your keyboard layout default is a US keyboard. To change this lay- out, refer to the following chart for your keyboard country. Scan the Program Keyboard Country bar code, then scan the numeric bar code(s) for the appropriate Country Code from page 2, then scan the Save bar code. By default, national character replacements are used for the follow- ing characters: #$@[\]^‘{|}~ Refer to the ISO 646 Character Replacements chart in your User’s Guide to view the character replacements for each country. Program Keyboard Country Country CodeScanCountry CodeScan Belgium1Italy5 Denmark8Norway9 Finland2Spain10 France3Switzerland6 Germany/Austria4USA (Default)0 Great Britain7 Save Note: For a complete list of country codes, see the User’s Guide for your product at our website, www.honeywellaidc.com. Suffix If you want a carriage return after the bar code, scan the Add CR Suffix bar code. To add a tab after the bar code, scan the Add Tab Suffix bar code. Otherwise, scan the Remove Suffix bar code to remove the suffixes. Add CR Suffix Remove Suffix Add Tab Suffix For additional prefix and suffix settings, see the User’s Guide for your product at our website, www.honeywellaidc.com. Add Code ID Prefix to all Symbologies Scan the following bar code if you wish to add a Code ID prefix to all symbologies at once. Add Code ID Prefix To All Symbologies (Temporary) Note: For a complete list of Code IDs, see the User’s Guide for your product at our website, www.honeywellaidc.com. Function Code Transmit When this selection is enabled and function codes are contained within the scanned data, the scanner transmits the function code to the terminal. Charts of these function codes are provided in your User’s Guide. When the scanner is in keyboard wedge mode, the scan code is converted to a key code before it is transmitted. Enable (Default) Disable Data Format Editor Instructions The following are abbreviated instructions for entering a data format. For complete instructions refer to your User’s …

Text truncated - open the document above for the full version.

Rev (a) Preliminary Draft 5/21/15 FCC Part 15 Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications made to this equipment not expressly approved by Honeywell may void the FCC authorization to operate this equipment. Para su uso en México, la operación de este equipo está sujeta a las siguientes dos condiciones: 1. Es posible que este equipo o dispositivo no cause interferencia perjudicial. 2. Este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. RF Exposure The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. Canadian Compliance This ISM device complies with Canadian RSS-210. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Conformité à la règlementation canadienne Cet appareil ISM est conforme à la norme CNR-210 du Canada. Son fonctionnement est assujetti aux conditions suivantes : 1. Cet appareil ne doit pas causer de brouillage préjudiciable. 2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le brouillage pouvant causer un fonctionnement indésirable. Use only shielded data cables with this system. This unit has been tested with cables less than 3 meters. Cables greater than 3 meters may not meet class B performance. Utiliser uniquement des câbles de données blindés avec ce système. L’appareil a été testé avec des câbles de moins de 3 mètres. Les câbles de longueur supérieure à 3 mètres peuvent ne pas satisfaire à la performance de la classe B. Utilisez uniquement des câbles de données blindés avec ce système. Ce dispositif a été testé avec des câbles de moins de 3 mètres. Il est possible que les câbles de plus de 3 mètres ne permettent pas d’atteindre des performances de classe B. Utilizzare solo cavi dati schermati con questo sistema. Questa unità è stata testata con cavi di lunghezza inferiore a 3 metri. I cavi di lunghezza superiore a 3 metri potrebbero non essere conformi alle prestazioni di classe B. Für dieses System nur abgeschirmte Datenkabel verwenden. Dieses System wurde mit Kabeln unter 3 Metern Länge geprüft. Kabel mit einer Länge von über 3 Metern erfüllen möglicherweise nicht die Richtlinien der Klasse B. Utilice sólo cables de datos blindados con este sistema. Esta unidad se ha probado con cables de longitud inferior a 3 metros. Cables superiores a 3 metros quizá no satisfagan los requisitos de rendimiento de la clase B. Use únicamente cables protegidos para datos con este sistema. Esta unidad ha sido evaluada con cables de menos de 3 metros. Es posible que los cables de más de 3 metros no cumplan con el desempeño de clase B. Use somente cabos de dados blindados com este sistema. Esta unidade foi testada com cabos com menos de 3 metros. Cabos com mais de 3 metros não atendem o desempenho de classe B. 此系统仅能使用屏蔽数据电缆。 此设 备是以短于 3 米的电缆进行的测试。 长度超过 3 米的电缆可能无法满足 B 级性能。 此系統只能使用包覆的資料傳輸線。 此裝置是使用不到 3 公尺長的電纜進 行測試。 超過 3 公尺長的電纜可能無 法達到 B 級裝置效能。 このシステムにはシールド付きデー タケーブルのみを使用してくださ い。この装置は長さ3 m以下のケー ブルでテストされています。 3 m以 上のケーブルはクラスBの性能を満 たさない場合があります。 이 시스템에는 차폐된 데이터 케이블 만 사용하십시오. 본 장치는 3미터 미만의 케이블로 테스트를 받았습니 다. 3미터를 초과하는 케이블을 사 용하면 Class B 성능을 만족시키지 못 할 수 있습니다. Используйте с этой системой только экранированные кабели передачи данных. Это устройство прошло испытания с использованием кабелей длиной менее 3 метров. Рабочие характеристики кабелей длиной свыше 3 м могут не соответствовать классу В. The CE marking indicates compliance with the following directives: • 1995/5/EC R&TTE • 2011/65/EU RoHS (Recast) In addition, complies to 2006/95/EC Low Voltage Directive, when shipped with recommended power supply. European contact: Hand Held Products Europe B.V. Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands Honeywell shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive. Le marquage CE indique la conformité avec les directives suivantes : • 1995/5/CE R & TTE • 2011/65/UE – RoHS (Refonte) De plus, ce produit est conforme à la Directive européenne 2006/95/CE relative aux basses tensions lorsqu’il est expédié avec le bloc d’alimentation recommandé. Personne-ressource en Europe : Hand Held Products Europe B.V. Nijverheidsweg 9-13 5627 BT Eindhoven Les Pays-Bas Honeywell ne sera pas tenu responsable de l’utilisation de ses produit avec de l’équipement (c’…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Honeywell International Inc Declaration of Authorization We Name: Honeywell International Inc Address: 9680 Old Bailes Rd Fort Mill South Carolina 29707 United States City: Fort Mill Country: United States Declare that: Name Representative of agent: Vincent Lin (1) Agent Company name: QuieTek Corp. Address: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. City: New Taipei City Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Barcode Scanner FCC ID: HD5-1602-A Trademark: Honeywell on our behalf. Date: 2015/07/14 City: Fort Mill Name:Michael Robinson (2) Function:Product Compliance Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent. 16-July-2015

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Honeywell International Inc Address :9680 Old Bailes Rd Fort Mill South Carolina 29707 United States City: Fort Mill Country: United States To: Telefication B.V.,Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject:Request for confidentiality FCC ID: HD5-1602-A Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicanthereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: 90 days (notes 2, 3, 4, 5) Date:2015/07/14 Name and signature of applicant: Michael Robinson Signature: -------------------------------------- Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

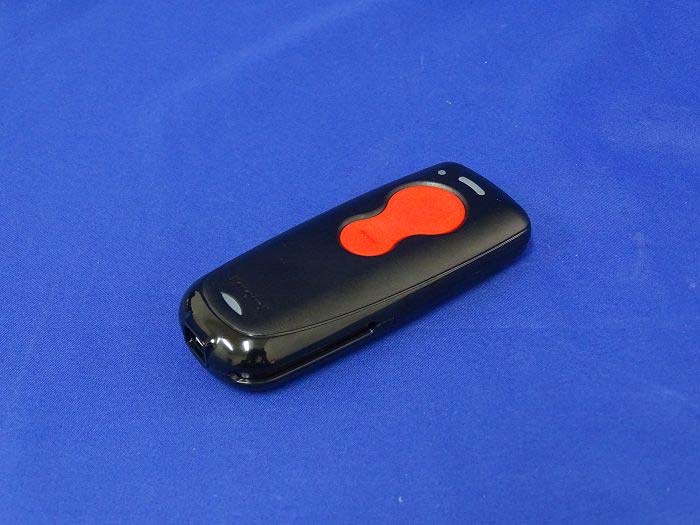

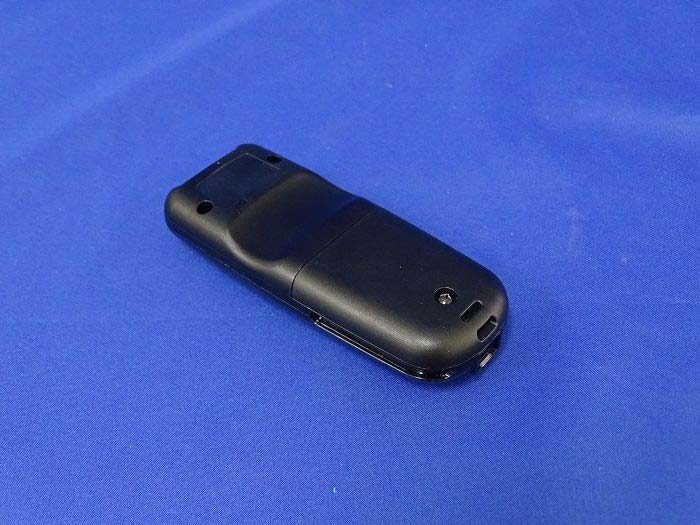

Report No.: 1550379R-RFUSP01V00 Page : 1 of 12 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 1550379R-RFUSP01V00 Page : 2 of 12 (3) EUT Photo (4) EUT Photo

Honeywell International Inc FCC ID.: HD5-1602-A 9680 Old Bailes Rd Fort Mill South Carolina 29707 United States Tel : 315 554 6000 FCC ID Label Back View

Honeywell International Inc FCC ID.: HD5-1602-A 9680 Old Bailes Rd Fort Mill South Carolina 29707 United States Tel : 315 554 6000 The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 1550379R-RFUSP01V00 Page : 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 1550379R-RFUSP01V00 Page : 4 of 12 (7) EUT Photo (8) EUT Photo Report No.: 1550379R-RFUSP01V00 Page : 5 of 12 (9) EUT Photo (10) EUT Photo Antenna Report No.: 1550379R-RFUSP01V00 Page : 6 of 12 (11) EUT Photo (12) EUT Photo Report No.: 1550379R-RFUSP01V00 Page : 7 of 12 (13) EUT Photo (14) EUT Photo Report No.: 1550379R-RFUSP01V00 Page : 8 of 12 (15) EUT Photo (16) EUT Photo Report No.: 1550379R-RFUSP01V00 Page : 9 of 12 (17) EUT Photo (18) EUT Photo BT Chip Report No.: 1550379R-RFUSP01V00 Page : 10 of 12 (19) EUT Photo (20) EUT Photo Report No.: 1550379R-RFUSP01V00 Page : 11 of 12 (21) EUT Photo (22) EUT Photo Report No.: 1550379R-RFUSP01V00 Page : 12 of 12 (23) EUT Photo (24) EUT Photo

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Measurement Result: According to KDB 447498 D01 Mobile Portable RF Exposure v05, Operation frequency = 2450MHz and antenna separation distance = 5mm, SAR Test Exclusion Threshold = 10mW The Device max peak output power =4.94dBm, Equivalent to 3.12mW and less than 10mW The SAR/MPE measurement is not necessary.

Report No.: 1550379R-RFUSP01V00 Page: 1 of 63 FCC Test Report Product Name Barcode Scanner Model No. 1602g FCC ID. HD5-1602-A Applicant Honeywell International Inc Address 9680 Old Bailes Rd Fort Mill South Carolina 29707 United States Date of Receipt May. 15, 2015 Issued Date July. 01, 2015 Report No. 1550379R-RFUSP01V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1550379R-RFUSP01V00 Page: 2 of 63 Test Report Issued Date: July. 01, 2015 Report No.: 1550379R-RFUSP01V00 Product Name Barcode Scanner Applicant Honeywell International Inc Address 9680 Old Bailes Rd Fort Mill South Carolina 29707 United States Manufacturer Honeywell International Inc Model No. 1602g FCC ID. HD5-1602-A EUT Rated Voltage DC3.7V by battery or AC 100-240V, 50-60Hz by Adapter EUT Test Voltage AC 120V/ 60Hz Trade Name Honeywell Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2014 ANSI C63.4: 2014, ANSI C63.10: 2013 Test Result Complied Documented By : (Senior Adm. Specialist / Leven Huang ) Tested By : ( Assistant Engineer / Nick Chen) Approved By : ( Director / Vincent Lin ) Report No.: 1550379R-RFUSP01V00 Page: 3 of 63 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................................... 5 1.1. EUT Description ...................................................................................................................................... 5 1.2. Operational Description ........................................................................................................................... 7 1.3. Tested System Details .............................................................................................................................. 8 1.4. Configuration of Tested System .............................................................................................................. 8 1.5. EUT Exercise Software ........................................................................................................................... 8 1.6. Test Facility ............................................................................................................................................. 9 2. CONDUCTED EMISSION ................................................................................................................ 10 2.1. Test Equipment ...................................................................................................................................... 10 2.2. Test Setup .............................................................................................................................................. 10 2.3. Limits ..................................................................................................................................................... 11 2.4. Test Procedure ....................................................................................................................................... 11 2.5. Uncertainty ............................................................................................................................................ 11 2.6. Test Result of Conducted Emission ....................................................................................................... 12 3. PEAK POWER OUTPUT .................................................................................................................. 14 3.1. Test Equipment ...................................................................................................................................... 14 3.2. Test Setup .............................................................................................................................................. 14 3.3. Limit ...................................................................................................................................................... 14 3.4. Test Procedure ....................................................................................................................................... 14 3.5. Uncertainty ............................................................................................................................................ 14 3.6. Test Result of Peak Power Output ......................................................................................................... 15 4. RADIATED EMISSION ..................................................................................................................... 17 4.1. Test Equipment ...................................................................................................................................... 17 4.2. Test Setup .............................................................................................................................................. 17 4.3. Limits ..................................................................................................................................................... 18 4.4. Test Procedure ....................................................................................................................................... 19 4.5. Uncertainty ............................................................................................................................................ 19 4.6. Test Result of Radiated Emission .......................................................................................................... 20 5. RF ANTENNA CONDUCTED TEST ...................................................…

Text truncated - open the document above for the full version.

Report No.: 1550379R-RFUSP01V00 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 1550379R-RFUSP01V00 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 1550379R-RFUSP01V00 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
