HD5-1981ABarcode Scanner

Xenon™ 1900/1910 Xenon™ 1902/1912 Granit™ 1910i/1911i Granit™ 1980i/1981i Area-Imaging Scanner User’s Guide Preliminary draft_1 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII. HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. HII disclaims all responsibility for the selection and use of software and/or hardware to achieve intended results. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII.  2010-2014 Honeywell International Inc. All rights reserved. Web Address: www.honeywellaidc.com Microsoft® Windows®, Windows NT®, Windows 2000, Windows ME, Windows XP, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies and are the property of their respective owners. For patent information, please refer to www.hsmpats.com. Preliminary draft_1 i Chapter 1 - Getting Started About This Manual ...............................................................................................................1-1 Unpacking Your Device .......................................................................................................1-1 Connecting the Device .........................................................................................................1-1 Connecting with USB .....................................................................................................1-1 Connecting with Keyboard Wedge.................................................................................1-3 Connecting with RS232 Serial Port................................................................................1-5 Connecting with RS485..................................................................................................1-7 Mounting a CCB01-010BT Charge Base .............................................................................1-8 Mounting a CCB02-100BT Base..........................................................................................1-8 Reading Techniques ..........................................................................................................1-10 Xenon 1900/1902/1910/1912 and Granit 1910i/1911i .................................................1-10 Granit 1980i/1981i........................................................................................................1-11 Menu Bar Code Security Settings ......................................................................................1-11 Setting Custom Defaults ....................................................................................................1-11 Resetting the Custom Defaults ..........................................................................................1-12 Chapter 2 - Programming the Interface Introduction ..........................................................................................................................2-1 Programming the Interface - Plug and Play .........................................................................2-1 Keyboard Wedge .................................................................................................................2-1 Laptop Direct Connect .........................................................................................................2-1 RS232 Serial Port ................................................................................................................2-1 RS485 ..................................................................................................................................2-2 RS485 Packet Mode ......................................................................................................2-2 USB IBM SurePos ...............................................................................................................2-3 USB PC or Macintosh Keyboard..........................................................................................2-3 USB HID ..............................................................................................................................2-4 USB Serial ...........................................................................................................................2-4 CTS/RTS Emulation.......................................................................................................2-4 ACK/NAK Mode .............................................................................................................2-4 Remote MasterMind™ for USB ...........................................................................................2-4 Verifone ® Ruby Terminal Default Settings...........................................................................2-5 Gilbarco ® Terminal Default Settings ....................................................................................2-5 Honeywell Bioptic Aux Port Configuration ...........................................................................2-5 Datalogic™ Magellan ® Aux Port Configuration....................................................................2-6 NCR Bioptic Aux Port Configuration ....................................................................................2-6 Wincor Nixdorf Terminal Default Settings ......…

Text truncated - open the document above for the full version.

5 - 3 Function Code Transmit When this selection is enabled and function codes are contained within the scanned data, the scanner transmits the function code to the terminal. Charts of these function codes are provided in Supported Interface Keys starting on page 9-3. When the scanner is in keyboard wedge mode, the scan code is converted to a key code before it is transmitted. Default = Enable. Intercharacter, Interfunction, and Intermessage Delays Some terminals drop information (characters) if data comes through too quickly. Intercharacter, interfunction, and intermessage delays slow the transmission of data, increasing data integrity. Intercharacter Delay An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each character of scanned data. Scan the Intercharacter Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual. To remove this delay, scan the Intercharacter Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual. Note: Intercharacter delays are not supported in USB serial emulation. User Specified Intercharacter Delay An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed after the transmission of a particular character of scanned data. Scan the Delay Length bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual. Clear One Suffix Clear All Suffixes * Enable Disable 1234 5 Intercharacter Delay PrefixScanned DataSuffix Intercharacter Delay Preliminary draft_1 5 - 4 Next, scan the Character to Trigger Delay bar code, then the 2-digit hex value for the ASCII character that will trigger the delay ASCII Conversion Chart (Code Page 1252), beginning on page A-3. To remove this delay, scan the Delay Length bar code, and set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual. Interfunction Delay An interfunction delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each control character in the message string. Scan the Interfunction Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual. To remove this delay, scan the Interfunction Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual. Intermessage Delay An intermessage delay of up to 5000 milliseconds (in 5ms increments) may be placed between each scan transmission. Scan the Intermessage Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual. To remove this delay, scan the Intermessage Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual. Delay Length Character to Trigger Delay Interfunction Delays PrefixScanned DataSuffix 12345STXHTCRLF Interfunction Delay 2nd Scan Transmission1st Scan Transmission Intermessage Delay Intermessage Delay Preliminary draft_1 6 - 1 6 Data Formatting Data Format Editor Introduction You may use the Data Format Editor to change the scanner’s output. For example, you can use the Data Format Editor to insert characters at certain points in bar code data as it is scanned. The selections in the following pages are used only if you wish to alter the output. Default Data Format setting = None. Normally, when you scan a bar code, it is output automatically. However, when you create a format, you must use a “send” com- mand (see Send Commands on page 6-3) within the format program to output data. Multiple formats may be programmed into the scanner. They are stacked in the order in which they are entered. However, the following list presents the order in which formats are applied: 1. Specific Terminal ID, Actual Code ID, Actual Length 2. Specific Terminal ID, Actual Code ID, Universal Length 3. Specific Terminal ID, Universal Code ID, Actual Length 4. Specific Terminal ID, Universal Code ID, Universal Length 5. Universal Terminal ID, Actual Code ID, Actual Length 6. Universal Terminal ID, Actual Code ID, Universal Length 7. Universal Terminal ID, Universal Code ID, Actual Length 8. Universal Terminal ID, Universal Code ID, Universal Length The maximum size of a data format configuration is 2000 bytes, which includes header information. If a bar code is read that fails the first data format, the next data format, if there is one, will be used on the bar code data. If there is no other data format, the raw data is output. If you have changed data format settings, and wish to clear all formats and return to the factory defaults, scan the Default Data Format code below. Add a Data Format Step 1.Scan the Enter Data Format symbol (page 6-2). Step 2.Select Primary/Alternate Format Determine if this will be your primary data format, or one of 3 alternate formats. This allows you to save a total of 4 different data formats. To program your primary format, scan 0 using the Programming Chart inside the back cover of this manual. If you are programming an alternate format, scan 1, 2, or 3, depending on which alternate format you are programming. (See "Primary/Alternate Data Formats" on page 6-13 for further information.) Step 3. Terminal Type Refer to Terminal ID Table (page 6-3) and locate the Terminal ID number for your PC. Scan three numeric bar codes on the inside back cover to program the scanner for your terminal ID (you must enter 3 digits). For example, scan 0 0 3 for an AT wedge. Note: 099 indicates all terminal types. Step 4. Code I.D. In the Symbology Charts, beginning on page A-1, find the symbology to which you want to apply the…

Text truncated - open the document above for the full version.

9 - 1 9 Interface Keys Keyboard Function Relationships The following Keyboard Function Code, Hex/ASCII Value, and Full ASCII “CTRL”+ relationships apply to all terminals that can be used with the scanner. Refer to page 2-16 enable Control + X (Control + ASCII) Mode. The last five characters in the Full ASCII “CTRL”+ column ( [ \ ] 6 - ), apply to US only. The following chart indicates the equiva- lents of these five characters for different countries. Function CodeHEX/ASCII ValueFull ASCII (CTRL + X Mode) NUL00@ SOH01A STX02B ETX03C EOT04D ENQ05E ACK06F BEL07G BS08H HT09I LF0AJ VT0BK FF0CL CR0DM SO0EN SI0FO DLE10P DC111Q DC212R DC313S DC414T NAK15U SYN16V ETB17W CAN18X EM19Y SUB1AZ ESC1B[ FS1C\ GS1D] RS1E^ US1F_ Country Codes United States[\]6- Belgium[<]6- Scandinavia8<96- France^ 8$6= GermanyÃ+6- Italy\+6- Switzerland<. .6- United Kingdom[¢]6- Preliminary draft_1 9 - 2 Denmark8\96- Norway8\96- Spain[\]6- Country Codes Preliminary draft_1 9 - 3 Supported Interface Keys ASCIIHEX IBM PC/AT and Compatibles, USB PC Keyboard Apple Mac/iMac Supported Keys NUL00ReservedReserved SOH01Enter (KP)Enter/Numpad Enter STX02Cap LockCAPS ETX03ALT makeALT make EOT04ALT breakALT break ENQ05CTRL makeCNTRL make ACK06CTRL breakCNTRL break BEL07CR/EnterRETURN BS08ReservedAPPLE make HT09TabTAB LF0AReservedAPPLE break VT0BTabTAB FF0CDeleteDel CR0DCR/EnterRETURN SO0EInsertIns Help SI0FEscapeESC DLE10F11F11 DC111HomeHome DC212PrintPrnt Scrn DC313Back SpaceBACKSPACE DC414Back TabLSHIFT TAB NAK15F12F12 SYN16F1F1 ETB17F2F2 CAN18F3F3 EM19F4F4 SUB1AF5F5 ESC1BF6F6 FS1CF7F7 GS1DF8F8 RS1EF9F9 US1FF10F10 DEL7FBACKSPACE Preliminary draft_1 9 - 4 Preliminary draft_1 10 - 1 10 Utilities To Add a Test Code I.D. Prefix to All Symbologies This selection allows you to turn on transmission of a Code I.D. before the decoded symbology. (See the Symbology Charts, beginning on page A-1) for the single character code that identifies each symbology.) This action first clears all current prefixes, then programs a Code I.D. prefix for all symbologies. This is a temporary setting that will be removed when the unit is power cycled. Show Decoder Revision Scan the bar code below to output the decoder revision. Show Scan Driver Revision Scan the bar code below to output the scan driver revision. The scan driver controls image capture. Show Software Revision Scan the bar code below to output the current software revision, unit serial number, and other product information for both the scanner and base. Show Data Format Scan the bar code below to show current data format settings. Add Code I.D. Prefix to All Symbologies (Temporary) Show Decoder Revision Show Scan Driver Revision Show Software Revision Data Format Settings DFMBK3?. Preliminary draft_1 10 - 2 Test Menu When you scan the Test Menu On code, then scan a programming code in this manual, the scanner displays the content of a programming code. The programming function will still occur, but in addition, the content of that programming code is output to the terminal. Note: This feature should not be used during normal scanner operation. TotalFreedom TotalFreedom is an open system architecture that makes it possible for you create applications that reside on your scanner. Decoding apps and Data Formatting apps can be created using TotalFreedom. For further information about TotalFreedom, go to our website at www.honeywellaidc.com. Application Plug-Ins (Apps) Any apps that you are using can be turned off or on by scanning the following bar codes. Apps are stored in groups: Decoding, and Formatting. You can enable and disable these groups of apps by scanning that group’s On or Off bar code below. You can also scan the List Apps bar code to output a list of all your apps. Note: You must reset your device in order for the apps setting to take effect. On * Off * Decoding Apps On Decoding Apps Off * Formatting Apps On Formatting Apps Off List Apps Preliminary draft_1 10 - 3 EZConfig-Scanning Introduction EZConfig-Scanning provides a wide range of PC-based programming functions that can be performed on a scanner connected to your PC's COM port. EZConfig-Scanning allows you to download upgrades to the scanner's firmware, change programmed parameters, and create and print programming bar codes. Using EZConfig-Scanning, you can even save/open the program- ming parameters for a scanner. This saved file can be e-mailed or, if required, you can create a single bar code that contains all the customized programming parameters and mail or fax that bar code to any location. Users in other locations can scan the bar code to load in the customized programming. To communicate with a scanner, EZConfig-Scanning requires that the PC have at least one available serial communication port, or a serial port emulation using a physical USB port. If you are using the serial port and RS232 cable, an external power supply is required. When using a USB serial port emulation, only a USB cable is required. EZConfig-Scanning Operations The EZConfig-Scanning software performs the following operations: Scan Data Scan Data allows you to scan bar codes and display the bar code data in a window. Scan Data lets you send serial commands to the scanner and receive scanner response that can be seen in the Scan Data window. The data dis- played in the Scan Data window can either be saved in a file or printed. Configure Configure displays the programming and configuration data of the scanner. The scanner's programming and configu- ration data is grouped into different categories. Each category is displayed as a tree item under the "Configure" tree node in the application explorer. When one of these tree nodes is clicked, the right-hand side is loaded with the parameters' form belonging to that particular category. The "Configure" tree option has all the programming and con- figuration parameters specified for a scanner. You can set or modify these parameters as required. You can later write the modified settings to the scanner, or sav…

Text truncated - open the document above for the full version.

Honeywell International Inc Date: 2015-01-30 Federal Communications Commission Authorization and Evaluation Division FCC ID: HD5-1981A ATTESTATION FCC ID: HD5-1981A Product: Barcode Scanner Model: 1981i We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Michael Robinson / Product Compliance Honeywell International Inc

RF_160, Issue 02 Honeywell International Inc Declaration of Authorization We Name: Honeywell International Inc Address: 9680 old Bailes Rd Fort Mill SC29707 City: ......... South Carolina ................................................................ Country:......... United States ............................................................................ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Barcode Scanner Type designation: 1981i on our behalf. Date: 2015-01-30 City: South Carolina Name: Michael Robinson (2) Function: Product Compliance Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Honeywell International Inc Date: 2015-01-30 Federal Communications Commission Authorization and Evaluation Division FCC ID: HD5-1981A Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Confidentiality Request 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Sincerely, _________________________ Michael Robinson / Product Compliance Honeywell International Inc

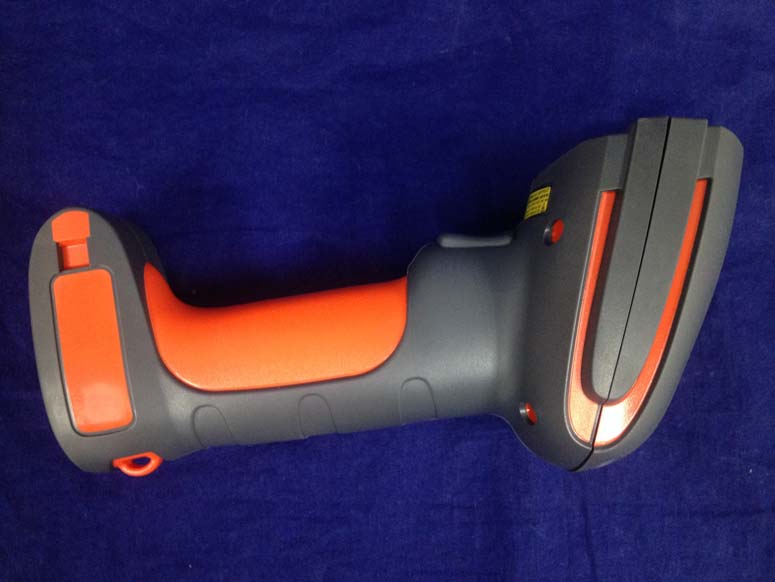

EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

2. COLORS: 50123187-002, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIAL MATERIAL OF HONEYWELL INTERNATIONAL INC AND SHALL NOT BE REPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c REV#REV DESCRIPTION DESIGNED BY DATE ARTWORK LEVEL TITLE: A DRAWING NO: REV SCALE DO NOT SCALE SHEET 1 OF 1 DRAWING NO. DATE 50123187 RELEASE LABEL, 1980i, 1981i RIGHT AGENCY 50123187 01/05/15 D.FLETCHER 11/19/14 A CC# ECN: 2014-4591 LABEL MATERIAL # ONE “A” Format Artwork Template No. 500030434, REV A CC# 500000020919 PLASTIC TYPE OF HOUSING LABEL IS ADHERED TO PLASTIC HOUSING PART NUMBER ONE LEXAN EXL9330 & VERSOLLAN RU2205-1 A NOTES REQUIRED FOR LABEL MANUFACTURER: 1. ROHS COMPLIANT INKS. SEE ENVIRONMENTAL SPECIFICATION DOCUMENT #500007391 BACKGROUND: DARK BLUE GRAY : PANTONE 485C (RED) BLUETOOTH ANTENNA: PANTONE PROCESS BLACK BACKGROUND BEHIND BLUETOOTH: PANTONE PROCESS WHITE ALL OTHER GRAPHICS: PANTONE COOL GRAY 2C 3. REFERENCE CAD MECHANICAL DOCUMENT 50110236-100 FOR DIE CUT AND MATERIAL SPECIFICATIONS. 4. LABEL TO MEET UL REQUIREMENTS FOR MARKING AND LABELING SYSTEMS, AND TO BE UL RECOGNIZED. PLACE UL RECOGNIZED LABEL INFORMATION ON EACH SMALLEST PACKAGING CONTAINER. THE PACKAGE LABELING TO INCLUDE: UL LOGO, SUPPLIER COMPANY TRADE MARK, SUPPLIER UL FILE NUMBER, SUPPLIER UL DESIGNATION, PER UL STANDARD REQUIREMENTS. 5. PRIOR TO MASS PRODUCTION, SAMPLE APPROVAL IS NEEDED ACCORDING TO HONEYWELL PPAP PROCESS. DETAIL DOCUMENT REQUIREMENTS ARE SPECIFIED ON HONEYWELL FORM L4-GLBL-LOG-1724, (LABELS APPLY TO LEVEL 2). FOR ASSISTANCE WITH THIS PROCEDURE, CONTACT THE HONEYWELL ISC GROUP FOR DOCUMENTATION AND FURTHER INSTRUCTIONS. PRELIMINARY 50123187-002 50123187-001 1980 Honeywell International Inc www .honeywellaidc.com Patents: www .hsmpats.com FCC ID: HD5-1981A IC: 1693B-1981A BAT-SCN01 Use Honeywell International Inc Battery: 50123187-002 use on 1981i Cordless Only 2. COLORS: 50123186-002: LABEL 1981i LEFT SWOOSH : PANTONE 485 C (RED) THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIAL MATERIAL OF HONEYWELL INTERNATIONAL INC AND SHALL NOT BE REPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c REV#REV DESCRIPTION DESIGNED BY DATE ARTWORK LEVEL TITLE: A DRAWING NO: REV SCALE DO NOT SCALE SHEET 1 OF 1 DRAWING NO. DATE 50123186 RELEASE CORDED & CORDLESS AGENCY 50123186 A 01/05/15 D.FLETCHER 11/19/14 A CC# 2014-4591 NOTES REQUIRED FOR LABEL MANUFACTURER: 1. ROHS COMPLIANT INKS. SEE ENVIRONMENTAL SPECIFICATION DOCUMENT #500007391 BACKGROUND: DARK BLUE GRAY ALL OTHER GRAPHICS : PANTONE COOL GRAY 2C 3. REFERENCE CAD MECHANICAL DOCUMENT 50110234-100 FOR DIE CUT AND MATERIAL SPECIFICATIONS. 4. LABEL TO MEET UL REQUIREMENTS FOR MARKING AND LABELING SYSTEMS, AND TO BE UL RECOGNIZED. PLACE UL RECOGNIZED LABEL INFORMATION ON EACH SMALLEST PACKAGING CONTAINER. THE PACKAGE LABELING TO INCLUDE: UL LOGO, SUPPLIER COMPANY TRADE MARK, SUPPLIER UL FILE NUMBER, SUPPLIER UL DESIGNATION, PER UL STANDARD REQUIREMENTS. 5. PRIOR TO MASS PRODUCTION, SAMPLE APPROVAL IS NEEDED ACCORDING TO HONEYWELL PPAP PROCESS. DETAIL DOCUMENT REQUIREMENTS ARE SPECIFIED ON HONEYWELL FORM L4-GLBL-LOG-1724, (LABELS APPLY TO LEVEL 2). FOR ASSISTANCE WITH THIS PROCEDURE, CONTACT THE HONEYWELL ISC GROUP FOR DOCUMENTATION AND FURTHER INSTRUCTIONS. 6. CLEAR WINDOW. NO PRINTING THIS AREA. LABEL MATERIAL # “A” Format Artwork Template No. 500030434, REV A CC# 500000020919 PLASTIC TYPE OF HOUSING LABEL IS ADHERED TO PLASTIC HOUSING PART NUMBER ONE 50123186-002 50123186-002 use on 1981i Cordless Only LEXAN EXL9330 & VERSOLLAN RU2205-1 PRELIMINARY 1981i Barcode Scanner MODEL: 1981i Made in China Honeywell International Inc 6

EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo The End

For FCC Standalone SAR test exclusion considerations FCC ID: HD5-1981A Tunable Range F(GHz) Low F(GHz) High 2.402 2.480 According to KDB 447498 D01 General RF Exposure Guidance v05 4.3.1 Standalone SAR test exclusion considerations The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Note: when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Based on the Maximum measured transmitter power: Pout Conducted (dBm) Maximum Antenna Gain (dBi) P out EIRP (mW) 6.82 1.8 7.28 Maximum TX Power is 4.81 mW Conducted and 7.28 mW EIRP [(7.28 mW/5 mm)* √2.480(GHz)]=2.29 <3.0 Conclusion: Bluetooth SAR was not required.

Test Report FCC Part15 Subpart C Product Name : Barcode Scanner Model No. : 1981i FCC ID : HD5-1981A IC : 1693B-1981A Applicant : Honeywell International Inc Address : 9680 old Bailes Rd Fort Mill SC29707 South Carolina United States Date of Receipt : Jan. 16, 2015 Test Date : Jan. 16, 2015~ Jan. 22, 2015 Issued Date : Jan. 30, 2015 Report No. : 14C0587R-RF-US-P06V01 Report Version : V 1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 14C0587R-RF-US-P06V01 Page: 2 of 104 Test Report Certification Issued Date : Jan. 30, 2015 Report No. : 14C0587R-RF-US-P06V01 Product Name : Barcode Scanner Applicant : Honeywell International Inc Address : 9680 old Bailes Rd Fort Mill SC29707 South Carolina United States Manufacturer : 1. Honeywell International Inc 2. Metro(Suzhou)Technologies Co.,Ltd Address : 1. 9680 old Bailes Rd Fort Mill SC29707 South Carolina United States 2. No.221 Xinghai street China-Singapore Suzhou Industrial Park Model No. : 1981i FCC ID : HD5-1981A IC : 1693B-1981A EUT Voltage : DC: 5.0 V Trade Name : Honeywell Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2014 ANSI C63.10: 2013 ANSI C63.4:2014 RSS-Gen (Issue 4), November 2014 RSS-210 (Issue 8), December 2010 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : Reviewed By : Approved By : Report No.: 14C0587R-RF-US-P06V01 Page: 3 of 104 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC Japan :VCCI Report No.: 14C0587R-RF-US-P06V01 Page: 4 of 104 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................... 8 1.1. EUT Description ......................................................................................................... 8 1.2. Mode of Operation ................................................................................................... 10 1.3. Tested System Details .............................................................................................. 11 1.4. Configuration of Tested System ............................................................................... 12 1.5. EUT Exercise Software ............................................................................................ 13 2. Technical Test ........................................................................................................... 14 2.1. Summary of Test Result ........................................................................................... 14 2.2. Test Environment ..................................................................................................... 15 3. Conducted Emission ................................................................................................ 16 3.1. Test Equipment ........................................................................................................ 16 3.2. Test Setup ................................................................................................................ 16 3.3. Limit .......................................................................................................................... 17 3…
