Granit™ XP 1991i Cordless Industrial Area-Imaging Scanner Quick Start Guide 1991-EN-QS-01 Rev (a) 12/19 - 1 Agency Model: 1991iSR and 1991iMR+ Note:Refer to your User Guide for information about cleaning your device. Getting Started Turn off computer’s power before connecting the scanner, then power up the computer once the scanner is fully connected. When the base is connected and powered up, put the scanner in the base to establish a link. The green LED on the base flashes to indicate the scanner’s battery or charge pack is charging. Power Supply Assembly (if included) Note:The power supply must be ordered separately, if needed. - 2 Connecting the Base USB: Note:If you are charging the scanner using the USB cable, the current available for charging is reduced and charge times are increased. Charging via the power supply is faster. 3 Keyboard Wedge: 4 RS232 Serial Port: 5 Reading Techniques The view finder projects an aiming beam that should be centered over the bar code, but it can be positioned in any direction for a good read. Note:If the scanner beeps 3 times when scanning a bar code, the link has not been established. If the scanner beeps once, the link has been established. Standard Product Defaults The following bar code resets all standard product default set- tings. Standard Product Defaults 6 USB Serial Scan the following code to program the scanner to emulate a regular RS232-based COM Port. Apple® Macintosh computers recognize the scanner as a USB CDC class device and automati- cally use a class driver. Note:No extra configuration (e.g., baud rate) is necessary. USB PC Keyboard Scan the following code to program the scanner for a USB PC Keyboard. If you are using a Microsoft® Windows® PC, you must download a driver from the Honeywell website. The driver will use the next available COM Port number. USB Serial USB PC Keyboard 7 Keyboard Country Scan the appropriate country code below to program the key- board layout for your country or language. By default, national character replacements are used for the following characters: #$@[\]^‘{|}~ Refer to the ISO 646 Character Replacements chart in your User Guide to view the character replacements for each country. USA (Default) Belgium Denmark Finland France Germany/Austria 8 Note:For a complete list of country codes, see the User Guide for your product. Locked Link If you link a scanner to a base using the Locked Link Mode, other scanners are blocked from being linked if they are inad- vertently placed into the base. If you do place a different scan- ner into the base, it will charge the scanner, but the scanner will not be linked. Great Britain Italy Norway Spain Switzerland Locked Link Mode (Single Scanner) 9 To use a different scanner, you need to unlink the original scan- ner by scanning the Unlink Scanner bar code. Override Locked Scanner If you need to replace a broken or lost scanner that is linked to a base, scan the Override Locked Scanner bar code with a new scanner, and place that scanner in the base. The locked link will be overridden; the broken or lost scanner’s link with the base will be removed, and the new scanner will be linked. Unlinking the Scanner If the base has a scanner linked to it, that scanner must be unlinked before a new scanner can be linked. Once the previous scanner is unlinked, it will no longer communicate with the base. Scan the Unlink Scanner bar code to unlink a scanner. Override Locked Scanner Unlink Scanner 10 Trigger The following bar codes will allow you to use the scanner in Manual Trigger - Normal Mode (need to press the trigger to read) or Presentation mode (the scanner is activated when it “sees” a bar code). Note:Presentation Mode continuously draws power, so use of the external power supply is recommended for this mode. Streaming Presentation™ When in Streaming Presentation mode, the scanner leaves the scan illumination on all the time and continuously searches for bar codes. Manual Trigger - Normal (Default) Presentation Mode Streaming Presentation Mode 11 Suffix If you want a carriage return after the bar code, scan the Add CR Suffix bar code. To add a tab after the bar code, scan the Add Tab Suffix bar code. Otherwise, scan the Remove Suffix bar code to remove the suffixes. Add Code ID Prefix to all Symbologies Scan the following bar code if you wish to add a Code ID prefix to all symbologies at once. Note: For a complete list of Code IDs, see the User’Guide for your product. Add CR Suffix Add Tab Suffix Remove Suffix Add Code ID Prefix To All Symbologies (Temporary) 12 Function Code Transmit When this selection is enabled and function codes are con- tained within the scanned data, the scanner transmits the func- tion code to the terminal. Charts of these function codes are provided in your User Guide. When the scanner is in keyboard wedge mode, the scan code is converted to a key code before it is transmitted. EZConfig for Scanning To access additional features for the scanner, use EZConfig for Scanning, an online configuration software tool, available from our website. Support To search our knowledge base for a solution or to log into the Technical Support portal and report a problem, go to www.hsmcontactsupport.com. Product Documentation Product documentation is available at www.honeywellaidc.com. Enable (Default) Disable Page 1 1991-ML-RS-01 Rev (a) Granit XP 1991iSR and 1991iXR Industrial Area-Imaging Scanner Agency Model: 1991i Product documentation is available at www.honeywellaidc.com. La documentation sur le produit est disponible à www.honeywellaidc.com. La documentation du produit est disponible sur le site www.honeywellaidc.com. La documentazione sul prodotto è disponibile sul sito www.honeywellaidc.com. Die Produktdokumentation ist unter www.honeywellaidc.com verfügbar. La documentación del producto está disponible en www.honeywellaidc.com. La documentación del producto está disponible en www.honeywellaidc.com. A documentação do produto está disponível em www.honeywella…

Text truncated - open the document above for the full version.

HONEYWELL INTERNATIONAL INC Date: 2020-04-02 Federal Communications Commission Authorization and Evaluation Division FCC ID: HD5-1991A ATTESTATION FCC ID: HD5-1991A Product: Barcode Scanner Model: 1991i We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Michael Robinson / [email protected] HONEYWELL INTERNATIONAL INC

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Supplier’s Declaration of Conformity Per Fcc Part 2 Section 2.1077(a) In accordance with FCC Rules and Regulations Product Name/description: Barcode Scanner Regulatory Model: 1991i Specific Order Numbers (SKU): Trademark: the equipment specified above complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Honeywell International Inc Honeywell Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 United States www.honeywellaidc.com Signature: Name: Cindy Jiang Title: Compliance Manager Date: 2020-04-03

HONEYWELL INTERNATIONAL INC We Name: HONEYWELL INTERNATIONAL INC Address: 9680 Old Bailes Rd, Fort Mill, SC 29707-7539, USA Country: USA Declare that: Agent Company name: DEKRA Testing and Certification (Suzhou) Co., Ltd. Address: No.99 Hongye Rd., Suzhou Industrial Park , City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Barcode Scanner Type designation: 1991i Trademark: Honeywell FCC ID: HD5-1991A IC ID： 1693B-1991A on our behalf. Date: 2020-04-02 Name: Michael Robinson Function: Product Compliance Signature: Notes: Required for FCC & IC application

HONEYWELL INTERNATIONAL INC Date：2020-04-02 Federal Communications Commission Authorization and Evaluation Division FCC ID: HD5-1991A Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Michael Robinson / [email protected] HONEYWELL INTERNATIONAL INC

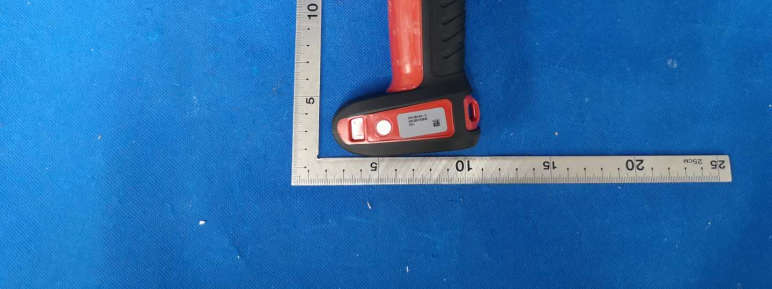

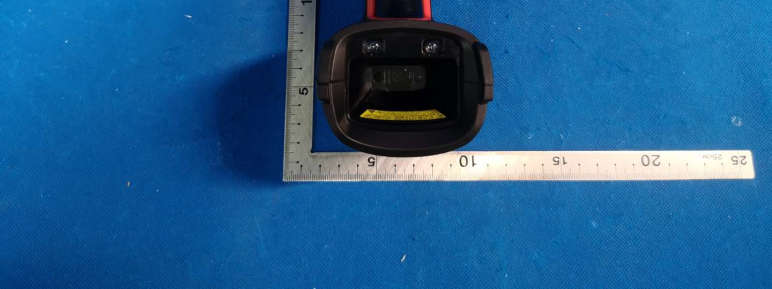

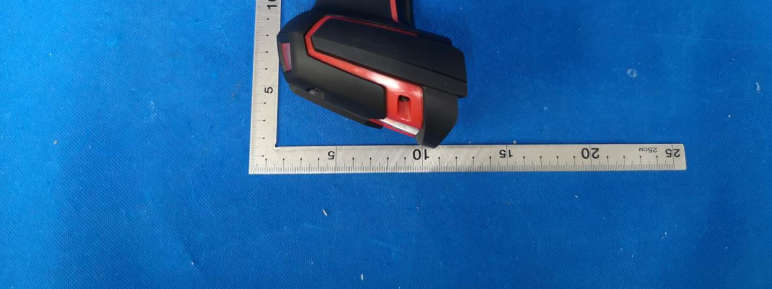

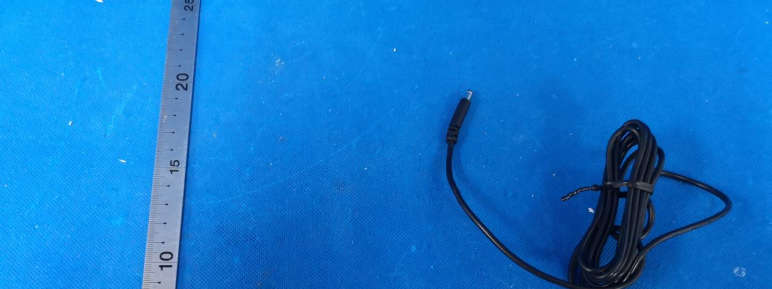

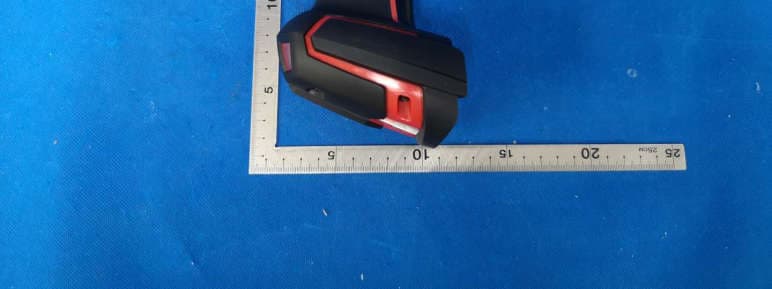

Page: 1 of 10 (1) EUT Photo （ short distance scanner ） (2) EUT Photo （ short distance scanner ） Page: 2 of 10 (3) EUT Photo （ short distance scanner ） (4) EUT Photo （ short distance scanner ） Page: 3 of 10 (5) EUT Photo （ short distance scanner ） (6) EUT Photo （ short distance scanner ） Page: 4 of 10 (7) EUT Photo （ long distance scanner ） (8) EUT Photo （ long distance scanner ） Page: 5 of 10 (9) EUT Photo （ long distance scanner ） (10) EUT Photo （ long distance scanner ） Page: 6 of 10 (11) EUT Photo （ long distance scanner ） (12) EUT Photo （ long distance scanner ） Page: 7 of 10 (13) EUT Photo (14) EUT Photo Page: 8 of 10 (15) EUT Photo (16) EUT Photo Page: 9 of 10 (17) EUT Photo (18) EUT Photo Page: 10 of 10 (19) EUT Photo (20) EUT Photo
