Dolphin® 7300 Hand Held Computer User’s Guide Patents The IMAGETEAM 4250 image engine is covered by one or more of the following U.S. Patents: 3,991,299; 4,570, 057; 5,021,642; 5,038,024; 5,081,343; 5,095,197; 5,144,119; 5,144,121; 5,182,441; 5,187,355; 5,187,356; 5,218,191; 5,233,172; 5,258,606; 5,286,960; 5,288,985; 5,420,409; 5,463,214; 5,541,419; 5,569,902; 5,591,956; 5,723,853; 5,723,868; 5,773,806; 5,773,810; 5,780,834; 5,784,102; 5,786,586; 5,825,006; 5,837,985; 5,838,495; 5,900,613; 5,914,476; D400,199; 5,292,418; 5,932,862; 5,942,741; 5,949,052; 5,965,863; 5,992,744; 6,045,047; 6,060,722. Other U.S. and foreign patents pending. Disclaimer Hand Held Products, Inc. d/b/a Welch Allyn (“HHP”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Welch Allyn to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of Welch Allyn. Welch Allyn shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This document contains proprietary information which is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Welch Allyn.  2001-2002 Hand Held Products, Inc. All rights reserved. Web Address: www.hhp.com i • • • • • • Table of Contents Chapter 1 Introduction ............................................................... 1 Safety..................................................................................................2 Required Safety Labels.........................................................2 FCC Compliance...................................................................2 Regulatory and Safety Agency Approvals......................................3 Batteries..............................................................................................3 Care and Cleaning of the Dolphin...................................................4 Chapter 2 Getting Started........................................................... 5 Peripherals and Accessories for the Dolphin..................................5 Image Engine Options and Bar Code Symbologies Supported.....6 Using Dolphin 7300 for the First Time............................................7 Navigating the Keyboard......................................................9 Chapter 3 Dolphin® 7300 Overview ....................................... 15 System Features...............................................................................15 Processor..............................................................................15 Operating System................................................................15 Memory................................................................................15 Front Panel Features.......................................................................16 LEDs.....................................................................................16 1/8 VGA Display..................................................................16 ON/SCAN Key.....................................................................17 Cursor Key...........................................................................17 Audio Signals.......................................................................17 Keyboard..............................................................................17 Back Panel Features........................................................................19 Imaging Engine....................................................................19 Battery Well.........................................................................20 Hand Strap...........................................................................20 Battery Charging Contacts.................................................20 Communication................................................................................20 Micro-DB9 RS-232 Port......................................................20 IrDA Port.............................................................................20 Power................................................................................................20 5 VDC Port..........................................................................20 Batteries................................................................................20 Internal NiHM Backup Battery.........................................21 Main Battery Pack...............................................................21 ii • • • • • • Managing Battery Power................................................................21 Setting Critical and Low Battery Points...........................22 Using the Power Control Panel..........................................22 Servicing the Battery Pack.................................................23 Storing Batteries..................................................................24 Chapter 4 Learning to Operate Dolphin® 7300....................... 25 Entering Data...................................................................................25 Via the Touch screen Input................................................25 Via the Keyboard.................................................................25 Using the Image Reader......................................................25 Communication................................................................................27 Communication Media........................................................27 Software Communication Programs.................................27 Using the Keyboard.........................................................................28 Using the Cursor Keys.............…

Text truncated - open the document above for the full version.

51 • • • • • • Dolphin® QuadCharger The Dolphin® QuadCharger provides intelligent battery management for NiMH (Nickel Metal Hydride) Dolphin battery packs. The charger fully charges as many as four NiMH batteries in 2.5 hours. Charging slots work independently to control charging and discharging of individual battery packs. The QuadCharger is compatible with all models in the Dolphin® family of hand held computers. As battery packs charge, the charging circuitry uses a three-step process that senses changes in temperature and voltage and drops to a trickle charge when the packs are fully charged. This feature allows the user to leave batteries in the charger indefinitely, which maintains the batteries at peak capacity without damage. The charger also resets and calibrates battery pack data to accurately show battery status on the Dolphin display. The QuadCharger also conditions and calibrates batteries for longer, more consistent performance. Dolphin QuadCharger Parts and Function Top Panel Charging Pocket Status LEDs Status LEDs Condition Switch & Condition LED Power Switch & Power LED 6 52 • • • • • • Charging Pocket The QuadCharger has four charging pockets for charging and/or conditioning batteries for your Dolphin terminal. Power Switch Press and hold the Power Switch for approximately one second, then release, to turn on the Dolphin QuadCharger. The Power Switch LED is green when the unit is on. To turn the charger off, press and hold the Power Switch for about two seconds and then release. This feature prevents the unit from being accidently turned off during use or on when not in use. Condition Switch Press the Condition Switch to start a battery conditioning cycle. The orange Conditon Switch LED flashes during the conditioning cycle. Status LEDs A Status LED is located above each of the four battery pockets. Rear Panel Power Supply Connector Use this connector to attach a power supply to the Quad Charger. The universal power supply accepts input voltages between 90-265 volts. Communications Port The communications port is for factory use only in programming the Quad Charger. Rear Panel of Dolphin Quad Charger Power Supply ConnectorCommunications Port 53 • • • • • • Charging Batteries In The QuadCharger Follow these steps to charge batteries in the QuadCharger: 1. Set up the charger for use 2. Supply power 3. Insert batteries CAUTION: Do not attempt to recharge any battery pack in the Dolphin QuadCharger that is not manufactured by HHP especially for this device. To do so will void your warranty and could damage the Dolphin QuadCharger. Setting Up The QuadCharger The Dolphin QuadCharger should be setup on any dry, stable surface. DIN rail slots on the bottom panel allow the charger to be wall or desktop-mounted for easily adapting the unit to your environment. The charger must be connected to a power source for any type of operation. Supplying Power To The QuadCharger CAUTION: Using a non-HHP power cord voids your warranty and could result in serious damage to the Dolphin QuadCharger’s circuitry. Locate the AC power cord that came with the Dolphin QuadCharger. Plug the cord into the power supply connector on the back of the unit and, then plug the power cord into a wall socket. Press and hold the Power Switch for approximately one second, then release, to turn on the Dolphin QuadCharger. The GREEN power LED will illuminate and the charger will undergo a self-diagnostic test. Inserting and Removing Battery Packs To insert a battery pack, place the end of the battery without the locking tab into the bottom of the charging pocket and snap the battery into place with a hinging motion. Once the battery is properly seated, the orange status LED for that particular pocket will illuminate. For best results, battery packs should be at room temperature before recharging them; temperature has a marked effect on charging. The recommended temperature range is 50° to 95° F (10° to 35° C). The LEDs indicate the charging status of batteries as described in the chart shown on the next page: 54 • • • • • • To remove a battery pack, push the locking tab down and pull the battery out from the charging pocket with a hinging motion. Servicing The Battery Pack To service battery packs, insert batteries into the charging pockets and press the Condition button. The Condition LED will flash during the conditioning cycle. This starts an automatic process where batteries are completely discharged and then recharged to full capacity in eight hours. The Condition and Calibrate cycle resets and calibrates battery data so that the user gets longer, more consistent performance from the batteries. HHP recommends that battery packs should be serviced, or calibrated once a month. Because the Dolphin QuadCharger is accumulating battery pack information during the entire Condition and Calibrate cycle, it is important not to remove the battery until the cycle has been completed and the Condition LED is no longer flashing. Batteries inserted after the “Condition and Calibrate” switch has been depressed will receive a standard charge. The chart below describes the Status LEDs during the Condition and Calibrate cycle: Status LEDDescription Green Charging is complete and battery is ready for service. Orange Battery is being charged at a maximum charge rate Red Error was encountered during charge cycle Status of LEDs during Charging Cycle Status LEDDescription Solid Green Cycle is complete. Battery remains in trickle charge until removed from the charger. Flashing OrangeBattery is being conditioned Solid RedError was encountered during charge cycle Status of LEDs during Condition and Calibrate Cycle 55 • • • • • • Storing Batteries To maintain top performance from batteries, follow the guidelines below when storing them: Avoid storing batteries outside of the specified range of -4 to 104° F ( -20 to 40°C) or in extremely high humidity. For prolonged storage, do not keep batteries stored in a charger that is connected to a …

Text truncated - open the document above for the full version.

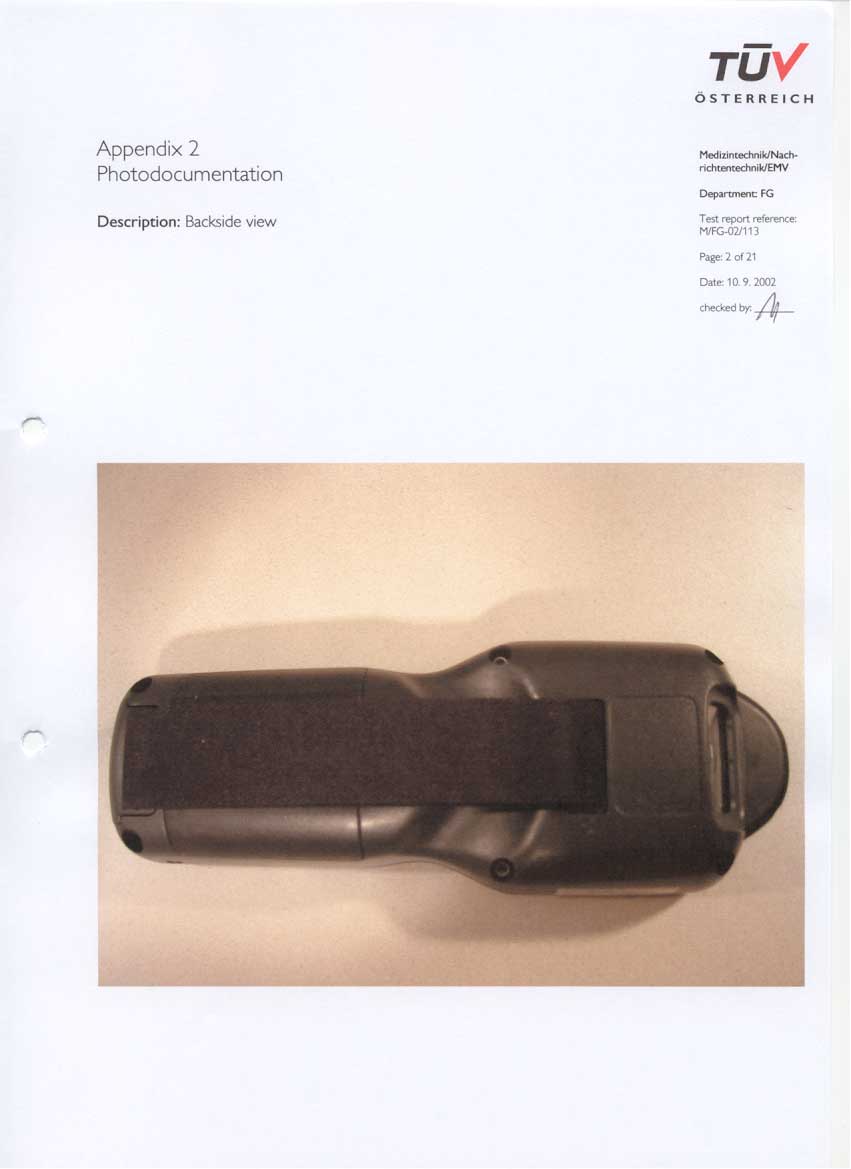

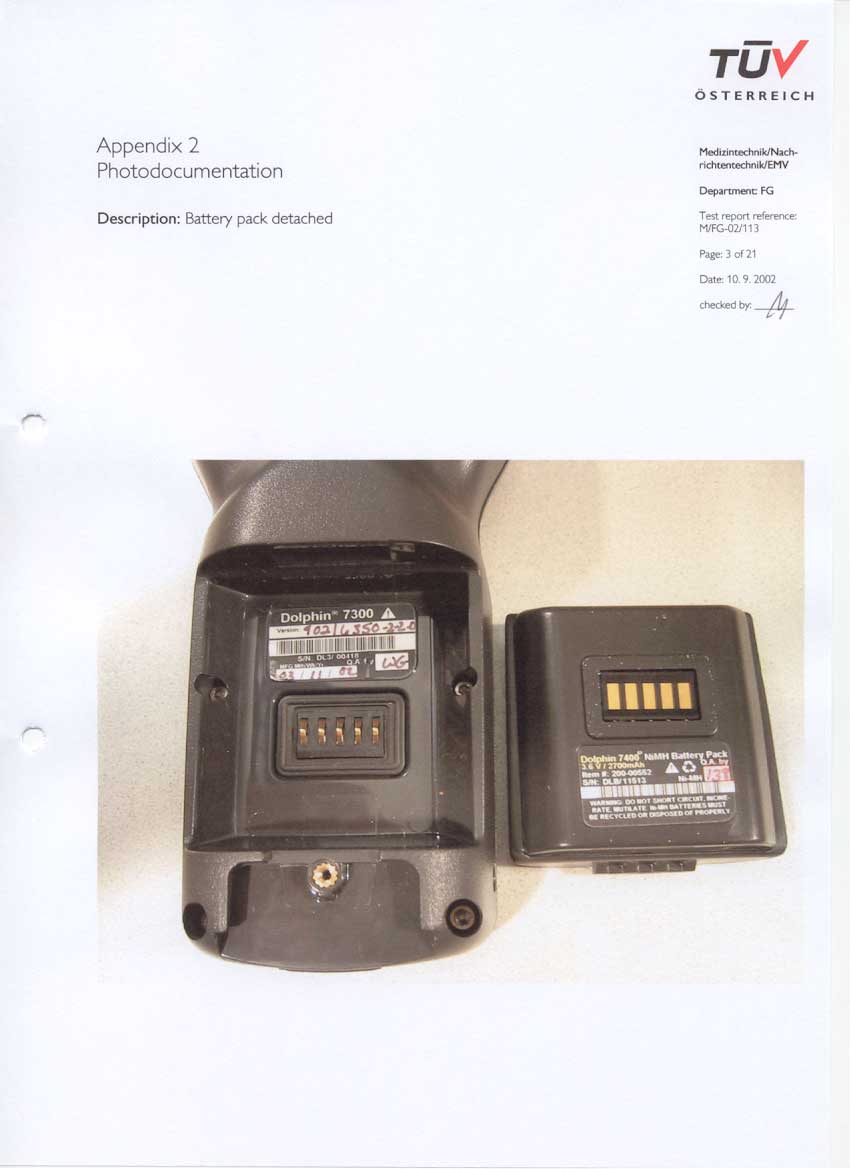

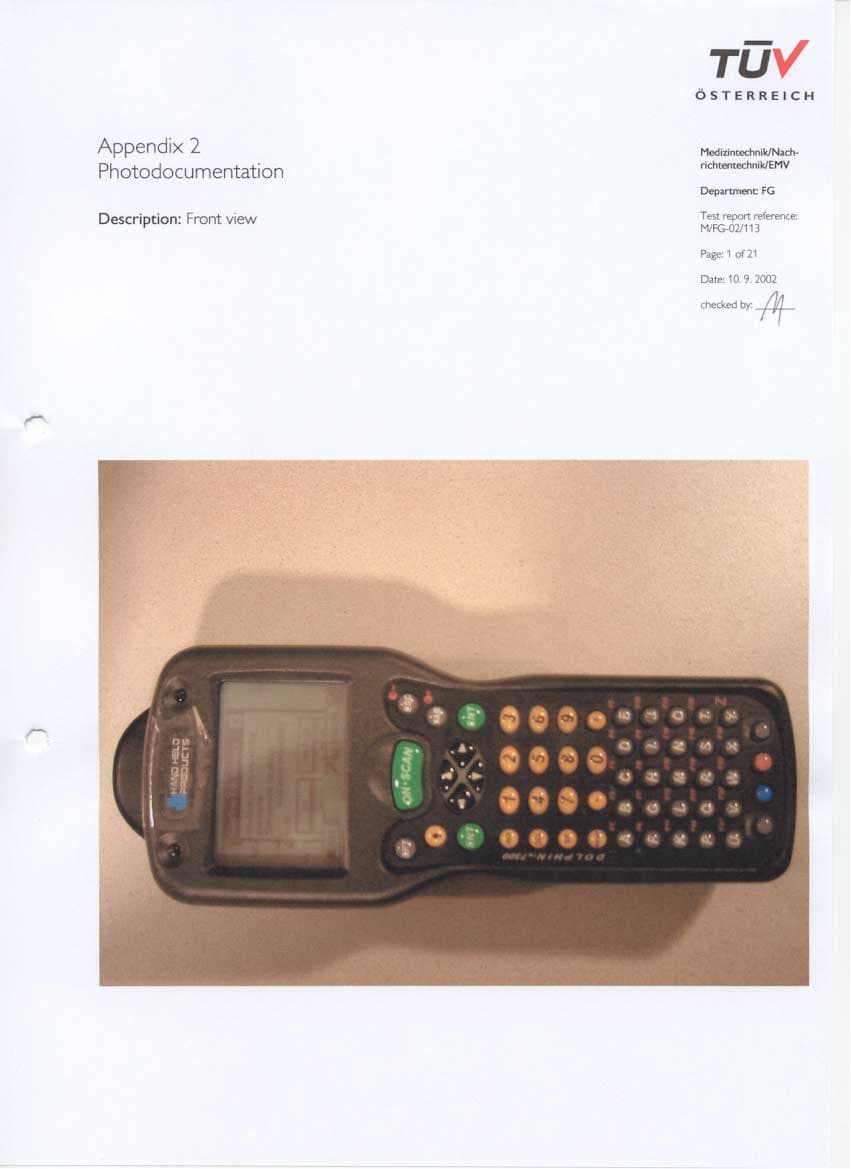

1 - 1 1 Introduction Congratulations on the purchase of your new Dolphin® 7300 hand held computer. You have made a wise choice in selecting the Dolphin, a device known worldwide for its ergonomic shape, light weight and single-handed data collection features. Built to last, the Dolphin’s ruggedly built case houses a 206MHz RISC processor and Microsoft® Windows® CE™ operating system that is easily programmable with standard programming tools, like Microsoft® Windows® CE™ eMbedded Visual Tools, which includes eMbedded Visual C/C++® and eMbedded Visual Basic®. The terminal provides ample, secure storage for data and applications with its 32 MB RAM and 32 MB FLASH memory configuration. Dolphin is one of the most durable devices available, and is designed to withstand repeated five-foot drops onto a concrete floor. It also resists extreme temperatures, humidity levels and dust conditions. The Dolphin’s collection of features also includes: long-lasting Nickel Metal Hydride (NiMH) batteries, an easy-to-read 240 x 160 1/8 VGA backlit display that can display text or graphics, a natural scan and viewing angle, a low-power, high-resolution digital image engine for omni-directional and auto-discrimination decoding of linear barcodes, Stacked Linear and matrix codes and provides OCR (Optical Character Recognition) functionality. Load up the Dolphin with your custom software application and the ultimate data collection solution for your business fits in the palm of your hand. The Dolphin 7300 Handheld Computer/HomeBase™ User Guide is designed to provide you with the information you need to make the most of your new Dolphin terminal. Sections on the basics, safety, battery use, accessories, and service make this guide a complete source of information. 7300-UG Rev d Preliminary Document -- Subject to Change 1 - 2 Safety The Dolphin 7300 hand held computer meets or exceeds the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to know the possible risks. The following safety guidelines are designed to protect both you and others around you. Please read them carefully before using your Dolphin terminal. Required Safety Labels The following is the the required safety label as it appears on the back panel of Dolphin 7300 batch terminals: If Your Dolphin 7300 has a radio The Dolphin® 7300 RF terminal is designed to comply with the most current applicable standards on safe levels of RF energy developed by the Institute of Electrical and Electronics Engineers (IEEE) and the American National Standards Institute (ANSI) and has been recommended for adoption by the Federal Communications Commission (FCC). The following is the the required safety label that appears on the back panel of the Dolphin 7300 RF terminals equipped with a Intel® PRO/Wireless 2011B LAN radio: 1 - 3 FCC Compliance Dolphin 7300 Batch Terminal and Dolphin 7300 RF Terminal with Intel ® PRO/Wireless 2011B Radio The Dolphin 7300 complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. Devices may not cause harmful interference. 2. Devices must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: "Something About Interference." This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system. In accordance with FCC 15.21, changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canadian Compliance This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Regulatory and Safety Agency Approvals ParameterSpecification U.S.A. Canada Europe Others FCC Part 15, Class B IEC 0003 EN 55022 (CISPR22) Class B EMC 89/336/EEC EN 50082-1:1997, EN55024 1 - 4 The CE mark on the product indicates that the system has been tested to and conforms with the provisions noted within the 89/ 336/EEC Electromagnetic Compatibility Directive and the 73/23/EEC Low Voltage Directive. For further information please contact, HHP EMEA Nijverheidsweg 9 Eindhoven , 5627 BT Netherlands Hand Held Products sha…

Text truncated - open the document above for the full version.

Symbol Technologies, Inc. 13 December 2001 John Roman INTEL Corporation 5200 N.E. Elam Young Parkway Hillsboro, OR 97124 RE: Change in Identification Authorization – FCC ID H9PLA4137 Dear Mr. Roman: This letter grants authorization for INTEL to apply to the FCC for a change in identification as Specified under 47CFR2.933 of the FCC rules. This authorization applies to the Symbol Technologies Inc. Spectrum 24 Compact Flash radio FCC ID H9PLA4137 grant pending. This equipment is electrically identical the only change is the labels on the device. The original test results continue to be representative of and applicable to the changed equipment. The original grant to Symbol Technologies Inc. will remain in effect. If there are any questions about this authorization, please contact me at (561) 487-1718. Sincerely, Mark S. Luksich Sr. Manager Regulatory Phone: (561) 487-1718 Email: [email protected] SYMBOL TECHNOLOGIES, INC. 7900 Glades Road, Suite 600, Boca Raton FL 33434. (561) 487-1718. Fax (561) 483-3922

PC000514-10 THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIALTHESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIAL MATERIAL OF HAND HELD PRODUCTS, INC. AND SHALL NOT BEMATERIAL OF HAND HELD PRODUCTS, INC. AND SHALL NOT BE REPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALEREPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c REV#REV#REV DESCRIPTIONREV DESCRIPTION DESIGNED BY DESIGNED BY DATEDATE ARTWORK LEVEL ARTWORK LEVEL TITLE: TITLE: AA DRAWING NO: DRAWING NO: REVREV SCALESCALE DO NOT SCALEDO NOT SCALE SHEET SHEET 11 OF OF 11 DRAWING NO. DRAWING NO. DATE DATE A PC000514ART10 RELEASE LABEL, 7300 W/ INTEL RADIO PC000514ART10 A ONE ECN#ECN# 25JUL02 D. FLETCHER 06/06/02 Notes: 1. Colors: Pantone Process Black: Background Pantone Process White: All text and graphics 2. Reference Drawing : PC000514 REV B All dash numbers on this art will use tool for HHP part number 70001089 Tested to Comply With FCC Standards Made in USA of US & imported parts. No user serviceable parts. Opening voids warranty. US and foreign patents pending. FCC ID: HD5-7300-2011B Hand Held Products, Inc. !! 0408 Tested to Comply With FCC Standards Made in USA of US & imported parts. No user serviceable parts. Opening voids warranty. US and foreign patents pending. FCC ID: HD5-7300-2011B Hand Held Products, Inc. !! 0408 Scale 2X 244157

1365 Adams Court Menlo Park, CA 94025 Symbol Technologies, Model No. LA-4137Date of Test: April 1 to May 24, 2001 FCC ID: H9PLA4137P File: 2046983D1Version 1.0Page 2 of 55 15.247 Direct Sequence Table of Contents 1.0Summary of Tests.................................................................................................................................3 2.0General Description.............................................................................................................................4 2.1Product Description..................................................................................................................4 2.2Related Submittal(s) Grants.....................................................................................................4 2.4Test Facility...............................................................................................................................5 3.0System Test Configuration..................................................................................................................6 3.1Support Equipment and description.........................................................................................6 3.2Block Diagram of Test Setup...................................................................................................6 3.3Justification...............................................................................................................................7 3.4Software Exercise Program.......................................................................................................7 3.5Mode of Operation During Test...............................................................................................7 3.6Modifications Required for Compliance..................................................................................7 4.0Measurement Results...........................................................................................................................8 4.1Conducted Output Power at Antenna Terminals......................................................................8 4.26 dB RF Bandwidth..................................................................................................................9 4.3Power Density.........................................................................................................................13 4.4Out-of-Band Conducted Emissions........................................................................................22 4.5Out-of-Band Radiated Emissions...........................................................................................45 4.6Transmitter Radiated Emissions in Restricted Bands............................................................46 4.7AC Line Conducted Emission.................................................................................................50 4.8Radiated Emissions from Digital Section of Transceiver (Transmitter)................................52 4.9Radiated Emissions from Receiver Section of Transceiver (L.O. Radiation)........................53 5.0 List of test Equipment........................................................................................................................54 6.0Document History...............................................................................................................................55 1365 Adams Court Menlo Park, CA 94025 Symbol Technologies, Model No. LA-4137Date of Test: April 1 to May 24, 2001 FCC ID: H9PLA4137P File: 2046983D1Version 1.0Page 4 of 55 15.247 Direct Sequence 2.0General Description 2.1Product Description The Symbol Technologies model LA-4137 is a 2.4 GHz Direct Sequence Spread Spectrum radio in the form of a PC Card that is used for wireless communication form a LAN to remote wireless devices. This device is used in a portable configuration and can be located close to personnel. Antennas are mounted in pairs for diversity. Overview of WLAN Compact Flash Card Model: LA-4137 ApplicantSymbol Technologies Trade Name & Model No.Symbol Technologies, LA-4137 FCC IdentifierH9PLA4137P Use of ProductWireless LAN communications Manufacturer & Model of Spread Spectrum Module Symbol Technologies Type of TransmissionDirect Sequence Spread Spectrum Rated RF Output89 mW, 19.5 dBm Frequency Range2412 - 2462 Number of Channel(s)11 Antenna(s) & Gain, PCB Chip, Model Trilogy CF, 2 dBi Antenna Requirement [X] The EUT uses a permanently connected antenna. [ ] The antenna is affixed to the EUT using a unique connector which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. [ ]The EUT requires professional installation (attach supporting documentation if using this option). Manufacturer name & addressSymbol Technologies 6480 Via Del Oro San Jose, CA 95119-1208 2.2Related Submittal(s) Grants None. 1365 Adams Court Menlo Park, CA 94025 Symbol Technologies, Model No. LA-4137Date of Test: April 1 to May 24, 2001 FCC ID: H9PLA4137P File: 2046983D1Version 1.0Page 5 of 55 15.247 Direct Sequence 2.3Test Methodology Radiated emissions measurements were performed according to the procedures in ANSI C63.4 (1992). Radiated tests were performed at an antenna to LA-4137 distance of 3 meters, unless stated otherwise in the "Data Sheet" of this Application. All other measurements were made in accordance with the procedures in part 2 of CFR 47. 2.4Test Facility The open area test site and conducted measurement facility used to collect the radiated data is site 2 located in Menlo Park, California. This test facility and site measurement data have been fully placed on file with the FCC. 1365 Adams Court Menlo Park, CA 94025 Symbol Technologies, Model No. LA-4137Date of Test: April 1 to May 24, 2001 FCC ID: H9PLA4137P File: 2046983D1Version 1.0Page 6 of 55 15.247 Direct Sequence 3.0System Test Configuration 3.1Support Equipment and description Item #DescriptionModel No.Serial No.FCC ID 1Compaq Lap…

Text truncated - open the document above for the full version.

LA-4137 Processing Gain Calculations Page 1 of 4 Processing Gain Calculation Symbol Technologies LA-4137 WLAN Compact Flash Card Norman H. Nelson, Sr. EMC Engineer June 18, 2001 Symbol calculated the processing gain from the jamming margin of the LA-4137 transceiver as specified in 15.247 (e)(2). Test Setup The purpose of the jamming test is to determine how effective the modulation, coding and decoding is at rejecting the corrupting influence of a CW jammer signal. Where as most setups us a BER to generate data and count errors because the modulator chip architecture prevents injecting data after chipping, Symbol chose to use another LA- 4121 as the transmitter and data generator. A link between the transmitter and receiver is made and path loss adjusted so that the BER is 10E-5. The path loss is then reduced by 10 dB so that the BER approaches zero. Finally a jamming signal is combined with the transmitted signal to degrade the system performance. The jamming signal amplitude is then adjusted to the point that the BER is degraded to 10E-5. The relationship between PER and BER is as follows. In order to get a good packet we need 8 x 1024 good bits. Stated mathematically. 1-PER = (1-BER) (8*24) . Or BER=1-(1- PER) (1/(8*1024)) . Jamming Margin Test Setup ATE Controller Mini Tower PC Signal Generator GPIB Power Meter GPIB GPIB GPIB Step Attn (50 dB) RS-232 RX Card Laptop (PER Receiver) TX Card Laptop (PER Generator) Fixed Attn (20 dB) RS-232 The major blocks of the jamming margin test are a transmitter, a receiver, and a jammer. The TX card formats and transmits packets of data consisting of 1024 bytes LA-4137 Processing Gain Calculations Page 2 of 4 each. The RX card then attempts to read each packet. The Signal Generator provides the jamming signal. The splitters combine the TX and jammer signals and provide a port to measure the power levels within the RF link. The PER Generator Laptop controls the transmit card and the PER receiver laptop controls the receiver. The ATE PC automates the test by controlling the two laptops, the Signal Generator, and the power meter. Software blocks The key to this test is three software programs Packet Generator (PG), Packet Counter (PC), and Jam Margin Controller (JMC). The first to work together to form the PER measurement system and the last to control the jammer, the power meter, and the other two software blocks. Packet Generator runs on the PG Laptop and controls the transmit card. A trigger on the serial port line commands the TX card to generate and transmit 1000 packets of 1024 bytes at a specified data rate. Packet Counter runs on the PER receiver laptop and queries the RX card for the number of packets it has received. A trigger on the serial port causes the Packet Counter to report the number of packets to the ATE Controller and reset the Packet Counter to zero. The Packet counter automatically detects the data rate of the incoming packet stream. The other Jamming Margin Controller (JMC) runs on the ATE PC and controls the Signal Generator, the Power Meter, and PGAC running on the Dual Slot laptop. PG commands the TX card to transmit a set of 1000 packets of 1024 bytes of data. The RX card receives the packets and PC sends the number of good packets received to the serial port. The functional purpose is the same as a BER meter. A new set is run every time a new trigger is received on the serial port from JMC. JMC controls the jammer, the power meter, and the Dual Slot program. JMC se…
