HD5-CK62X00Mobile Computer

CK62 Series Mobile Computer powered by Android™ Quick Start Guide CK62-A-EN-QS-01 Rev A 05/24 DRAFT - 5/24/24 1 Out of the Box Make sure that your shipping box contains these items: • CK62 Mobile Computer (Model CK62X00 or CK62X10) • Rechargeable 3.6 V Li-ion battery • Product documentation If you ordered accessories for your mobile computer, verify that they are also included with the order. Be sure to keep the original packaging in case you need to return the mobile computer for service. Note:CK62X00 models do not include a WWAN radio. Memory Card Specifications Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD™ or microSDHC™ memory cards with ScanPal mobile computers for maximum performance and durability. Contact a Honeywell sales representative for additional information on qualified memory card options. DRAFT - 5/24/24 2 Mobile Computer Features Microphone Power Indicator Touch Panel Scan Button Scan Engine Scan Indicator Power Button Keyboard (model dependent) DRAFT - 5/24/24 3 Camera Flash/Flashlight (model dependent) Micro SIM Card and MicroSD Card Cover (battery removed) Laser Safety Label Location I/O Connector Speaker Battery Battery Latch and Button USB Port Hand Strap (optional accessory) Scan Button DRAFT - 5/24/24 4 Install a Micro SIM Card For CK62X10 (WWAN) models only. Either a nano-SIM card or embedded SIM (eSIM) is used to activate the phone and connect to a mobile network. eSIM is available on select models only. Refer to the user guide for additional information. Note:Always power off the computer before attempting to install or remove a card. 1 2 3 4 5 DRAFT - 5/24/24 5 Install a microSD Card (Optional) Note:Format the microSD card before initial use. Note:Always power off the computer before attempting to install or remove a card. 1 2 3 DRAFT - 5/24/24 6 About the Battery The CK62 ships with a Li-ion 3.6 V battery manufactured for Honeywell International Inc. Before you attempt to use, charge or replace the battery in the device, carefully read all labels, markings and product documentation provided in the box or online at sps.honeywell.com. To learn more about Battery Maintenance for Portable Devices, go to honeywell.com/PSS-BatteryMaintenance. Avant d’essayer d’utiliser, de charger ou de remplacer la batterie de l’appareil, lisez attentivement toutes les étiquettes, marquages et documentation du produit fournis dans la boîte ou en ligne à sps.honeywell.com. Pour en savoir plus sur l’Entretien de Batteries pour Appareils Portables, consultez-le honeywell.com/ PSS-BatteryMaintenance. We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty. Nous recommandons l’utilisation de batteries Li-ion de la marque Honeywell. L’utilisation d’une batterie d’un autre fabricant est susceptible de provoquer des dommages non couverts par la garantie. DRAFT - 5/24/24 7 Install the Battery Ensure all components are dry prior to placing the battery in the computer. Mating wet components may cause damage not covered by the warranty. Assurez-vous que tous les composants sont secs avant d’insérer la batterie dans l’ordinateur. L’insertion de composants humides risque de provoquer des dommages non couverts par la garantie. 1 2 DRAFT - 5/24/24 8 Install Hand Strap (Optional Accessory) 1 2 3 4 DRAFT - 5/24/24 9 Charge the Mobile Computer The CK62 mobile computer ships with a partially charged battery. Charge the battery with an CK62 charging device for a minimum of 5 hours. Note:Using the computer while charging the battery increases the time required to reach a full charge. If the mobile computer is drawing more current than supplied by the charging source, charging will not take place. CK62 mobile computers are designed for use with the following CK62 charging accessories: Home Base, Quad charger, and USB Cable. For information about accessories, see the CK62 Series Enterprise Mobile computer Accessories Guide at sps.honeywell.com. We recommend the use of Honeywell accessories and power adapters. Use of any non-Honeywell accessories or power adapters may cause damage not covered by the warranty. Nous recommandons d’utiliser des accessoires et des adaptateurs secteur de marque Honeywell. L’utilisation de tout accessoire ou adaptateur secteur d’une autre marque est susceptible de provoquer des dommages non couverts par la garantie. Ensure all components are dry prior to mating the computers and batteries with peripheral devices. Mating wet components may cause damage not covered by the warranty. Assurez-vous que tous les composants sont secs avant de raccorder les ordinateurs et les batteries à des périphériques. L’insertion de composants humides risque de provoquer des dommages non couverts par la garantie. DRAFT - 5/24/24 10 Turn Power On/Off The first time you power on the computer, a Welcome screen appears. You can either scan a configuration barcode or use the Wizard to manually set up the computer. Once setup is complete, the Welcome screen no longer appears on startup and Provisioning mode (see page 14) is automatically turned Off (disabled). To turn the computer On: •Press and hold the Power button for approximately 3 seconds, and then release. To turn the computer Off: 1.Press and hold the Power button until the options menu appears. 2.Touch Power off. Note:You should always power Off the computer before removing the battery. Remove the Battery 1 2 3 DRAFT - 5/24/24 11 Battery Replacement Hot Swap You can replace the battery on demand provided the following conditions are met: • The computer has been powered on for at least 4 minutes. AND • You insert a new battery within 30 seconds. Screen Timeout The screen timeout (sleep mode) automatically turns the touch panel display Off and locks the computer to save battery power when the computer is inactive for a programmed period of time. 1.Press and release the Power button to wake the computer. 2.Drag the lock icon toward the …

Text truncated - open the document above for the full version.

Page 1 CK62-ML-RS-01 Rev ACK62 Handheld Computer Agency Models: CK62X00, CK62X10 Publicly downloadable certificates are available at honeywell.com/PSScompliance. Les certificats téléchargeables accessibles au public sont disponibles à honeywell.com/PSScompliance. Les certificats téléchargeables publiquement sont disponibles sur honeywell.com/PSScompliance. I certificati pubblicamente scaricabili sono disponibili sul sito Web honeywell.com/PSScompliance. Zertifikate stehen unter honeywell.com/ PSScompliance öffentlich zum Download zur Verfügung. Hay certificados descargables disponibles públicamente en honeywell.com/PSScompliance. Puede descargar los certificados de acceso público en honeywell.com/PSScompliance. Certificados disponíveis ao público para download em: honeywell.com/PSScompliance. 㥵꨽Ⱆ䒓♴鲿涸霆⛼霼霄꡼ honeywell.com/PSScomplianceկ 㥶꨾〳ⰗꟚ♴鯺涸阮剅锞鸤鏞 honeywell.com/PSScompliance ծכ鏾僇剅ז〳腉س٦ٗٝؐتח♧菙 honeywell.com/PSScompliance דⵃ欽〳 կׅד腉 뫃맪헏픊옪삲풂옪슪많쁳핆흫컪쁢 honeywell.com/PSScompliance 펞컪묺쿦핖킃삖삲 .       honeywell.com/PSScompliance. الشهادات القابلة للنزيل ماحة للعامة عل الموقع honeywell.com/PSScompliance. Product documentation is available at sps.honeywell.com. La documentation sur le produit est disponible à sps.honeywell.com. La documentation du produit est disponible sur le site sps.honeywell.com. La documentazione sul prodotto è disponibile sul sito sps.honeywell.com. Die Produktdokumentation ist unter sps.honeywell.com verfügbar. La documentación del producto está disponible en sps.honeywell.com. La documentación del producto está disponible en sps.honeywell.com. A documentação do produto está disponível em sps.honeywell.com. ❡ᄩ俒咓霼⿬錛 sps.honeywell.comկ 欴ᄩ俒⟝꧌锞⿮鋅 sps.honeywell.com כزًُٝؗس醡ᄩ sps.honeywell.com կׅדⵃ欽〳腉ד 헪컲졓컪쁢sps.honeywell.com 펞컪핆쿦핖킃삖삲 .            sps.honeywell.com. ر وثائق المنج عل الموقع الال ّ ت&وف .sps.honeywell.com Caution: Any changes or modifications made to this equipment not expressly approved by Honeywell International Inc. may void the authorization to operate this equipment. MISE EN GARDE : Tout changement ou modification apporté(e) à cet équipement qui n'est pas expressément approuvé(e) par Honeywell International Inc. peut annuler l'autorisation d'utiliser cet équipement. Mise en garde : tous les changements ou les modifications apportés à cet équipement non expressément approuvés par Honeywell International Inc. peuvent annuler l'autorisation d'utiliser cet équipement. Attenzione: qualsiasi variazione o modifica apportata a questa apparecchiatura, non espressamente approvata da Hone y well International Inc., potrebbe annullare l'autorizzazione concessa all'utente per utilizzare l'apparecchiatura. Vorsicht: Von Honeywell International Inc. nicht ausdrücklich genehmigte Veränderungen an diesem Gerät können dazu führen, dass die Betriebsgenehmigung für dieses Gerät erlischt. Precaución: Cualquier modificación o cambio realizado en este equipo, no expresamente aprobado por Honeywell International Inc., puede anular la autorización para utilizar este equipo. Precaución: cualquier cambio o modificación a este equipo que no esté expresamente aprobado por Honeywell International Inc. puede invalidar la autorización para usarlo. Atenção: qualquer alteração ou modificação não aprovada expressamente pela Honeywell International Inc. neste equipamento poderá invalidar a autorização de operá-lo. 岤䠑 㼆劥霃㢊鵳遤⟣⡦劢絑 Honeywell International Inc. 僈烁 ⲥ雽涸刿佖䧴⥝佖〳腊⠔⢪乼⡲ 劥霃㢊涸䱇勉㣟佪կ 岤䠑 ⳝ劢竤 Honeywell International Inc. 僈焷ⲥ鏪示乲荈 隶刿䧴佖鸤劥鏤⪔罏〳腋搂奚ⱄ 乽⡲劥鏤⪔ 陨デ : Honeywell International ךֿծח׃ז䪫钠ז僇爙涸ךInc. ֿծה׷ׅ何㢌כ׋ת堣㐻׾㢌刿 זח搀⸬ָ׷埄ꣲׅ堣㐻׾乼⡲ך կׅת׶ָ֮׷㜥さ 훊픦 : Honeywell International Inc. 펞픦킲킇핆픒짩힎팘픎 짷쩣픊옪쫆핳찒읊쪎몋쏞쁢 맪혾쁢몋푾핳찒읊핟솧쿦핖쁢 킇핆핂�콚쇮쿦핖킃삖삲 .  !               Honeywell International Inc.        "     . تحذير: قد تؤدي أي تغييرات أو تعديلات عل هذا ال78از غ4ر مصادق عليها من شركة .Honeywell International Inc إل إلغاء ترخ4ص تشغيل هذا ال78از. For body worn operation, this device has been tested and meets the limits regarding human exposure to electromagnetic radiation set forth in related FCC, IC and CE rules, guidelines and standards for use with the following body worn accessory: hand strap. Use of other accessories may not ensure compliance with the mentioned rules. Fonctionnement près du corps: ce dispositif a été testé et s'avère conforme aux règles et lignes directrices des normes FCC, IC et EC, relatives aux limites d'une exposition humaine sécuritaire au rayonnement électromagnétique pour une utilisation près du corpsde l'accessoire suivant: sangle pour les mains. L'utilisation d'autres accessoires peut ne pas assurer la conformité avec les règles mentionnées. 802.11 Caution: A Wireless Network Administrator should review the operating restrictions and use with a properly configured access point. Models: CK62X00 FCC Part 15 Subpart B Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try…

Text truncated - open the document above for the full version.

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com 120623-17 rev 9 Certification Application Attestation Statements Date: July 22, 2024 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ______ Honeywell International Inc______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ______ Honeywell International Inc______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☑ - is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates – see KDB 986446 Question 5) as an entity producing “covered” equipment. Thank you, By: __________________________ Cindy Jiang (Signature 2 ) (Print name) 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead. Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com 120623-17 rev 9 Title: Global Regulatory Compliance Manager Company: Honeywell International Inc Telephone: +86(512)82258162

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com U.S. Agent Designation for Service of Process (Applicant is Both Grantee and U.S. Agent) TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: HONEYWELL INTERNATIONAL INC FRN #: 0022970339 Grantee Code: HD5 Contact Name: Cindy Jiang Street Address: 9680 Old Bailes Rd City/Province/Zip: Fort Mill/ South Carolina/ 29707 Telephone No: +86(512)82258162 Email: [email protected] Applicant Signature 1 : Date: 2024-07-15 Signed by (Printed Name/Title): Cindy Jiang/ Global Regulatory Compliance Manager 1 - Letters must be placed on appropriate letterhead. The signee for the applicant must be one of the following: Applicant (grantee) contact of record in the FCC’s authorization system, or authorized officers or employee of the applicant (grantee).

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Letter of Declaration on Indoor Client (6XD) Operation Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: HD5-CK62X00 To Whom It May Concern We, Honeywell International Inc (Address: 9680 Old Bailes Rd. Fort Mill, SC 29707 United States), attest that this Indoor Client device complies with the following requirements of Part 15E of the FCC’s rules for 6G bands: Protocol attestation statement: 1) This device will only associate and connect with a low-power indoor access point or subordinate device and never directly connect to other client devices. 2) This device will always initiate transmission under the control of a low-power indoor AP or subordinate except for brief transmissions before joining a network. These short messages will only occur if the client has detected an indoor AP or subordinate operating on a channel. These brief messages will have a time-out mechanism such that if it does not receive a response from an AP and It will not continually repeat the request. 3) Transmissions will be lower or equal to the power advertised by the Indoor Client and never above the maximum output power allowed by the FCC grant for equipment class 6XD. Furthermore, we fully understand this device is prohibited for control of or communications with unmanned aircraft systems, including drones. Sincerely, _________________ Name: Cindy Jiang Title: Global Regulatory Compliance Manager Date: 22 July 2024

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com 061224-33a Request for Confidentiality Date: July 22, 2024 Subject: Confidentiality Request for: __FCC ID: _HD5-CK62X00_&_IC: 1693B-CK62X00 ______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term --------------------------- External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term --------------------------- Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual _____Honeywell International Inc ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __ (specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: (specify ISED expiration date / date of marketing) . Sincerely, 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com 061224-33a By: __________________________ Cindy Jiang (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Declaration of Authorization We Name: Honeywell International Inc Address: 9680 Old Bailes Rd. Fort Mill, SC 29707 United States Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Mobile Computer FCC ID: HD5-CK62X00 Model No.: CK62X00 Sincerely, ________________ Name: Cindy Jiang Title: Global Regulatory Compliance Manager Date: 22 July 2024

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Cover L etter Federal Communications Commission Authorization and Evaluation Division FCC ID: HD5-CK62X00 Please be notified that we, the undersigned, Honeywell International Inc declares that the product which bears the above FCC ID is also compliant with the FCC requirements for Supplier’s Declaration of Conformity(SDoC). And the SDoC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Cindy Jiang Title: Global Regulatory Compliance Manager Date: July 22, 2024

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Declaration letter We, Honeywell International Inc declares: For our business and marketing purpose, the product supports the following configures. All the configures use the same PCBA. They have the same schematics and PCB layout. Product information: Product Name: Mobile Computer Model: CK62X00 FCC ID: HD5-CK62X00 IC: 1693B-CK62X00 This product has 2 types’ scanners and 2 types’ keypads: Scanner S0703 S0803/N6803 Keypad Alpha Numeric Numeric Sincerely, _________________ Name: Cindy Jiang Title: Global Regulatory Compliance Manager Date: 09 August 2024

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Non-SDR (Software Defined Radio) Cover Letter Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Ye s - go to 2. No, not an SDR Ye s 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. No 3. Is the device capable of operating in any other way than granted, or will be, granted? Ye s , - go to 4. No - go to 5. No 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. No, must be an SDR. YES 5. Does the manufacturer elect SDR? Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Yes, elects to be an SDR. No, Not an SDR No Conclusion: According to the above questions reply, we can confirm this device (FCC ID: HD5-CK62X00 & IC: 1693B-CK62X00) must be a Non-SDR device. __________________ Name: Cindy Jiang Title: Global Regulatory Compliance Manager Date: 16 July 2024

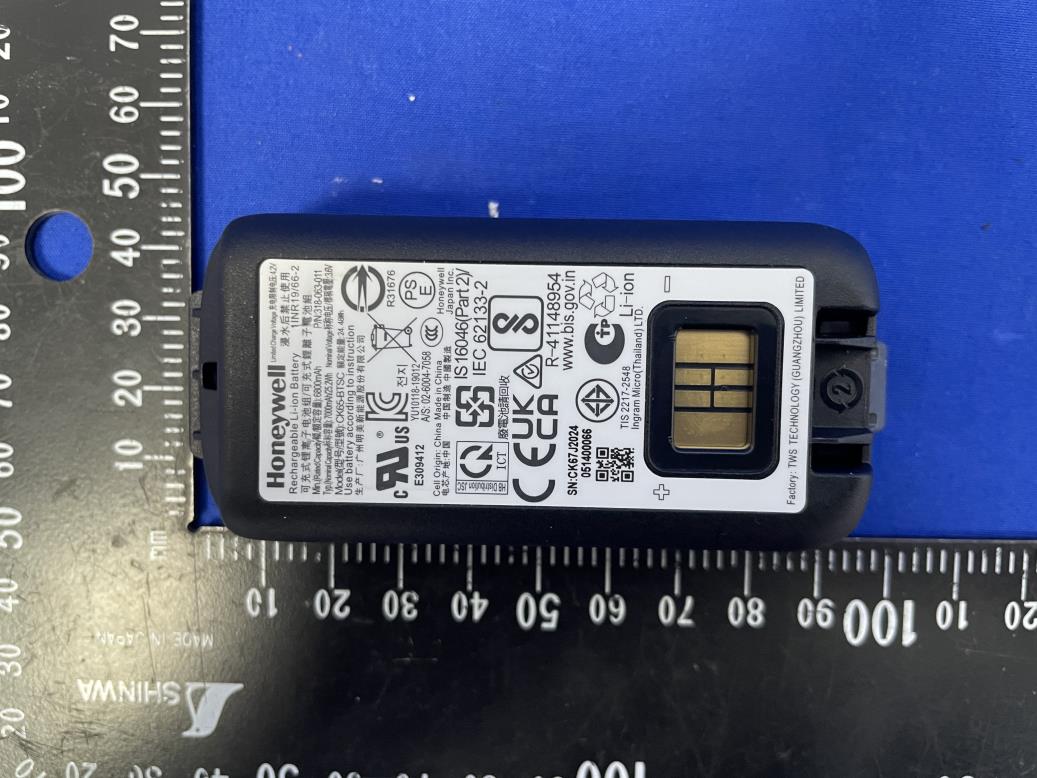

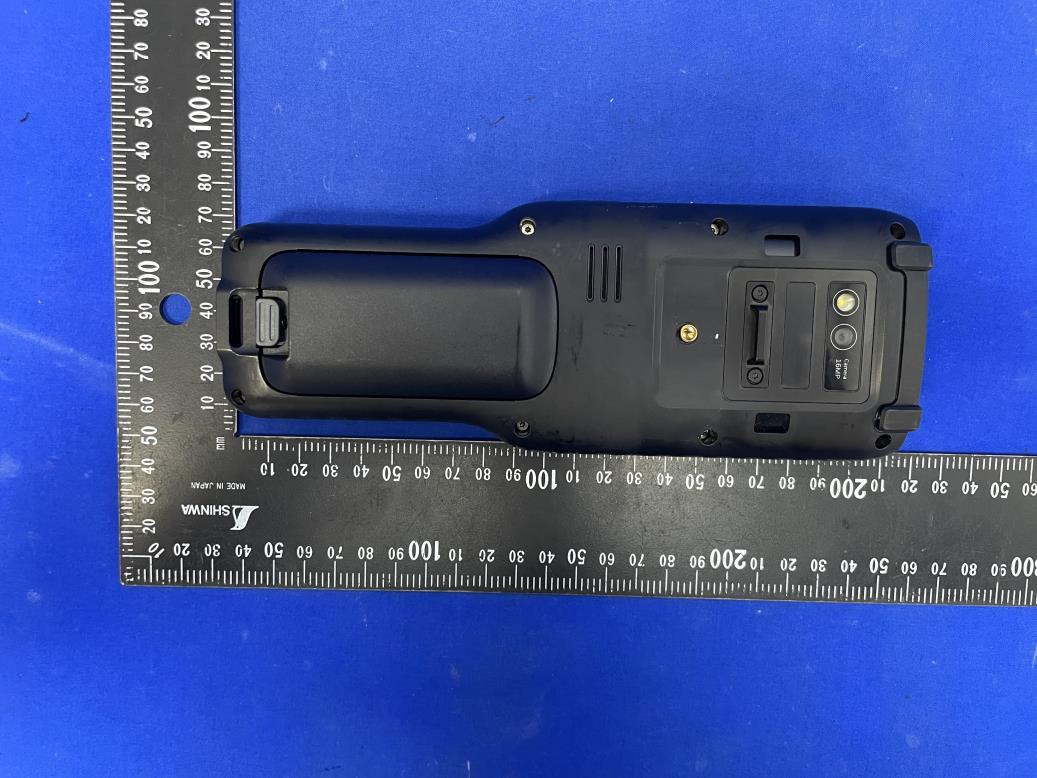

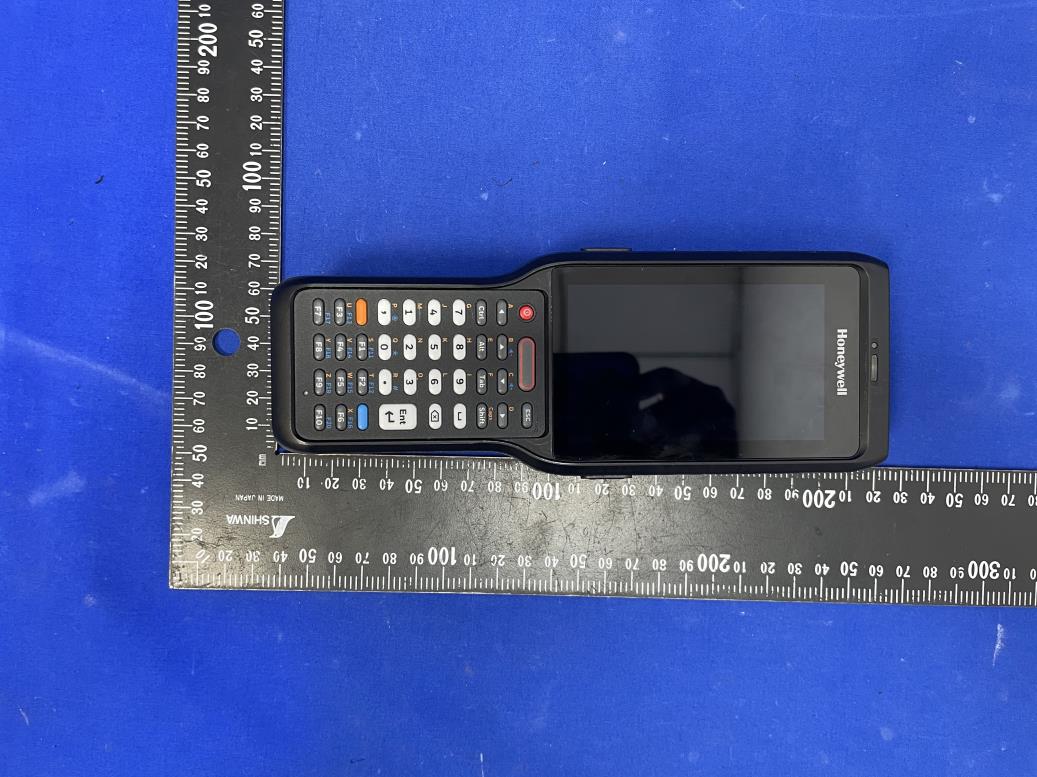

Report No.: 2406RSU006-UE 1 of 5 EUT Photograph (1) EUT Photo (Numeric Keyboard) (2) EUT Photo (Alpha Numeric Keyboard) Report No.: 2406RSU006-UE 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2406RSU006-UE 3 of 5 (5) EUT Photo (S0803/N6803 image engine) (6) EUT Photo (S0703 image engine) Report No.: 2406RSU006-UE 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 2406RSU006-UE 5 of 5 (9) EUT Photo

REV# REV DESCRIPTION DESIGNED BY D ATE TITLE: A DRAWING NO: REV SCALE DO NOT SCALE SHEET1 OF 1 DRAWING NO. DATE 3015-3119 LABEL,PRINTED, AGENCY, WLAN, CK62 3015-3119 3015-3119-001 A Aug.21/24 S 01 CC# THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIAL MATERIAL OF HONEYWELL INTERNATIONAL INC AND SHALL NOT BE REPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c NOTES REQUIRED FOR LABEL MANUFACTURER: 1. ROHS COMPLIANT INKS. SEE ENVIRONMENTAL SPECIFICATION DOCUMENT #500007391 2. PRINTING: ALL PRINTING BLACK SOLID FILL. USE SMEAR PROOF RIBBON APPROVED BY UL FOR THE LABEL MATERIAL. 3. RAW MATERIAL: 50152773-001 4. ALL INFO ENTERED AT THE TIME OF MANUFACTURE: SERIAL NUMBER BARCODE FORMAT SHOULD FOLLOW THE STANDARD SERIALIZATION PROCESS L3-MFG-039. S/N FORMAT/FIELDS: 2- DIGITS YR (01 TO 99) I.E 01 = 2001 3 DIGITS DAY OF YEAR (001 TO 365) I.E. 001 = JANUARY 1 1 CHARACTER LOCATION (A TO Z) I.E. A = HONEYWELL 4 DIGITS SEQUENTIAL SERIAL NUMBER I.E. RESETS TO 1 ON EACH DAY OF YEAR CHANGE 5. ALL LABELS: BARCODE OF S/N, DATE CODE: CODE 128 SUBSET B 3 MIL OR LARGER. Aug.21/24 4-R0.5 MODEL : CK62X00 Br and Owner: Honeywell International Inc sps.honeywell.com MADE IN CHINA Input: 5V 2A P/NXXXXXX-X-XXXXXXXX S/NXXXXXXXXXX M F D: YYYY MM D D 18 18 63 Pr oduct Name: Mobile Computer Marketing Prod. Series Name: CK62 Br and: Honeywell 型號 手持電腦 輸入 中國製造 Patent: www.hsmpats.com FCC ID: HD5-CK62X00 IC : 1693B-CK62X00 CAN ICES (B)/NMB (B) release ECN-00054101

Report No.: 2406RSU006-UE 1 of 8 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2406RSU006-UE 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2406RSU006-UE 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2406RSU006-UE 4 of 8 (7) EUT Photo (8) EUT Photo

Report No.: 2406RSU006-UE 5 of 8 (9) EUT Photo (10) EUT Photo Report No.: 2406RSU006-UE 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 2406RSU006-UE 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 2406RSU006-UE 8 of 8 (15) EUT Photo (16) (17) EUT Photo

Return Loss and Impedance Indicated By Head Tissue Meas. ItemsOriginal ValueCurrent ValueDeviation 5250MHz Return Loss(dB)-3 2.8-33.682.68% Impedance49.7Ω - 2.26jΩ49.97Ω+ 2.06jΩ 0.27Ω Real part 4.32Ω Imaginary part 5600MHz Return Loss(dB)-33.1-28.85-12.84% Impedance51.8Ω+ 1.33jΩ46.88Ω- 1.38jΩ -4.92Ω Real part -2.71Ω Imaginary part 5750MHz Return Loss(dB)-2 3.4-2 5.077.14% Impedance51.7Ω+ 6.68jΩ46.93Ω + 4.42jΩ -4.77Ω Real part -2.26Ω Imaginary part Test Date:2024/0 3/ 27 Return Loss and Impedance Indicated By Head Tissue Meas. ItemsOriginal ValueCurrent ValueDeviation Return Loss(dB)-33.8-30.5-9.76% Impedance51.1Ω- 1.7jΩ49.56Ω- 2.88jΩ -1.54Ω Real part -1.18Ω Imaginary part Test Date:2023/0 9/ 01

MRT Technology (Suzhou) Co., Ltd Report No.: 2406RSU006-U7 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2024-08-16 Template Version:0.0 1 of 113 SAR MEASUREMENT REPORT FCC ID: HD5-CK62X00 Applicant: Honeywell International Inc Honeywell Safety and Productivity Solutions Product: Mobile Computer Model No.: CK62X00 Brand Name: Honeywell FCC Rule Part(s): FCC 47 CFR Part 2.1093 Result: Complies Received Date: 2024-06-04 Test Date: 2024-07-12 ~ 2024-07-19 Reviewed By: Ada Zhang Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2406RSU006-U7 2 of 113 Revision History Report No. Version Description Issue Date Note 2406RSU006-U7 V01 Initial Report 2024-08-16 Valid Report No.: 2406RSU006-U7 3 of 113 CONTENTS Description Page 1. General Information ................................................................................................................................. 5 1.1. Applicant ........................................................................................................................................ 5 1.2. Manufacturer .................................................................................................................................. 5 1.3. Testing Facility ............................................................................................................................... 5 1.4. Product Information ........................................................................................................................ 6 1.5. Radio Specification under Test ...................................................................................................... 7 1.6. Antennas Details ............................................................................................................................ 8 2. Summary of Test Result .......................................................................................................................... 9 2.1. Test Standards ......................................................................................…

Text truncated - open the document above for the full version.
