HD5-CS19A1902 Bluetooth Area-Imaging Scanner

™ Xenon™ 1900/1902 Area-Imaging Scanner User’s Guide Preliminary Draft Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in speci- fications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not repre- sent a commitment on the part of HII. HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnish- ing, performance, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, repro- duced, or translated into another language without the prior written consent of HII. © 2010 Honeywell International Inc. All rights reserved. Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies and are the property of their respective owners. Web Address: www.honeywellaidc.com Microsoft® Windows®, Windows NT®, Windows 2000, Windows ME, Windows XP, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies and are the property of their respective owners. Preliminary Draft Product Agency Compliance - Xenon 1900 USA FCC Part 15 Subpart B Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radi- ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio or television technician for help. If necessary, the user should consult the dealer or an experienced radio/ television technician for additional suggestions. The user may find the fol- lowing booklet helpful: “Something About Interference.” This is available at FCC local regional offices. Honeywell is not responsible for any radio or television interference caused by unauthorized modifications of this equip- ment or the substitution or attachment of connecting cables and equipment other than those specified by Honeywell. The correction is the responsibil- ity of the user. Use only shielded data cables with this system. Caution: Any changes or modifications made to this equipment not expressly approved by Honeywell may void the FCC authorization to oper- ate this equipment. UL Statement UL listed: UL60950-1. Preliminary Draft Canada Industry Canada ICES-003 This Class B digital apparatus complies with Canadian ICES-003. Opera- tion is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Conformité à la règlementation canadienne Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. Son fonctionnement est assujetti aux conditions suivantes : 1. Cet appareil ne doit pas causer de brouillage préjudiciable. 2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le brouillage pouvant causer un fonctionnement indésirable. cUL Statement cUL listed: CSA C22.2 No.60950-1-03. Europe The CE marking indicates compliance to 2004/108/EC EMC Directive with Standards EN55022 CLASS B, EN55024, EN61000-3-2, EN61000-3-3. In addition, complies to 2006/95/EC Low Voltage Direc- tive, when shipped with recommended power supply. For further information please contact: Honeywell Imaging & Mobility Europe BV Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands Honeywell International Inc. shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive. Waste Electrical and Electronic Equipment Information Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PAR- LIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed. Preliminary Draft In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal. Those sys- tems will reuse or recycle most of the materials of the product you are dis- posing in a sound way. The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites y…

Text truncated - open the document above for the full version.

Honeywell Scanning & Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 May 21, 2009 TO WHOM IT MAY CONCERN: Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, Honeywell International Inc. requests confidentiality for the following products: FCC ID Number Product Model: title HD5-CS19A 1902: Xenon Bluetooth Wireless Area-Imager Scanner For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Parts List 4) Tune-up Procedure 5) Operational Description No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Honeywell International Inc. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. The Applicant understands that pursuant to Paragraph § 0.479, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Product Compliance - Imaging SBU [email protected] (315) 554-6387 telephone USA Michael Robinson Honeywell International Inc. Honeywell Scanning and Mobility 700 Visions Drive PO Box 208 Skaneateles Falls, NY 13153-0208 USA

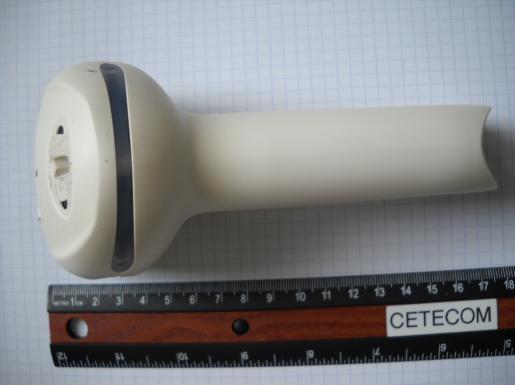

Test Report #: EMC_HONEY_032_10001_SC_Pic Date: 2010-05-21 Page 1 of 5 External Photos Fig.1: Front View Fig.2: Back View

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIAL MATERIAL OF HONEYWELL INTERNATIONAL INC AND SHALL NOT BE REPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c REV#REV DESCRIPTION DRAWING NO. DATE 500005406 RELEASE 04/30/10 A CC# 500000017660 DESIGNED BY DATE ARTWORK LEVEL TITLE: B DRAWING NO: REV SCALE DO NOT SCALE SHEET 1 OF 1 LABEL, 1902_AGENCY RADIO VERSION 500005406 A D.FLETCHER 11/12/09 MATERIAL # ONE 100002812, 100007293, 100007297 NOTES: 1. ROHS COMPLIANT INKS. SEE ENVIRONMENTAL SPECIFICATION DOCUMENT #500007391 3. REFERENCE PRO-E DOCUMENT 50005992 FOR DIE CUT AND MATERIAL SPECIFICATIONS. 4. L 2. COLORS: MATRL # 100002812 BACKGROUND: PANTONE PROCESS BLACK ALL GRAPHICS: PANTONE PROCESS WHITE MATRL # 100007293 BACKGROUND: HC BEIGE (TO MATCH RADEL NT15) L*89.185, A* .489, B*8.972 ALL GRAPHICS: DARK BLUE GRAY L* 35.40, A* -.68, B*-2.51 PANTONE PROCESS BLACK: BACKGROUND BEHIND BT PRETZEL PANTONE PROCESS WHITE: BT PRETZEL MATRL # 100007297 BACKGROUND: IVORY L* 80.22, A* -1.0, B* 3.86 ALL GRAPHICS: DARK BLUE GRAY L* 35.40, A* -.68, B*-2.51 PANTONE PROCESS BLACK: BACKGROUND BEHIND BT PRETZEL PANTONE PROCESS WHITE: BT PRETZEL ABEL TO MEET UL REQUIREMENTS FOR MARKING AND LABELING SYSTEMS, AND TO BE UL RECOGNIZED. PLACE UL RECOGNIZED LABEL INFORMATION ON EACH SMALLEST PACKAGING CONTAINER. THE PACKAGE LABELING TO INCLUDE: UL LOGO, COMPANY TRADE MARK, UL DESIGNATION, PER UL STANDARD REQUIREMENTS. 5. WINDOW TO REMAIN UNPRINTED ON ALL MATERIAL NUMBERS. 10007293 100007297 100002812 Honeywell International Inc www.honeywellaidc.com FCC ID: HD5-CS19A IC: 1693B-CS19A MODEL 1902 Barcode Scanner Battery Replacement & Disposal: See Manual Use Honeywell Battery: 3.7VDC Lithium Ion Honeywell International Inc www.honeywellaidc.com FCC ID: HD5-CS19A IC: 1693B-CS19A MODEL 1902 Barcode Scanner Battery Replacement & Disposal: See Manual Use Honeywell Battery: 3.7VDC Lithium Ion Honeywell International Inc www.honeywellaidc.com FCC ID: HD5-CS19A IC: 1693B-CS19A MODEL 1902 Barcode Scanner Battery Replacement & Disposal: See Manual Use Honeywell Battery: 3.7VDC Lithium Ion WINDOW WINDOW WINDOW 9 4 J 8 E89891 9 4 J 8 E89891 9 4 J 8 E89891 Scanner Label Location

Test Report #: EMC_HONEY_032_10001_SC_Pic Date: 2010-05-21 Page 2 of 5 Internal Photos Fig.3: Internal view-1 Fig.4: Internal View-2 Test Report #: EMC_HONEY_032_10001_SC_Pic Date: 2010-05-21 Page 3 of 5 Fig.5: Internal View-3 Fig.6: Internal View-4 Test Report #: EMC_HONEY_032_10001_SC_Pic Date: 2010-05-21 Page 4 of 5 Fig.7: PCB View-1 Fig.8: PCB View-2 Test Report #: EMC_HONEY_032_10001_SC_Pic Date: 2010-05-21 Page 5 of 5 Fig.9: PCB View-3

Bluetooth Qualification Test Facility (BQTF) FCC listed A2LA Accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC/IC Test Report FOR: Model Name: Xenon 1902 Bluetooth Area-Imaging Scanner FCC ID: HD5-CS19A IC ID: 1693B-CS19A 47 CFR Part 15.247 for FHSS Systems IC RSS-210 Issue 7 TEST REPORT #: EMC_HONEY_032_10001_SC_FCC15.247 DATE: 2010-5-20 Test Report #: EMC_ HONEY_032_10001_SC_FCC15.247 Date of Report : 2010-05-20 Page 2 of 53 TABLE OF CONTENTS 1 Assessment _____________________________________________________________________ 4 2 Administrative Data _____________________________________________________________ 5 3 Equipment under Test (EUT) ______________________________________________________ 6 4 Subject Of Investigation __________________________________________________________ 7 5 Measurements __________________________________________________________________ 8 5.1 Radiated Measurement Procedure ___________________________________________________ 8 5.2 Conducted Measurement Procedure __________________________________________________ 9 5.3 Maximum Peak Output Power _____________________________________________________ 10 5.3.1 Limits: ________________________________________________________________________________ 10 5.3.2 Test Conditions: ________________________________________________________________________ 10 5.3.3 Test Result: ____________________________________________________________________________ 10 5.3.4 Test Data/plots: _________________________________________________________________________ 11 5.4 Restricted Band Edge Compliance __________________________________________________ 17 5.4.1 Limits: §15.247/15.205 ___________________________________________________________________ 17 5.4.2 Test Data/plots: _________________________________________________________________________ 18 5.5 Spectrum Bandwidth/ 20dB Bandwidth ______________________________________________ 24 5.5.1 Limits: ________________________________________________________________________________ 24 5.5.2 Test Result: ____________________________________________________________________________ 24 5.5.3 Test Data/plots: _________________________________________________________________________ 25 5.6 Carrier Frequency Separation ______________________________________________________ 31 5.6.1 Limits: ________________________________________________________________________________ 31 5.6.2 Test Result: ____________________________________________________________________________ 31 5.6.3 Test Data/plot:__________________________________________________________________________ 31 5.7 Number of hopping channels _______________________________________________________ 32 5.7.1 Limits: ________________________________________________________________________________ 32 5.7.2 Test Result: ____________________________________________________________________________ 32 5.7.3 Test Data/plot:__________________________________________________________________________ 32 5.8 Time of occupancy (Dwell time) _____________________________________________________ 33 5.8.1 Limits: ________________________________________________________________________________ 33 5.8.2 Test Result: ____________________________________________________________________________ 33 5.9 Power Spectral Density (Hybrid system in Inquiry mode/ Page scan) ______________________ 33 5.9.1 Limits: § 15.247 (e) _____________________________________________________________________ 33 5.9.2 Test Result: ____________________________________________________________________________ 33 5.10 Transmitter Spurious Emissions- Conducted__________________________________________ 34 5.10.1 Limits: _____________________________________________________________________________ 34 5.10.2 Test Conditions: ______________________________________________________________________ 34 5.10.3 Test data/ plots: ______________________________________________________________________ 34 5.11 Transmitter Spurious Emissions- Radiated ___________________________________________ 37 5.11.1 Limits: _____________________________________________________________________________ 37 5.11.2 Limits: §15.209 ______________________________________________________________________ 37 5.11.3 Limits: §15.209 ______________________________________________________________________ 38 5.11.4 Test Result: _________________________________________________________________________ 38 5.11.5 Test data/ plots: ______________________________________________________________________ 39 Test Report #: EMC_ HONEY_032_10001_SC_FCC15.247 Date of Report : 2010-05-20 Page 3 of 53 5.12 Receiver Spurious Emissions- Radiated ______________________________________________ 43 5.12.1 Limits: §15.109 ______________________________________________________________________ 43 5.12.2 Test Conditions: ______________________________________________________________________ 43 5.12.3 Test Result: _________________________________________________________________________ 43 5.12.4 Test data/ plots: ______________________________________________________________________ 44 5.13 AC Power Line Conducted Emissions ________________________________________________ 45 5.13.1 Limits: §15.107/15.207 ________________________________________________________________ 45 5.13.2 Test Conditions: ______________________________________________________________________ 45 5.13.3 Test Result: _________________________________________________________________________ 45 5.13.4 Test data/ plots: __________________________________________…

Text truncated - open the document above for the full version.

Test Report #: EMC_HONEY_032_10001_SC_TestSetup Date: 2010-05-25 Page 1 of 3 1 Test Setup photos Radiated Setup (<1G) Radiated setup (1G-18G) Test Report #: EMC_HONEY_032_10001_SC_TestSetup Date: 2010-05-25 Page 2 of 3 Radiated setup (18G-26GHz) AC Line Conducted Emissions Setup Test Report #: EMC_HONEY_032_10001_SC_TestSetup Date: 2010-05-25 Page 3 of 3 Conducted Measurements
