HD5-CS22ANext Generation Honeywell Access Point

©2010 Honeywell International Inc. All rights reserved. ACC-PT-QS Rev (a) 4/10 Preliminary Draft 4/28/10 Access Point Quick Start Connecting the Access Point 1. Turn on the computer (laptop/desktop). 2. Plug the interface cable into the Access Point first and then into the appropriate port on the computer. The Page button lights up when the connection is made. Managing Connections Only one scanner may be linked to the Access Point at a time. To link a different scanner to the Access Point, use the new scan- ner to scan the Linking bar code on the Access Point. That unlinks the first scanner and links the second one. Connection Range The scanner is in communication with the Access Point even if it is not transmitting bar code data. If you take the linked scanner out of range of the Access Point, communication with the module will be lost and you will have to reconnect the scanner to the Access Point. To reconnect the scanner, scan the Linking bar code. Changing Batteries If the scanner turns off due to a low battery, you can change the battery without losing the link with the Access Point, pro- vided the scanner is in range. A few seconds after the scanner powers up, the scanner relinks to the module. Refer to your User’s Guide at www.honeywellaidc.com for additional information about charging the batteries. 3. Scan the linking bar code on the top of the Access Point to establish a connection between the Access Point and the scanner. The scanner emits a short beep and flashes the green LED to confirm a connection with the Access Point. The Access Point’s Page button remains blue. USB Connection: RS232 Connection: RS485 Connection: Keyboard Wedge Connection: Page button ©2010 Honeywell International Inc. All rights reserved. ACC-PT-QS Rev (a) 4/10 Preliminary Draft 4/28/10 Low Power Mode When there is no activity within a specified time period, the scanner enters a low power mode. The default time out period is one hour. Pull the scanner’s trigger to power the scanner back up. If the scanner was linked to the Access Point when it went to “sleep,” it will re-link as long as it is in range. If multiple scanners use the same Access Point, it is possible to inadvertently unlink a scanner that is in “sleep” mode, that has a dead battery, or is in the process of getting a new battery. To prevent this from happening, you can disable the sleep mode (time out) by scanning the No Time Out bar code below. Unlinking the Scanner from Access Point If you know that your scanner is not going to be used for a while, you can unlink the scanner by scanning the Unlink Scan- ner bar code below. Page Button When you press the Page button, the scanner associated with that Access Point will begin beeping (3 short and 1 long beep). If you pull the trigger on a scanner that is beeping in response, that scanner will stop beeping. Pressing the Page button a second time will also stop the scanner’s beeping. LED Dimmer Scan a bar code to set the brightness of your Page button. Adding Carriage Return Suffix If you want a carriage return (CR) to display after the bar code data on your output scan the Add CR Suffix bar code below. Scan the Remove Suffix bar code to remove the suffix. Standard Product Defaults This bar code resets all standard product default settings. Note: Resetting standard defaults disconnects the scanner from the Access Point. Scan the Linking bar code to re-establish a connection. Refer to your User’s Guide at www.honeywellaidc.com for additional information about product defaults. No Time Out (0) Unlink scanner Page button LED Dimmer OffLED Dimmer - Dim LED Dimmer - Bright Add CR Suffix Remove Suffix Standard Product Default Settings ©2010 Honeywell International Inc. All rights reserved. ACC-PT-QS Rev (a) 4/10 Preliminary Draft 4/28/10 Required Safety Labels Product Specifications Technical Assistance Contact information for technical support and product service can be found at www.honeywellaidc.com. ParameterSpecification Dimensions (Typical): Height 1.1 inch (28mm) Length 4.3 inches (109mm) Width 2.8 inches (71mm) Weight 2.3 ounces (66g) Voltage Requirements5 VDC + 0.5V Current Draw100mA @ 5 volts typical Temperature Ranges: Operating 32° F to +122° F (0° C to +50° C) Storage -40° F to +158° F (-40° C to +70° C) Radio: Frequency 2.4 to 2.5 GHz (ISM Band) Frequency Hopping Bluetooth v.2.1 Range 33 ft. (10 m) typical Data Rate 3MBps (2.1 MBps) HumidityUp to 95% non-condensing Mechanical Drop Operational after 50 drops from 3.28 feet (1 m) to concrete Vibration5G Peak from 22Hz to 300Hz ESD Sensitivity Up to 15kV direct air Up to 8 kV indirect coupling plane Label location for item number, serial number, revision information, compliance, and safety information ©2010 Honeywell International Inc. All rights reserved. ACC-PT-QS Rev (a) 4/10 Preliminary Draft 4/28/10 Product Agency Compliance USA FCC Part 15 Subpart B Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fol- lowing measures: •Reorient or relocate the receiving ant…

Text truncated - open the document above for the full version.

Honeywell Scanning & Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 May 21, 2009 TO WHOM IT MAY CONCERN: Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, Honeywell International Inc. requests confidentiality for the following products: FCC ID Number Product Model: title HD5-CS22A AP-010BT: Xenon Bluetooth Wireless Access point For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Parts List 4) Tune-up Procedure 5) Operational Description No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Honeywell International Inc. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. The Applicant understands that pursuant to Paragraph § 0.479, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Product Compliance - Imaging SBU [email protected] (315) 554-6387 telephone USA Michael Robinson Honeywell International Inc. Honeywell Scanning and Mobility 700 Visions Drive PO Box 208 Skaneateles Falls, NY 13153-0208 USA

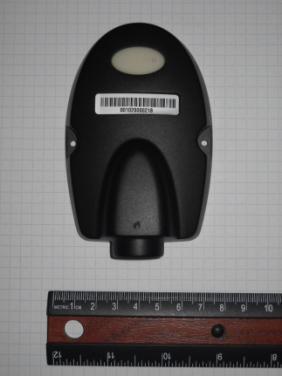

Test Report #: EMC_HONEY_032_10001_AP_Pic Date: 2010-05-21 Page 1 of 3 External Photos Fig.1: Top View Fig.2: Bottom View

NOTES 1. ALL PRINTING BLACK 2. 3. REFERENCE RAW LABEL STOCK # 100004703 (POLYESTER) SIZE: 1.84”W x 1.35”H BRADY LABEL TO USE BRADY R6002 RIBBON, 4. BLUETOOTH SYMBOL SHOULD CONTAIN A KEEP OUT AREA DEFINED AS A BOX ON EACH SIDE OF THE SYMBOL ½ THE HEIGHT OF THE SYMBOL. THE BOX IS NOT PRINTED. ROHS COMPLIANT INKS. SEE ENVIRONMENTAL SPECIFICATION DOCUMENT #500007391 REV#REV DESCRIPTION DESIGNED BY DATE TITLE: A DRAWING NO: REV SCALE DO NOT SCALE SHEET 1 OF 1 DRAWING NO. DATE 50002XXXX LABEL, ACCESS POINT 50002XXXX A 05/26/10 D.FLETCHER 05/26/10 A CC# 50000001XXXX X ½ X ½ X ½ X ½ X RELEASE ARTWORK LEVEL MATERIAL # ONE 20000XXXX THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIAL MATERIAL OF HONEYWELL INTERNATIONAL INC AND SHALL NOT BE REPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c 20000xxxx PRELIMINARY A BARCODE OF ITEM NO. PRINT CODE 128 SUBSET B 7 MIL MODEL: AP-010BT Honeywell International Inc www.honeywellaidc.com ITEM: S/N: DC: Rev: E89891 94J8 N10410 FCC ID: HD5-CS22A IC: 1693B-CS22A Made in USA Access Point Label Location

Test Report #: EMC_HONEY_032_10001_AP_Pic Date: 2010-05-21 Page 2 of 3 Internal Photos Fig.3: Internal view-1 Fig.4: PCB View-1 Test Report #: EMC_HONEY_032_10001_AP_Pic Date: 2010-05-21 Page 3 of 3 Fig.5 PCB View-2

Bluetooth Qualification Test Facility (BQTF) FCC listed: A2LA accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC/IC Test Report FOR: Model Name: AP-010BT Next Generation Honeywell Access Point FCC ID: HD5-CS22A IC ID: 1693B-CS22A 47 CFR Part 15.247 for FHSS Systems IC RSS-210 Issue 7 TEST REPORT #: EMC_HONEY_032_10001_AP_FCC15.247 DATE: 2010-05-20 Test Report #: EMC_ HONEY_032_10001_AP_FCC15.247 Date of Report : 2010-05-20 Page 2 of 53 TABLE OF CONTENTS 1 Assessment _____________________________________________________________________ 4 2 Administrative Data _____________________________________________________________ 5 3 Equipment under Test (EUT) ______________________________________________________ 6 4 Subject Of Investigation __________________________________________________________ 7 5 Measurements __________________________________________________________________ 8 5.1 Radiated Measurement Procedure ___________________________________________________ 8 5.2 Conducted Measurement Procedure __________________________________________________ 9 5.3 Maximum Peak Output Power _____________________________________________________ 10 5.3.1 Limits: ________________________________________________________________________________ 10 5.3.2 Test Conditions: ________________________________________________________________________ 10 5.3.3 Test Result: ____________________________________________________________________________ 10 5.3.4 Test Data/plots: _________________________________________________________________________ 11 5.4 Restricted Band Edge Compliance __________________________________________________ 17 5.4.1 Limits: §15.247/15.205 ___________________________________________________________________ 17 5.4.2 Test Data/plots: _________________________________________________________________________ 18 Lower band edge peak -GFSK modulation ___________________________________________________________ 18 5.5 Spectrum Bandwidth/ 20dB Bandwidth ______________________________________________ 24 5.5.1 Limits: ________________________________________________________________________________ 24 5.5.2 Test Result: ____________________________________________________________________________ 24 5.5.3 Test Data/plots: _________________________________________________________________________ 25 5.6 Carrier Frequency Separation ______________________________________________________ 31 5.6.1 Limits: ________________________________________________________________________________ 31 5.6.2 Test Result: ____________________________________________________________________________ 31 5.6.3 Test Data/plot:__________________________________________________________________________ 31 5.7 Number of hopping channels _______________________________________________________ 32 5.7.1 Limits: ________________________________________________________________________________ 32 5.7.2 Test Result: ____________________________________________________________________________ 32 5.7.3 Test Data/plot:__________________________________________________________________________ 32 5.8 Time of occupancy (Dwell time) _____________________________________________________ 33 5.8.1 Limits: ________________________________________________________________________________ 33 5.8.2 Test Result: ____________________________________________________________________________ 33 5.9 Power Spectral Density (Hybrid system in Inquiry mode/ Page scan) ______________________ 33 5.9.1 Limits: § 15.247 (e) _____________________________________________________________________ 33 5.9.2 Test Result: ____________________________________________________________________________ 33 5.10 Transmitter Spurious Emissions- Conducted__________________________________________ 34 5.10.1 Limits: _____________________________________________________________________________ 34 5.10.2 Test Conditions: ______________________________________________________________________ 34 5.10.3 Test data/ plots: ______________________________________________________________________ 34 5.11 Transmitter Spurious Emissions- Radiated ___________________________________________ 37 5.11.1 Limits: _____________________________________________________________________________ 37 5.11.2 Limits: §15.209 ______________________________________________________________________ 37 5.11.3 Limits: §15.209 ______________________________________________________________________ 38 5.11.4 Test Result: _________________________________________________________________________ 38 Test Report #: EMC_ HONEY_032_10001_AP_FCC15.247 Date of Report : 2010-05-20 Page 3 of 53 5.11.5 Test data/ plots: ______________________________________________________________________ 39 5.12 Receiver Spurious Emissions- Radiated ______________________________________________ 43 5.12.1 Limits: _____________________________________________________________________________ 43 5.12.2 Test Conditions: ______________________________________________________________________ 43 5.12.3 Test Result: _________________________________________________________________________ 43 5.12.4 Test data/ plots: ______________________________________________________________________ 44 5.13 AC Power Line Conducted Emissions ________________________________________________ 45 5.13.1 Limits: §15.107/15.207 ________________________________________________________________ 45 5.13.2 Test Conditions: ______________________________________________________________________ 45 5.13.3 Test Result: __________________________________…

Text truncated - open the document above for the full version.

Test Report #: EMC_HONEY_032_10001_AP_TestSetup Date: 2010-05-25 Page 1 of 3 1 Test Setup photos Radiated Setup (<1G) Radiated setup (1G-18G) Test Report #: EMC_HONEY_032_10001_AP_TestSetup Date: 2010-05-25 Page 2 of 3 Radiated setup (18G-26GHz) AC Line Conducted Emissions Setup Test Report #: EMC_HONEY_032_10001_AP_TestSetup Date: 2010-05-25 Page 3 of 3 Conducted Measurements
