CT40 Series powered by Android™ Quick Start Guide CT40-A-EN-QS-01 Rev E 06/20
  1 Out of the Box Make sure that your shipping box contains these items: • Mobile Computer Model CT40-L0N, CT40-L1N, CT40P-L0N, or CT40P-L1N • Rechargeable Li-ion battery (see page 7) • Hand strap • Product documentation If you ordered accessories for your mobile computer, verify that they are also included with the order. Be sure to keep the original packaging in case you need to return the mobile computer for service. Note:CT40-L0N/CT40P-L0N models do not include a WWAN radio. Memory Card Specifications Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD™ or microSDHC™ memory cards with mobile computers for maximum performance and durability. Contact a Honeywell sales representative for additional information on qualified memory card options. 2 Mobile Computer Features Microphone Power Button Battery Status/ Notification LED Speaker Touch Panel Scan Button Microphone Speaker Scan Status LED Scan Button Imager Window (LED/Laser Aperture) Push-to-Talk Button (model dependent) Front Facing Camera (model dependent) 3 Note:Hand strap not shown. Scan Button Volume Button Camera Lens and Flash Laser Safety Label Location SIM Card Door MicroSD Card Door I/O Connector Audio Jack Pin (model dependent) USB, Type C (model dependent) BLE port In (model dependet) BLE Speaker Out (model dependent) 4 Battery Latch (Models CT40-L0N-xxxxxAx, CT40-xxx-xxxxxBx, CT40-xxx-xxxxxHx, CT40P-L0N-xxxxxAx, CT40P-xxx-xxxxxBx, CT40P-xxx-xxxxxHx) Battery (Refer to page 7) Battery Latch (Model CT40-xxx-xxxxx0x) 5 Install a microSD Card (Optional) Note:Format the microSD card before initial use. Note:Always power off the computer before attempting to install or remove a card. 3 4 1 5 2 6 Install a microSIM Card Note:Phone feature is only available on CT40-L1N/CT40P-L1N models. On all models, the SIM slot supports use of a UICC card for NFC Secure Element NFC link encryption. Note:Always power off the computer before attempting to install or remove a card. 3 4 1 5 2 7 About the Battery The mobile computer ships with a Li-ion battery manufactured for Honeywell International Inc. Model ConfigurationBattery P/NPower CT40-xxx-xxxxx0x318-005-011 3.8 VDC, 15.5 watt-hour CT40-xxx-xxxxxHx318-055-017 3.8 VDC, 15.5 watt-hour CT40-LON-xxxxxAx 318-055-015 3.85 VDC, 15.5 watt-hour CT40-xxx-xxxxxBx CT40P-xxx-xxxxxHx TBD 3.85 VDC, 15.5 watt-hour CT40P-L0N-xxxxxAx 318-055-067 3.85 VDC, 15.5 watt-hour CT40P-xxx-xxxxxBx Configuration number (CN) is located on the label in the battery well of the mobile computer. We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty. Nous recommandons l’utilisation de batteries Li-ion de la marque Honeywell. L’utilisation d’une batterie d’un autre fabricant est susceptible de provoquer des dommages non couverts par la garantie. Ensure all components are dry prior to placing the battery in the computer. Mating wet components may cause damage not covered by the warranty. Assurez-vous que tous les composants sont secs avant d’insérer la batterie dans l’ordinateur. L’insertion de composants humides risque de provoquer des dommages non couverts par la garantie. 8 Install Battery (Model CT40-xxx-xxxxx0x) 3 4 5 1 2 9 Install Battery (Models CT40-LON-xxxxxAx, CT40-xxx-xxxxxBx, CT40-xxx-xxxxxHx, CT40P-L0N-xxxxxAx, CT40P-xxx-xxxxxBx, CT40P-xxx-xxxxxHx) 1 2 10 Install the Hand Strap 34 12 11 Charge the Mobile Computer The mobile computer ships with a partially charged battery. Charge the battery with a CT40 series charging device for a minimum of 4 hours. Using the computer while charging the battery increases the time required to reach a full charge. CT40 series mobile computers are designed for use with the following CT40 charging accessories: HomeBase, Ethernet HomeBase, ChargeBase, NetBase, Quad Battery Charger, Vehicle Power Adapter, Vehicle Dock, and USB Adapter. We recommend the use of Honeywell accessories and power adapters. Use of any non-Honeywell accessories or power adapters may cause damage not covered by the warranty. Nous recommandons d’utiliser des accessoires et des adaptateurs secteur de marque Honeywell. L’utilisation de tout accessoire ou adaptateur secteur d’une autre marque est susceptible de provoquer des dommages non couverts par la garantie. Ensure all components are dry prior to mating the computers and batteries with peripheral devices. Mating wet components may cause damage not covered by the warranty. Assurez-vous que tous les composants sont secs avant de raccorder les ordinateurs et les batteries à des périphériques. L’insertion de composants humides risque de provoquer des dommages non couverts par la garantie. 12 Turn Power On/Off The first time you power on the computer, a Welcome screen appears. You can either scan a configuration barcode or use the Wizard to manually set up the computer. Once setup is complete, the Welcome screen no longer appears on startup and Provisioning mode is automatically turned off (disabled). To turn the computer on: • Press and hold the Power button for approximately 3 seconds, and then release. To turn the computer off: 1. Press and hold the Power button until the options menu appears. 2. Touch Power Off. Battery Replacement Before removing the battery, always do one of the following: • Power off the computer. • Place the unit in Swap Battery mode (feature availability is model dependent). Swap Battery Mode Swap Battery mode places the computer in a low power state so that the battery can be removed for a short time. This feature is not available on all models. To activate Swap Battery mode: 13 1. Press and hold the Power button until the options menu appears. 2. Touch Swap Battery and follow the on-screen instructions. 3. Once you replace the battery, press the Power button. Sleep Mode Sleep mode automatically turns the touch panel display off and locks th…

Text truncated - open the document above for the full version.

Page 1 CT40XP-ML-RS-01 Rev CCT40 XP Mobile Computer Agency Models: CT40P-L0N, CT40P-L1N Publicly downloadable certificates are available at www.honeywellaidc.com/compliance. Les certificats téléchargeables accessibles au public sont disponibles à www.honeywellaidc.com/compliance. Les certificats téléchargeables publiquement sont disponibles sur www.honeywellaidc.com/compliance. I certificati pubblicamente scaricabili sono disponibili sul sito Web www.honeywellaidc.com/compliance. Zertifikate stehen unter www.honeywellaidc.com/compliance öffentlich zum Download zur Verfügung. Hay certificados descargables disponibles públicamente en www.honeywellaidc.com/compliance. Puede descargar los certificados de acceso público en www.honeywellaidc.com/compliance. Certificados disponíveis ao público para download em: www.honeywellaidc.com/compliance. 㥵꨽Ⱆ䒓♴鲿涸霆⛼霼霄꡼ www.honeywellaidc.com/complianceկ 㥶꨾〳ⰗꟚ♴鯺涸阮剅锞鸤鏞 www.honeywellaidc.com/compliance ծכ鏾僇剅ז〳腉س٦ٗٝؐتח♧菙 www.honeywellaidc.com/compliance ד ⵃ欽〳腉ׅדկ 뫃맪헏픊옪삲풂옪슪많쁳핆흫컪쁢 www.honeywellaidc.com/compliance 펞컪묺쿦핖킃삖삲 .       www.honeywellaidc.com/compliance. الشهادات القابلة للنزيل ماحة للعامة عل الموقع www.honeywellaidc.com/compliance. Product documentation is available at www.honeywellaidc.com. La documentation sur le produit est disponible à www.honeywellaidc.com. La documentation du produit est disponible sur le site www.honeywellaidc.com. La documentazione sul prodotto è disponibile sul sito www.honeywellaidc.com. Die Produktdokumentation ist unter www.honeywellaidc.com verfügbar. La documentación del producto está disponible en www.honeywellaidc.com. La documentación del producto está disponible en www.honeywellaidc.com. A documentação do produto está disponível em www.honeywellaidc.com. ❡ᄩ俒咓霼⿬錛 www.honeywellaidc.comկ 欴ᄩ俒⟝꧌锞⿮鋅 www.honeywellaidc.com כزًُٝؗس醡ᄩ www.honeywellaidc.com կׅדⵃ欽〳腉ד 헪컲졓컪쁢 www.honeywellaidc.com 펞컪핆쿦핖킃삖삲 .            www.honeywellaidc.com. ر وثائق المنج عل الموقع الال ّ ت&وف .www.honeywellaidc.com Caution: Any changes or modifications made to this equipment not expressly approved by Honeywell International Inc. may void the authorization to operate this equipment. MISE EN GARDE : Tout changement ou modification apporté(e) à cet équipement qui n'est pas expressément approuvé(e) par Honeywell International Inc. peut annuler l'autorisation d'utiliser cet équipement. Mise en garde : tous les changements ou les modifications apportés à cet équipement non expressément approuvés par Honeywell International Inc. peuvent annuler l'autorisation d'utiliser cet équipement. Attenzione: qualsiasi variazione o modifica apportata a questa apparecchiatura, non espressamente approvata da Honeywell International Inc., potrebbe annullare l'autorizzazione concessa all'utente per utilizzare l'apparecchiatura. Vorsicht: Von Honeywell International Inc. nicht ausdrücklich genehmigte Veränderungen an diesem Gerät können dazu führen, dass die Betriebsgenehmigung für dieses Gerät erlischt. Precaución: Cualquier modificación o cambio realizado en este equipo, no expresamente a pr obado por Honeywell International Inc., puede anular la autorización para utilizar este equipo. Precaución: cualquier cambio o modificación a este equipo que no esté expresamente aprobado por Honeywell International Inc. puede invalidar la autorización para usarlo. Atenção: qualquer alteração ou modificação não aprovada expressamente pela Honeywell International Inc. neste equipamento poderá invalidar a autorização de operá-lo. 岤䠑 㼆劥霃㢊鵳遤⟣⡦劢絑 Honeywell International Inc. 僈烁 ⲥ雽涸刿佖䧴⥝佖〳腊⠔⢪乼⡲ 劥霃㢊涸䱇勉㣟佪կ 岤䠑 ⳝ劢竤 Honeywell International Inc. 僈焷ⲥ鏪示乲荈 隶刿䧴佖鸤劥鏤⪔罏〳腋搂奚ⱄ 乽⡲劥鏤⪔ 陨デ : Honeywell International ךֿծח׃ז䪫钠ז僇爙涸ךInc. ֿծה׷ׅ何㢌כ׋ת堣㐻׾㢌刿 זח搀⸬ָ׷埄ꣲׅ堣㐻׾乼⡲ך կׅת׶ָ֮׷㜥さ 훊픦 : Honeywell International Inc. 펞픦킲킇핆픒짩힎팘픎 짷쩣픊옪쫆핳찒읊쪎몋쏞쁢 맪혾쁢몋푾핳찒읊핟솧쿦핖쁢 킇핆핂�콚쇮쿦핖킃삖삲 .  !               Honeywell International Inc.        "     . تحذير: قد تؤدي أي تغييرات أو تعديلات عل هذا ال89از غ5ر مصادق عليها من شركة .Honeywell International Inc إل إلغاء ترخ5ص تشغيل هذا ال89از. For body worn operation, this device has been tested and meets the limits regarding human exposure to electromagnetic radiation set forth in related FCC, IC and CE rules, guidelines and standards for use with the following body worn accessory: holster. Use of other accessories may not ensure compliance with the mentioned rules. Fonctionnement près du corps: ce dispositif a été testé et s'avère conforme aux règles et lignes directrices des normes FCC, IC et CE, relatives aux limites d'une exposition humaine sécuritaire au rayonnement électromagnétique pour une utilisation près du corps de l'accessoire suivant: holster. L'utilisation d'autres accessoires peut ne pas assurer la conformité avec les règles mentionnées. 802.11 Caution: A Wireless Network Administrator should review the operating restrictions and use with a properly configured access point. Models: CT40P-L0N, CT40P-L1N FCC Part 15 Subpart B Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter…

Text truncated - open the document above for the full version.

Honeywell International Inc. 9680 Old Bailes Rd., Fort Mill, South Carolina, 29707, United States Tel: 8038358190 Declaration ‐ MIF for HAC RF Interference Evaluation To whom it may concern: This device, with FCC ID: HD5‐CT40PL1N, Hearing Aid Compatibility Requirement is going to be certified under ANSI C63.19 2011 version per Part 20.19. For Radio Frequency Interference, Speag’s Audio Interference Analyzer (AIA) or other indirect or direct measurement was not used to determine the M rating. The M rating was determined by measuring the maximum steady state average E‐field values in dB (V/m) or average antenna input power as documented in HAC test report exhibit, and adding the MIF value in dB. The MIF values below for the worst‐case operation mode for all air interfaces are pre‐determined values provided by Speag. UID Communication System Name MIF(dB) 10021 GSM-FDD(TDMA,GMSK) 3.63 10025 EDGE-FDD (TDMA, 8PSK, TN 0) 3.75 10460 UMTS-FDD(WCDMA, AMR) -25.43 10225 UMTS-FDD (HSPA+) -20.39 10081 CDMA2000 (1xRTT, RC3) -19.71 10295 CDMA2000 (1xRTT, RC1 SO3, 1/8th Rate 25 fr.) 3.26 10403 CDMA2000 (1xEV-DO, Rev. 0) -17.67 10170 LTE-FDD(SC-FDMA,1RB,20MHz,16-QAM) -9.76 10172 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, QPSK) -1.62 10173 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, 16-QAM) -1.44 10174 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, 64-QAM) -1.54 10061 IEEE 802.11b WiFi 2.4 GHz (DSSS, 11 Mbps) -2.02 10077 IEEE 802.11g WiFi 2.4 GHz (DSSS/OFDM, 54 Mbps) 0.12 10427 IEEE 802.11n (HT Greeneld, 150 Mbps, 64-QAM) -13.44 10069 IEEE 802.11a/h WiFi 5 GHz (OFDM, 54 Mbps) -3.15 10616 IEEE 802.11ac WiFi (40MHz, MCS0, 90pc duty cycle) -5.57 We are confirming that the Speag simulation provided represents all the air interface modes applicable for a HAC rating for this handset. Sincerely, Mandana Salahshour [email protected]

Honeywell International Inc. 9680 Old Bailes Rd., Fort Mill, South Carolina, 29707, United States Tel: 8038358190 Date: September 1, 2020 Statement We, Honeywell International Inc., states that our device, FCC ID: HD5-CT40PL1N. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Mandana Salahshour

Honeywell International Inc. 9680 Old Bailes Rd., Fort Mill, South Carolina, 29707, United States Tel: 8038358190 Date: September 1, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: HD5‐CT40PL1N To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Block Diagram  Schematic Diagram  Part List  Operation Description  Tune‐up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to the above mentioned documents, pursuant to Public Notice DA 04‐1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We request the commission to grant short‐term confidentiality request on the following attachments for 180 days after the grant as outlined in Public Notice DA 04‐1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Mandana Salahshour [email protected]

Honeywell International Inc 9680 Old Bailes Rd., Fort Mill, South Carolina 29707, United States Tel: 8038358190 Date: September 1, 2020 To whom it may concern, Please be notified that I, Mandana Salahshour, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti‐Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the product of as following: FCC ID: HD5‐CT40PL1N If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely yours, Mandana Salahshour [email protected]

Honeywell International Inc. 9680 Old Bailes Rd., Fort Mill, South Carolina, 29707, United States Tel: 8038358190 Statement We, Honeywell International Inc., states that our device: FCC ID: HD5‐CT40PL1N. IC: 1693B‐CT40PL1N The hardware supports LTE band40 but it will be disabled by software and are not available in US/Canada market. Mandana Salahshour [email protected]

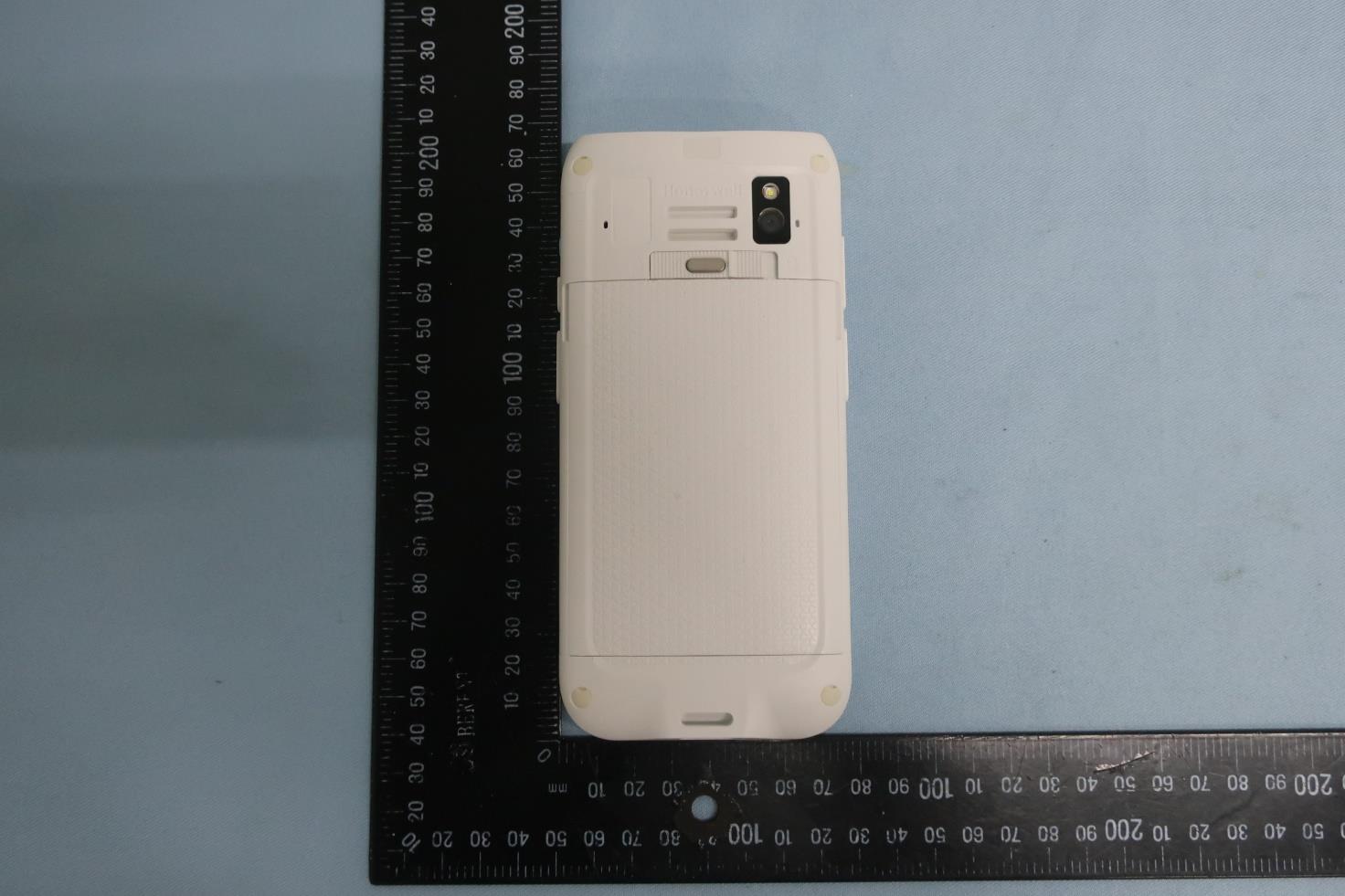

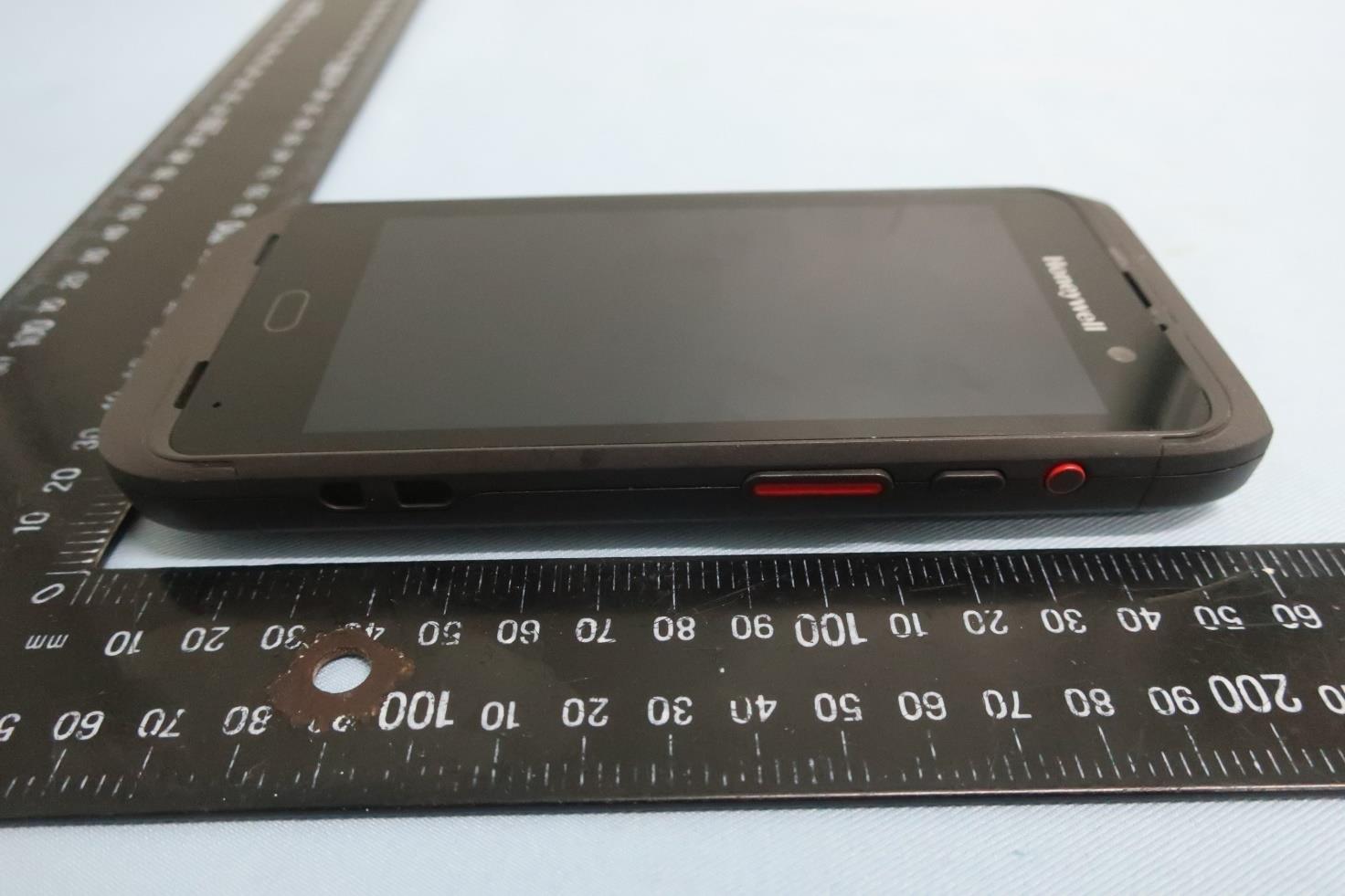

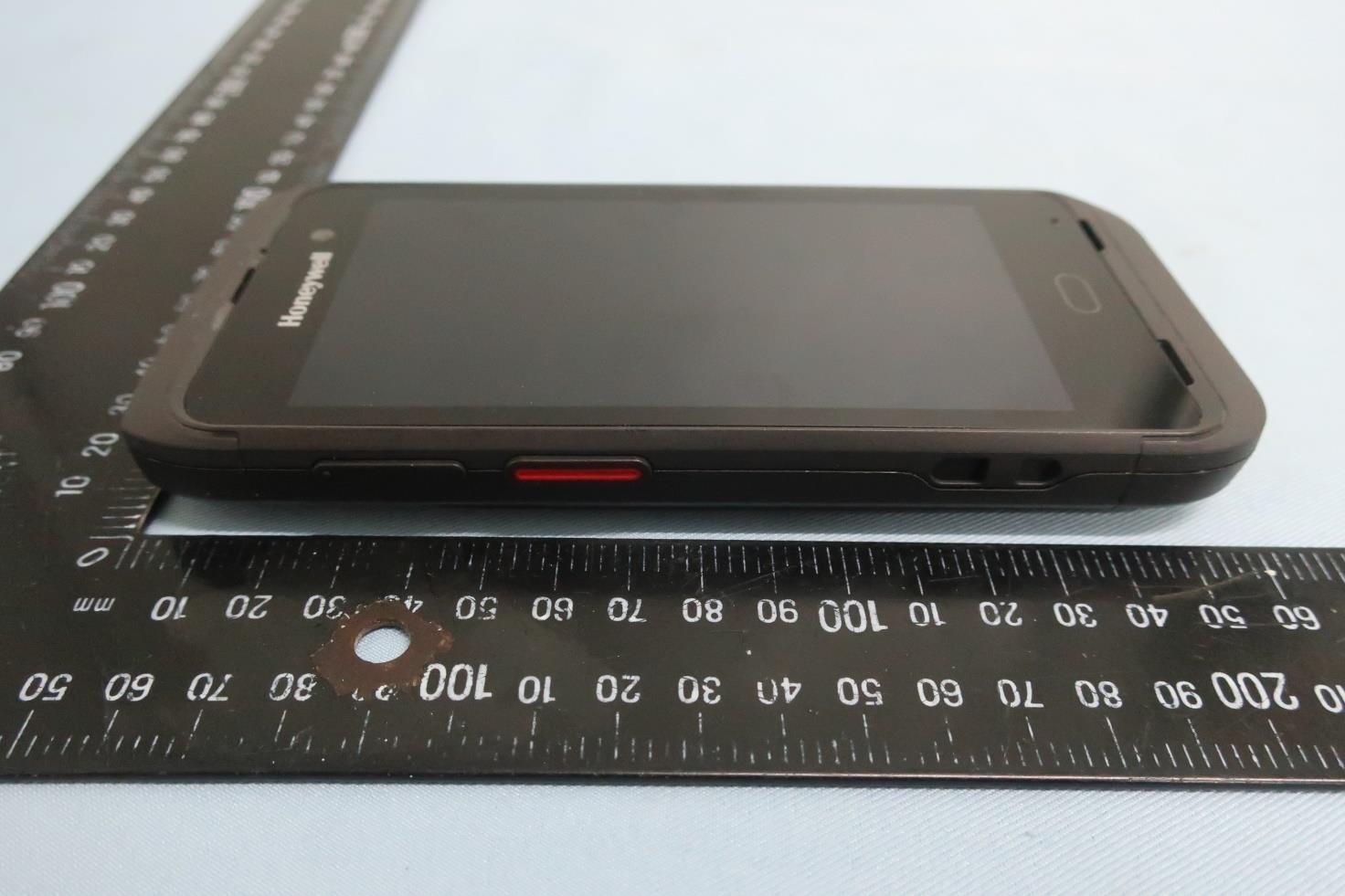

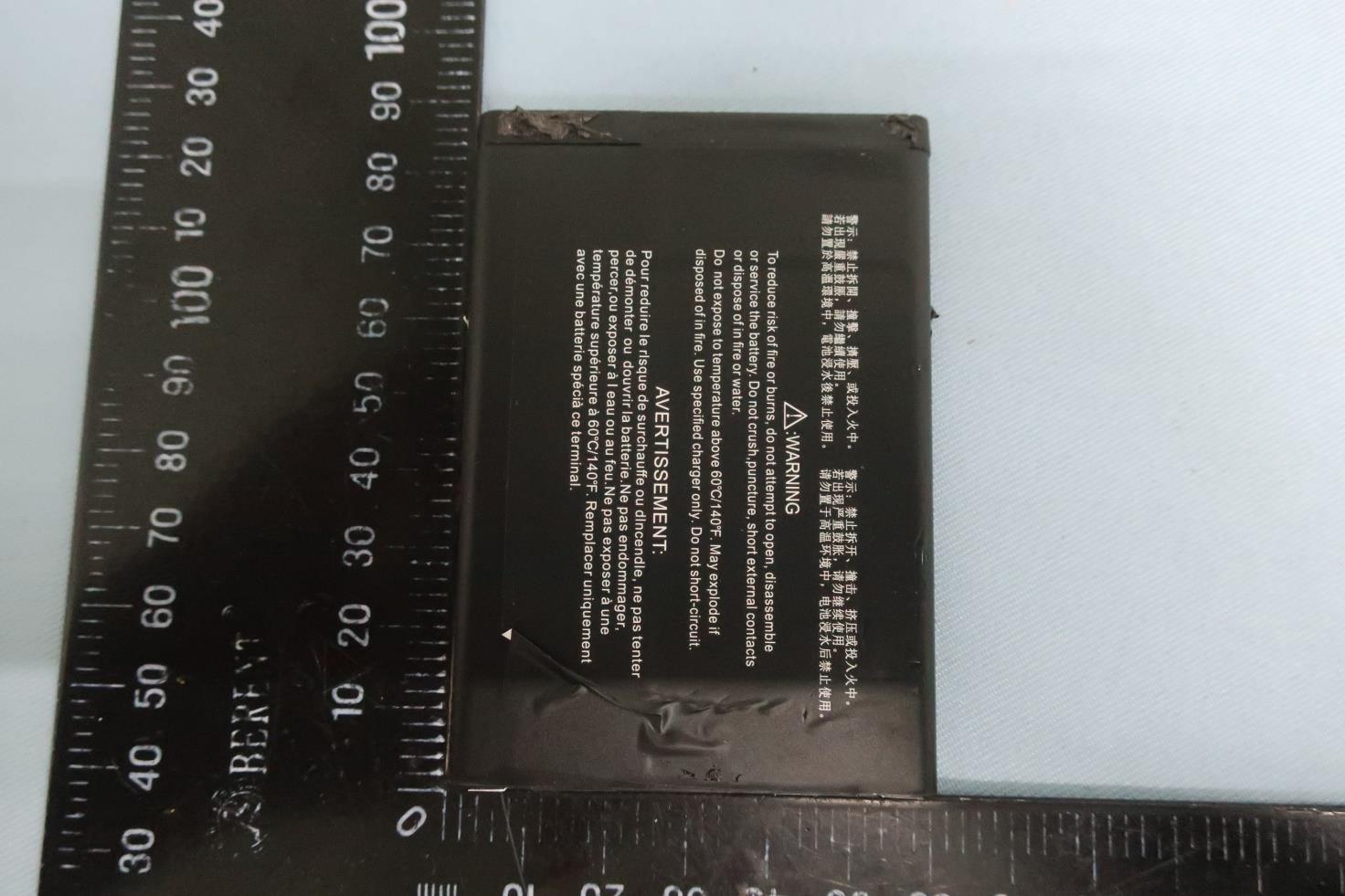

Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 1 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N 1. External Photograph of EUT Sample 1 With Type C Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 2 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 3 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 4 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 5 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 6 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 7 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Sample2 without Type C Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 8 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 9 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 10 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 11 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 12 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 13 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N List of Accessory： Specification of Accessory AC Adapter Brand Name Honor Model Name ADS-12B-06 05010E Battery Brand Name Inventus Power Inc. Model Name CT50-BTSC USB CUP Brand Name Honeywell Model Name CT40-SN Type 1.2meter, shielded cable, with ferrite 2 core. Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 14 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 15 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N AC Adapter Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 16 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 17 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Charger(EU) Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 18 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 19 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Charger(IN) Photographs of EUT Report No.: EP072404 Brand Name: Honeywell / Model Name: CT40P-L1N Sporton International (KunShan) Inc. Page Number : 20 of 81 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 02, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID: HD5-CT40PL1N Photographs of EUT Repor…
