HD5-CT50L0NDOLPHIN CT50 Mobile Computer (Terminal)

Hearing Aid Compatibility (HAC) Device Listings The standard for compatibility of digital wireless devices with hearing aids is set forth in American National Standards Institute (ANSI) standard C63.19. ANSI C63.19 contains these two sets of standards: An “M” rating from M1 to M4 for reduced radio frequency (RF) interference to enable acoustic coupling with hearing aids that do not operate in t-coil mode. A “T” rating from T1 to T4 to enable inductive coupling with hearing aids operating in t-coil mode. A digital wireless handset is considered hearing aid compatible for acoustic coupling if it meets at least an “M3” rating under the ANSI standard. A digital wireless handset is considered hearing aid compatible for inductive coupling if it meets at least a “T3” rating under the ANSI standard. Honeywell Scanning & Mobility 9680 Old Bailes Road Fort Mill, SC 29707 U.S.A. www.honeywellaidc.com Copyright © 2015 Honeywell International Inc. All rights reserved. *CT50-ENUS-HC* P/N CT50-ENUS-HC Hearing Aid Compatibility (HAC) Device Listings The standard for compatibility of digital wireless devices with hearing aids is set forth in American National Standards Institute (ANSI) standard C63.19. ANSI C63.19 contains these two sets of standards: An “M” rating from M1 to M4 for reduced radio frequency (RF) interference to enable acoustic coupling with hearing aids that do not operate in t-coil mode. A “T” rating from T1 to T4 to enable inductive coupling with hearing aids operating in t-coil mode. A digital wireless handset is considered hearing aid compatible for acoustic coupling if it meets at least an “M3” rating under the ANSI standard. A digital wireless handset is considered hearing aid compatible for inductive coupling if it meets at least a “T3” rating under the ANSI standard. Hearing Aid Compatibility (HAC) Device Listings The standard for compatibility of digital wireless devices with hearing aids is set forth in American National Standards Institute (ANSI) standard C63.19. ANSI C63.19 contains these two sets of standards: An “M” rating from M1 to M4 for reduced radio frequency (RF) interference to enable acoustic coupling with hearing aids that do not operate in t-coil mode. A “T” rating from T1 to T4 to enable inductive coupling with hearing aids operating in t-coil mode. A digital wireless handset is considered hearing aid compatible for acoustic coupling if it meets at least an “M3” rating under the ANSI standard. A digital wireless handset is considered hearing aid compatible for inductive coupling if it meets at least a “T3” rating under the ANSI standard. Hearing Aid Compatibility (HAC) Device Listings The standard for compatibility of digital wireless devices with hearing aids is set forth in American National Standards Institute (ANSI) standard C63.19. ANSI C63.19 contains these two sets of standards: An “M” rating from M1 to M4 for reduced radio frequency (RF) interference to enable acoustic coupling with hearing aids that do not operate in t-coil mode. A “T” rating from T1 to T4 to enable inductive coupling with hearing aids operating in t-coil mode. A digital wireless handset is considered hearing aid compatible for acoustic coupling if it meets at least an “M3” rating under the ANSI standard. A digital wireless handset is considered hearing aid compatible for inductive coupling if it meets at least a “T3” rating under the ANSI standard. Honeywell Scanning & Mobility 9680 Old Bailes Road Fort Mill, SC 29707 U.S.A. www.honeywellaidc.com Copyright © 2015 Honeywell International Inc. All rights reserved. Honeywell Scanning & Mobility 9680 Old Bailes Road Fort Mill, SC 29707 U.S.A. www.honeywellaidc.com Copyright © 2015 Honeywell International Inc. All rights reserved. Honeywell Scanning & Mobility 9680 Old Bailes Road Fort Mill, SC 29707 U.S.A. www.honeywellaidc.com Copyright © 2015 Honeywell International Inc. All rights reserved. *CT50-ENUS-HC* P/N CT50-ENUS-HC *CT50-ENUS-HC* P/N CT50-ENUS-HC *CT50-ENUS-HC* P/N CT50-ENUS-HC M-Ratings: Devices rated M3 or M4 meet FCC requirements and are likely to generate less interference with hearing devices than devices that are not labeled. M4 is the superior/higher of the two ratings. T-Ratings: Devices rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device’s t-coil than unrated devices. T4 is the superior/higher of the two ratings. These ratings are not guaranteed. Results will vary depending on the level of immunity of your hearing device and the degree of your hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated device successfully. Trying out the device with your hearing device is the best way to evaluate it for your personal needs. When some wireless devices are used near some hearing devices such as hearing aids and implants, users may detect a buzzing or humming noise. Some hearing devices are more immune than others to this interference noise. Wireless devices may also vary in the amount of interference they generate. The more immune the hearing aid device is, the less likely one is to experience interference noise from the wireless device. Hearing aid devices may also be rated. Adding the ratings of the hearing aid and the device can predict the usability of the two devices together: Any combined rating equal to or greater than six offers the best use. Any combined rating equal to fi ve is considered normal use. Note for models tested under 2007 C63.19 Version: These models have been tested and rated for use with hearing aids for some of the wireless technologies that they use. However, there may be some newer wireless technologies used in these devices that have not been tested yet for use with hearing aids. It is important to try the different features of these devices thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service prov…

Text truncated - open the document above for the full version.

DRAFT CT50 Mobile Computer with Android™ 4.4 Operating System User Guide DRAFT iiDolphin CT50 Mobile Computer User Guide Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII. HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. HII disclaims all responsibility for the selection and use of software and/or hardware to achieve intended results. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Trademarks Android, Google, and other marks are trademarks of Google Inc. Microsoft, Windows are either registered trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are the property of their respective owners. Patents For patent information, see www.hsmpats.com. Copyright © 2015 Honeywell International Inc. All rights reserved. DRAFT Contents Dolphin CT50 Mobile Computer User Guideiii Contents Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii Product Service and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii Send Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii 1 About the Computer Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 About the Dolphin CT50 Mobile Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 About the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Charge the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Change the Batttery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 About the Battery Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Check the Battery Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 About Battery Life and Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Battery Recommendations and Safety Precautions. . . . . . . . . . . . . . . . . . 12 Enable Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Power On the CT50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Unlock the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 About the Good Read LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Configure the Screen Backlight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 About the Audio Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Adjust Ringtone and Notification Volume . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Enable Vibrate Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Insert a MicroSD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 How to Transfer Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 How to Browse Files on the CT50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Accessories for the CT50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 DRAFT Contents ivDolphin CT50 Mobile Computer User Guide 2 About the User Interface and Applications . . . . . . . . . . . . . . . . 27 About the User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 About the Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Navigation and Function Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Common Status and Notification Icons? . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Remap a Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 View Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Manage Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Customize the Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Customize the Favorites Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Use Google™ Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 About Screen Gestures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Set the Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 About Honeywell Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3…

Text truncated - open the document above for the full version.

Dolphin™ CT50powered by Android 4.4Quick Start Guide CT50AND-ENUS-QS Rev A6/15*CT50AND-ENUS-QS-A* Out of the BoxMake sure that your shipping box contains these items: • Dolphin CT50 mobile computer • Rechargeable 3.6 VDC Li-ion battery • Quick start guide and r egulatory compliance sheet If you ordered accessories for your mobile computer, verify that they are also included with the order. Be sure to keep the original packaging in case you need to return the CT50 for service.Memory Card SpecificationsHoneywell recommends the use of Single Level Cell (SLC) industrial grade microSD or microSDHC™ memory cards with Dolphin computers for maximum performance and durability. Contact a Honeywell sales representative for additional informat ion on qualified memory card options. Accessories for the CT50These accessories are available for the CT50:• HomeBase (Model CT50-HB) • Ethernet HomeBase Model CT50-EB) • ChargeBase (Model CT50-CB) • NetBase (Model CT50-NB) • Quad Battery Charger (Model CT50-QBC) • Vehicle Power Adapter (Model CT50-MC) • Vehicle Dock (Model CT50-MB) • USB Adapter (Model CT50-USB) • Scan Handle • Holster Front Features Speaker Good read LED Volume buttons Battery status LED Navigation panelMicrophone Touch panel Power button Scan buttons Back Features Camera Camera lens SIM door Battery door latch SIM and MicroSD door Battery Install a SIM Card Install a MicroSD CardNote: Format the MicroSD card before initial use. Install the BatteryDolphin CT50 models ship with a Li-i on 3.6 VDC, 14.6 watt-hour battery manufactured for Honeywell International Inc. 1 3 2 Charge the ComputerCT50 computers ship with a partially charged battery. Charge the battery with a CT50 charging device for a minimum of 4 hours . Using the computer while charging the battery significantly increases the time required to reach a full charge. Caution: We recommend the use of Honeywell accessories and power adapters. Use of any non-Honeywe ll accessories or power adapters may cause damage not covered by the warranty. Dolphin CT50 model computers are des igned for use with the following charging accessories: HomeBase, Ethernet HomeBase, ChargeBase, NetBase, Quad Battery Charger, Vehicle Power Adapter, Vehicle Dock, and USB Adapter. Caution: Make sure that all components are dry prior to using the computers and batteries with acce ssories. Using wet components may cause damage not covered by the warranty. Turn Power On/OffTo turn the computer on:• Press and release the Power button. To turn the computer off:1. Press and hold the Power button until the options menu displays. 2. Touch Power Off . 3. When prompted to shut down the phone, touch OK . Note: You should always power off the computer before removing the battery. Sleep Mode (Suspend Mode)Sleep mode automatically turns the touch panel display off and locks the computer to save battery power w hen the computer is inactive for a programmed period of time. 1. Press and release the Power button to wake the computer. 2. Drag the toward the edge of the display to unlock the computer. Adjust the Display Sleep TimeTo adjust the amount of time before the display sleeps after inactivity: 1. Touch All Apps > Settings > Display > Sleep . 2. Select the amount of time for inac tivity before the display goes to sleep. 3. Touch Home icon to return to the Home screen. Turning Airplane Mode On/Off1. Press and hold the Power button until the options menu displays. 2. Touch Airplane Mode to toggle the mode On or Off. Note: When Airplane Mode is turned on, shows on the status bar. About the Home Screen Status barSearch barClockCamera appFavorites tray Navigation and Function ButtonsNote: Additional functionality varies ac cording to the application in use. To change the default button function of the Scan button or the Left and Right side buttons, use the Key remap option under Settings . For additional information on how to remap a button function, see the user guide. Buttons Description Function Back Back to the previous screen. Recent Apps View and switch between recently used apps.Home Return to the Home screen. Search Start a search on the computer or the Internet. Volume Raises or lowers the volume of the speaker. Scan a Bar Code with the Scan DemoNote: For optimum performance, avoid reflections by scanning the bar code at a slight angle.1. Touch All Apps > Demos > Scan Demo . 2. Point the CT50 mobile computer at the bar code. 3. Touch Scan on the touch screen or press and hold a Scan button. Center the aiming beam over the bar code. 4. The decode results appear on the screen. How to Use the Color Camera1. Press the Camera button or touch Camera on the Home screen. 2. Select either single photo mode , video mode , or panorama mode in the viewfinder. 3. Point the camera lens at the object you want to capture. The camera lens is located on the back of the computer. 4. Touch the blue shutter to capture a single photo or to start capturing a panoramic photo. In panor ama mode, continue to slowly sweep the camera lens across the entire scene you want captured. Touch the red shutter to start recording video. Select the shutter again to stop recording. Restart the ComputerYou may need to restart the CT50 computer to correct conditions where an application stops responding to the sys tem or the computer seems to be locked up. 1. Press and hold the Power button until the options menu appears. 2. Select Reboot and then OK . To restart the computer if the touch panel display is unresponsive:• Press and hold the Power button for approximately 8 seconds until the computer starts to reboot. Reset the ComputerFor information on how to perform at Factory Reset (Clean Boot), see the user guide. SupportTo search our knowledge base for a solu tion or log into the Technical Support portal and report a problem, go to www.hsmcontactsupport.com . User DocumentationFor the user guide and other documentation, go to www.honeywellaidc.com . Limited WarrantyFor warranty information, go to www.honeywe…

Text truncated - open the document above for the full version.

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA Date: 27-June -2 014 To W hom It M ay Concern: I am the grantee contact of record for the following FCC grantee codes (codes) held by Honeywell International, Inc. (“Honeywell”): KDZ HD5 RA4 LW5 I hereby authorize Venkat Dronamraju, Mandana Salahshour, Cedric Brownfield , and David Fry, while employees of Honeywell, to act on my behalf for any activities related to the above FCC grantee codes, including, but not limited to, signing applications, requesting confidentiality and authorizing third parties to act as authorized agents with respect to the above codes. Honeywell International, Inc. certifies that no party, as defined in 47 CFR §1.2002 (b), to the application is subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This authorization is valid through January 31, 2015, unless withdrawn earlier. Sincerely, Michael Robinson Product Compliance [email protected] (800) 782 4263 telephone USA (or 315-554 -6000) Honeywell International Inc Honeywell Scanning and Mobility 700 Visions Drive PO Box 208 Skaneateles Falls, NY 13153-0208 USA

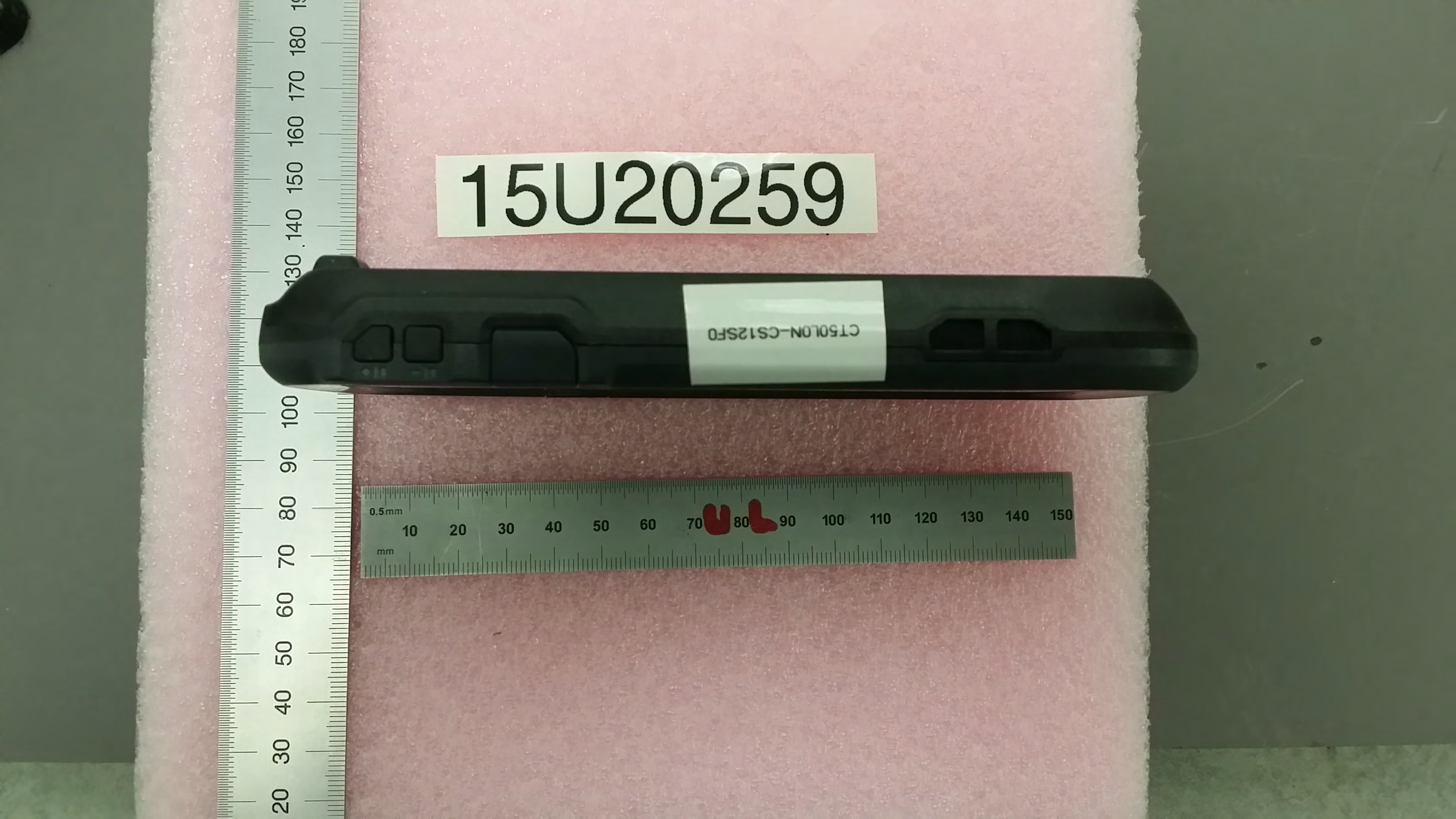

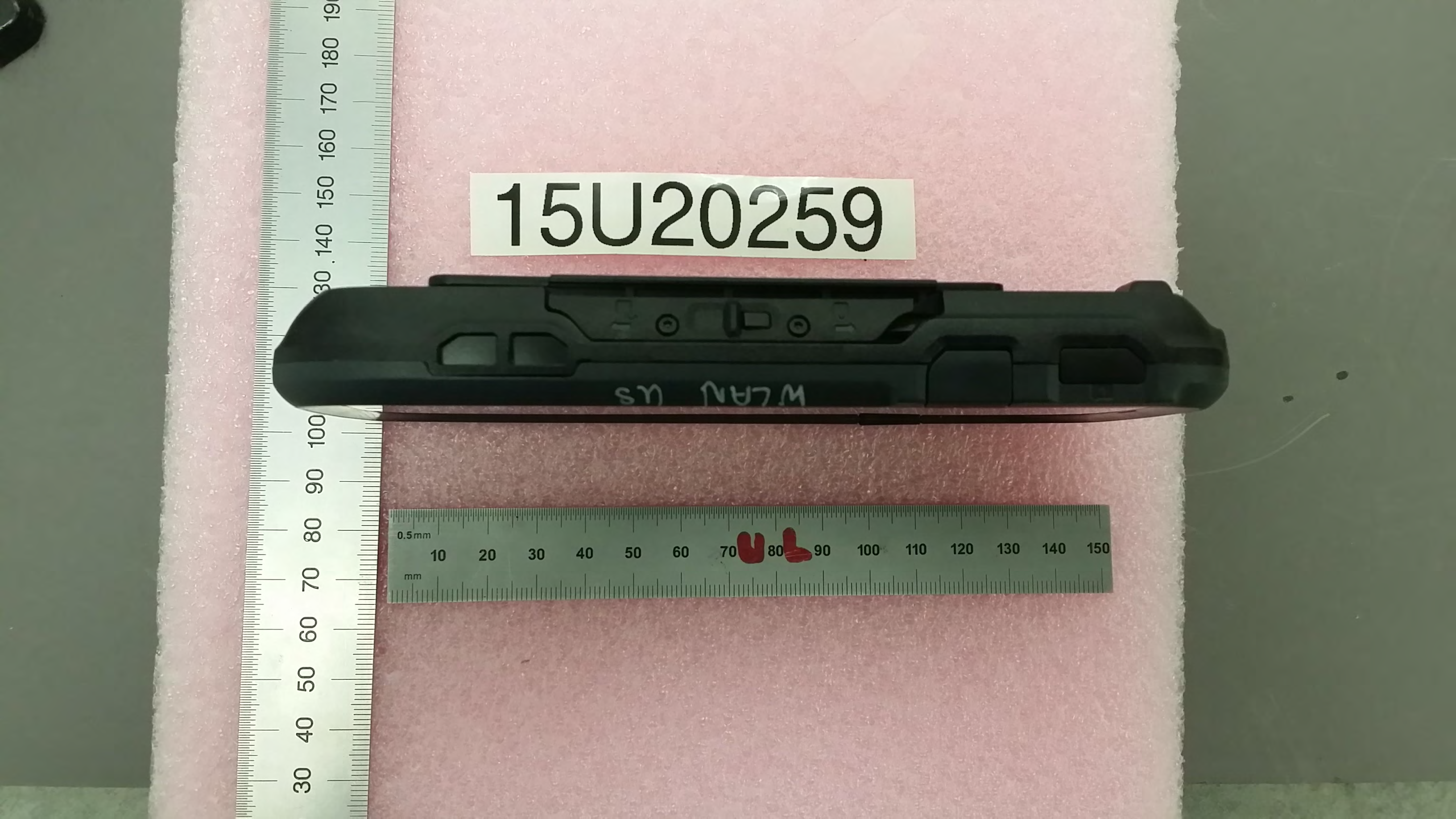

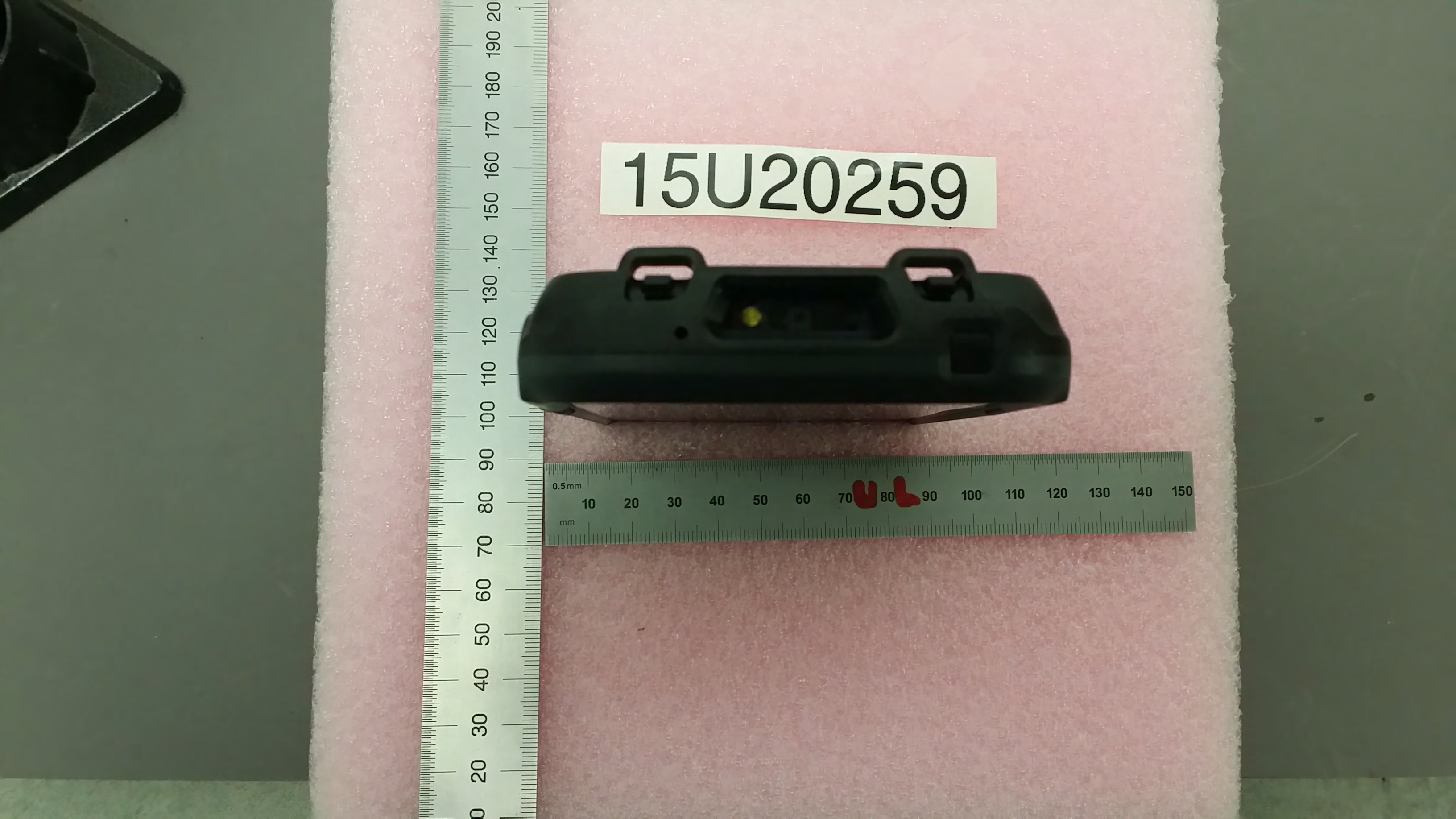

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For Dolphin CT50 FCC ID: HD5-CT50L0N Model Name: CT50L0N Report Number: 15U20259-S2A Issue Date: 7/6/2015 Prepared for HONEYWELL INTERNATIONAL INC 9680 OLD BAILES ROAD FORT MILL, SOUTH CAROLINA 29715, UNITED STATES Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15U20259-S2A Issue Date: 7/6/2015 Page 2 of 27 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 6/19/2015 Initial Issue -- A 7/6/2015 Updated to include Extremity SAR AJ Newcomer Report No.: 15U20259-S2A Issue Date: 7/6/2015 Page 3 of 27 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................ 5 2. Test Specification, Methods and Procedures .............................................................................. 6 3. Facilities and Accreditation ........................................................................................................... 6 4. SAR Measurement System & Test Equipment ............................................................................ 7 4.1. SAR Measurement System .......................................................................................................... 7 4.2. SAR Scan Procedures .................................................................................................................. 8 4.3. Test Equipment .......................................................................................................................... 10 5. Measurement Uncertainty ........................................................................................................... 11 6. Device Under Test (DUT) Information ........................................................................................ 12 6.1. DUT Description ......................................................................................................................... 12 6.2. Wireless Technologies ............................................................................................................... 12 6.3. Nominal and Maximum Output Power ........................................................................................ 13 7. RF Exposure Conditions (Test Configurations) ........................................................................ 14 8. Dielectric Property Measurements & System Check ................................................................ 15 8.1. Dielectric Property Measurements .............................................................................................. 15 8.2. System Check............................................................................................................................. 17 9. Conducted Output Power Measurements .................................................................................. 19 9.1. Wi-Fi 2.4GHz (DTS Band) .......................................................................................................... 19 9.2. Wi-Fi 5GHz (U-NII Bands) .......................................................................................................... 20 9.3. Bluetooth .................................................................................................................................... 21 10. Measured and Reported (Scaled) SAR Results ......................................................................... 22 10.1. Wi-Fi (DTS Band) .................................................................................................................... 24 10.2. Wi-Fi (U-NII Band)................................................................................................................... 24 10.3. Bluetooth ................................................................................................................................. 25 11. SAR Measurement Variability ..................................................................................................... 26 12. Simultaneous Transmission SAR Analysis ............................................................................... 26 Appendixes .............................................................................................................................................. 27 A_15U20259v1 SAR Photos & Ant. Locations ...................................................................................... 27 B_15U20259v1 SAR System Check Plots ............................................................................................ 27 C_15U20259v1 SAR Highest Test Plots ............................................................................................... 27 D_15U20259v0 SAR Tissue Ingredients ............................................................................................... 27 E_15U20259v0 SAR Probe Cal. Certificates ........................................................................................ 27 Report No.: 15U20259-S2A Issue Date: 7/6/2015 Page 4 of 27 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. F_15U20259v1 SAR Dipole Cal. Certificates ........................................................................................ 27 Report No.: 15U20259-S2A Issue Date: 7/6/2015 Page 5 of 27 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 1. Attestation of Test Results Applicant Name HONEYWELL INTERNATIONAL INC FCC ID HD5-CT50L0N Model Name CT50L0N…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 5/18/2015 5:00:56 PM 20150518_SystemPerformanceCheck-D5GHzV2 SN 1168 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5800 MHz; σ = 6.012 S/m; ε r = 46.258; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN3929; ConvF(4, 4, 4); Calibrated: 4/22/2015; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/5.8 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 15.0 W/kg Body/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 44.509 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 33.7 W/kg SAR(1 g) = 7.12 W/kg; SAR(10 g) = 2 W/kg Maximum value of SAR (measured) = 18.2 W/kg 0 dB = 18.2 W/kg = 12.60 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 5/18/2015 5:28:36 PM 20150518_SystemPerformanceCheck-D5GHzV2 SN 1168 Frequency: 5800 MHz; Duty Cycle: 1:1 Body/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 10.4 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 5/12/2015 10:49:57 PM 20150512_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.849 S/m; ε r = 38.396; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1377; Calibrated: 8/27/2014 - Probe: EX3DV4 - SN3989; ConvF(7.67, 7.67, 7.67); Calibrated: 3/17/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; Head/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.20 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 43.81 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 11.0 W/kg SAR(1 g) = 5.23 W/kg; SAR(10 g) = 2.4 W/kg Maximum value of SAR (measured) = 7.47 W/kg 0 dB = 7.47 W/kg = 8.73 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 5/12/2015 11:12:43 PM 20150512_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.33 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 6/29/2015 10:46:27 PM 20150629_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.027 S/m; ε r = 51.507; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1377; Calibrated: 8/27/2014 - Probe: EX3DV4 - SN3989; ConvF(7.52, 7.52, 7.52); Calibrated: 3/17/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-B V5.0; Type: QDOVA001BB; Serial: S/n:1216 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.24 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.73 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 11.5 W/kg SAR(1 g) = 5.51 W/kg; SAR(10 g) = 2.54 W/kg Maximum value of SAR (measured) = 7.84 W/kg 0 dB = 7.84 W/kg = 8.94 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 6/29/2015 11:06:08 PM 20150629_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.59 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 7/3/2015 12:51:00 AM 20150703 SystemPerformanceCheck-D5GHzV2 SN 1168 Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5200 MHz; σ = 5.418 S/m; ε r = 47.661; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR valu…
