ScanPal™ EDA61K Series Mobile Computer powered by Android™ Quick Start Guide EDA61K-A-EN-QS-01 Rev (a) 11/19 1 Out of the Box Make sure that your shipping box contains these items: • ScanPal Mobile Computer (Model EDA61K-0 or EDA61K-1) • Rechargeable 3.8 V Li-ion battery • Hand strap • Product documentation If you ordered accessories for your mobile computer, verify that they are also included with the order. Be sure to keep the original packaging in case you need to return the mobile computer for service. Note:EDA61K-0 models do not include a WWAN radio. Memory Card Specifications Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD™ or microSDHC™ memory cards with ScanPal mobile computers for maximum performance and durability. Contact a Honeywell sales representative for additional information on qualified memory card options. 2 Mobile Computer Features Microphone Power Indicator Touch Panel Scan Button Scan Engine Scan Indicator Power Button Home Key Keyboard (Model dependent) Caps Lock Key Return Key 3 Camera Flash/Flashlight Micro SIM Card and MicroSD Card Cover (battery and hand strap removed) laser Safety Label Location I/O Connector Speaker Battery Battery Latch and Button USB Port Hand Strap 4 Install a Micro SIM Card Only EDA61K-1 (WWAN) models support micro SIM card use for cellular phone features. On EDA61K-0 (WLAN) models, the micro SIM slot feature is limited to UICC card use for NFC Secure Element NFC link encryption only. Note:Always power off the computer before attempting to install or remove a card. 1 2 3 4 5 5 Install a microSD Card (Optional) Note:Format the microSD card before initial use. Note:Always power off the computer before attempting to install or remove a card. Install the Battery The EDA61K ships with a Li-ion 3.8 V battery manufactured for Honeywell International Inc We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty. Ensure all components are dry prior to placing the battery in the computer. Mating wet components may cause damage not covered by the warranty. 1 2 3 6 1 2 3 4 7 Charge the EDA61K The EDA61K mobile computer ships with a partially charged battery. Charge the battery with an EDA61K or EDA61K charging device for a minimum of 4 hours. Using the computer while charging the battery increases the time required to reach a full charge. EDA61K mobile computer are designed for use with EDA61K and EDA61K series charging accessories. For more information about accessories, see the ScanPal EDA60/EDA61K Series Enterprise Mobile computer Accessories Guide” at www.honeywellaidc.com. We recommend the use of Honeywell accessories and power adapters. Use of any non-Honeywell accessories or power adapters may cause damage not covered by the warranty. Ensure all components are dry prior to mating the computers and batteries with peripheral devices. Mating wet components may cause damage not covered by the warranty. 8 Remove the Battery Turn Power On/Off The first time you power on the computer, a Welcome screen appears. You can either scan a configuration bar code or use the Wizard to manually set up the computer. Once setup is complete, the Welcome screen no longer appears on startup and Provisioning mode (see page 12) is automatically turned off (disabled). To turn the computer on: • Press and hold the Power button for approximately 3 seconds, and then release. To turn the computer off: 1. Press and hold the Power button until the options menu appears. 2. Touch Power off. Note:You should always power off the computer before removing the battery. 1 2 3 9 Sleep Mode Sleep mode automatically turns the touch panel display off and locks the computer to save battery power when the computer is inactive for a programmed period of time. 1. Press and release the Power button to wake the computer. 2. Drag the lock icon toward the top of the display to unlock the Mobile. Adjust the Display Sleep Time To adjust the amount of time before the display sleeps after inactivity: 1. Swipe up on the Home screen. 2. Select Settings > Display > Advanced > Sleep. 3. Select the amount of time before the display goes to sleep. 4. Press to return to the Home screen. 10 About the Home Screen To learn how to customize the Home screen, see the user guide. Notification / Status Bar Search Bar Touch to initiate a voice search or command. Home Screen Panel Favorites Tray 11 Navigation and Function Buttons For button locations, see Mobile Computer Features. ButtonDescription BackReturn to the previous screen. HomeReturn to the Home screen. ScanPress left or right Scan button to trigger the scanner. PowerSee Turn Power On/Off on page 8. 12 About Provisioning Mode After completing the out-of-box set up process, Provisioning mode is automatically turned off. Scanning a bar code to install applications, certificates, configuration files, and licenses on the computer is restricted unless you enable Provisioning mode in the Settings app. To learn more, see the user guide. Scan a Bar Code with the Scan Demo For optimum performance, avoid reflections by scanning the bar code at a slight angle. 1. Swipe up on the screen to access all apps. 2. Select Demos > Scan Demo. 3. Point the computer at the bar code. 4. Touch Scan on the screen or press and hold any Scan button. Center the aiming beam over the bar code. The decode results appear on the screen. Note:In the Scan Demo app, not all bar code symbologies are enabled by default. If a bar code does not scan, the correct symbology may not be enabled. To learn how to modify the default app settings, see the user guide. 13 Sync Data To move files between your EDA61K and your computer: 1. Connect the EDA61K to your computer using a USB charge/communication dock or snap on. 2. On the EDA61K, swipe down from the top of the screen to see the notifications panel. 3. Select the Android System notification twice to open the options menu. 4. Select either …

Text truncated - open the document above for the full version.

LED Safety Statement LEDs have been tested and classified as “EXEMPT RISK GROUP” to the standard: IEC 62471:2006. Norme de sécurité sur les DEL Les DEL ont été testées et classées en tant que « GROUPE DE RISQUE EXEMPT » par rapport à la norme : IEC 62471:2006. Norme de sécurité DEL Les DEL ont été testées et classées « GROUPE SANS RISQUE » selon la norme : CEI 62471:2006. Disposizione di sicurezza LED I LED sono stati testati e classificati come "GRUPPO ESENTE DA RISCHI" rispetto allo standard: IEC 62471:2006. Hinweis zur Lasersicherheit Die LEDs wurden geprüft und gemäß der Norm IEC 62471:2006 unter „EXEMPT RISK GROUP“ eingestuft. Declaración de seguridad del LED Los LED se han probado y clasificado como “GRUPO EXENTO DE RIESGOS” según la normativa: IEC 62471:2006. Declaración de seguridad del LED Las LED han sido evaluadas y clasificadas como “GRUPO LIBRE DE RIESGOS” según la norma: IEC 62471:2006. LED 安全聲明 LED 經測試被鴝為 IEC 62471:2006 標準的 豁免風險組(EXEMPT RISK GROUP)。 Заявление о безопасности светодиода Светодиоды прошли испытания и отнесены к «БЕЗРИСКОВОЙ ГРУППЕ» согласно стандарту МЭК 62471:2006. duration of 34 mSec. Pulse conformance with IEC 60825- 1 Ed.3., as described in Laser Notice No. 56, dated May 8, 2019. Laser Safety Statement If the following label is attached to your product, it indicate the product contains a laser engine or laser aimer: This device has been tested in accordance with and complies with IEC60825-1 ed2.0 and 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No. 56, dated May 8, 2019. LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PRODUCT,1.0 mW MAX OUTPUT:650nM. Caution-use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. duration of 6.44 mSec. Pulse conformance with IEC 60825- 1 Ed.3., as described in Laser Notice No. 56, dated May 8, 2019. For EDA61 -1 Radio Type / DescriptionTransmitter Frequency (MHz)Maximum OutputPower GSMGSM900880-91534.0dBm DCS18001710-178531.0dBm UMTSFDD 11920-1980 24.0dBm FDD 8880-915 24.5dBm Radio Type / DescriptionTransmitter Frequency (MHz)Maximum OutputPower LTEFDD 11920 ~ 198024.5dBm FDD 31710 ~ 178525.0dBm FDD 72500 ~ 257024.5dBm FDD 8880 ~ 91524.5dBm FDD 20832 ~86223.5dBm TDD 382570 ~ 262023.5dBm TDD 402300 ~ 240024.0dBm Radio Type / DescriptionReceiveFrequency (MHz) SatelliteGPS1575.42 BDS1561.098 GLONASS1598.0625 ~1605.375 Radio Type / DescriptionTransmitter Frequency (MHz) Maximum Output Power BluetoothBT+EDR2402-24806.5dBm Low Energy2402-24806.5dBm WLAN 5GHzIEEE 802.11a/n/ac5150-535022dBm 5470-572523dBm 5725-585013dBm WLAN 2.4GHzIEEE 802.11bgn2412-247219dBm K For EDA61 -1 K For EDA61 -1 K For EDA61 -1 and EDA61 -0 K K EDA51-0/EDA51-1 0.52 1.25 WWAN product. FDD 28832 ~86224.5dBm 1.34 (Only for EDA61K-0)

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Declaration of Authorization We Name: Honeywell International Inc Honeywell Safety and Productivity Solutions Address: 9680 Old Bailes Rd. Fort Mill, SC 29707 United States Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Mobile Computer Type designation: EDA61K-0 Trademark: Honeywell IC: HD5-EDA61K0 FCC ID: 1693B-EDA61K0 on our behalf. Signature: Name/Title: Michael Robinson / Supervisor Quality Engineer Sr Honeywell International Inc TEL: 315 554 6387 Email: [email protected]

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: HD5-EDA61K0 Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Turn-up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until (180 days): External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Signature Date: 2020/03/07 Name/Title: Michael Robinson / Supervisor Quality Engineer Sr TEL: 315 554 6387 Email: [email protected]

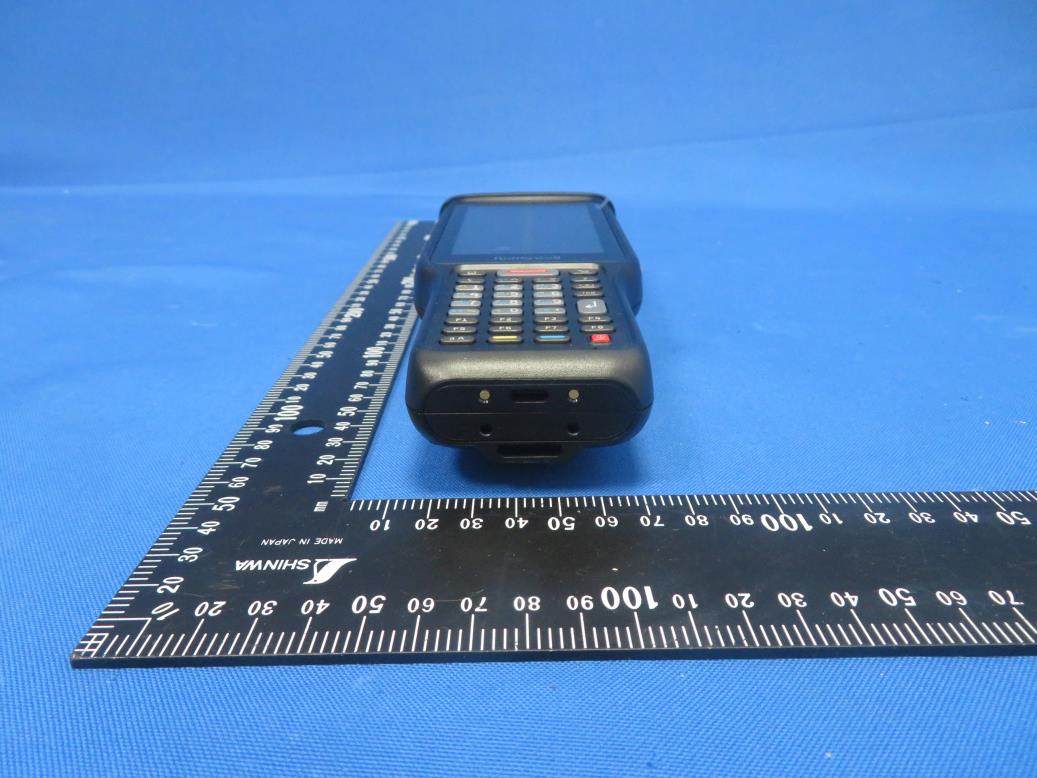

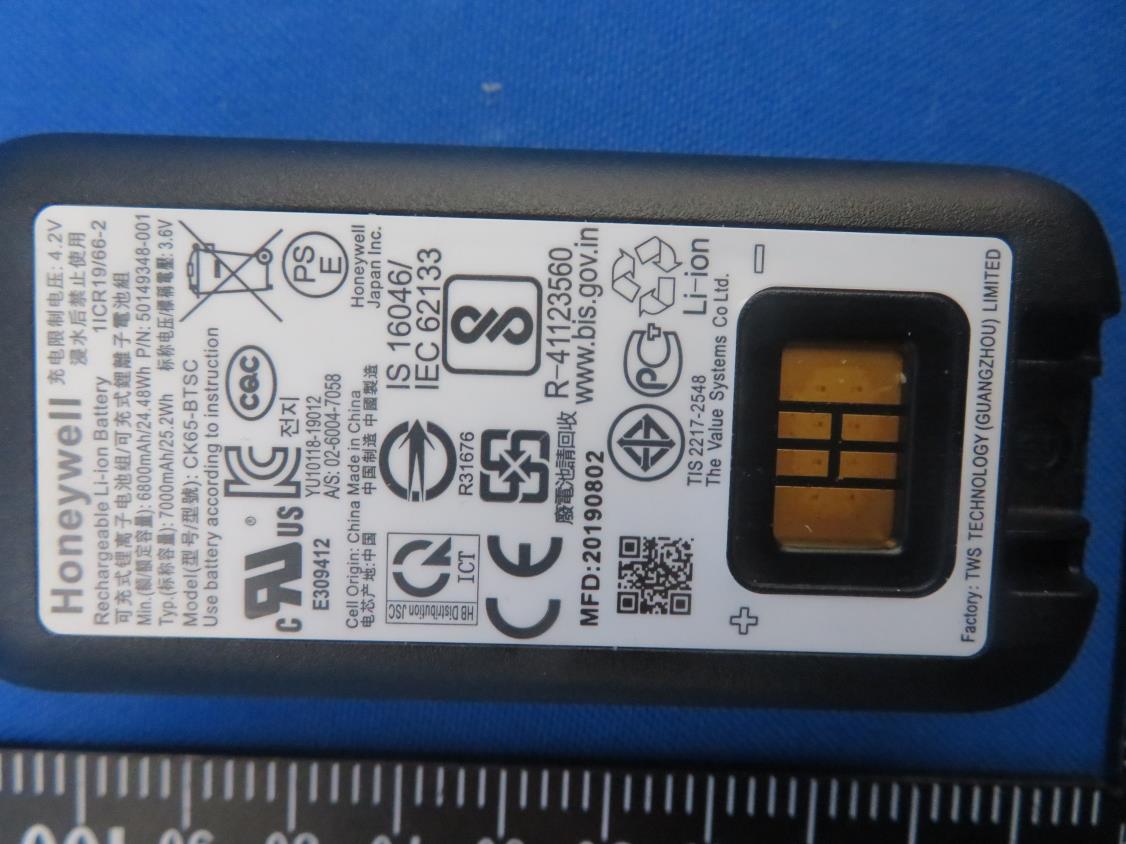

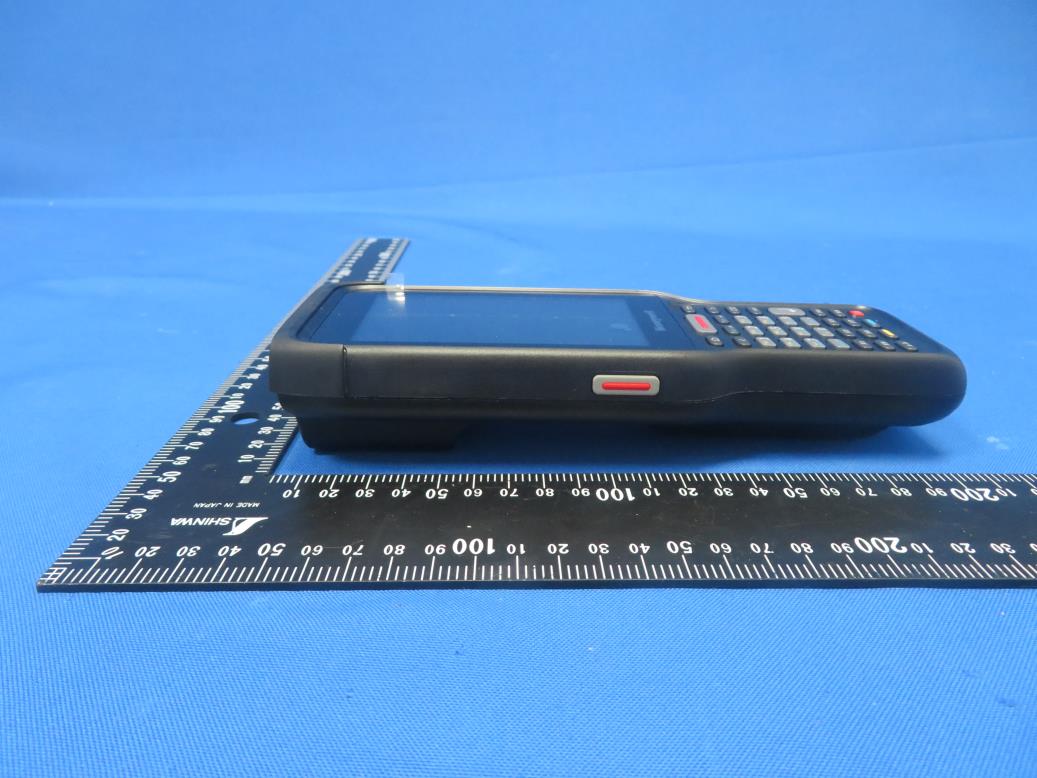

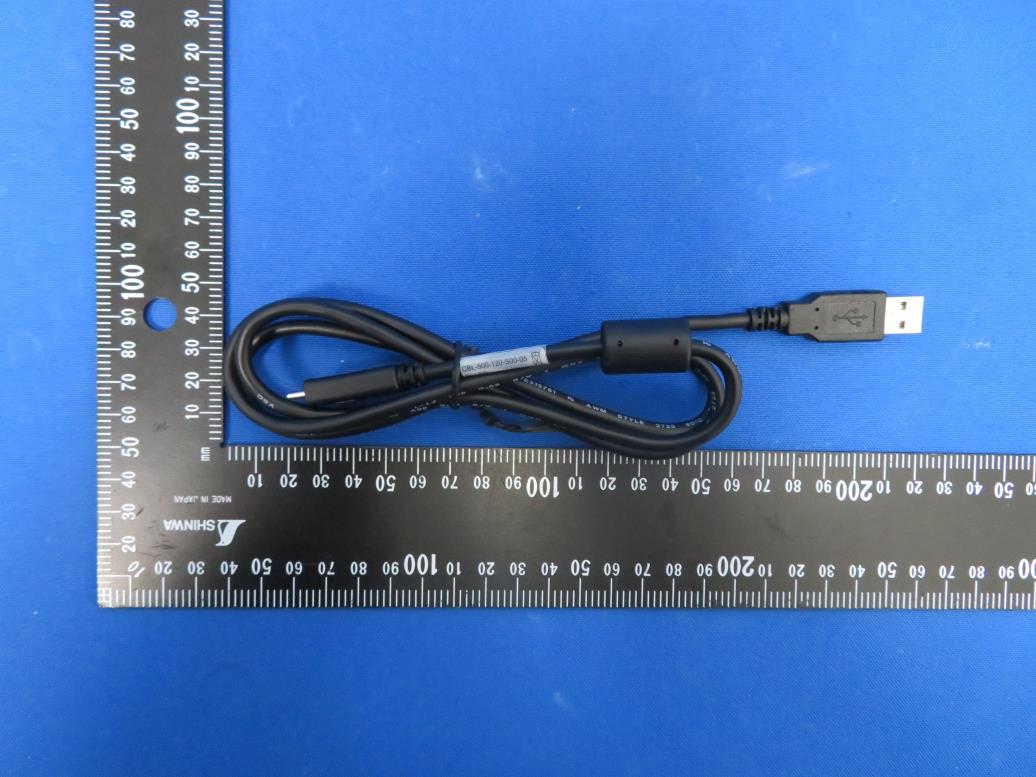

Report No.: 2001RSU045-UE 1 of 7 EUT Photograph (1) EUT Photo (2) EUT Photo (EX20 Engine) Report No.: 2001RSU045-UE 2 of 7 (3) EUT Photo (N6703 Engine) (4) EUT Photo Report No.: 2001RSU045-UE 3 of 7 (5) EUT Photo (6) EUT Photo (EX20 Engine) Report No.: 2001RSU045-UE 4 of 7 (7) EUT Photo (N6703 Engine) (8) EUT Photo Report No.: 2001RSU045-UE 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 2001RSU045-UE 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2001RSU045-UE 7 of 7 (13) EUT Photo (14) EUT Photo

Label Label Location FCC ID: HD5-EDA61K0 IC: 1693B-EDA61K0

Report No.: 2001RSU045-UE 1 of 7 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2001RSU045-UE 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2001RSU045-UE 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2001RSU045-UE 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 2001RSU045-UE 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 2001RSU045-UE 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2001RSU045-UE 7 of 7 (13) EUT Photo (14) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2001RU045-U6 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 03-18-2020 FCC ID: HD5-EDA61K0 Page Number: 1 of 76 FCC ID: HD5-EDA61K0 Applicant: Honeywell International Inc. Honeywell Safety and Productivity Solutions. Application Type: Certification Product: Mobile Computer Model No.: EDA61K-0 Brand Name: Honeywell FCC Classification: Spread Spectrum Transmitter(DSS) Digital Transmission System (DTS) Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): FCC 47 CFR Part 2.1093 Test Procedure(s): IEEE 1528:2013; IEEE C95.1- 2005; KDB 447498 D01v06; KDB 865664 D01v01r04; KDB 248227 D01v02r02 Test Date: February 27 ~ 29, 2020 SAR MEASUREMENT REPORT Reviewed By: ( Jame Yuan ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2001RSU045-U6 FCC ID: HD5-EDA61K0 Page Number: 2 of 76 Revision History Report No. Version Description Issue Date Note 2001RSU045-U6 Rev. 01 Initial Report 03-18-2020 Valid Report No.: 2001RSU045-U6 FCC ID: HD5-EDA61K0 Page Number: 3 of 76 CONTENTS Description Page 1. Introduction ............................................................................................................................ 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ........................................................................................................ 6 2. Product Information ............................................................................................................... 7 2.1. General Description for EUT ......................................................................................... 7 2.2. Product Specification Subjective to this Report ............................................................. 7 2.3. Description of Available Antennas ................................................................................. 8 2.4. Ancillary Equipment ...................................................................................................... 8 3. Summary of Test Result ........................................................................................................ 9 3.1. Test Standards .............................................................................................................. 9 3.2. Environment Condition ................................................................................................. 9 3.3. RF Exposure Limits ...................................................................................................... 9 3.4. Test Result Summary .................................................................................................. 10 4. Specific Absorption Rate (SAR) ........................................................................................... 11 4.1. Introduction .................................................................................................................. 11 4.2. Definition ..................................................................................................................... 11 5. DASY6 Measurement System ............................................................................................. 12 5.1. Introduction ................................................................................................................. 12 5.2. DASY6 Measurement System Diagram ...................................................................... 12 5.3. System Components Details ....................................................................................... 13 6. The SAR Measurement Procedure ..................................................................................... 24 6.1. Measurement Process Diagram.................................................................................. 24 6.2. Test Position Definition ............................................................................................... 25 6.3. Test Procedure ........................................................................................................... 28 7. System Verificaiton .............................................................................................................. 30 7.1. Tissue Check .............................................................................................................. 30 7.2. System Check ............................................................................................................ 32 8. Analysis and Results ........................................................................................................... 34 8.1. Antenna Location ........................................................................................................ 34 8.2. Conducted Power ....................................................................................................... 35 8.3. SAR Exclusion Analysis .............................................................................................. 39 8.4. Required Configurations of SAR Test .......................................................................... 52 Report No.: 2001RSU045-U6 FCC ID: HD5-EDA61K0 Page Number: 4 of 76 8.5. SAR Test Results ........................................................................................................ 53 8.6. Estimated SAR Calculation ......................................................................................…

Text truncated - open the document above for the full version.

Return Loss and Impedance Indicated By Head Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -28.040 -32.17 -14.73% Impedance 53.281Ω + 2.445jΩ 50.10Ω + 2.47jΩ -3.181Ω Real part 0.025Ω Imaginary part Test Date: 2019/05/13 Return Loss and Impedance Indicated By Body Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -28.157 -28.15 -0.01% Impedance 49.783Ω + 3.897jΩ 47.56Ω + 2.96jΩ -2.223Ω Real part -0.937Ω Imaginary part Test Date: 2019/05/13

MRT Technology (Suzhou) Co., Ltd Report No.: 2001RSU045-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 03-06-2020 FCC ID: HD5-EDA61K0 Page Number: 1 of 103 IC: 1693B-EDA61K0 FCC ID: HD5-EDA61K0 IC: 1693B-EDA61K0 APPLICANT: Honeywell International Inc Honeywell Safety and Productivity Solutions Application Type: Certification Product: Mobile Computer Model No.: EDA61K-0 Brand Name: Honeywell FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) ISED Rule(s): RSS-247 Issue 2, RSS-GEN Issue 5 Test Procedure(s): ANSI C63.10-2013 Test Date: February 20 ~ March 02, 2020 MEASUREMENT REPORT FCC PART 15.247 / RSS-247 Bluetooth Reviewed By: ( Jame Yuan ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 2 of 103 IC: 1693B-EDA61K0 Revision History Report No. Version Description Issue Date Note 2001RSU045-U2 Rev. 01 Initial Report 03-06-2020 Valid Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 3 of 103 IC: 1693B-EDA61K0 CONTENTS Description Page CONTENTS ..................................................................................................................................... 3 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Product Specification Subjective to this Report ............................................................. 8 2.3. Operation Frequency / Channel List ............................................................................. 9 2.4. Pseudorandom Frequency Hopping Sequence ........................................................... 10 2.5. Duty Cycle ................................................................................................................... 11 2.6. Test Software ............................................................................................................. 12 2.7. EMI Suppression Device(s) / Modifications ................................................................. 12 2.8. Labeling Requirements ............................................................................................... 12 3. DESCRIPTION of TEST ........................................................................................................ 13 3.1. Evaluation Procedure ................................................................................................. 13 3.2. AC Line Conducted Emissions ................................................................................... 13 3.3. Radiated Emissions .................................................................................................... 14 4. ANTENNA REQUIREMENTS ................................................................................................ 15 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 16 6. MEASUREMENT UNCERTAINTY ......................................................................................... 18 7. TEST RESULT ...................................................................................................................... 19 7.1. Summary .................................................................................................................... 19 7.2. 20dB Bandwidth Measurement ................................................................................... 20 7.2.1. Test Limit ................................................................................................................ 20 7.2.2. Test Procedure Used .............................................................................................. 20 7.2.3. Test Setting ............................................................................................................. 20 7.2.4. Test Setup ............................................................................................................... 20 7.2.5. Test Result .............................................................................................................. 21 7.3. Output Power Measurement ....................................................................................... 25 7.3.1. Test Limit ................................................................................................................ 25 7.3.2. Test Procedure Used .............................................................................................. 25 7.3.3. Test Setting ............................................................................................................. 25 7.3.4. Test Setup ............................................................................................................... 26 Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 4 of 103 IC: 1693B-EDA61K0 7.3.5. Test Result .............................................................................................................. 27 7.4. Ca…

Text truncated - open the document above for the full version.

Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 48 of 103 IC: 1693B-EDA61K0 Operation Frequency Range of 20dB Bandwidth within Hopping Mode DH5 - Channel 00 (2402MHz) DH5 - Channel 78 (2480MHz) 2DH5 - Channel 00 (2402MHz) 2DH5 - Channel 78 (2480MHz) 3DH5 - Channel 00 (2402MHz) 3DH5 - Channel 78 (2480MHz) Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 49 of 103 IC: 1693B-EDA61K0 7.8. Conducted Spurious Emissions Measurement 7.8.1.Test Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. 7.8.2.Test Procedure Used ANSI C63.10-2013 - Section 7.8.8 7.8.3.Test Setting 1. Span = Wide enough to capture the peak level of the in-band emission and all spurious emissions (e.g., harmonics) from the lowest frequency generated in the EUT up through the 10th harmonic. Typically, several plots are required to cover this entire span. 2. RBW = 100kHz 3. VBW = 300kHz 4. Detector = Peak 5. Sweep time = Auto couple 6. Trace mode = Max hold 7. Trace was allowed to stabilize 8. Set the marker on the peak of any spurious emission recorded. The level displayed must comply with the limit specified in this section. Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 50 of 103 IC: 1693B-EDA61K0 7.8.4.Test Setup Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 51 of 103 IC: 1693B-EDA61K0 7.8.5.Test Result Product Mobile Computer Temperature 25°C Test Engineer Gordon Qi Relative Humidity 52% Test Site TR3 Test Date 2020/02/25 Test Mode Channel No. Frequency (MHz) Limit (MHz) Result DH5 00 2402 20dBc Pass DH5 39 2441 20dBc Pass DH5 78 2480 20dBc Pass 2DH5 00 2402 20dBc Pass 2DH5 39 2441 20dBc Pass 2DH5 78 2480 20dBc Pass 3DH5 00 2402 20dBc Pass 3DH5 39 2441 20dBc Pass 3DH5 78 2480 20dBc Pass Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 52 of 103 IC: 1693B-EDA61K0 DH5 Conducted Spurious Emissions Channel 00 (2402MHz) Channel 39 (2441MHz) Channel 78 (2480MHz) Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 53 of 103 IC: 1693B-EDA61K0 2DH5 Conducted Spurious Emissions Channel 00 (2402MHz) Channel 39 (2441MHz) Channel 78 (2480MHz) Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 54 of 103 IC: 1693B-EDA61K0 3DH5 Conducted Spurious Emissions Channel 00 (2402MHz) Channel 39 (2441MHz) Channel 78 (2480MHz) Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 55 of 103 IC: 1693B-EDA61K0 7.9. Radiated Spurious Emission Measurement 7.9.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 & RSS-247 Paragraph 5.5 Frequency (MHz) Field Strength (μV/m) Measured Distance (m) 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.9.2.Test Procedure Used ANSI C63.10 - Section 6.3 (General Requirements) ANSI C63.10 - Section 6.4 (Standard test method below 30MHz) ANSI C63.10 - Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10 - Section 6.6 (Standard test method above 1GHz) 7.9.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000 MHz 1 MHz Report No.: 2001RSU045-U2 FCC ID: HD5-EDA61K0 Page Number: 56 of 103 IC: 1693B-EDA61K0 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = As specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = Auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = Peak 5. Sweep time = Auto couple 6. Trace mode = Max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz (Method VB) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10Hz If the EUT …
