HD5-EDA711Tablet

手持電腦 快速入門指導 手持電腦 主電池（3.8V，鋰離子電池） 監管表 備註： 如果您訂購了終端配件，請確保它們也包含在包裝中; 請務必保留ScanPal EDA71 的原始包裝，以便在必要時返回進行維修 TM 註意： 最終用戶不應隨意將操作系統替換為其他操作系統。 要更新設備上安裝的操作系統， 您需要從操作系統供應商處獲得許可。 系列 TM ScanPal TM EDA71-0/EDA71-1 屬於 ScanPal 系列 前面板 後面板 電源指示燈 麥克風 掃描指示燈 顯示屏 電池蓋安全鎖 揚聲器 掃描引擎 相機 電池蓋安全按鈕 腕帶卡槽 電池蓋摳手 電池蓋 NFC 區域 左側面 右側面 電源键 音量+ 音量- 掃描键 8pin充電觸點 掃描键 用錯誤的型號更換電池可能會導致爆炸。請確保按照當地法規使用電池。請盡可能回收電池。 請勿將其作為生活垃圾處理。將移動設備或電池連接到外部設備時，請確保所有套件幹燥。 連接濕套件造成的損壞不在保修範圍內。 底部 安裝主電池 ScanPal EDA71在單獨的包裝中附帶電池。 TM 請按照以下步驟安裝電池: 按下電池蓋安全按鈕，將電池蓋安全鎖移至右側的解鎖位置 ; 從電池蓋摳手處打開電池蓋; 插入電池（首先插入非連接器側，然後向下按電池以建立電池和電話之間的連接） 按下電池蓋（首先插入非連接器側，然後按下電池蓋） 按下電池蓋安全按鈕，將電池蓋安全鎖移至左側的鎖定位置。 同步通信 備註： 請參閱下頁的插圖安裝步驟。 充電/同步 將ScanPal EDA71插入USB cup或single cradle。 將USB cup或single cradle連接到計算機。 TM TM ScanPal Series Enterprise Hybrid Device (EHD) EDA71-0 EDA71-1 Quick Start Guide EDA71-SC-QS Rev A · ScanPal TM Enterprise Hybrid Device ; · Main battery (3.8V, lithium ion battery); · Regulator sheet. Remarks: If you ordered accessories for the terminal, please make sure they are also included in the package; be sure to keep the original packages for TM ScanPal EDA71 to be returned for repairing when necessary. Note: End users should not arbitrarily replace the operating system with other operating systems. To update operating system installed on your device, you need to get license from the OS vendors. TM EDA71-0/EDA71-1 belongs to ScanPal Series Front Panel Power Indicator Scan Indicator Display Microphone Rear Panel Camera Scan Engine Speaker Battery Cover Safety Lock Battery Cover Safety Button Battery Cover Buckle Handle Battery Cover String Buckle Left Side View The Bottom Right Side View Power Button Volume Up Volume Down Scan Button 8 Pin I/O Connect Scan Button Install the Main Battery Replace the battery with wrong models may cause explosion. Please make sure to use the battery in accordance with local regulations. Please recycle the battery when possible. Do not dispose it as household waste Please ensure all kits are dry when connect the mobile device or battery to external devices. Damages caused by connecting wet kits are not covered by the warranty. 1. Press down the battery cover safety button to move the battery cover safety lock to the unlock position at right; 2. Open the battery cover with the battery cover buckle handle ; 3. Insert the battery (Insert the non-connector side first, then press the battery down to establish connection between the battery and the phone) 4. Press down the battery cover (Insert the non-connector side first, then press the battery cover down) 5. Press down the battery cover safety button to move the battery cover safety lock to the lock position at left Remarks: Refer to the illustrated installation steps on the following page. ScanPal TM EDA71 comes with a battery in a separate package. Please follow the steps below to install the battery. Charging / Sync Synchronous Communication TM Insert the ScanPal EDA71 to the USB cup(or the single cradle). Connect the USB cup(or the single cradle) to the computer. USB Cup NFC ant area Single cradle 充電 將USB cup或single cradle連接到計算機。 TM Using the terminal while charging will significantly extend ScanPal EDA71在使用前至少充電4小時，具體取決於妳的電池型號。充電時使用終端將大大 延長所完全充满需的時間。 TM 警告： 使用終端和電池時，請確保所有組件都是幹燥配件。使用濕組件造成的損壞可能不在保修範圍內。 暫停/喚醒終端 暫停/喚醒終端 To wake up the device from sleep mode, press the power button and 按電源鍵然後松開（少於2秒）。要將設備從睡眠模式喚醒，請按電源鍵然後松開（不到2秒）。 按電源鍵然後松開（少於2秒）。 電源指示 TM ScanPal EDA71 非充電和充電過程中電源指示燈的狀態如下圖所示： /非充電状态 /關 /電池電量正常 /閃橘色 /電池電量低 /充電状态 /電池異常 /橘色 /閃綠色 /充電完成 /恒綠色 /充電中，電量接近滿充 still low /充電中，電量低 /閃紅色 安裝存儲卡 暫停/喚醒終端 按下電池蓋安全按鈕，將鎖移至解鎖位置在右邊的位置; 關機； 從電池蓋扣柄處打開電池蓋； 取出電池（先掀開電池連接器側，然後取出電池； 將SD卡插入SD卡插槽，直至聽到咔嗒聲; 插入電池（先插入非連接器側，再按下電池，使電池和終端連接）; 按下電池蓋（先插入非連接器側，然後按壓電池蓋）; 按下電池蓋安全按鈕，將電池蓋安全鎖移動到左側鎖定位置; 開機。 /SD 存儲卡 安裝Micro SIM卡 按下電池蓋安全按鈕，將鎖移至解鎖位置在右邊的位置; 關機； 從電池蓋扣柄處打開電池蓋； 取出電池（先掀開電池連接器側，然後取出電池； 掀開Micro-SIM橡膠蓋，插入Micro SIM卡，直到聽到哢嗒聲; 插入電池（先插入非連接器側，再按下電池，使電池和終端連接）; 按下電池蓋（先插入非連接器側，然後按壓電池蓋）; 按下電池蓋安全按鈕，將電池蓋安全鎖移動到左側鎖定位置; 開機。 1. 2. Press down the battery cover safety button to move the lock to the unlock position at right; 3. Open the battery cover with the battery cover buckle handle ; 4. Pull out the battery (First open the battery connector side, then pull out the battery) 5. Open the rubbercover of the SIM card slot and insert the Micro SIM card until it clicks; 6. Insert the battery (Insert the non-connector side first, then press the battery down to establish connection between the battery and the phone); 7. Press down the battery cover (Insert the non-connector side first, then press the battery cover down); 8. Press down the battery cover safety button to move the battery cover safety lock to the lock position at left; 9. Power on Power o; Micro SIM Card /Micro SIM 存儲卡 使用掃描引擎 將瞄準光束对准條形碼，調整瞄準光束与条形码之間的角度以獲得最佳效果。推荐終端到机到條形碼 的距离是4“到10”（10厘米到25厘米）。 to the barcodes is 4" to 10" (10cm to 25cm). 点擊界面上應用程序，選擇掃描演示程序; 从屏幕上点击掃描或按住掃描键 ; 將ScanPal EDA71 终端机對准條形碼; 調整瞄準光束：為了獲得最佳性能，請避免以微小角度，通过掃描條形碼的反射，緩慢移動條形碼 上的光束； 當條形碼成功解碼時，終端發出蜂鳴聲,條形碼的信息被終端設備獲得。 /掃描引擎 TM 瞄準光束 瞄準光束在終端機靠近條形碼時變窄，在終端機遠離條形碼時變寬。 掃描光束位置 技術支持 对于本文件的本地版本，請訪問www.honeywellaidc.com 有關專利的信息，請訪問www.honeywellaidc.com/patents 保修期限 用戶文档 專利 請登錄www.honeywellaidc.com/warranty_information獲取您产品的保修信息。 免责声明 （霍尼韋爾國際公司）保留在事先没有通知的情况下改变规格和其他信息的权利。读者应该随时咨询 霍尼韋爾國際公司，以确定是否已经做出这种变化。本文中的信息并不是霍尼韋爾國際公司承诺的一 部分。霍尼韋爾國際公司不承担技术、编辑错误或遗漏所造成的直接和间接损失。 本文档包含受版权保护的专有信息，保留所有权利。在没有霍尼韋爾國際公司事先书面同意的情况下， 本文档的任何部分不得复印、复制，或翻译成另一种语言。 網站：www.honeywellaidc.com 霍尼韋爾國際公司保留所有权利 Charging / Sync Charging TM 1. Insert the ScanPal EDA71 to the USB cup（or the single cradle）; 2. Connect the USB cup（or the single cradle） to the power adapter; 3. Make sure the replaceable adapter plug plugged into the power adapter; 4. Connect the power adapter to the wall plug and start charging for ScanPal TM EDA71. Get ScanPal TM EDA71 charged for at least 4 hours before using it, subject to your battery models. the time required for fully charged. Replaceable adapter plug Power adapter USB Cup Suspend / Wake Up the Terminal Suspend / Wake Up the Terminal Press the …

Text truncated - open the document above for the full version.

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Declaration of Authorization We Name: Honeywell International Inc Honeywell Safety and Productivity Solutions Address: 9680 Old Bailes Rd. Fort Mill, SC 29707 United States Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Tablet Type designation: EDA71-1 Trademark: Honeywell FCC ID: HD5-EDA711 on our behalf. Signature: Name/Title: Mandana Salahshour / Compliance Manager Honeywell International Inc TEL: +1 8038358190-8190 Email: [email protected] 2020-08-11

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: HD5-EDA711 Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Turn-up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until (180 days): External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Signature Date: 2020/08/11 Name/Title: Mandana Salahshour / Compliance Manager TEL: +1 8038358190-8190 Email: [email protected]

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com 9680 Old Bailes Rd. Fort Mill, SC 29707 United States Statement for Label Requirement Date: August 11, 2020 We state that the label of our device, FCC ID: HD5-EDA711 will be put in the battery compartment. The label is visible to the users as they purchase the Tablet and install the SD card. Sincerely, Name: Mandana Salahshour Position: Compliance Manager Honeywell International Inc Honeywell Safety and Productivity Solutions

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Non-SDR (Software Defined Radio) Cover Letter Date: August 11, 2020 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Yes - go to 2. No, not an SDR Reply: Yes 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Reply: No 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? Yes, - go to 4. No - go to 5. Reply: No 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. No, must be an SDR. 5. Does the manufacturer elect SDR? Yes, elects to be an SDR. No, Not an SDR Reply: No Final conclusion: This product shall be approval as a Non-SDR which is declared by the applicant. Sign by: Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Print Name: Mandana Salahshour Title: Compliance Manager

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com 9680 Old Bailes Rd. Fort Mill, SC 29707 United States Date: August 11, 2020 Federal Communications Commission Authorization and Evaluation Division FCC ID: HD5-EDA711 To Whom It May Concerm: This letter is to ascertain that the following information of applicant, product with model(s) have been the units used for conducting FCC compliance testing, the sDoC part will be tested by FCC recognized test lab. Product: Tablet Model: EDA71-1 If you have any question or concerns, pls. contact us. Signature: Name: Mandana Salahshour / Compliance Manager Position: Product Compliance Honeywell International Inc Honeywell Safety and Productivity Solutions

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Client Declaration Letter Date: August 11, 2020 FCC ID: HD5-EDA711 We have declared below featured for device identified as (1) DFS Device —— Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , ad hoc mode access point capability (3) Country code selection capability to end user- Yes ， No If yes, pls explain how it was implemented: (pls also help to provide detail of options for each country selection) (4) Meet Part 15.202 requirement - Yes , No , * A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can’t be modified by end user or an installer. Apply No Apply (If apply, pls help to provide explanation on it was implement, and how software was controlled). Name: Mandana Salahshour Position: Compliance Manager Honeywell International Inc Honeywell Safety and Productivity Solutions Frequency Client Ad Hoc ModeAccess pointWiFi Direct WiFi Direct Band (MHz) Mode capabilityCapabilityGroup Owner Group Client 2412 - 2462 Yes YesYesYesYes 5180 - 5240 Yes No No No No 5260 - 5320 Yes No No No No 5500 - 5720 Yes No No No No 5745 - 5825 Yes No No No No

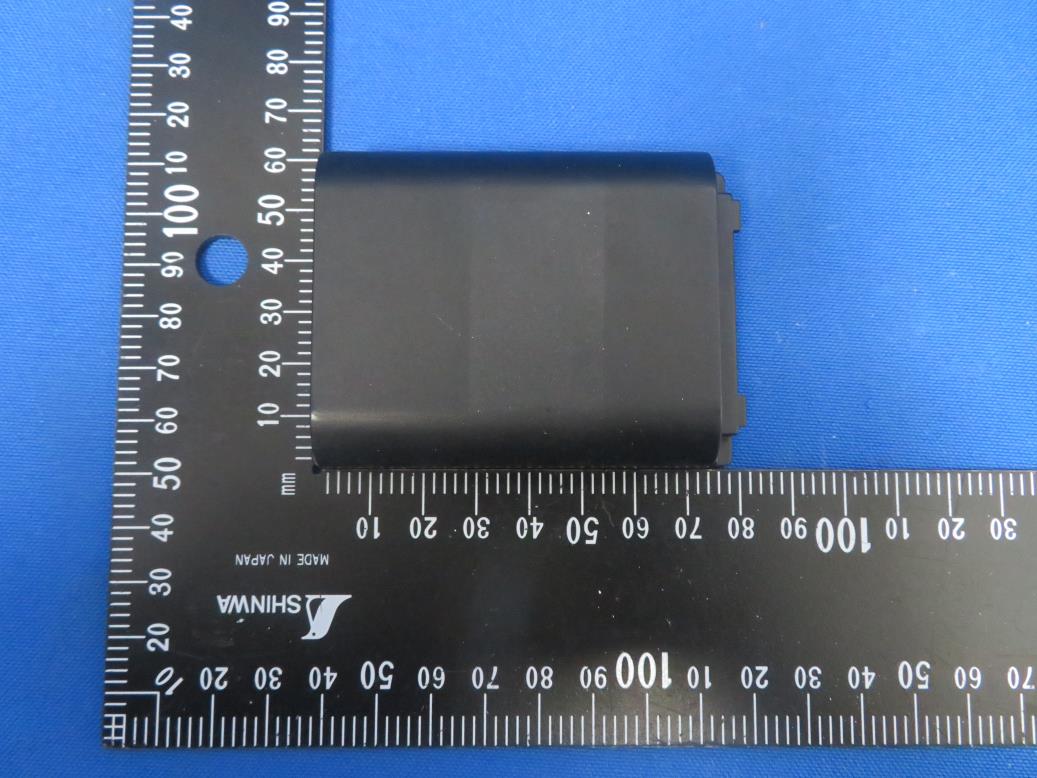

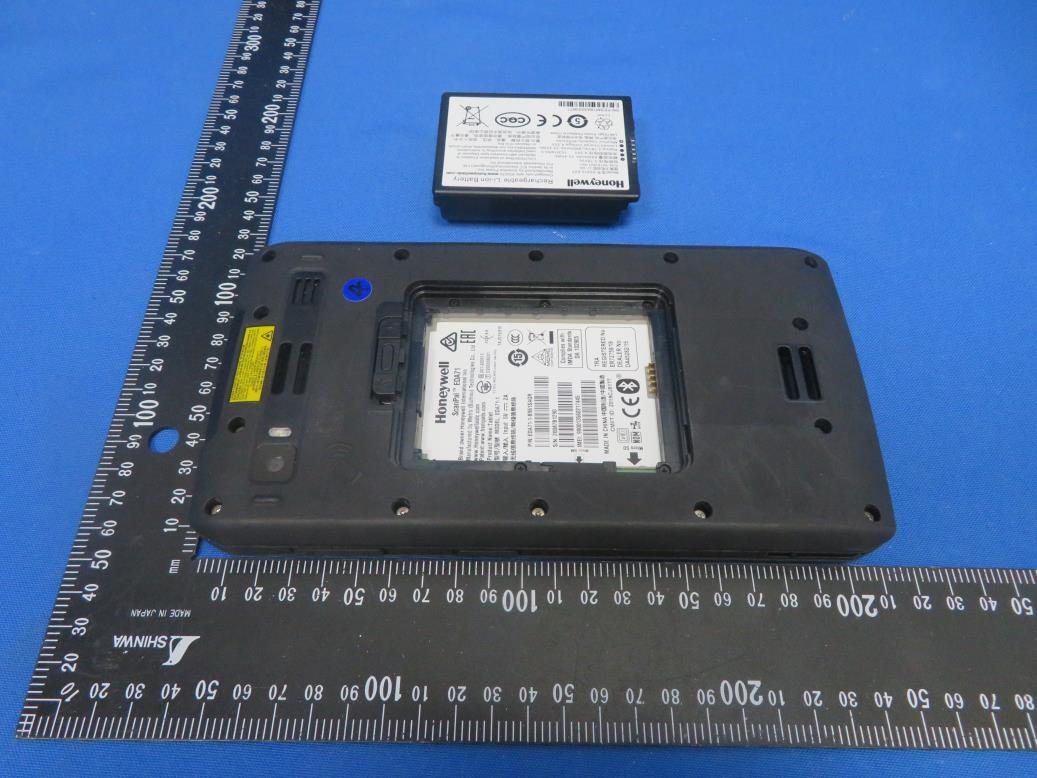

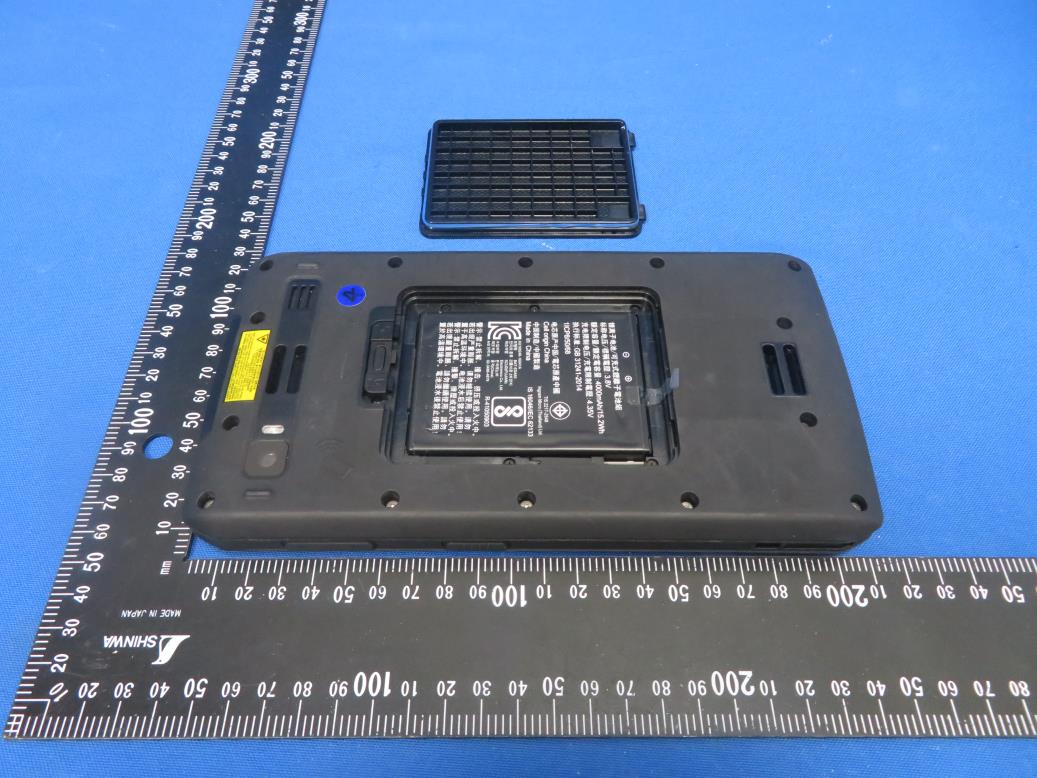

Report No.: 2001RSU044-UE 1 of 10 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2001RSU044-UE 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 2001RSU044-UE 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 2001RSU044-UE 4 of 10 (7) EUT Photo (8) EUT Photo Report No.: 2001RSU044-UE 5 of 10 (9) EUT Photo (Battery 1#) (10) EUT Photo (Battery 1#) Report No.: 2001RSU044-UE 6 of 10 (11) EUT Photo (12) EUT Photo Report No.: 2001RSU044-UE 7 of 10 (13) EUT Photo (14) EUT Photo (Battery 2#) Report No.: 2001RSU044-UE 8 of 10 (15) EUT Photo (Battery 2#) (16) EUT Photo Report No.: 2001RSU044-UE 9 of 10 (17) EUT Photo (18) EUT Photo Report No.: 2001RSU044-UE 10 of 10 (19) EUT Photo
